Battery System & Charging System: Charging: Specifications: Generator

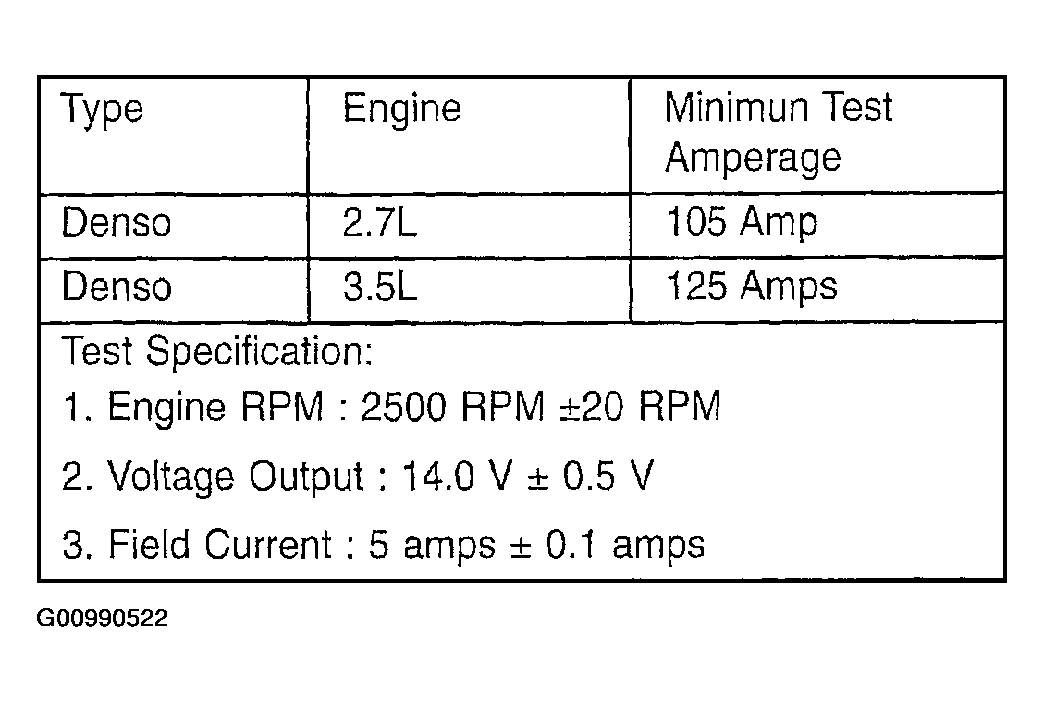

Fig 1: Identifying Generator Specifications
G00990522Courtesy of DAIMLERCHRYSLER CORP.
