Specifications - Torque

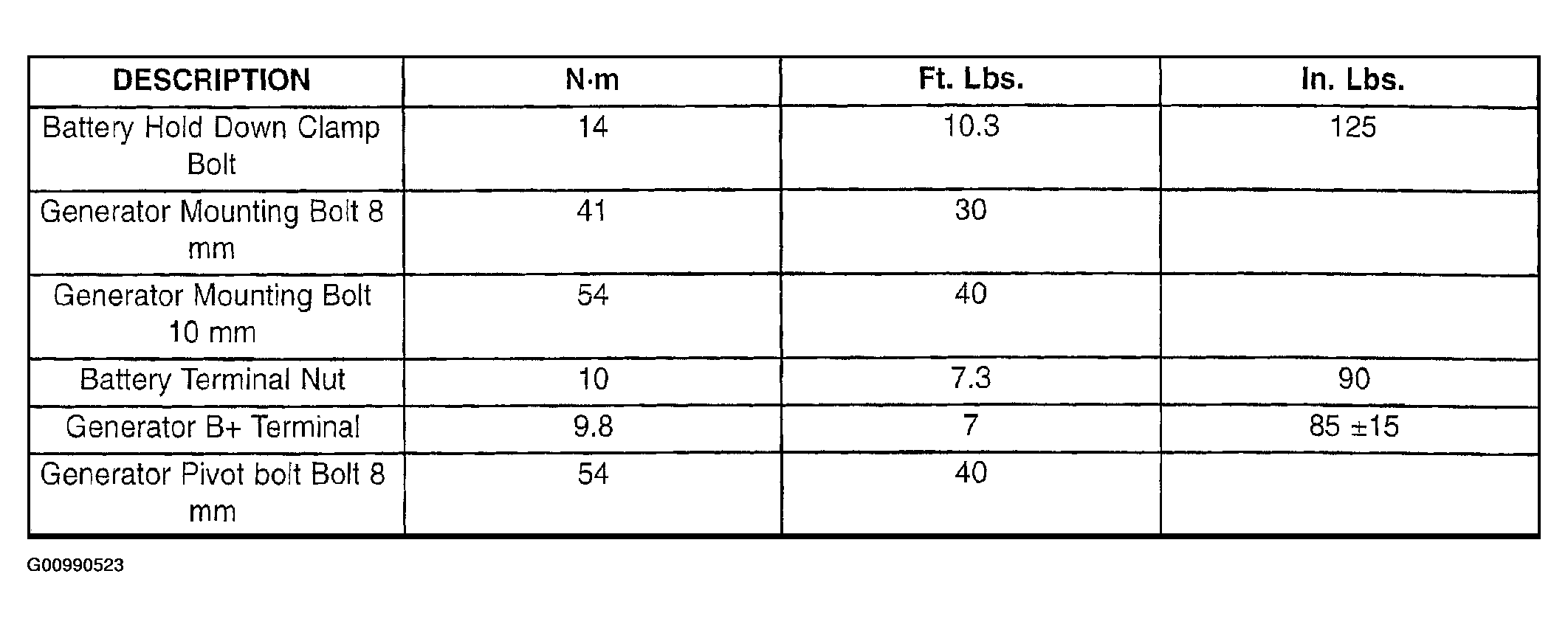

Fig 1: Generator Torque Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
