Removal - 3.5L

  1. Disconnect negative battery cable (Fig 1).

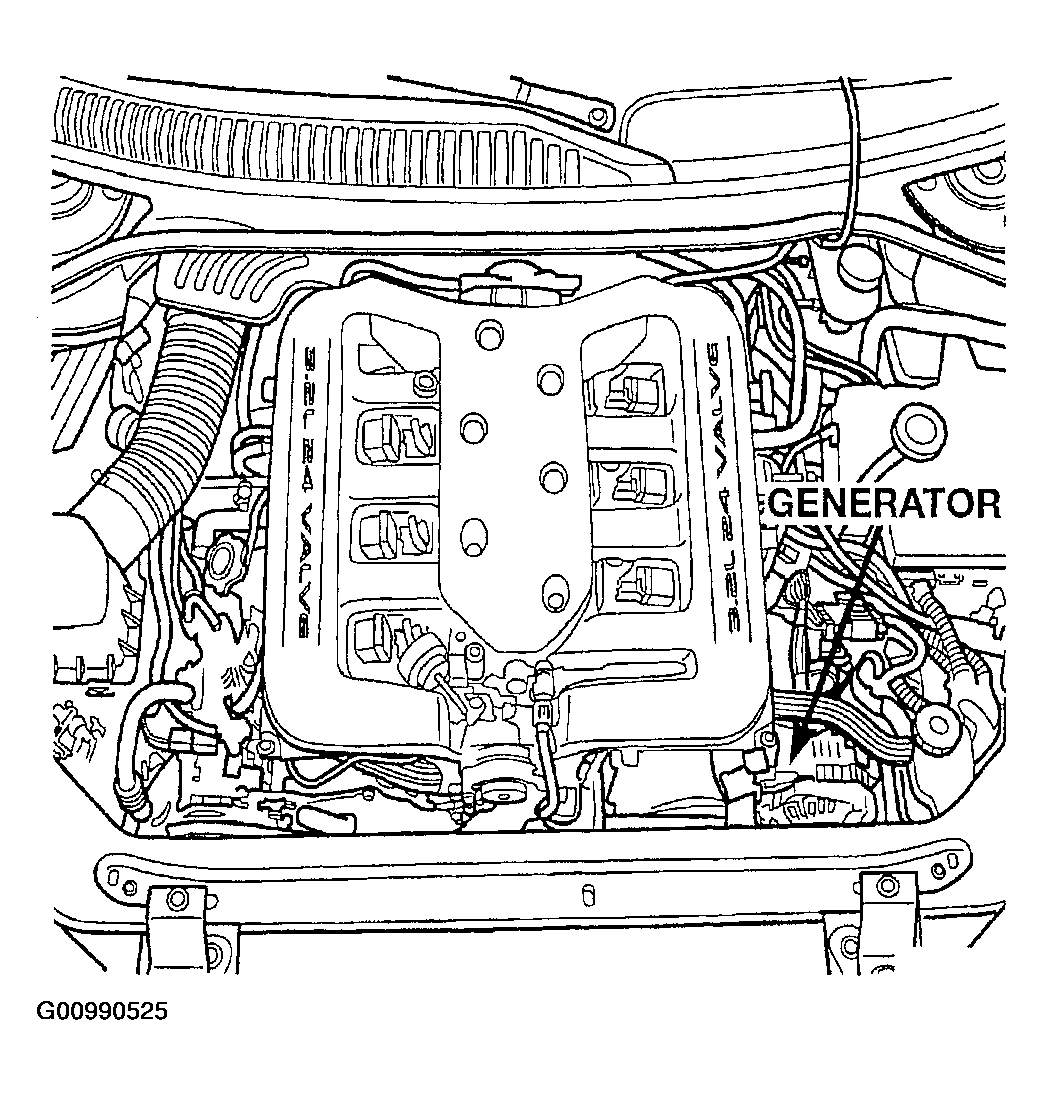

    Fig 1: Removing Generator (3.5L)
    G00990525Courtesy of DAIMLERCHRYSLER CORP.
  2. Loosen lower mounting bolt do not remove.
  3. Remove the upper radiator support and relocate.
  4. Loosen the lower mounting bolt, but do not remove
  5. Loosen pivot bolt, but do not remove.
  6. Loosen belt adjustment bolt.
  7. Remove the generator drive belt. Refer to GENERATOR/POWER STEERING BELT .
  8. Remove lower mounting bolt.
  9. Disconnect the generator field circuit plug.
  10. Remove the B+ terminal nut and wire.
  11. Remove pivot bolt.
  12. Remove generator.
