Muffler/Front Resonator Assembly: Installation

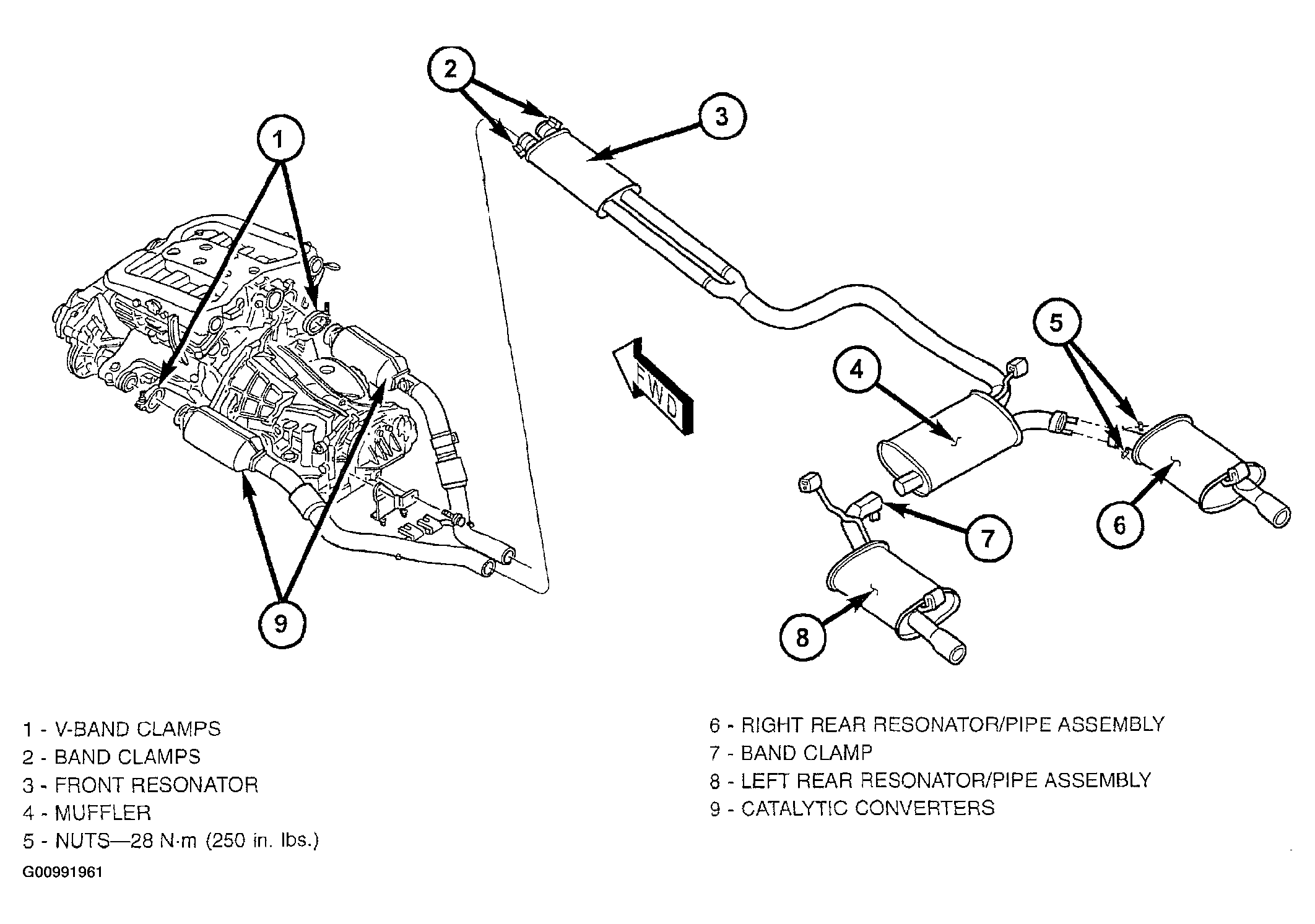

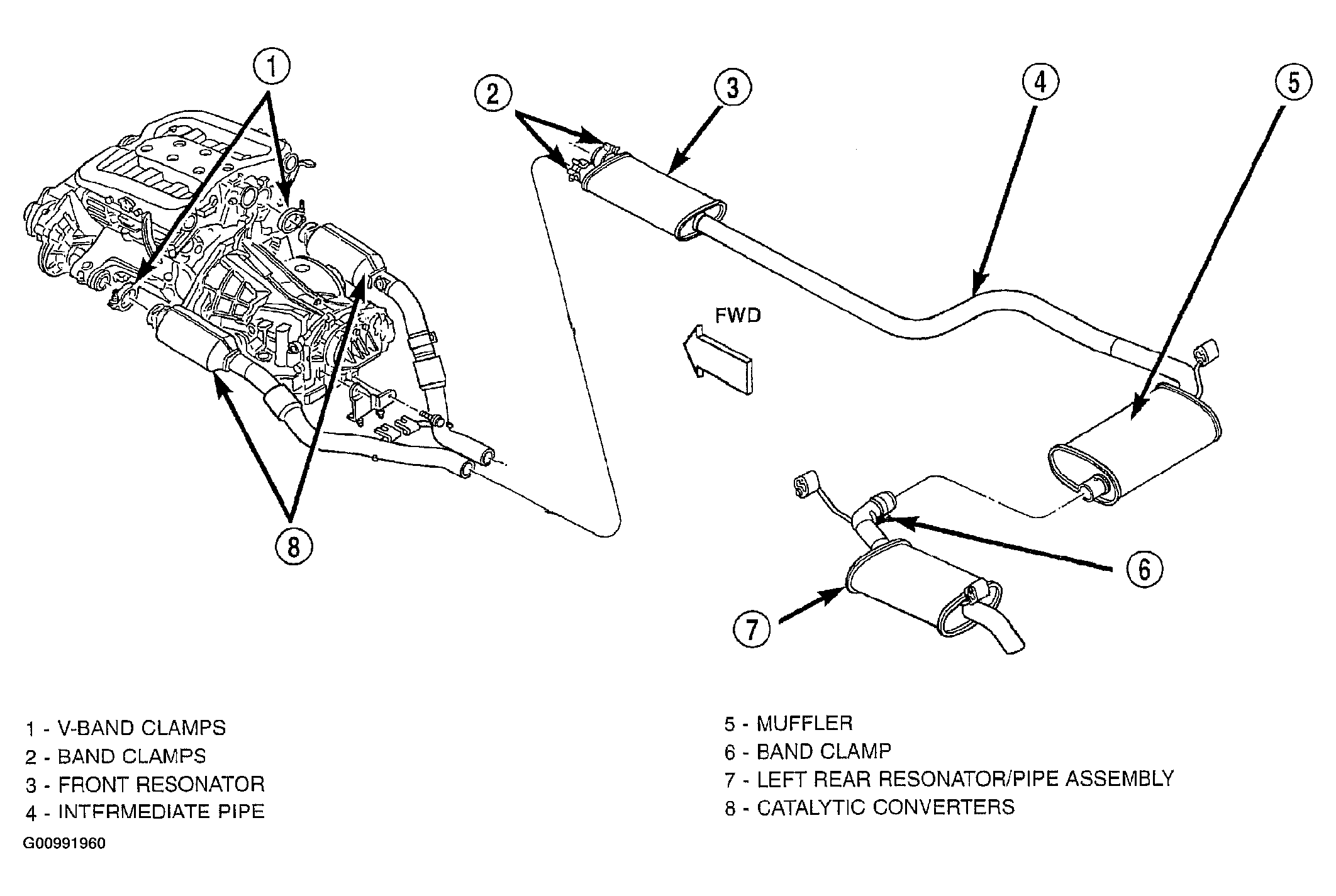

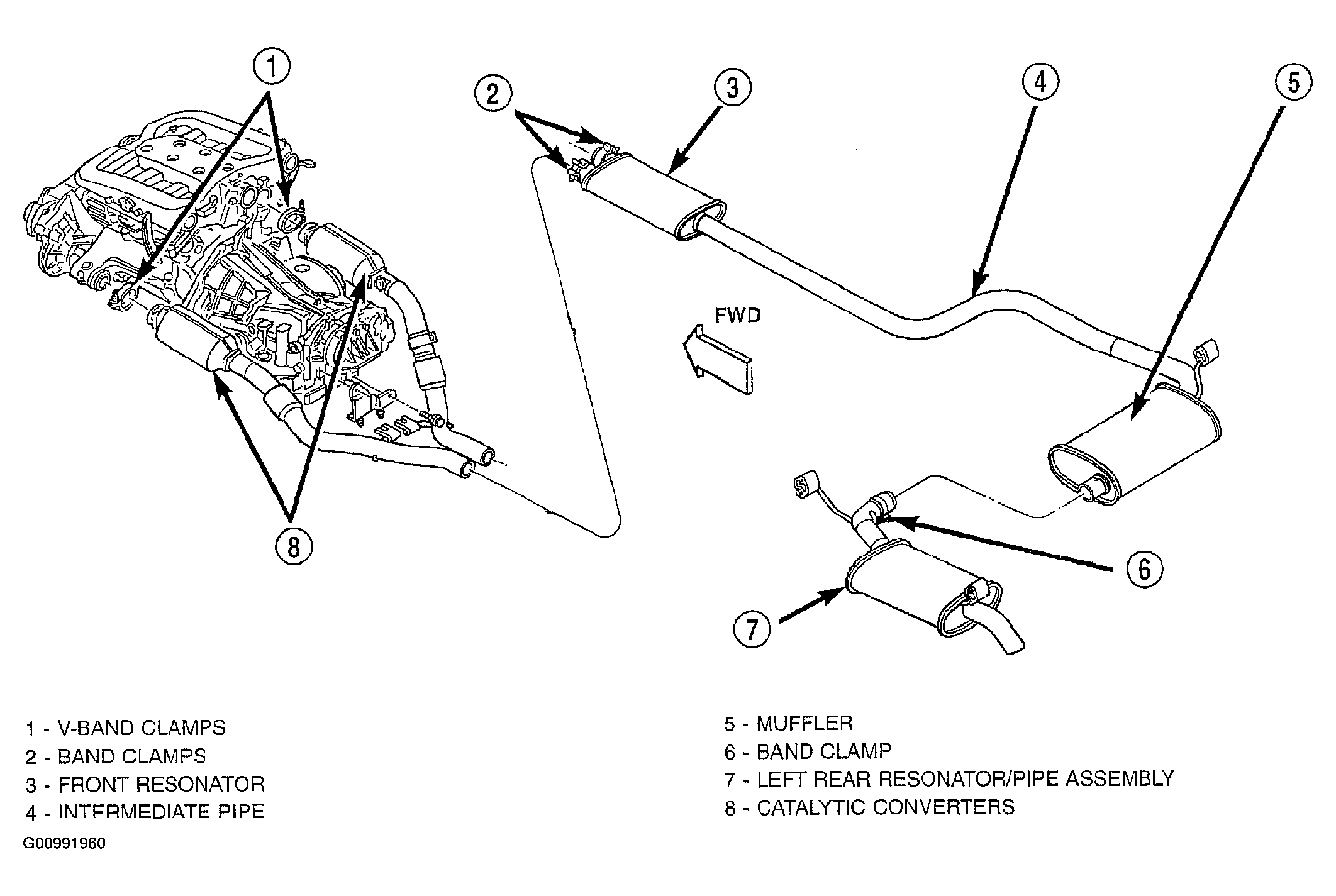

  1. Install left rear resonator/pipe onto new muffler/front resonator (Figure) or (Figure), but do not tighten clamp until exhaust system is installed on vehicle.

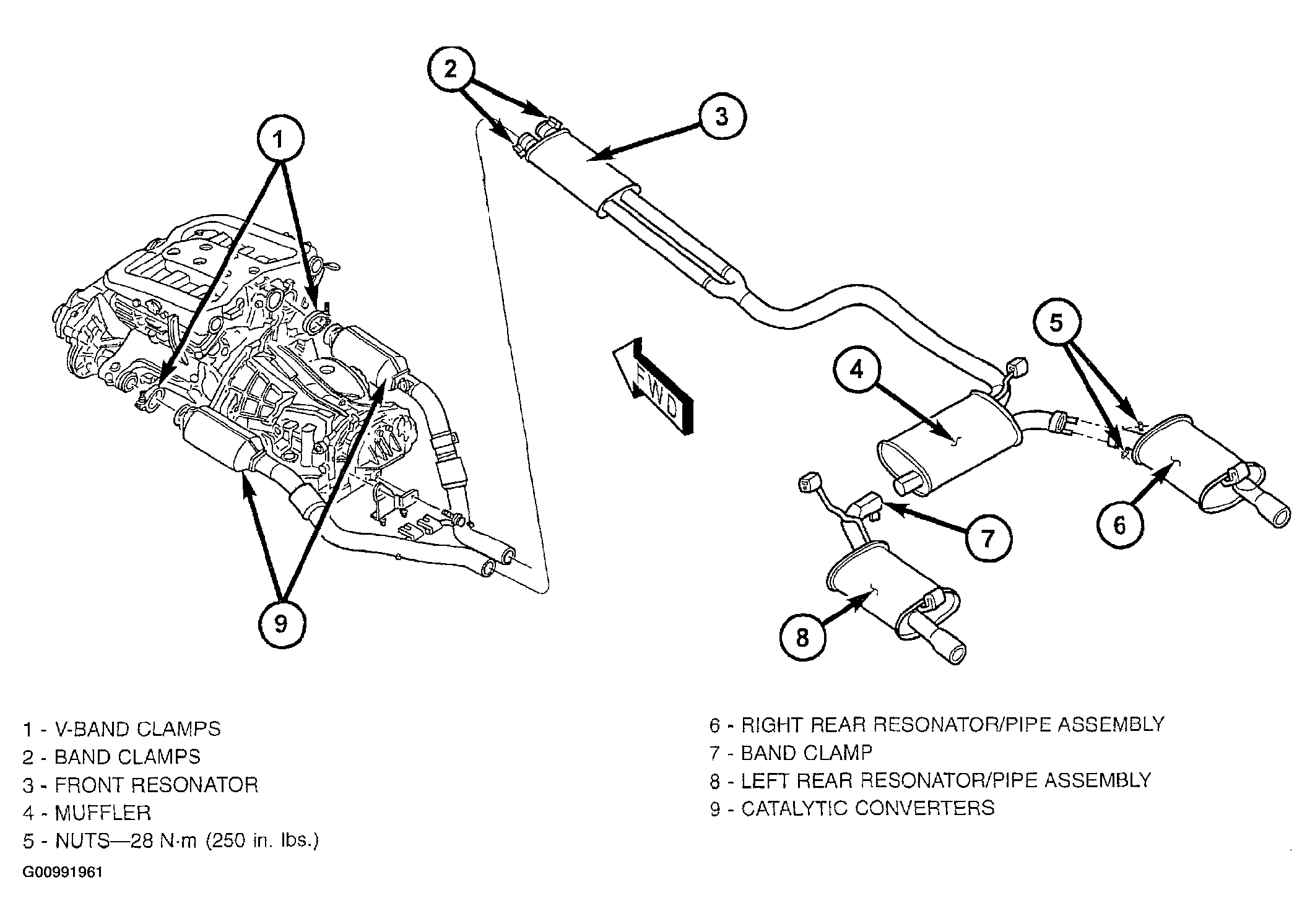

  2. 300M Special: Install right rear resonator/pipe onto new muffler/front resonator (Figure), but do not tighten nuts until exhaust system is installed on vehicle.
  3. Install exhaust system (Refer to INSTALLATION - EXHAUST SYSTEM )
  4. Align exhaust components for proper clearance.
  5. Tighten all exhaust band clamps to 61 N.m (45 ft. lbs.)
  6. 300M Special: Tighten right rear resonator/pipe nuts to 28 N.m (250 in. lbs.) (Figure).
