Engine 2.7L: Description

The 2.7 Liter (167 Cubic Inches) 60 degree V-6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig 1). The engine does not have provisions for a free wheeling valve train.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig 2). The firing order is 1-2-3-4-5-6.

The engine identification number is located on the rear of the cylinder block just below the left cylinder head (Fig 3)

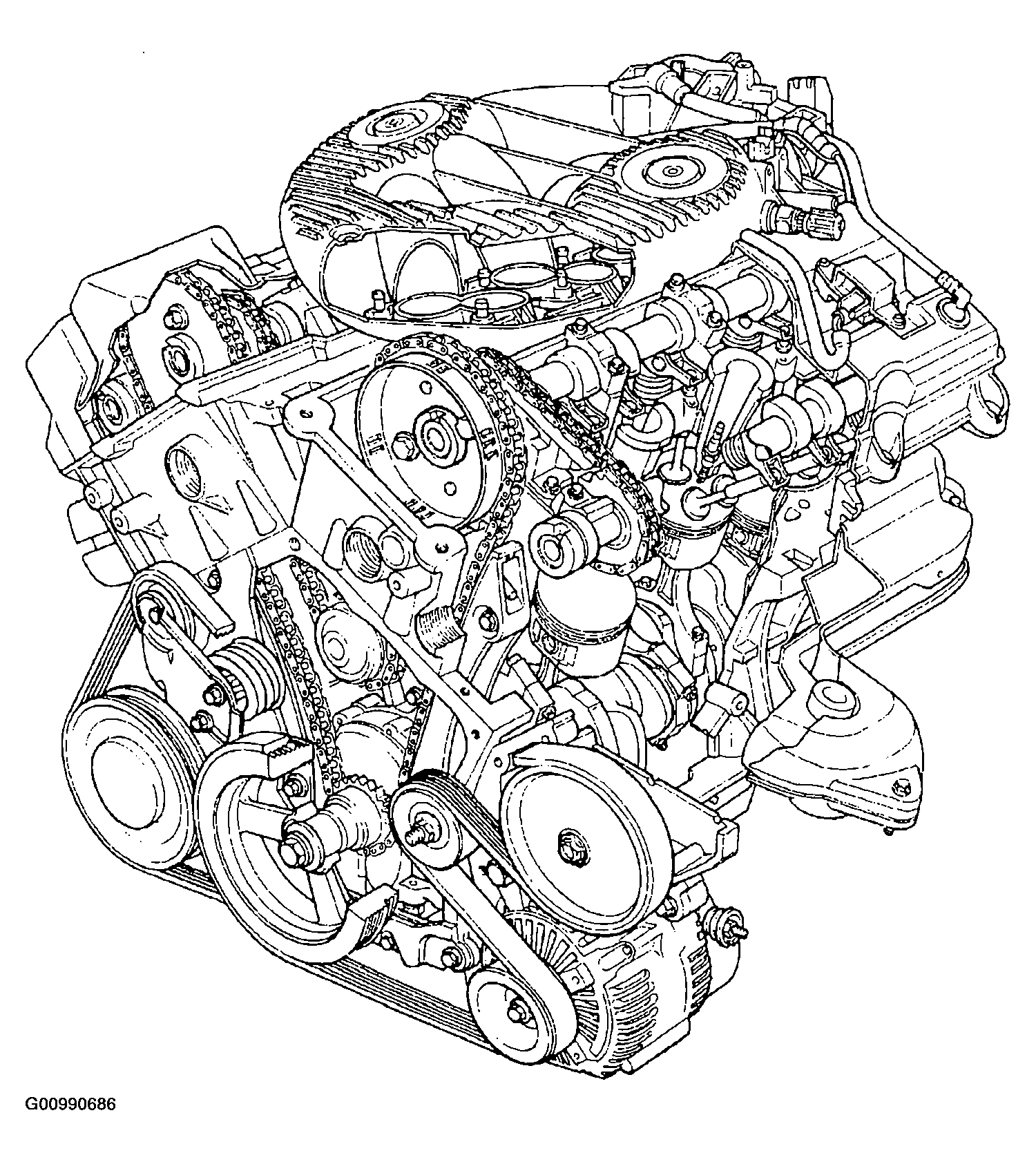

Fig 1: Identifying 2.7 Liter Engine

Courtesy of DAIMLERCHRYSLER CORP.

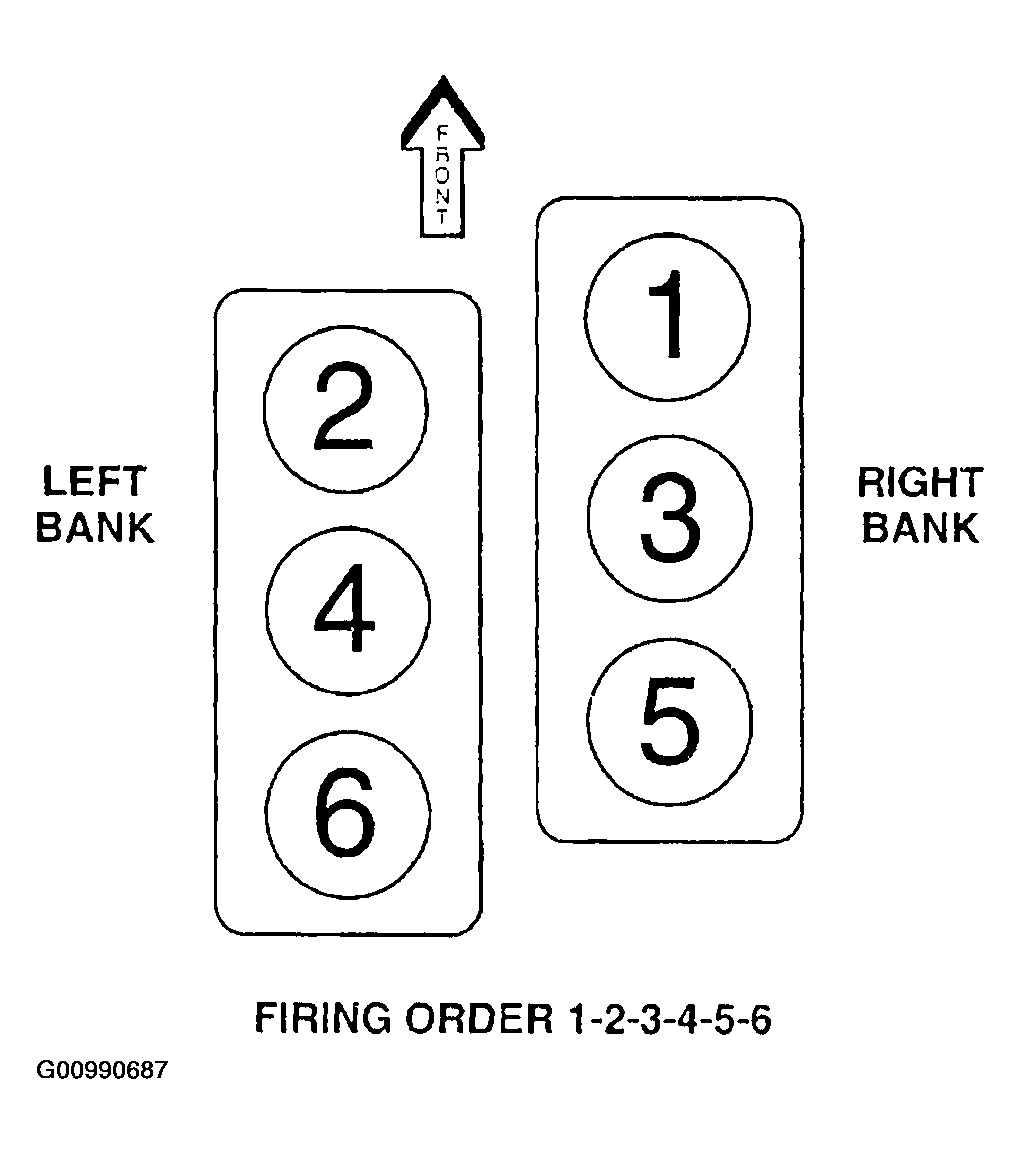

Fig 2: Identifying Cylinder Numbering & Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

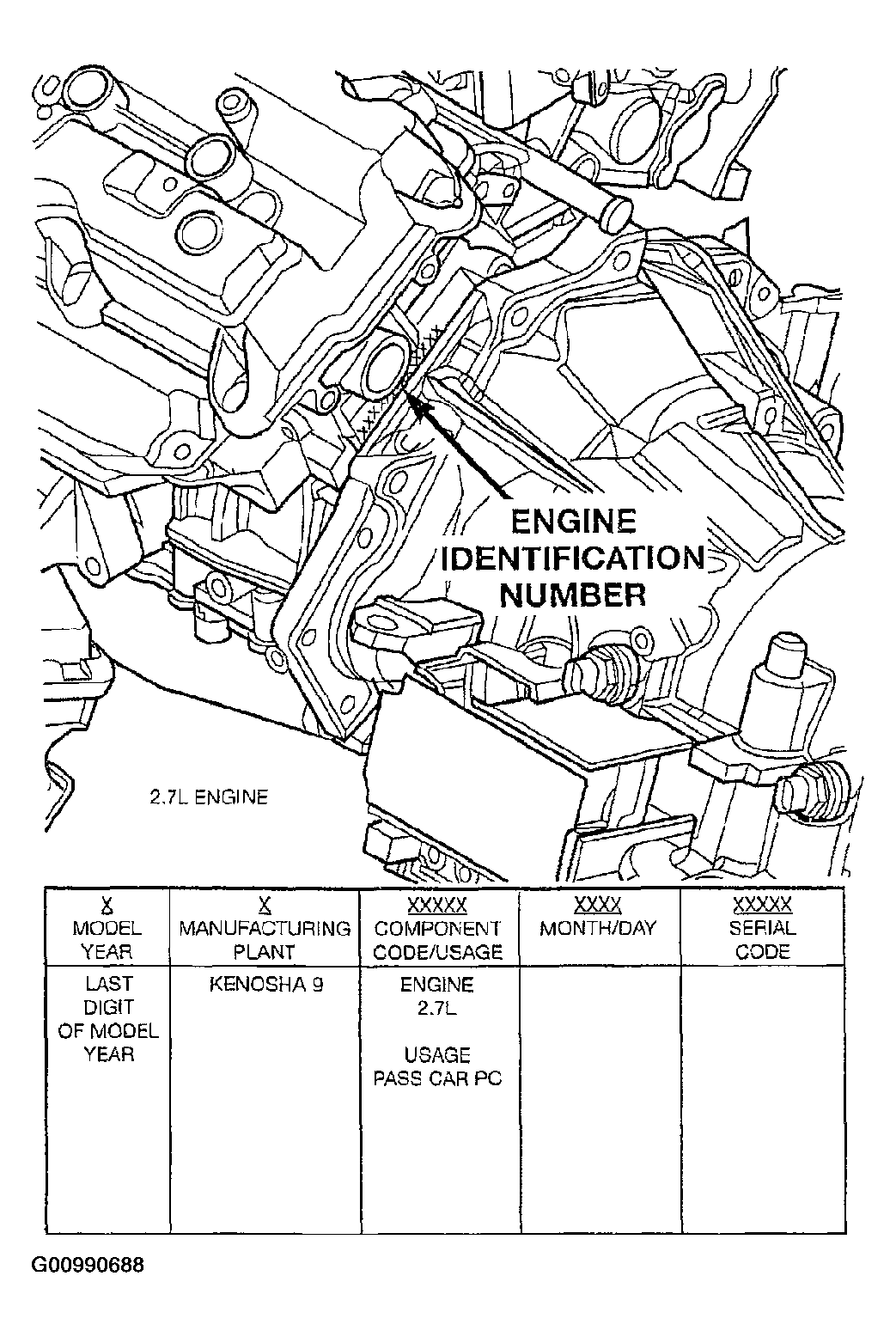

Fig 3: Locating Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.
