Right Mount: Removal
- Raise vehicle on hoist.

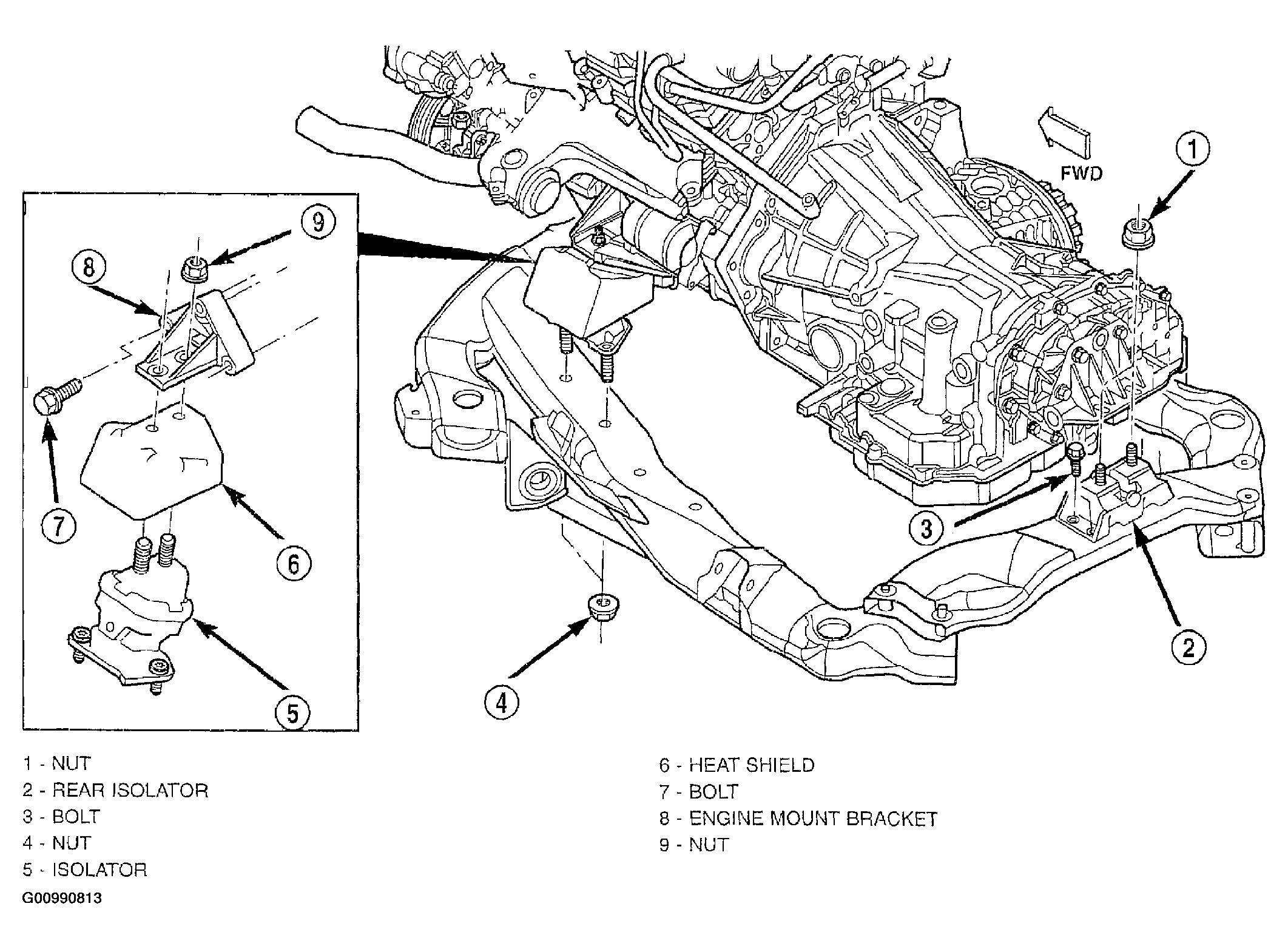

- Remove the isolator attaching nuts from top of the mounting bracket (Fig 1).
- Support the engine with a jack and a block of wood across the full width of the oil pan.
- Remove the lower attaching nuts from the bottom of the isolator to the frame (Fig 1).
- Raise engine carefully with jack enough to remove the isolator with heat shield from its mount.
