Valve Springs: Description

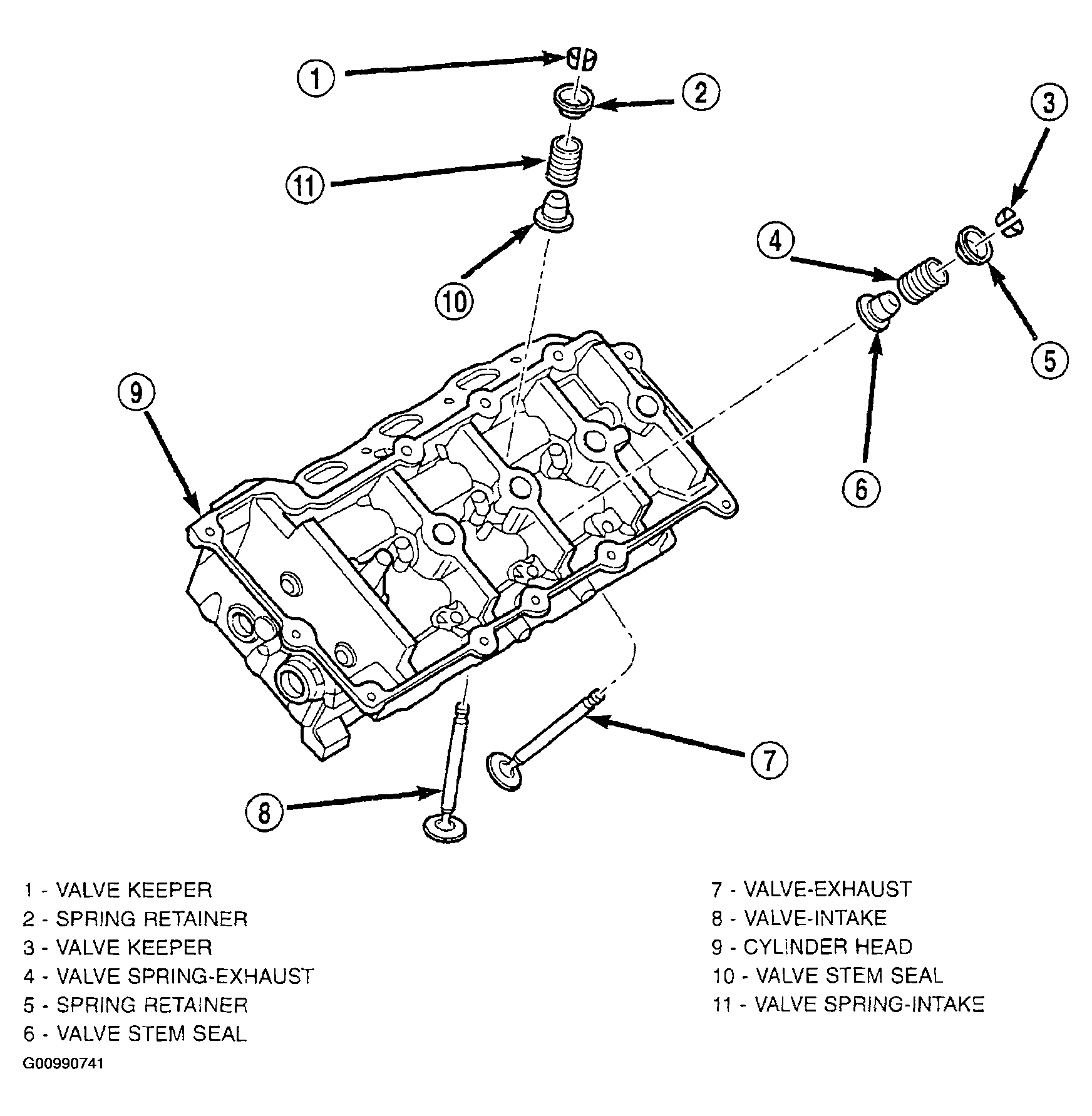

The valve springs are made from high strength, chrome-silicon steel (Figure). The springs are common for intake and exhaust applications. The valve spring seat is integral with the valve stem seal, which incorporates a garter spring to maintain consistent lubrication control to the valve stem.
