BCM Harness Connector End View

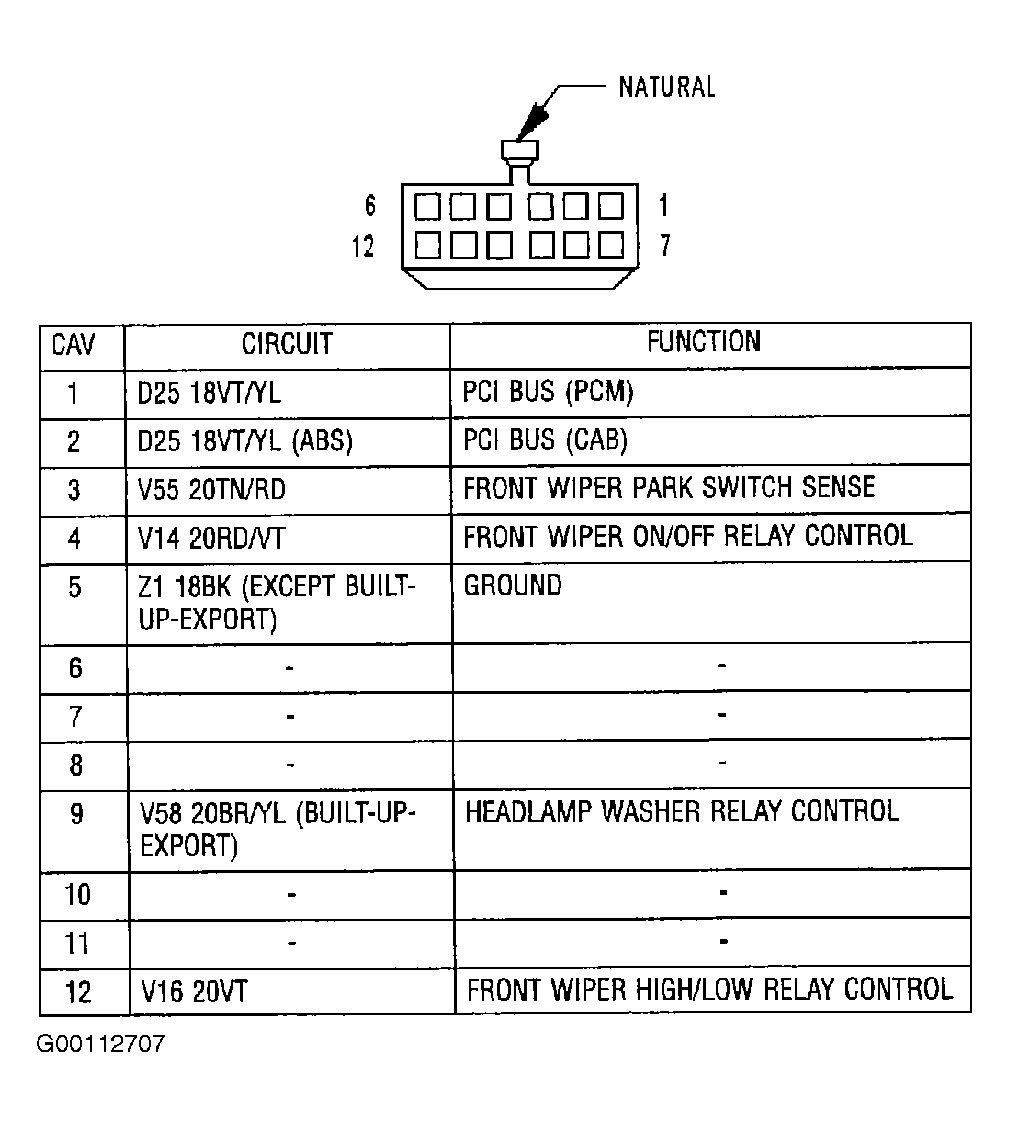

Fig 1: Identifying BCM C3 Harness Connector
G00112707Courtesy of DAIMLERCHRYSLER CORPORATION

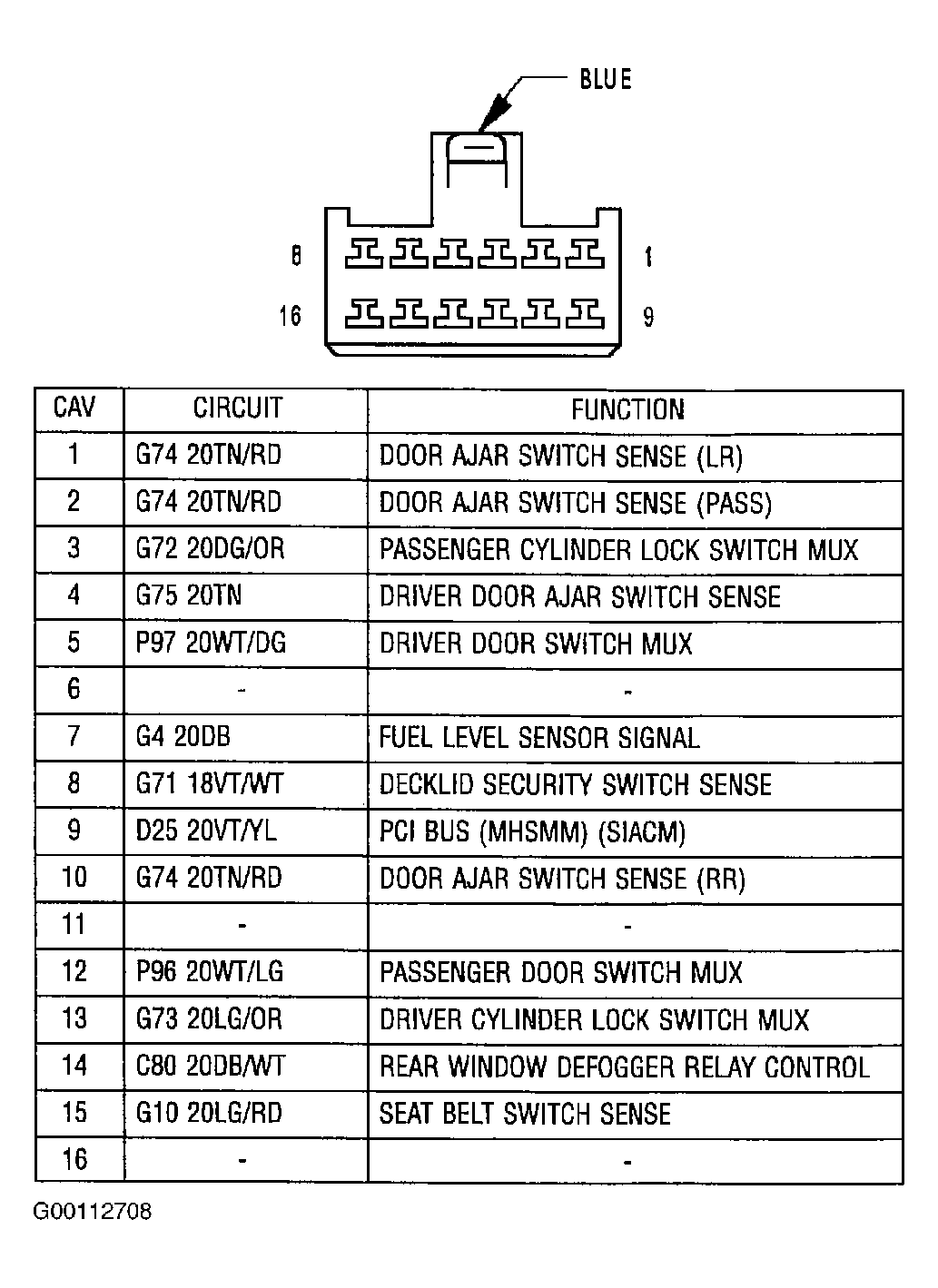

Fig 2: Identifying BCM C4 Harness Connector
G00112708Courtesy of DAIMLERCHRYSLER CORPORATION
