Brake Transmission Shift Interlock Solenoid Harness Connector End View

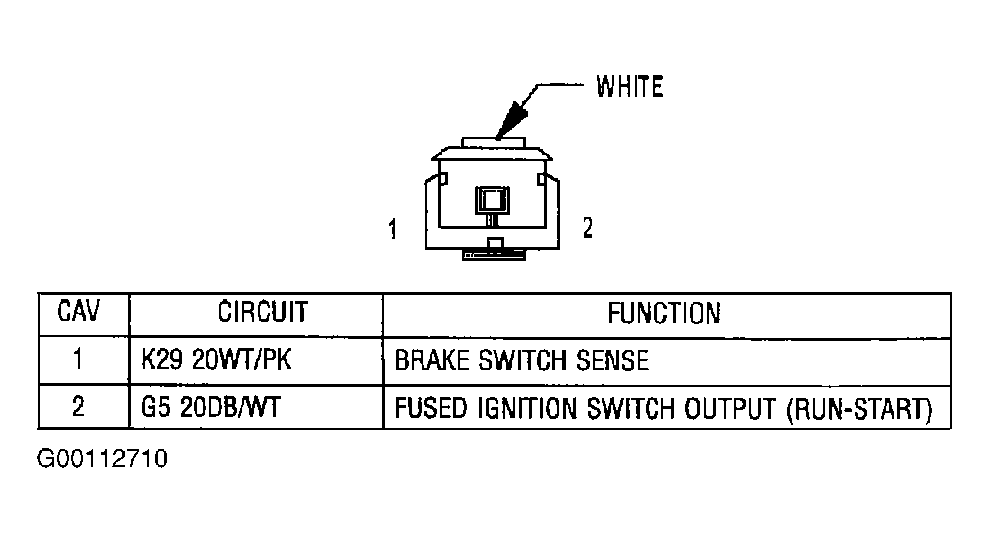

Fig 1: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector
G00112710Courtesy of DAIMLERCHRYSLER CORPORATION
