Coil On Plug Harness Connector End View

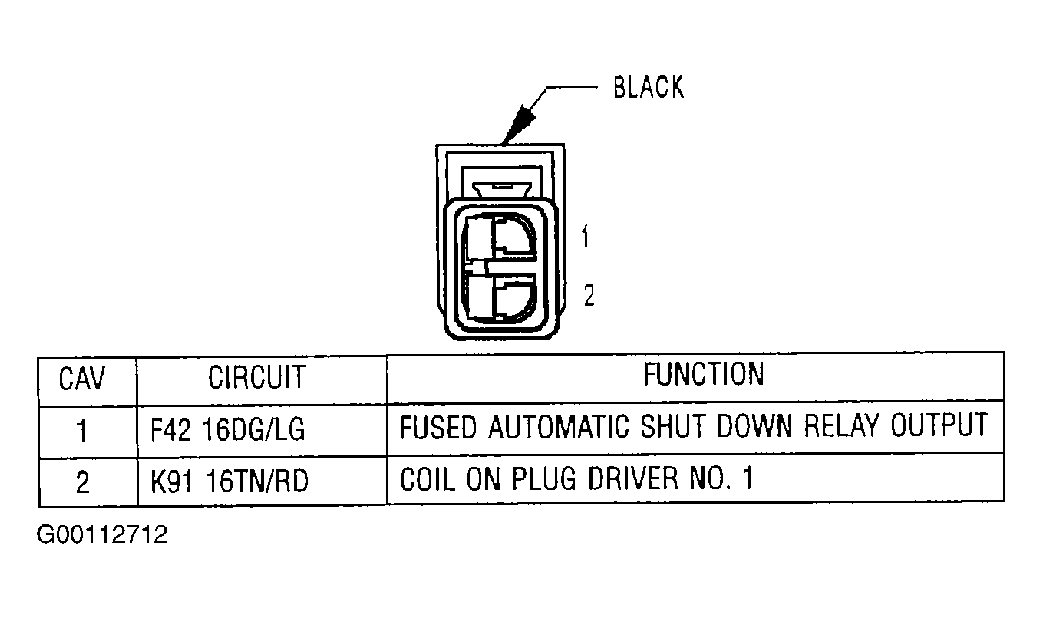

Fig 1: Identifying Coil On Plug No. 1 Harness Connector
G00112712Courtesy of DAIMLERCHRYSLER CORPORATION

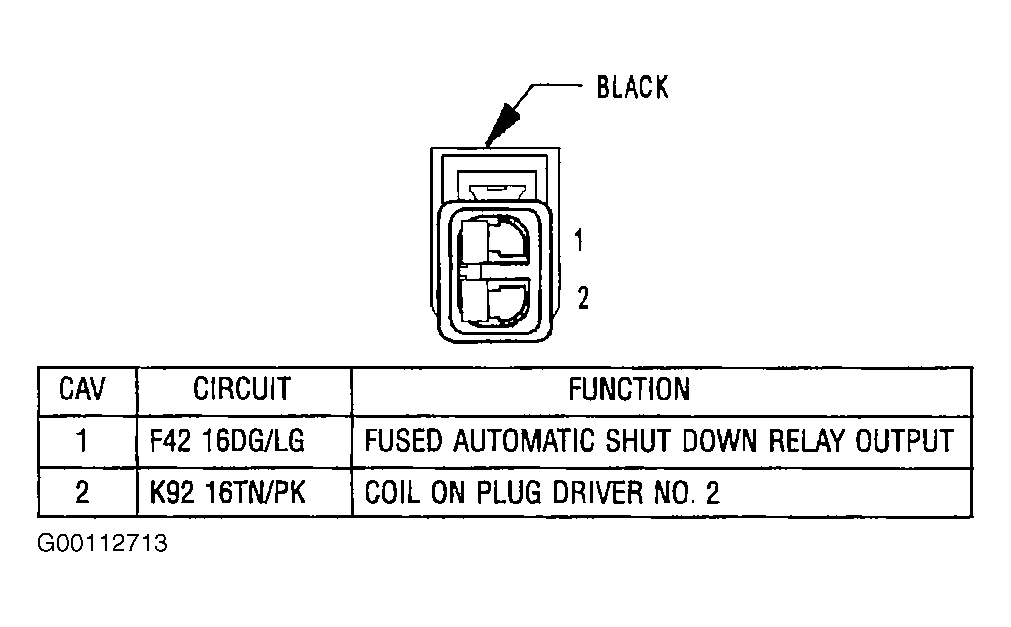

Fig 2: Identifying Coil On Plug No. 2 Harness Connector
G00112713Courtesy of DAIMLERCHRYSLER CORPORATION

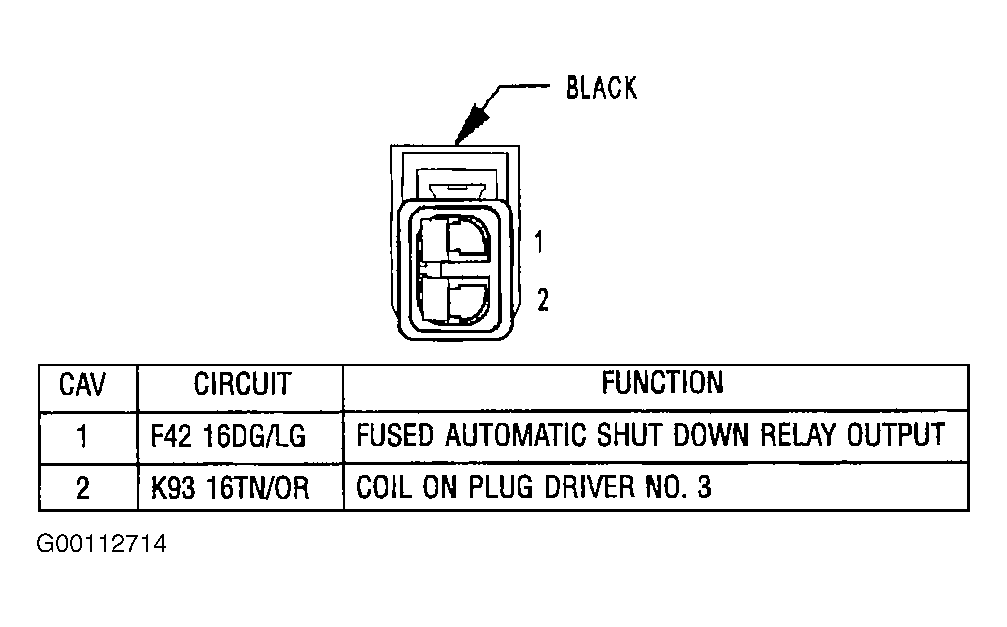

Fig 3: Identifying Coil On Plug No. 3 Harness Connector
G00112714Courtesy of DAIMLERCHRYSLER CORPORATION

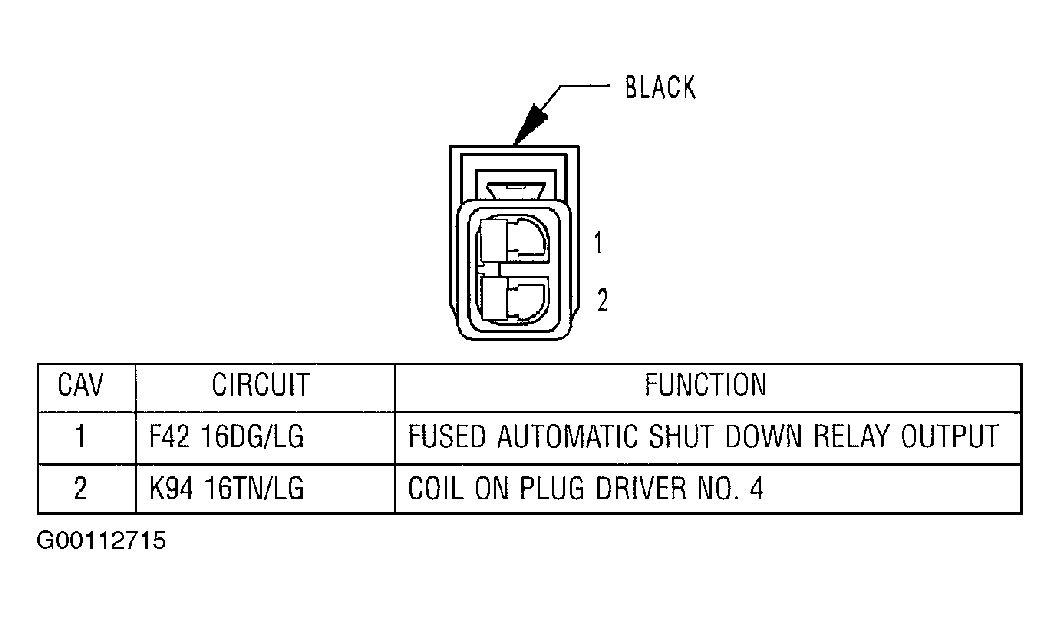

Fig 4: Identifying Coil On Plug No. 4 Harness Connector
G00112715Courtesy of DAIMLERCHRYSLER CORPORATION

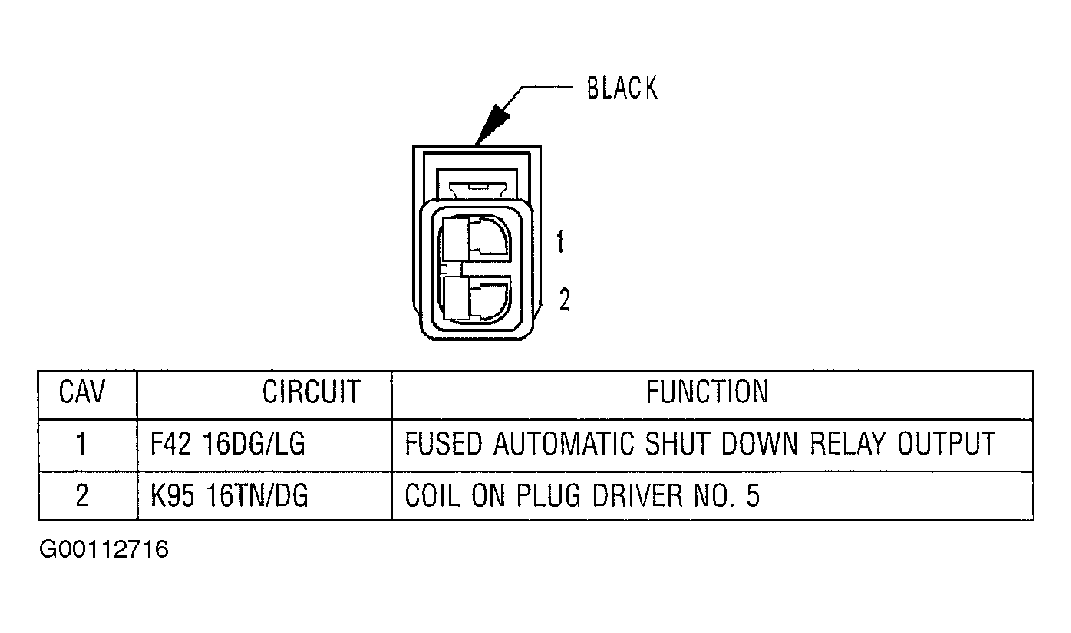

Fig 5: Identifying Coil On Plug No. 5 Harness Connector
G00112716Courtesy of DAIMLERCHRYSLER CORPORATION

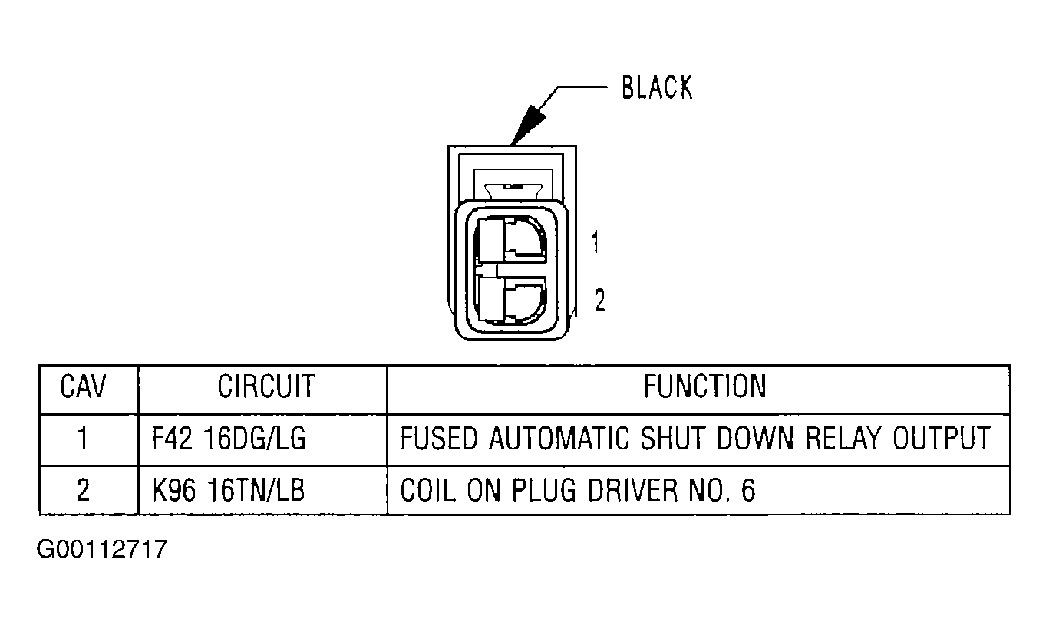

Fig 6: Identifying Coil On Plug No. 6 Harness Connector
G00112717Courtesy of DAIMLERCHRYSLER CORPORATION
