Fuel Injector Harness Connector End View

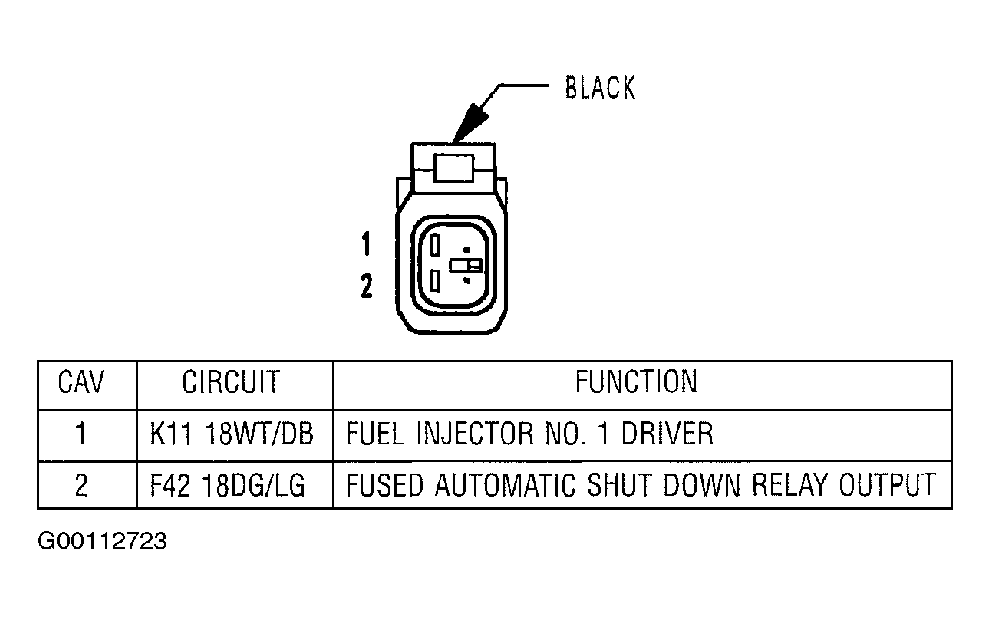

Fig 1: Identifying Fuel Injector No. 1 Harness Connector
G00112723Courtesy of DAIMLERCHRYSLER CORPORATION

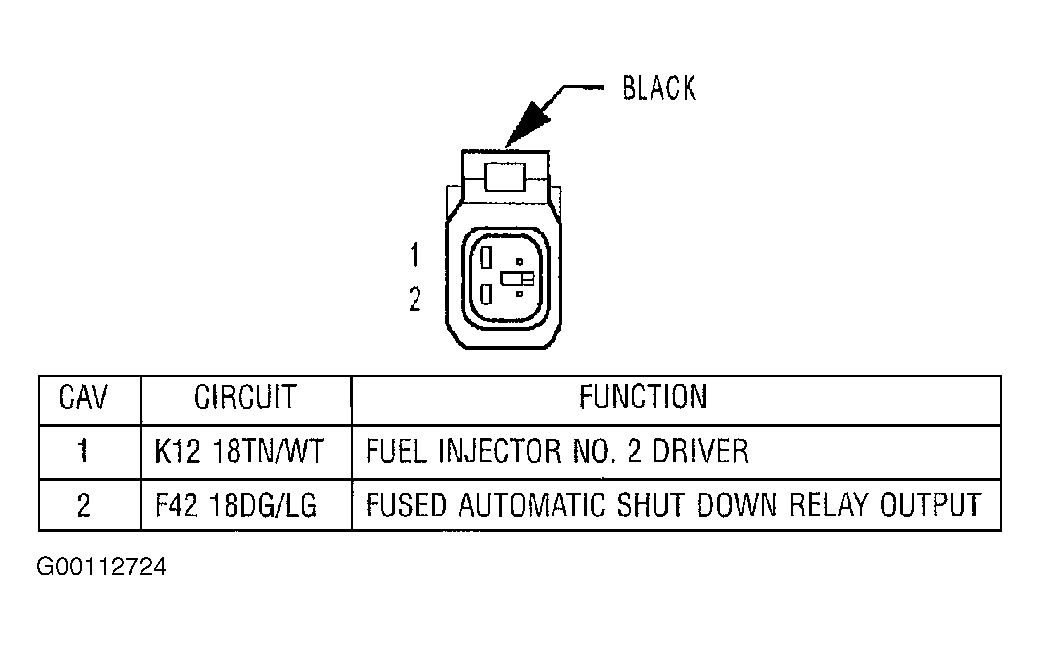

Fig 2: Identifying Fuel Injector No. 2 Harness Connector
G00112724Courtesy of DAIMLERCHRYSLER CORPORATION

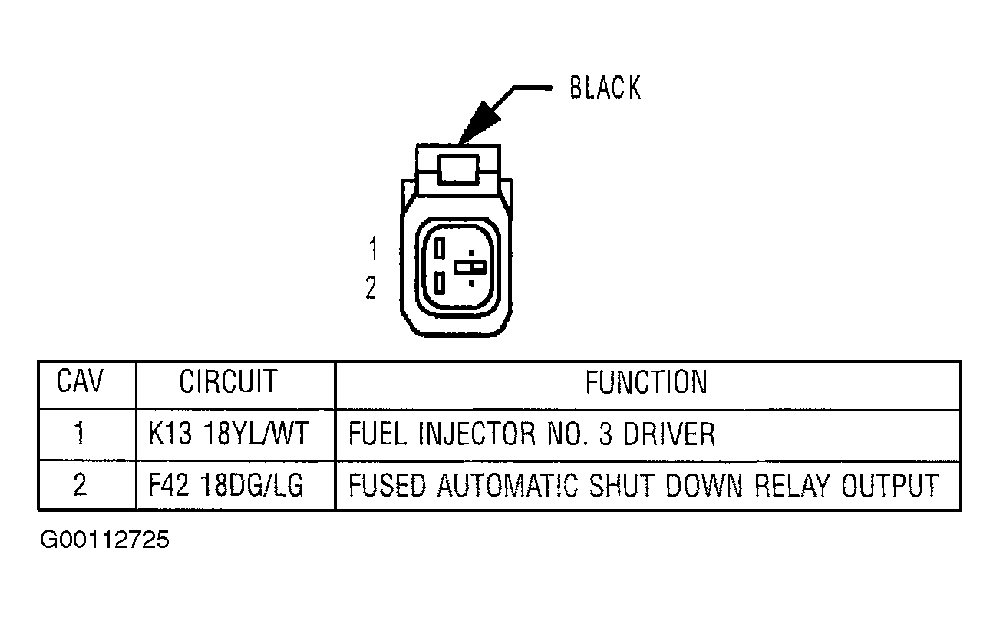

Fig 3: Identifying Fuel Injector No. 3 Harness Connector
G00112725Courtesy of DAIMLERCHRYSLER CORPORATION

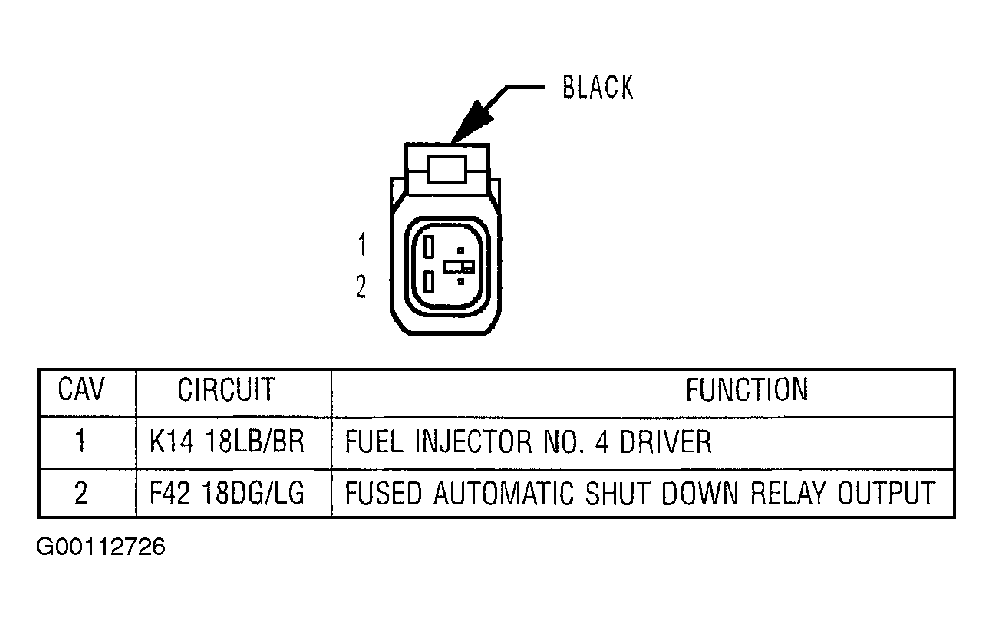

Fig 4: Identifying Fuel Injector No. 4 Harness Connector
G00112726Courtesy of DAIMLERCHRYSLER CORPORATION

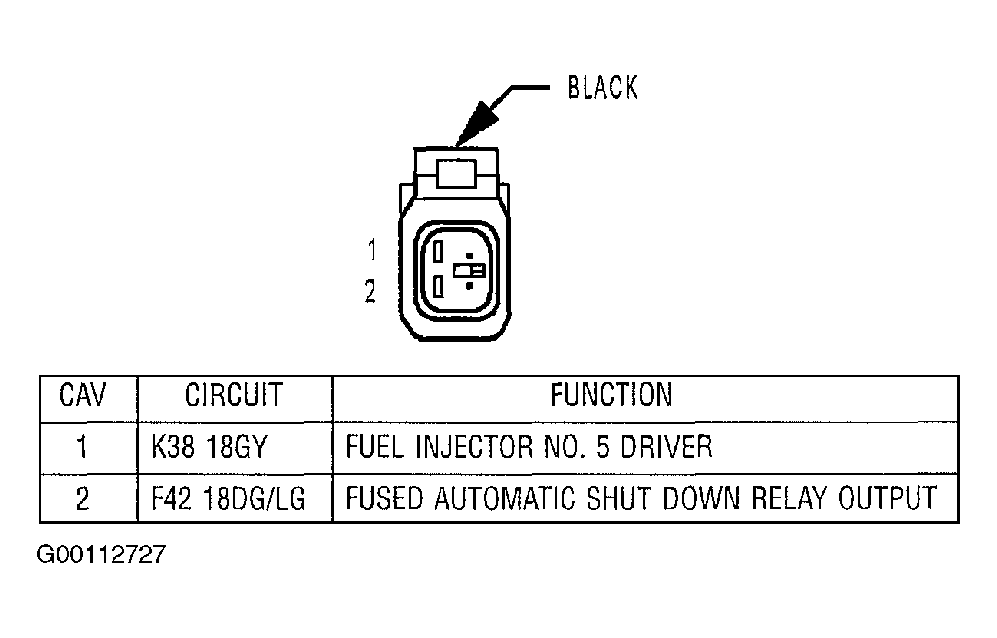

Fig 5: Identifying Fuel Injector No. 5 Harness Connector
G00112727Courtesy of DAIMLERCHRYSLER CORPORATION

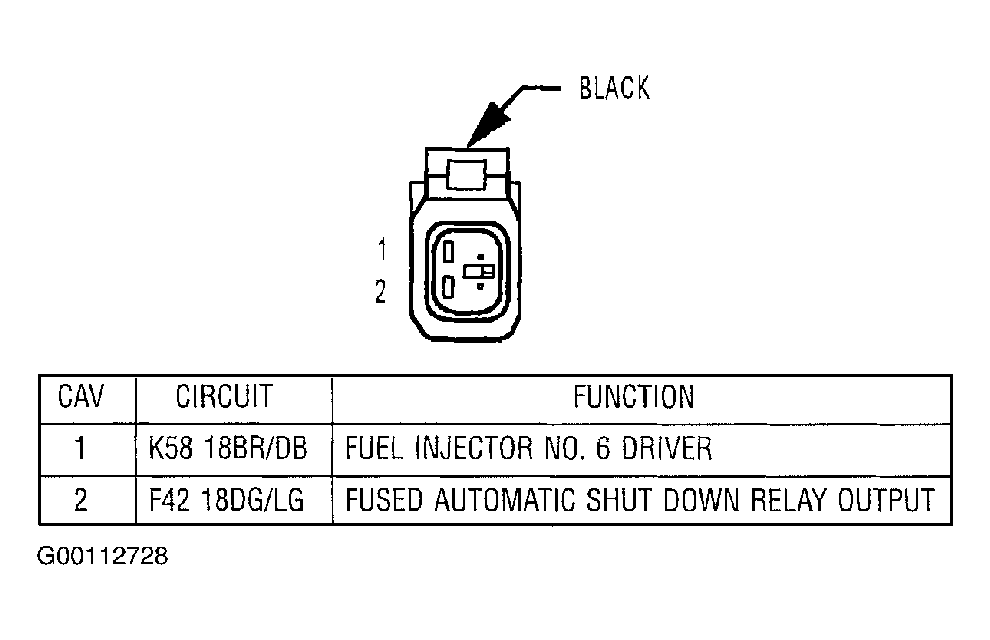

Fig 6: Identifying Fuel Injector No. 6 Harness Connector
G00112728Courtesy of DAIMLERCHRYSLER CORPORATION
