Manifold Tuning Valve Connector End View (3.5L)

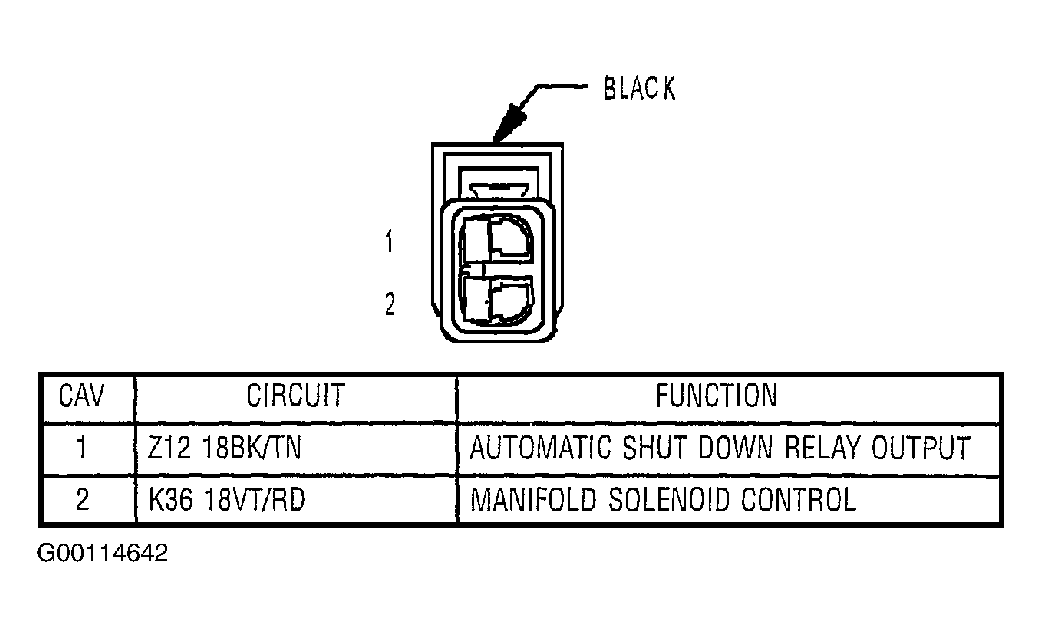

Fig 1: Identifying Manifold Tuning Valve (3.5L)
G00114642Courtesy of DAIMLERCHRYSLER CORPORATION
