Short Runner Valve Solenoid Connector End View (3.5L)

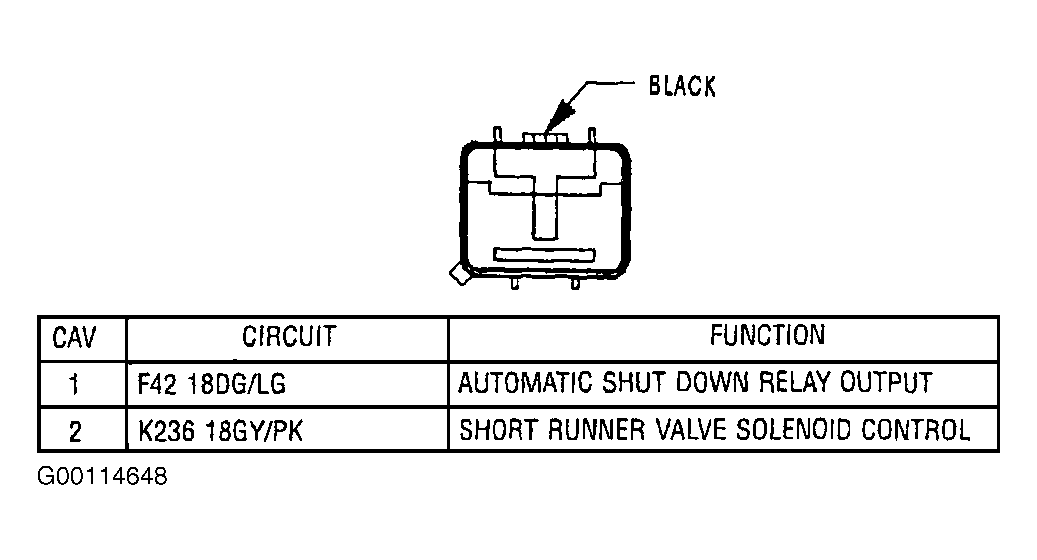

Fig 1: Identifying Short Runner Valve Solenoid (3.5L)
G00114648Courtesy of DAIMLERCHRYSLER CORPORATION
