TP Sensor Harness Connector End View (2.7L)

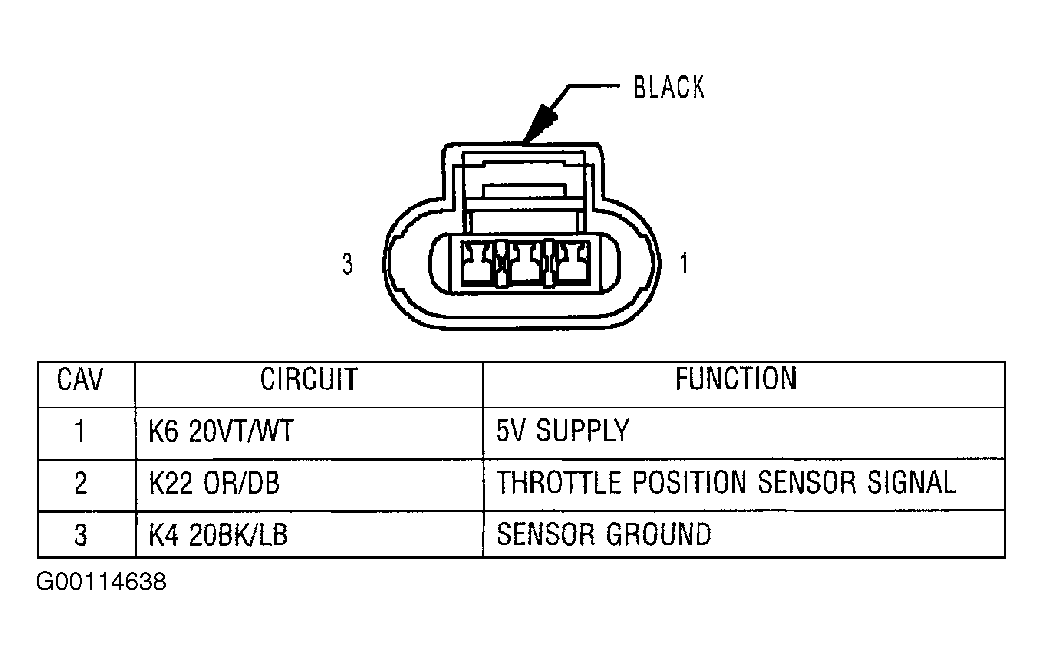

Fig 1: Identifying TP Sensor Harness Connector (2.7L)
G00114638Courtesy of DAIMLERCHRYSLER CORPORATION
