DTC P0441: EVAP Purge System Performance: Testing

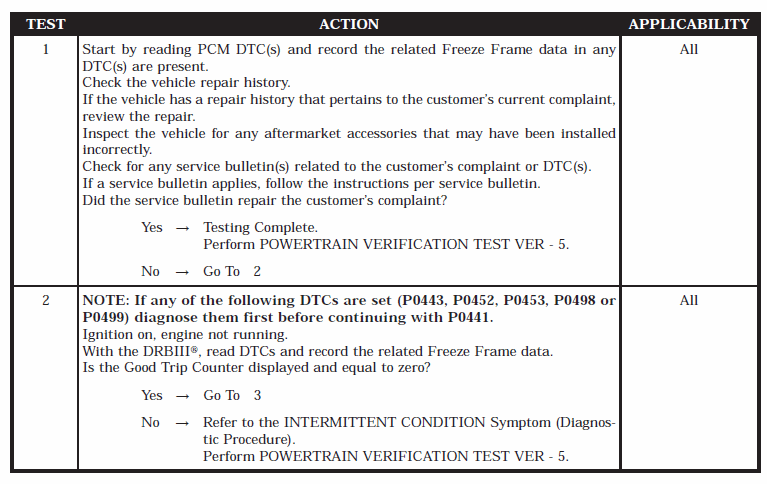

Fig 1: P0441 Testing Steps 1-2

Courtesy of DAIMLERCHRYSLER CORPORATION

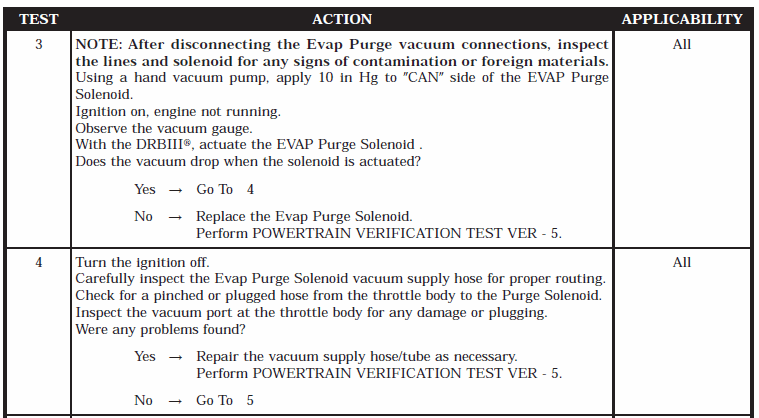

Fig 2: P0441 Testing Steps 3-4

Courtesy of DAIMLERCHRYSLER CORPORATION

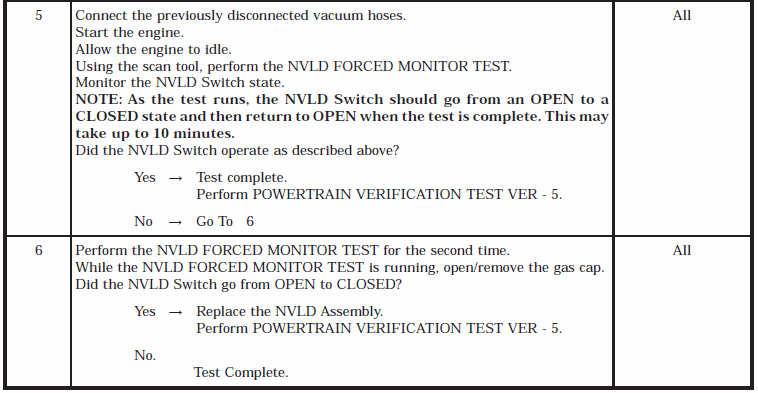

Fig 3: P0441 Testing Steps 5-6

Courtesy of DAIMLERCHRYSLER CORPORATION

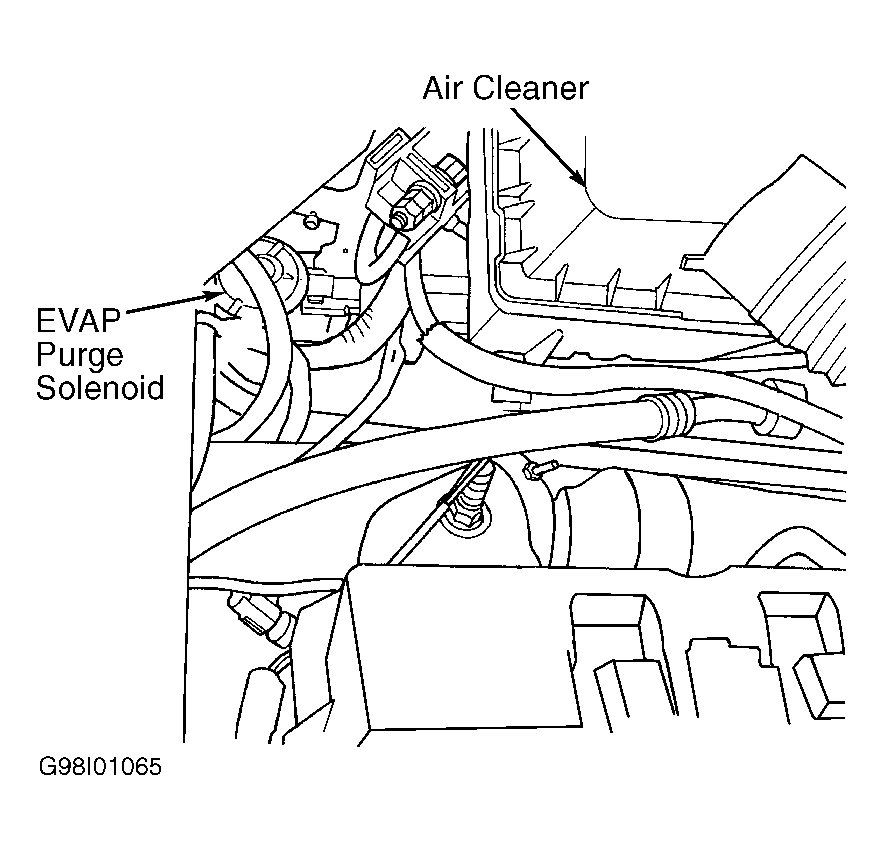

Fig 4: Locating EVAP Purge Solenoid

Courtesy of DAIMLERCHRYSLER CORPORATION
