Checking Fluid Levels: Transaxle

Drive vehicle until engine and transaxle are at normal operating temperature. Park vehicle on level surface. Apply parking brake. Turn engine off. Connect scan tool to data link connector. See Fig 1 .
Start engine. Using scan tool, read transmission fluid temperature. With transmission fluid temperature displayed on scan tool, determine proper fluid level on dipstick. See Fig 2 . Add appropriate type of transmission fluid, if necessary. See RECOMMENDED FLUIDS . DO NOT overfill. Turn engine off, and remove scan tool.

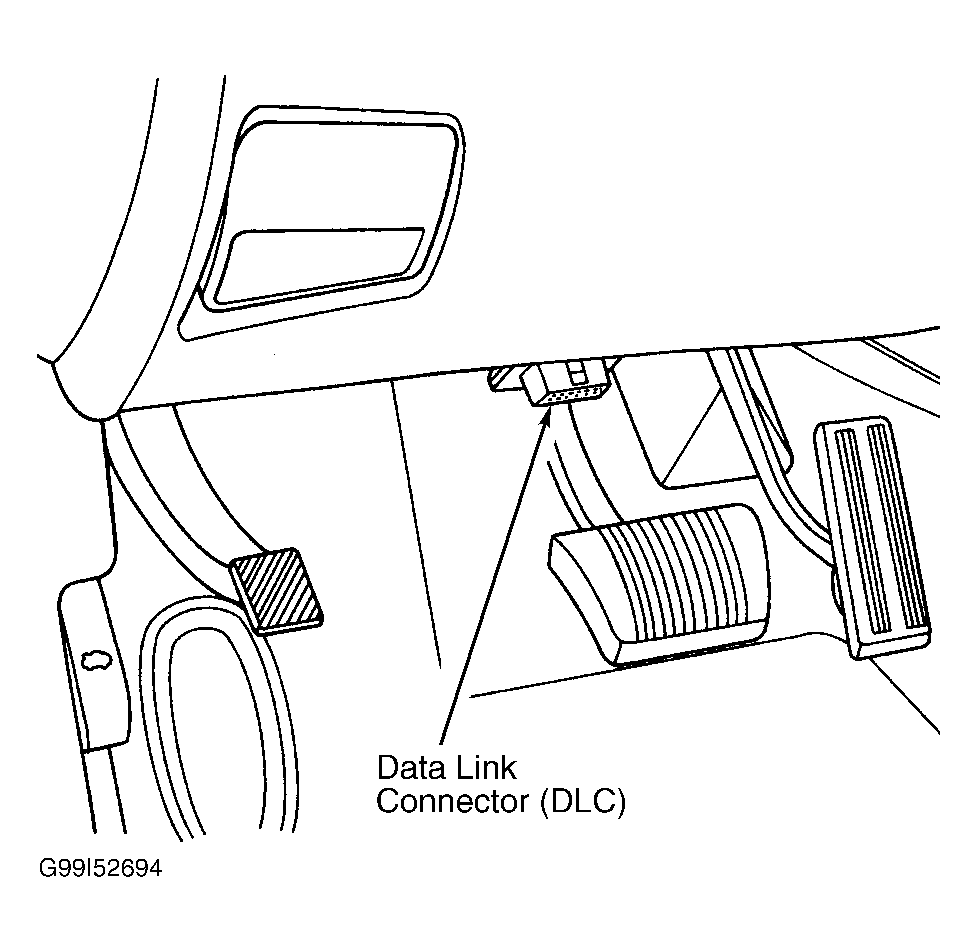

Fig 1: Locating Data Link Connector (Typical)

Courtesy of CHRYSLER CORP.

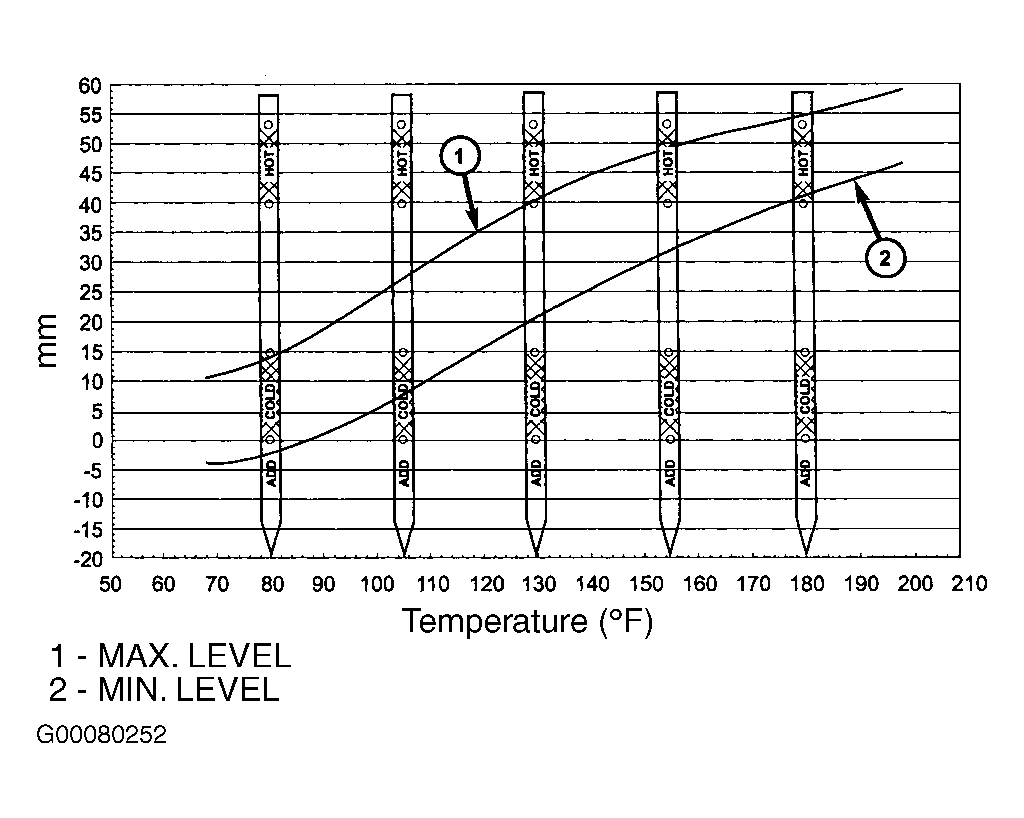

Fig 2: Determining Transaxle Fluid Level

Courtesy of DAIMLERCHRYSLER CORPORATION
