Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	Illustration
Autostick Switch	Fig 1
Data Link Connector	Fig 2
Powertrain Control Module	Fig 3
Solenoid Pack	Fig 4
Transaxle In-Line 10-Pin Harness Connector	Fig 6
Transaxle In-Line 14-Pin Harness Connector	Fig 7
Transmission Range Sensor	Fig 5

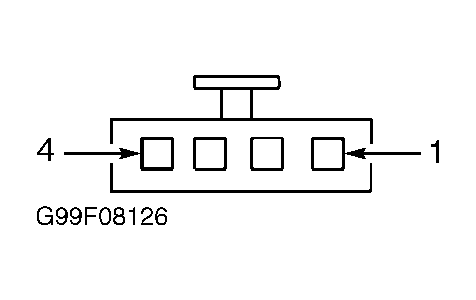

Fig 1: Identifying Autostick Switch Connector Terminals

Courtesy of DAIMLERCHRYSLER CORP.

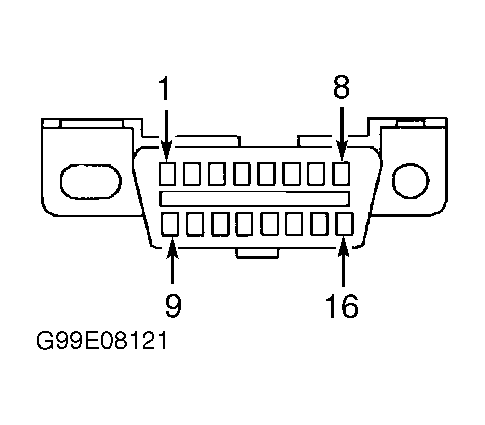

Fig 2: Identifying Data Link Connector Terminals

Courtesy of CHRYSLER CORP.

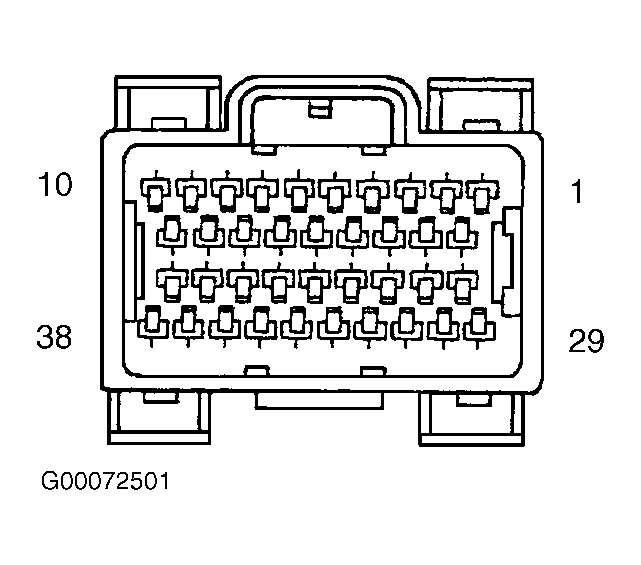

Fig 3: Identifying PCM Harness Connector Terminals (C1-Black, C2-Gray, C3-White & C4-Green)

Courtesy of DAIMLERCHRYSLER CORPORATION

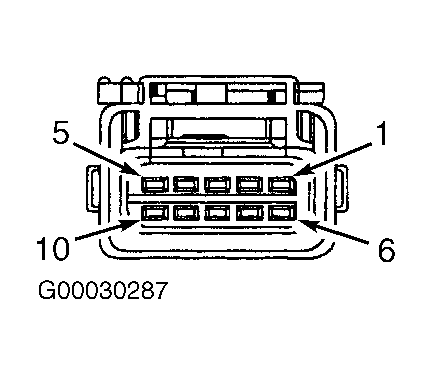

Fig 4: Identifying Solenoid Pack Connector Terminals

Courtesy of CHRYSLER CORP.

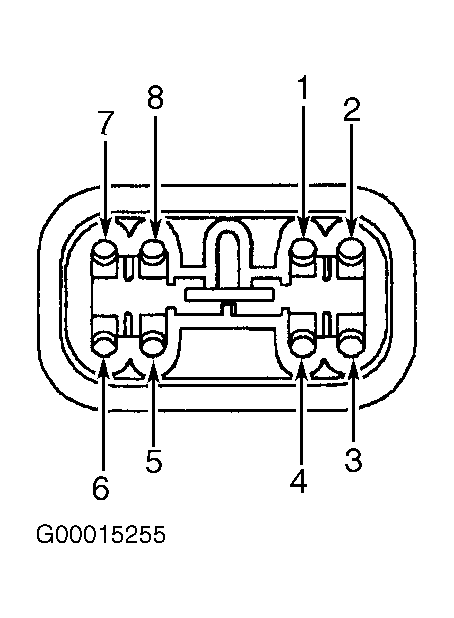

Fig 5: Identifying Transmission Range Sensor Connector Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

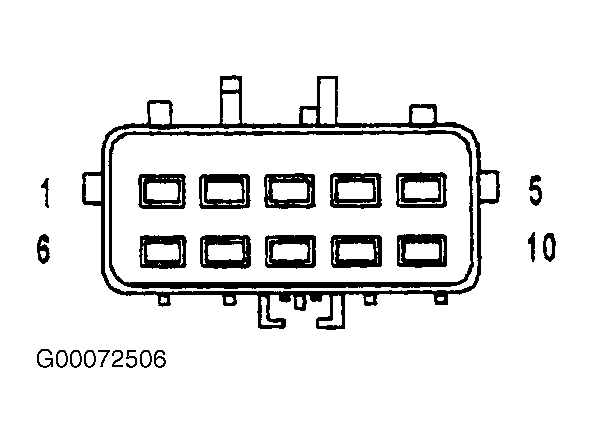

Fig 6: Identifying Transaxle 10-Pin In-Line Harness Connector Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

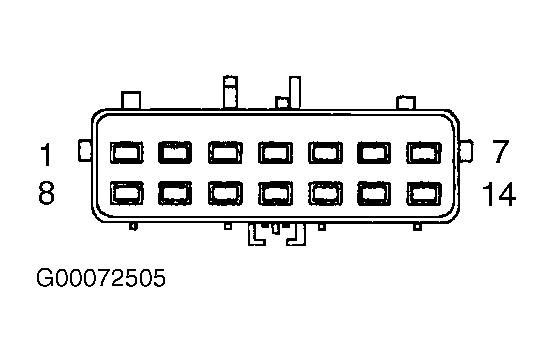

Fig 7: Identifying Transaxle 14-Pin In-Line Harness Connector Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION
