Overhaul - Automatic Transmission: Specifications

Identifying General Specifications

Transaxle Type	Four-Speed Automatic, Longitudinally Mounted, Electronically Controlled, Fully Adaptive, Electronically Modulated Torque Converter, Integrated Differential with Unique Oil Sump
Lubrication Method	Pump (internal - external gear-type)
Cooling Method	Water Heat Exchanger and/or Air-to-Oil Heat Exchanger

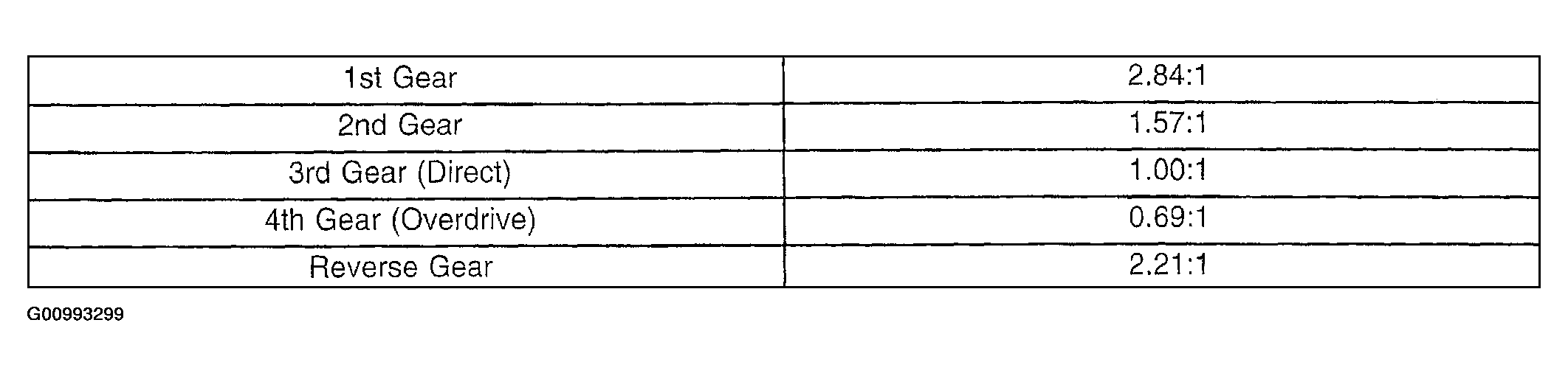

Fig 1: Identifying Gear Ratios

Courtesy of DAIMLERCHRYSLER CORP.

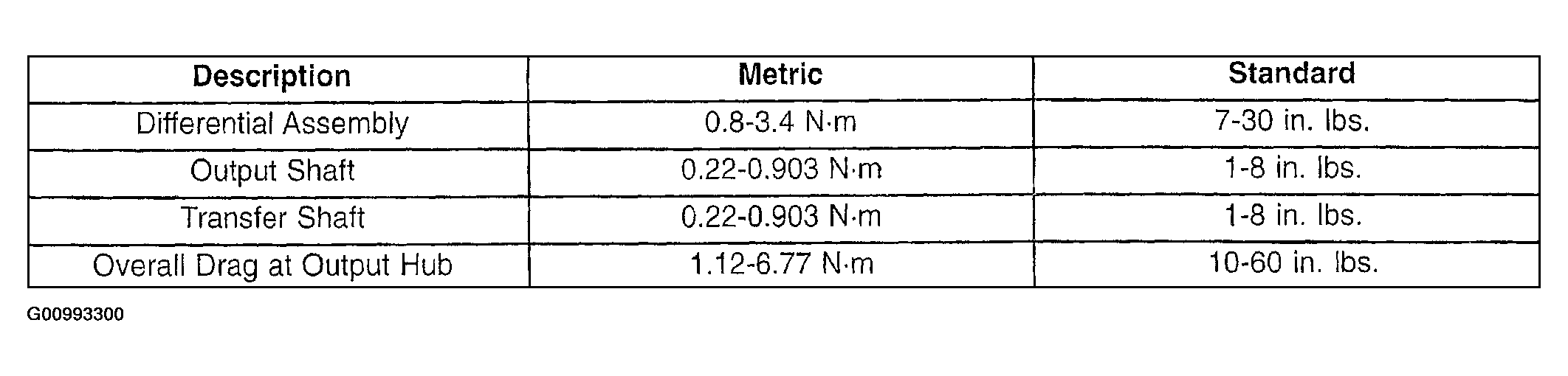

Fig 2: Identifying Bearing Preload (Drag Torque)

Courtesy of DAIMLERCHRYSLER CORP.

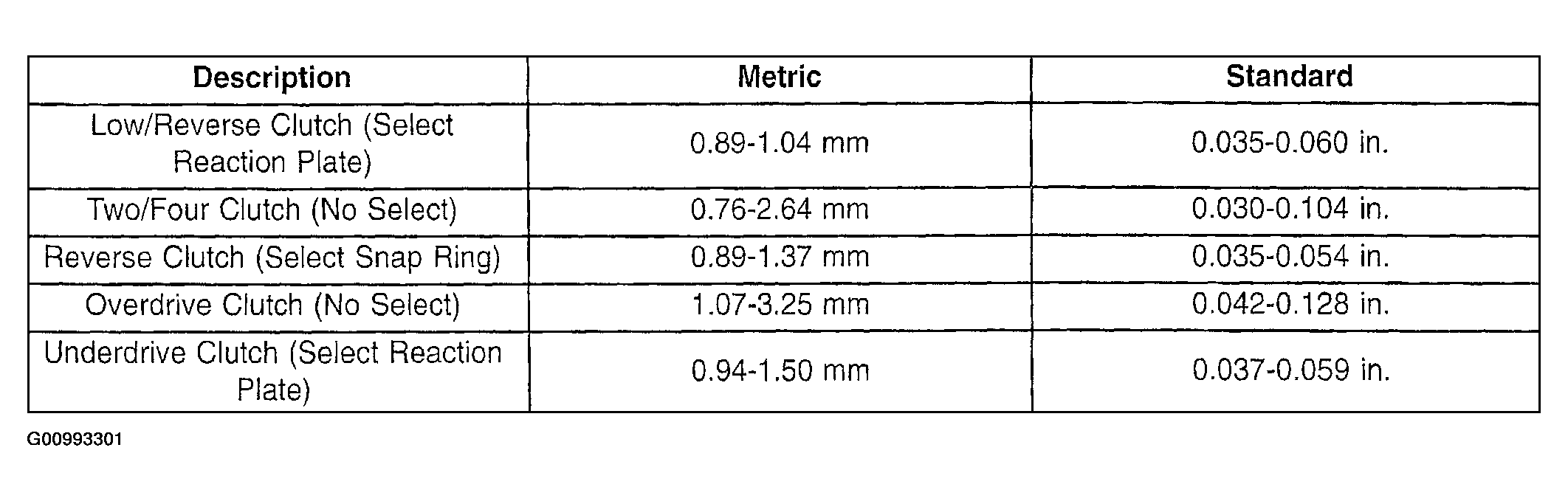

Fig 3: Identifying Clutch Pack Specifications

Courtesy of DAIMLERCHRYSLER CORP.

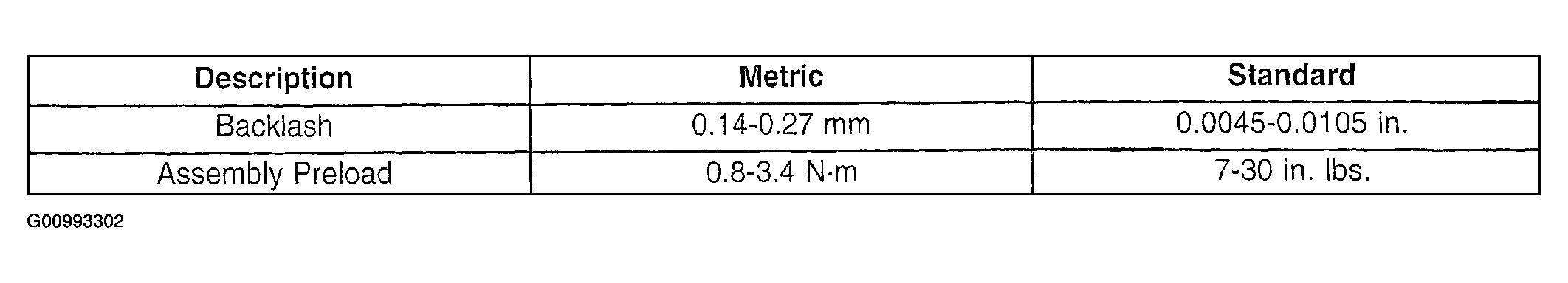

Fig 4: Identifying Differential Specifications

Courtesy of DAIMLERCHRYSLER CORP.

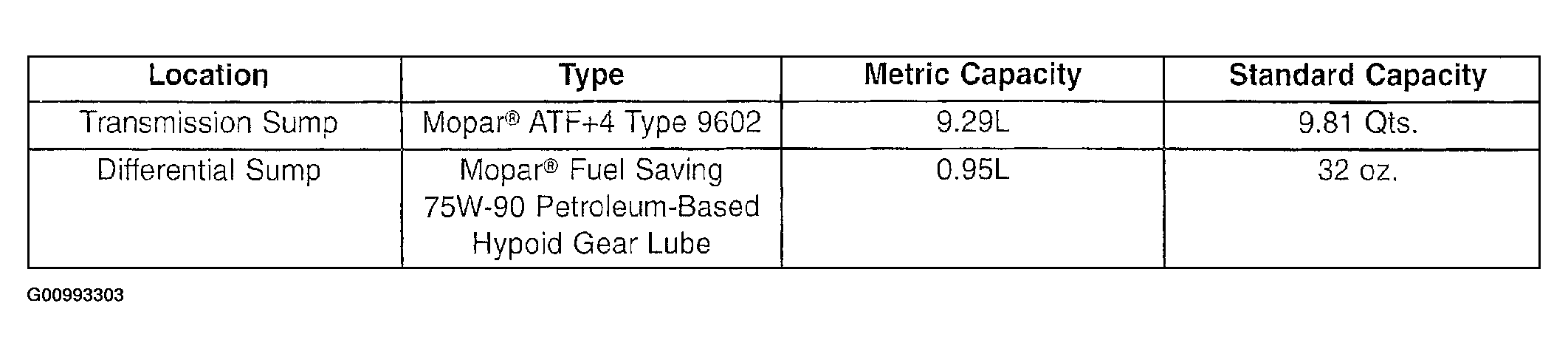

Fig 5: Identifying Fluid Specifications (Transmission & Differential)

Courtesy of DAIMLERCHRYSLER CORP.

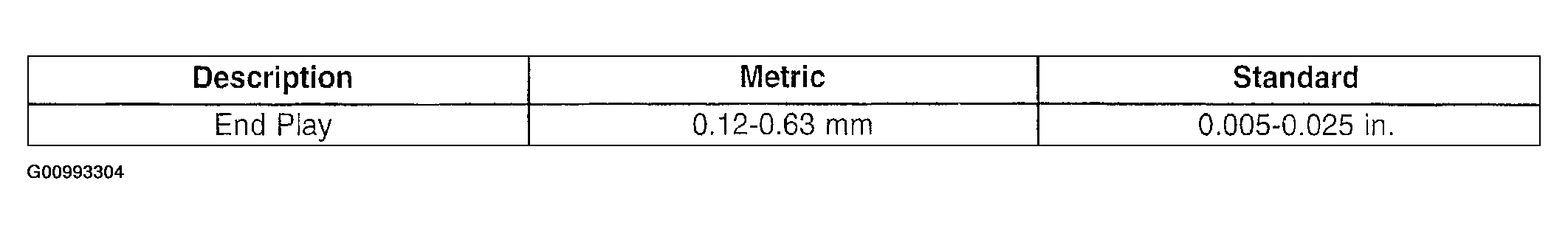

Fig 6: Identifying Input Shaft Specifications

Courtesy of DAIMLERCHRYSLER CORP.

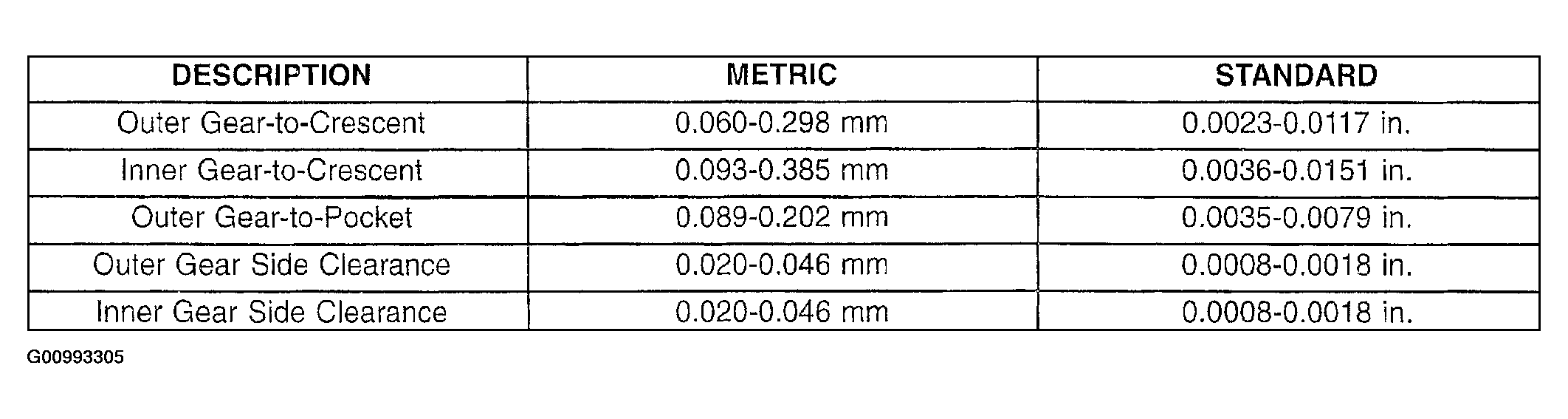

Fig 7: Identifying Oil Pump Clearances

Courtesy of DAIMLERCHRYSLER CORP.

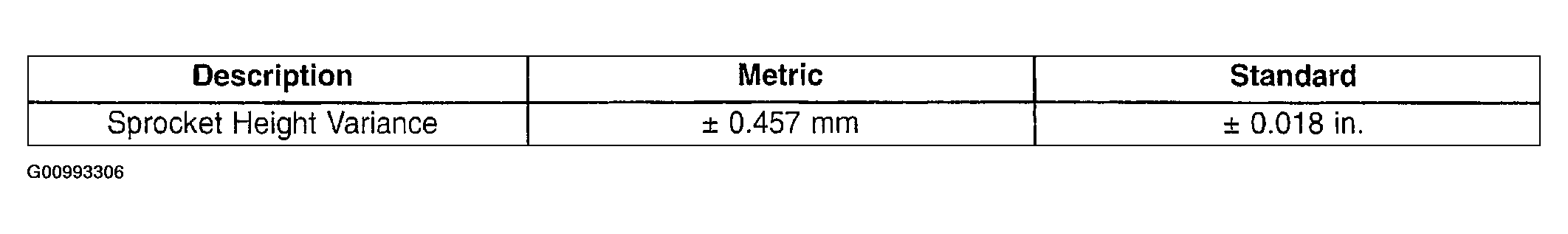

Fig 8: Identifying Transfer System Specifications

Courtesy of DAIMLERCHRYSLER CORP.

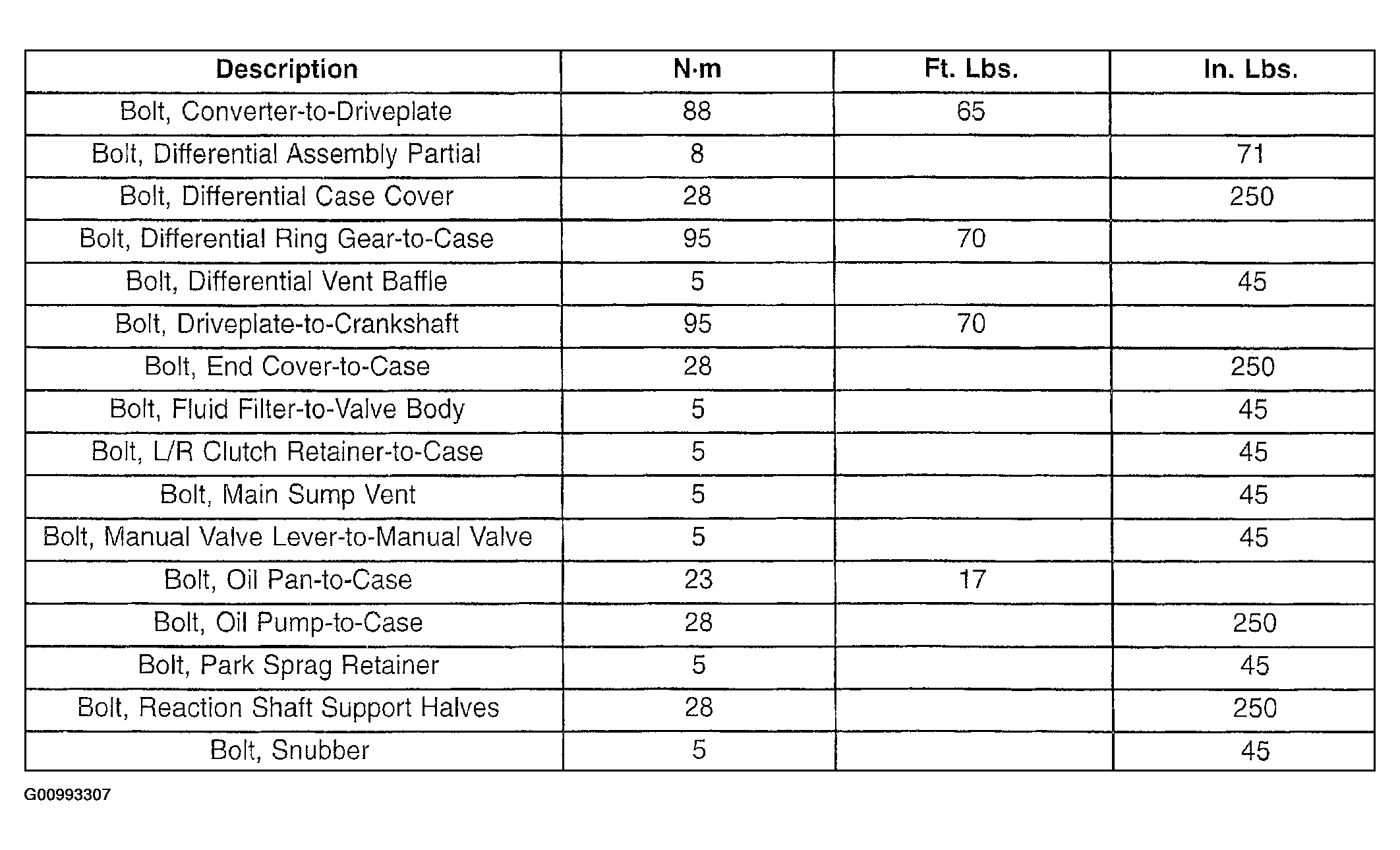

Fig 9: Torque Specifications Table (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

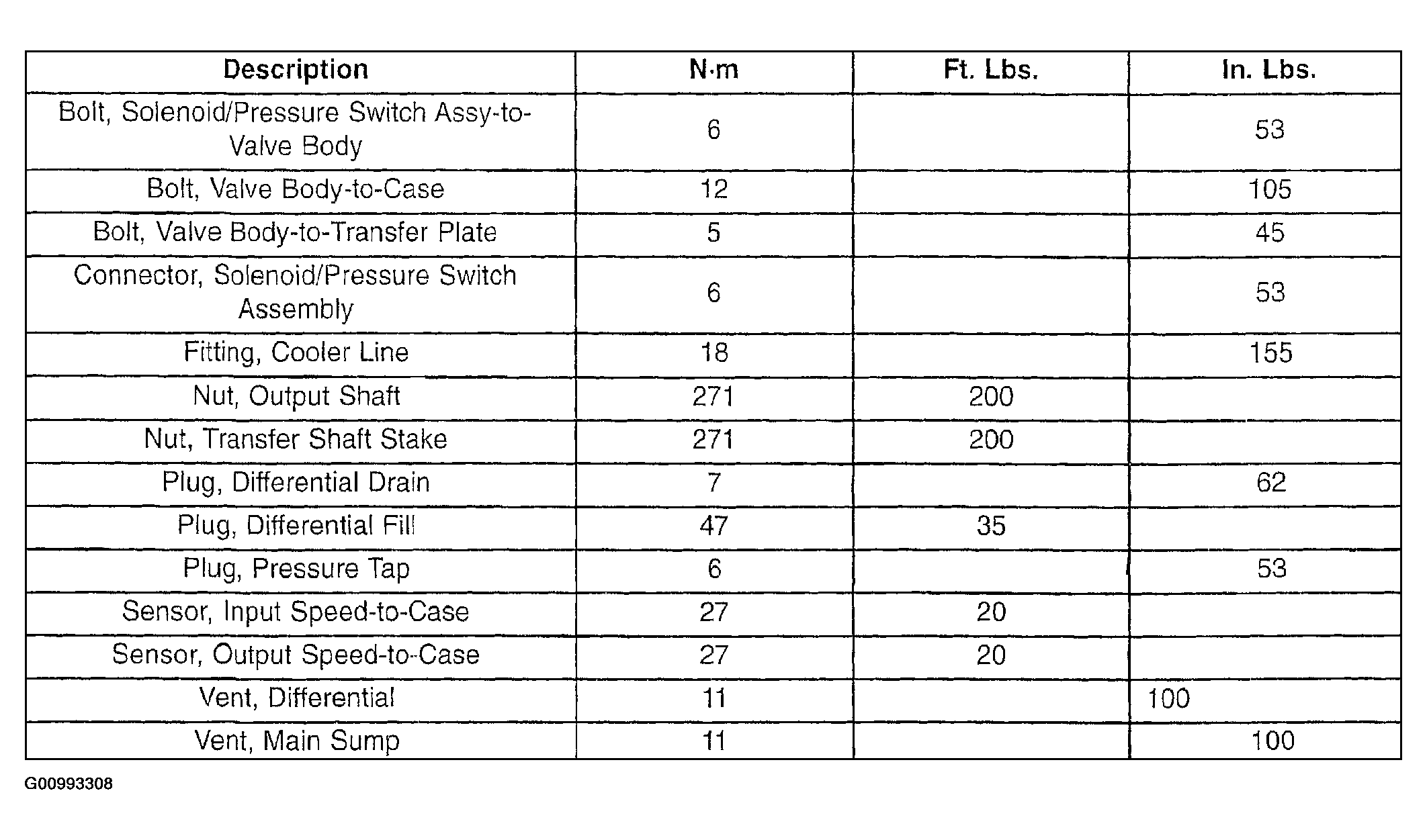

Fig 10: Torque Specifications Table (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
