Speed Sensor - Input: Installation

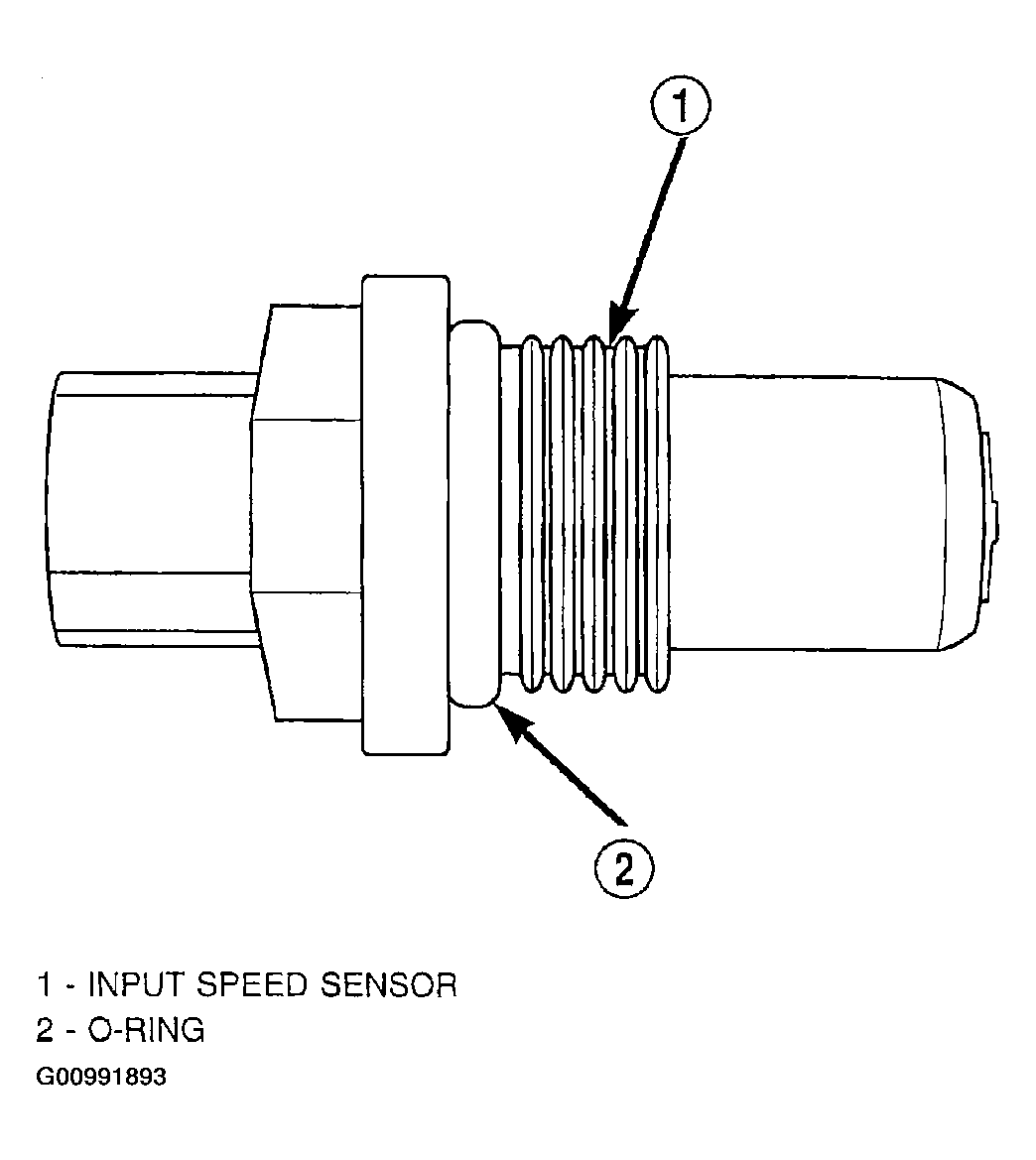

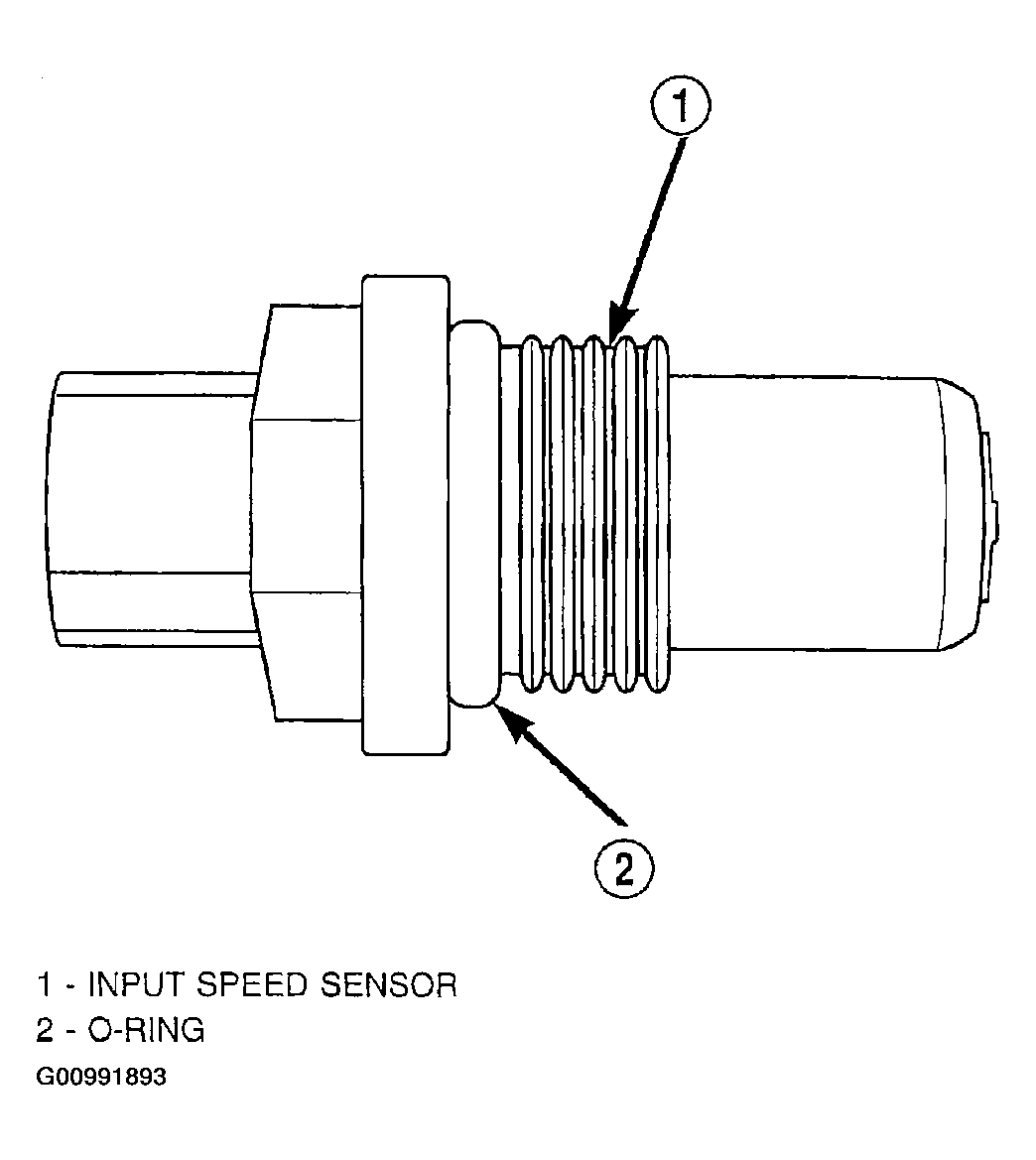

  1. Verify o-ring is installed into position. See Figure.
  2. Install and tighten input speed sensor to 27 N.m (20 ft. lbs.) torque.

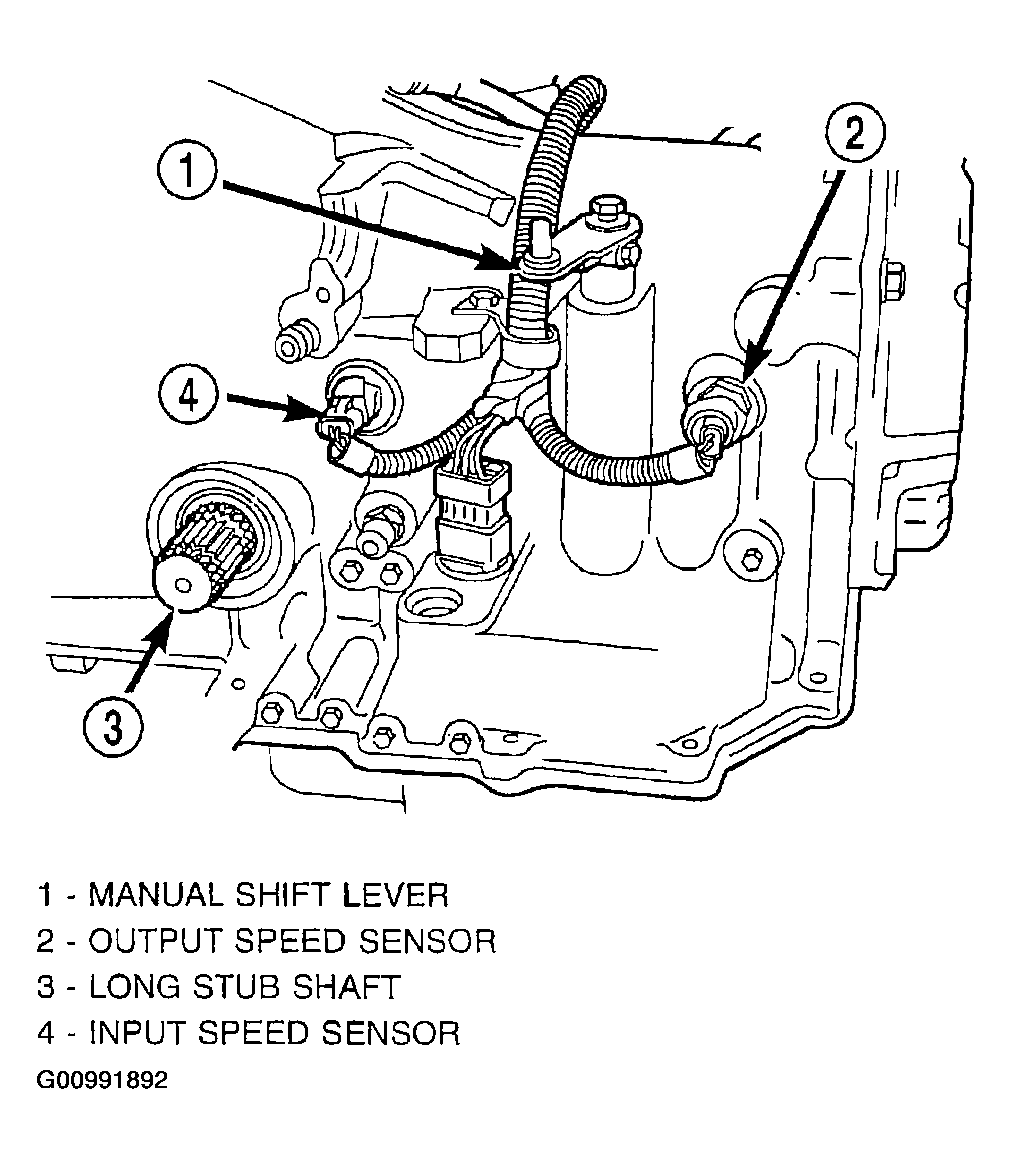

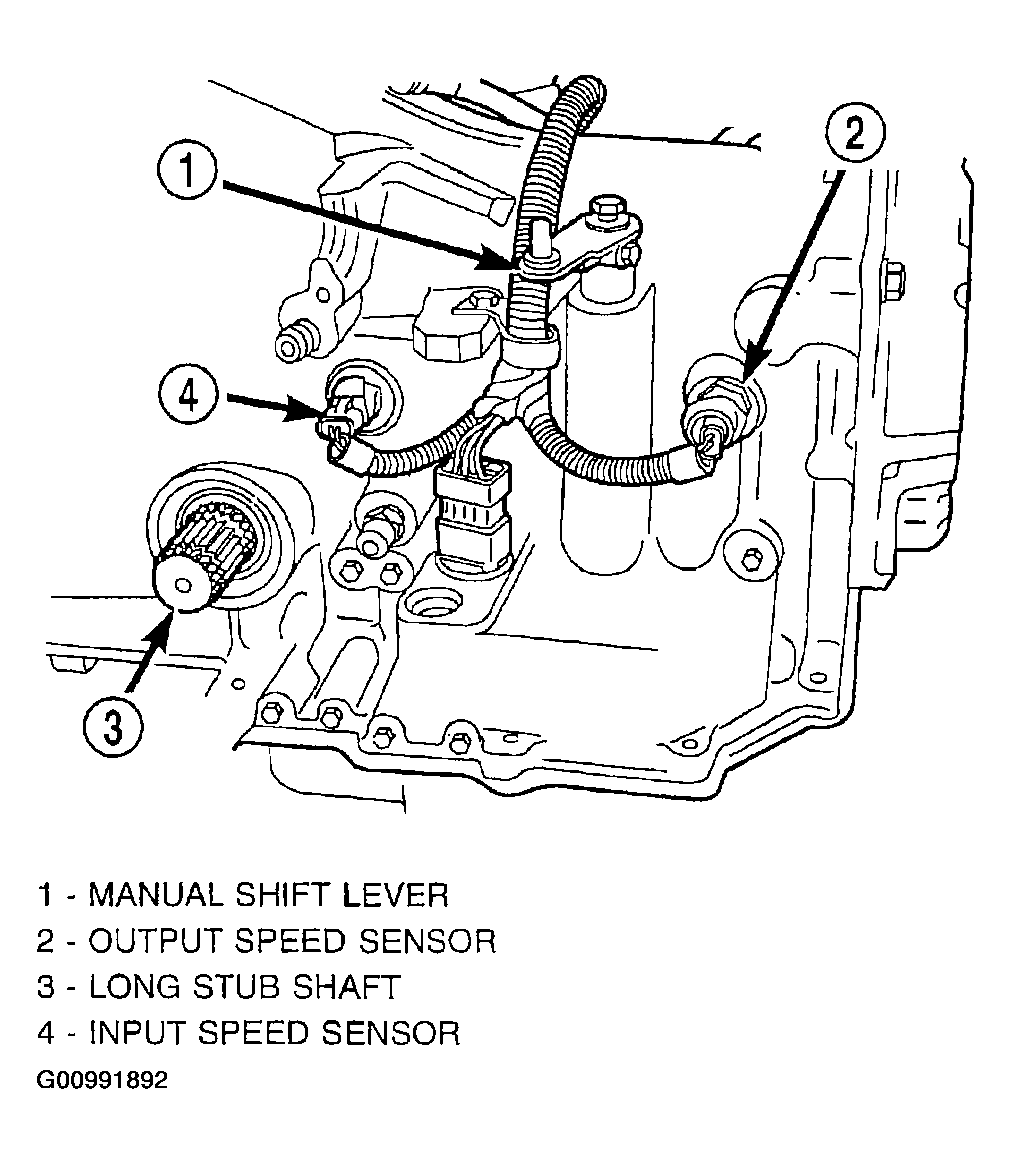

  3. Connect speed sensor connector. See Figure.
  4. Connect battery negative cable.
