Transaxle Identification

The 42LE transaxle identification code is a series of digits printed on a bar-code label that is fixed to the transaxle case as shown in Fig 1.

For example, the identification code K 821 1125 1316 can be broken down as follows:

• K = Kokomo Transmission Plant
• 821 = Last three digits of the transaxle part number
• 1125 = Build date
• 1316 = Build sequence number

Depending on date of manufacture, some transaxles will utilize a new identification label located in the same location as shown in Fig 1. This label can be broken down as follows in Fig 2:

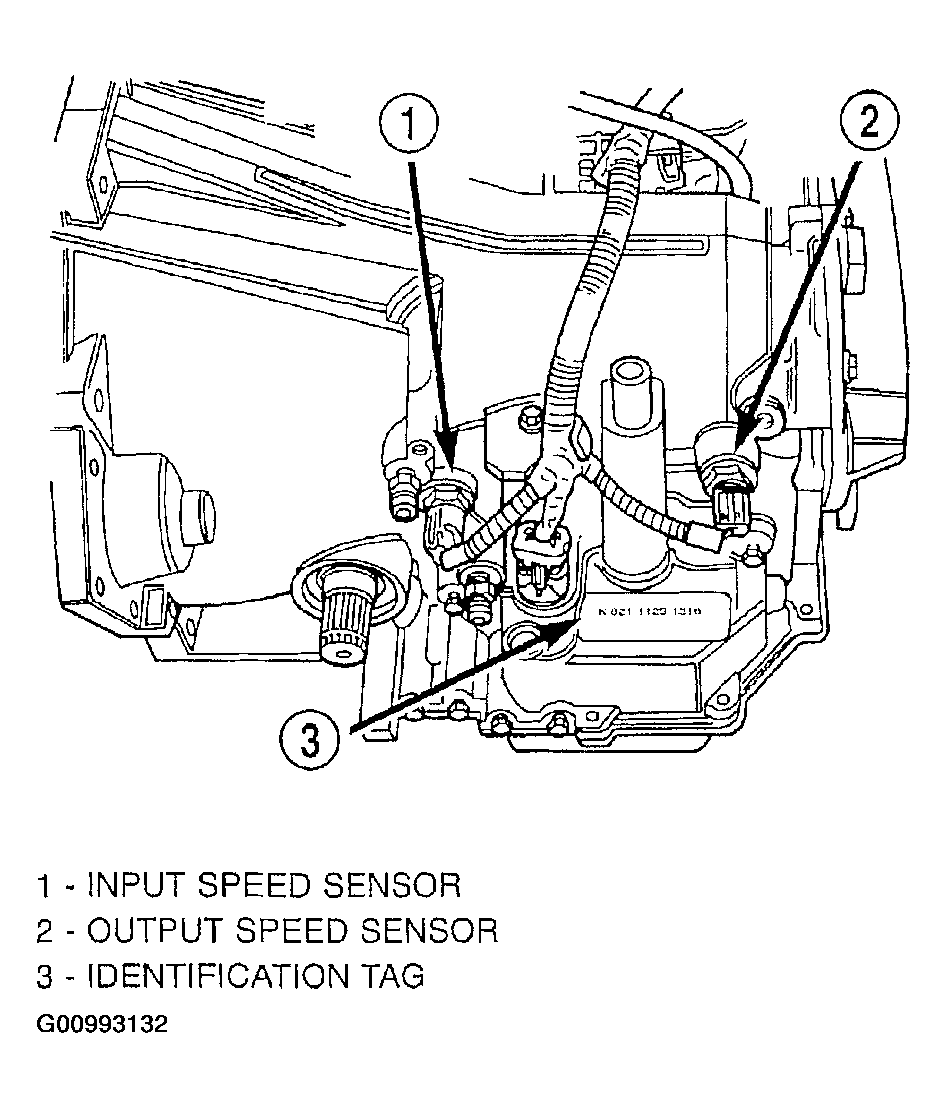

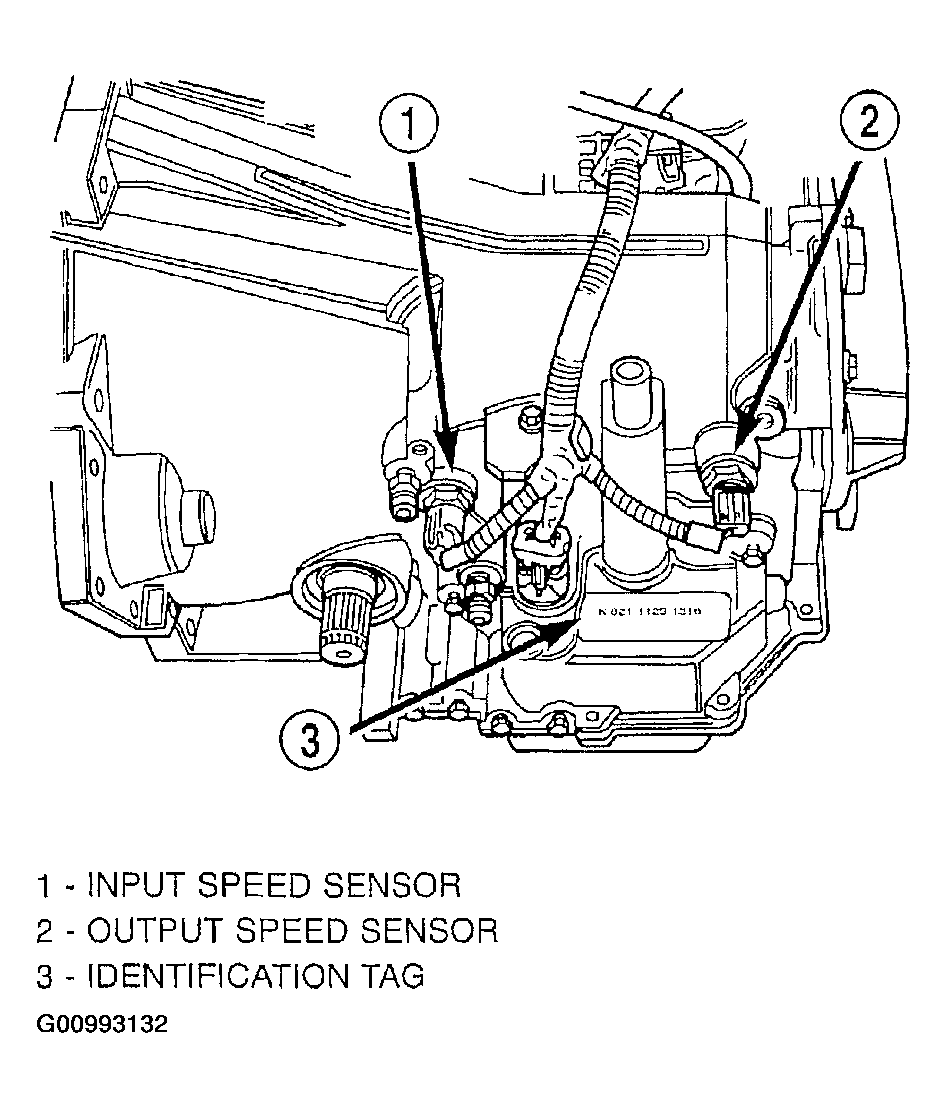

Fig 1: Locating Transaxle Identification Label

Courtesy of DAIMLERCHRYSLER CORP.

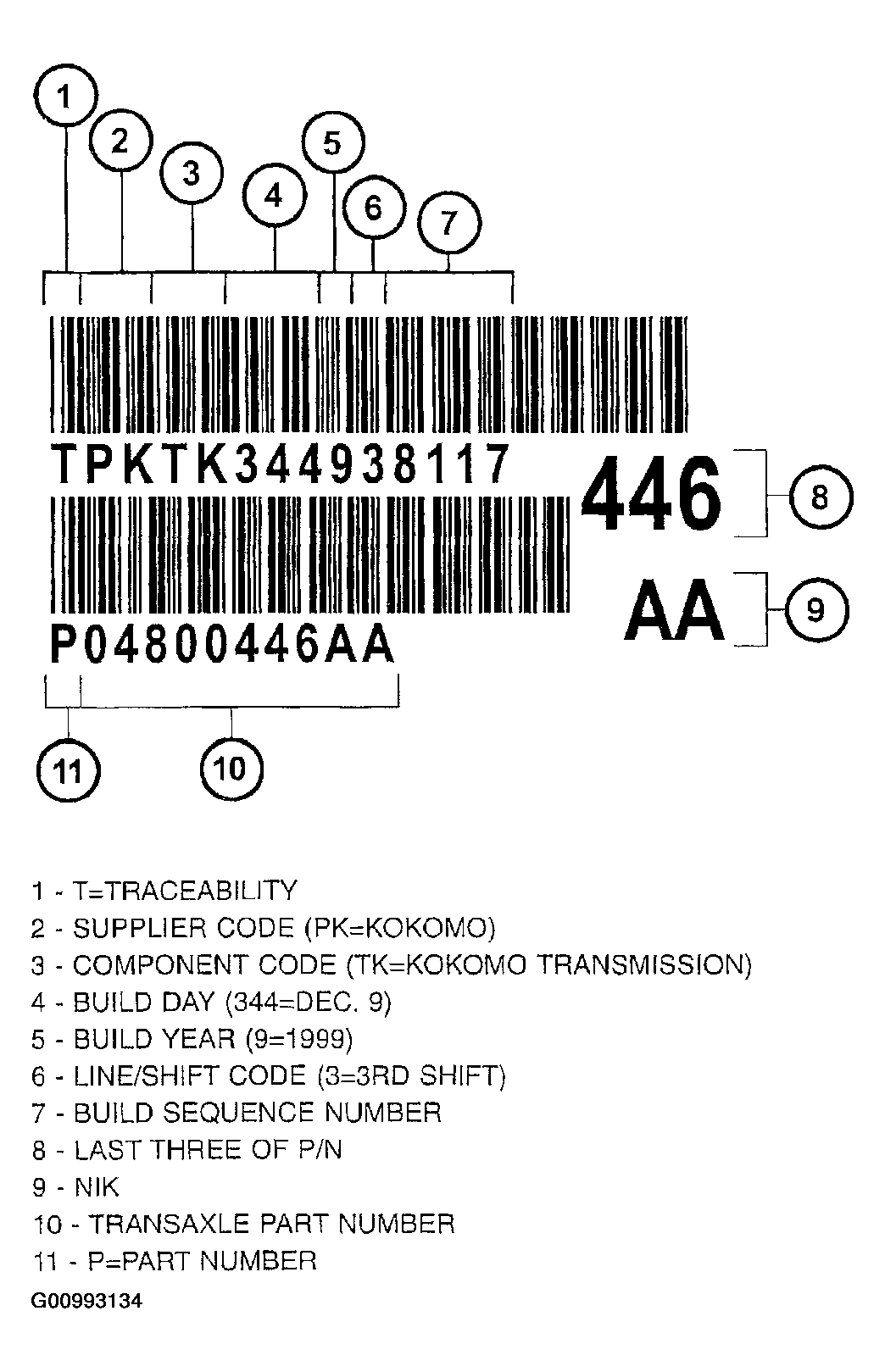

Fig 2: Identification Label Breakdown

Courtesy of DAIMLERCHRYSLER CORP.

If the tag is not legible or missing, the "PK" number, which is stamped into the transaxle case, can be referred to for identification. This number differs slightly in that it contains the entire transaxle part number, rather than the last three digits.
