Transmission Control Relay: Description

The transmission control relay is located in the Power Distribution Center (PDC) on the left side of the engine compartment. See Fig 1.

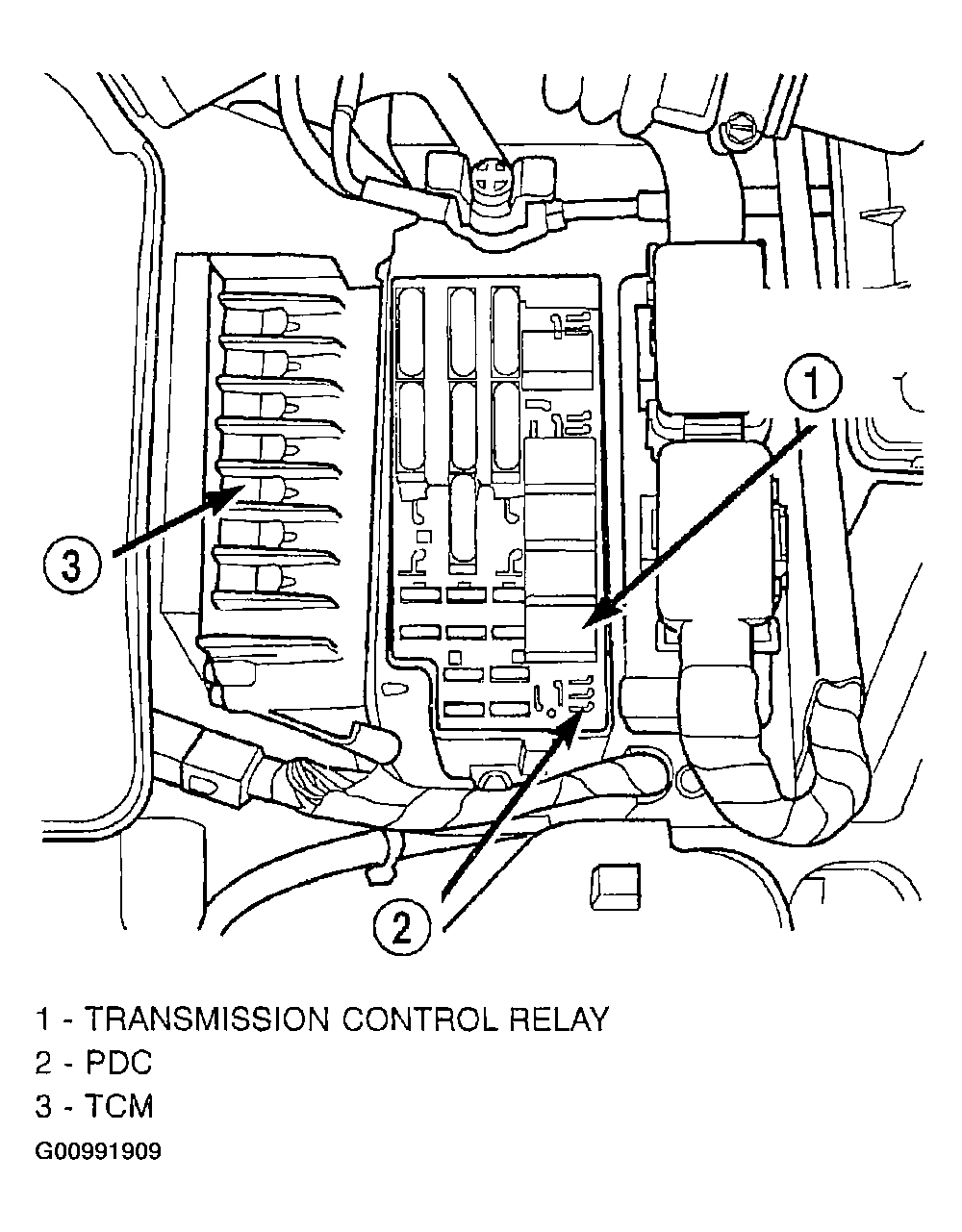

Fig 1: Locating Transmission Control Relay

Courtesy of DAIMLERCHRYSLER CORP.
