Transmission Range Sensor: Installation
- Install the TRS to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.

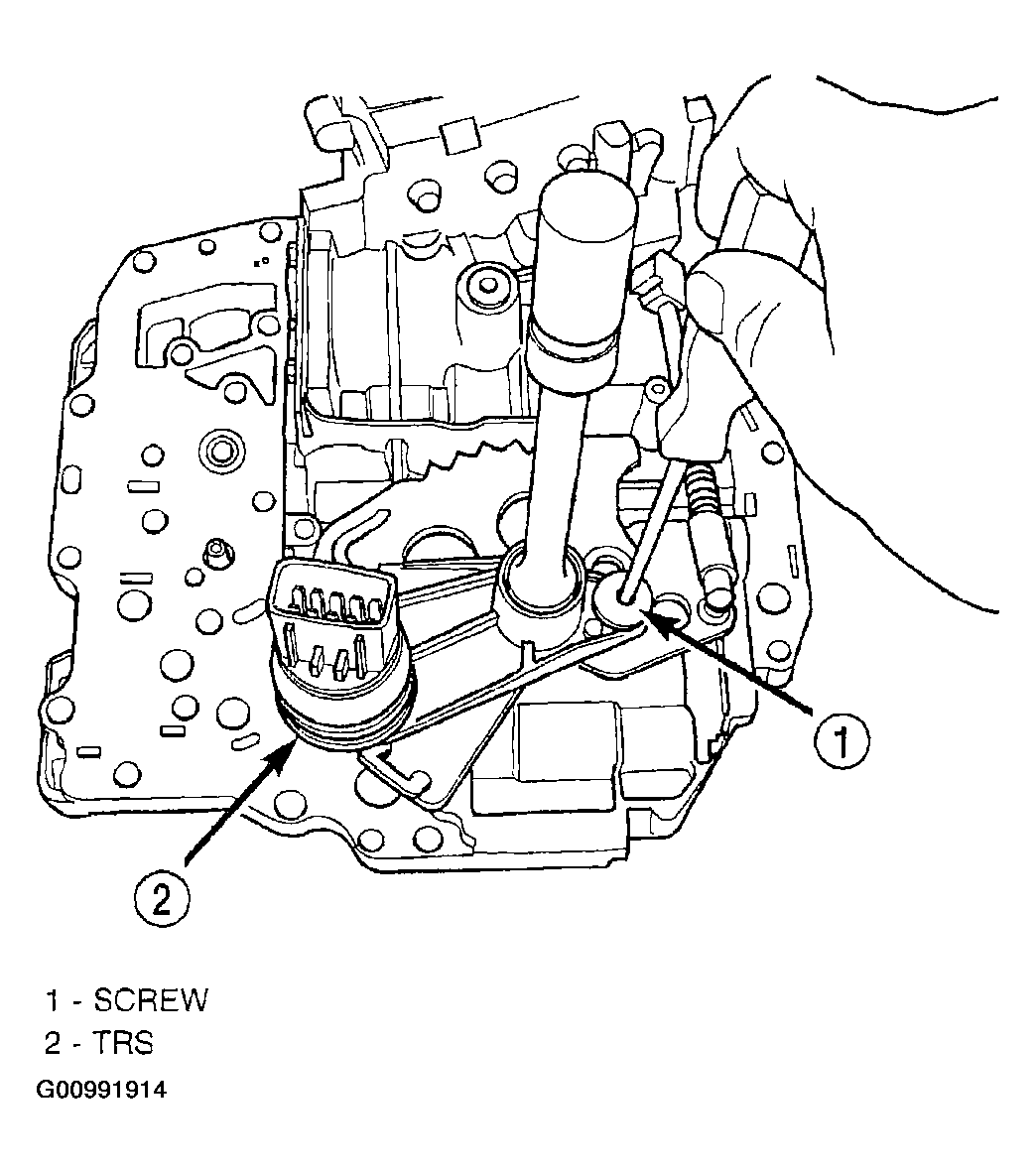

- Install the TRS/manual shaft retaining screw and torque to 5 N.m (45 in. lbs.) torque. See Figure.

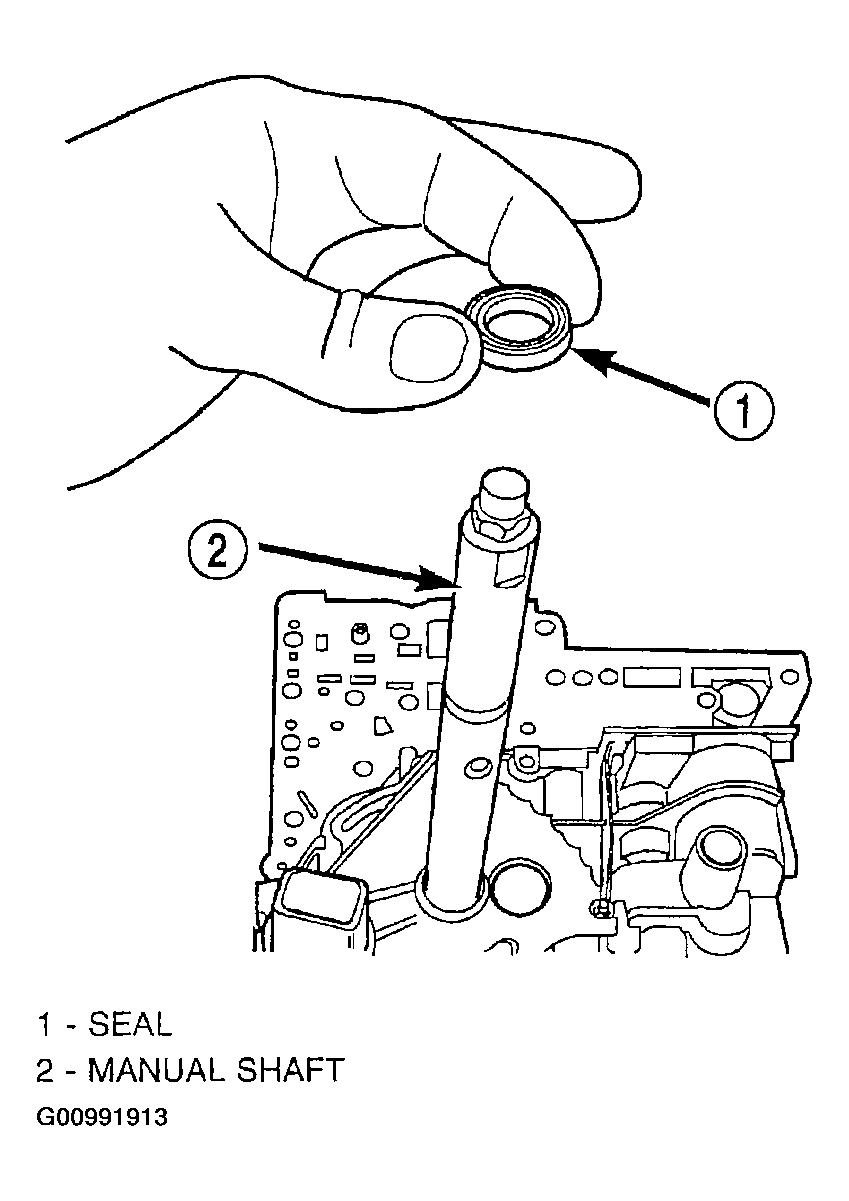

- Install the manual shaft seal. See Figure.
- Install valve body to transaxle. Refer to INSTALLATION .
