Removal & Installation (Prowler)

Remove knee block below steering column. Remove steering column support bracket nuts and lower steering column. Remove 2 screws retaining interlock mechanism to steering column. See Fig 1 . Unsnap mechanism from column.
Disconnect BTSI solenoid harness connector. BTSI solenoid is located under center portion of instrument panel on driver's side. See Figure . Disconnect solenoid/cable retainer from bracket, if equipped. Apply parking brake.
Place gearshift lever in autostick position. Remove gearshift handle set screw. Using trim stick, disengage gearshift bezel from lower console. Disconnect bezel light harness connector. See Fig 2 . Remove front console retaining screw.
Open console storage bin cover and remove retaining screws. Carefully remove center console from vehicle. Turn ignition switch to ON/RUN position. Disconnect interlock cable from gearshift assembly. Remove interlock cable. To install cable, reverse removal procedure. Adjust cable after installation. See SHIFT LOCK & IGNITION INTERLOCK CABLES under ADJUSTMENTS.

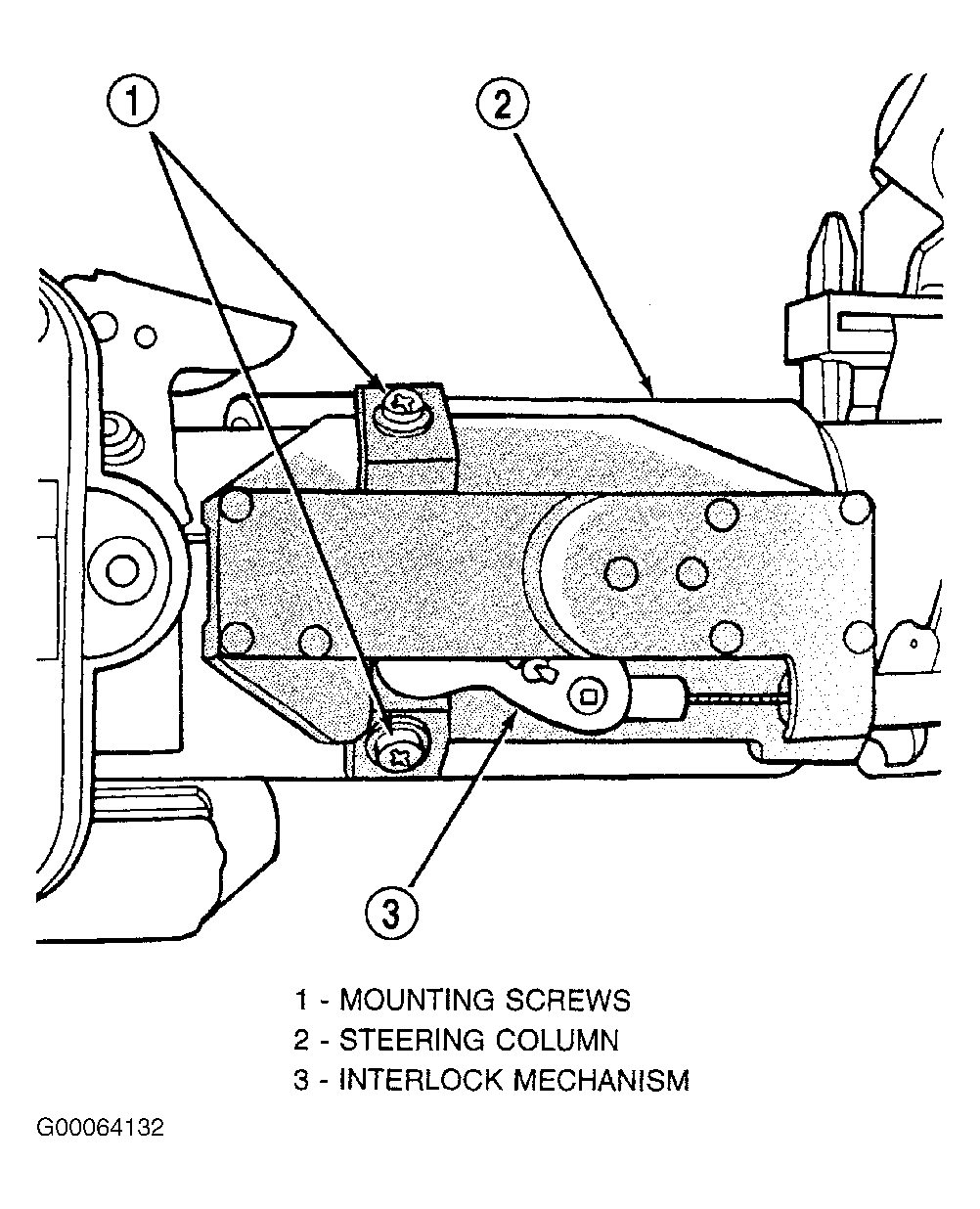

Fig 1: Identifying Interlock Cable On Steering Column (Prowler)

Courtesy of DAIMLERCHRYSLER CORPORATION

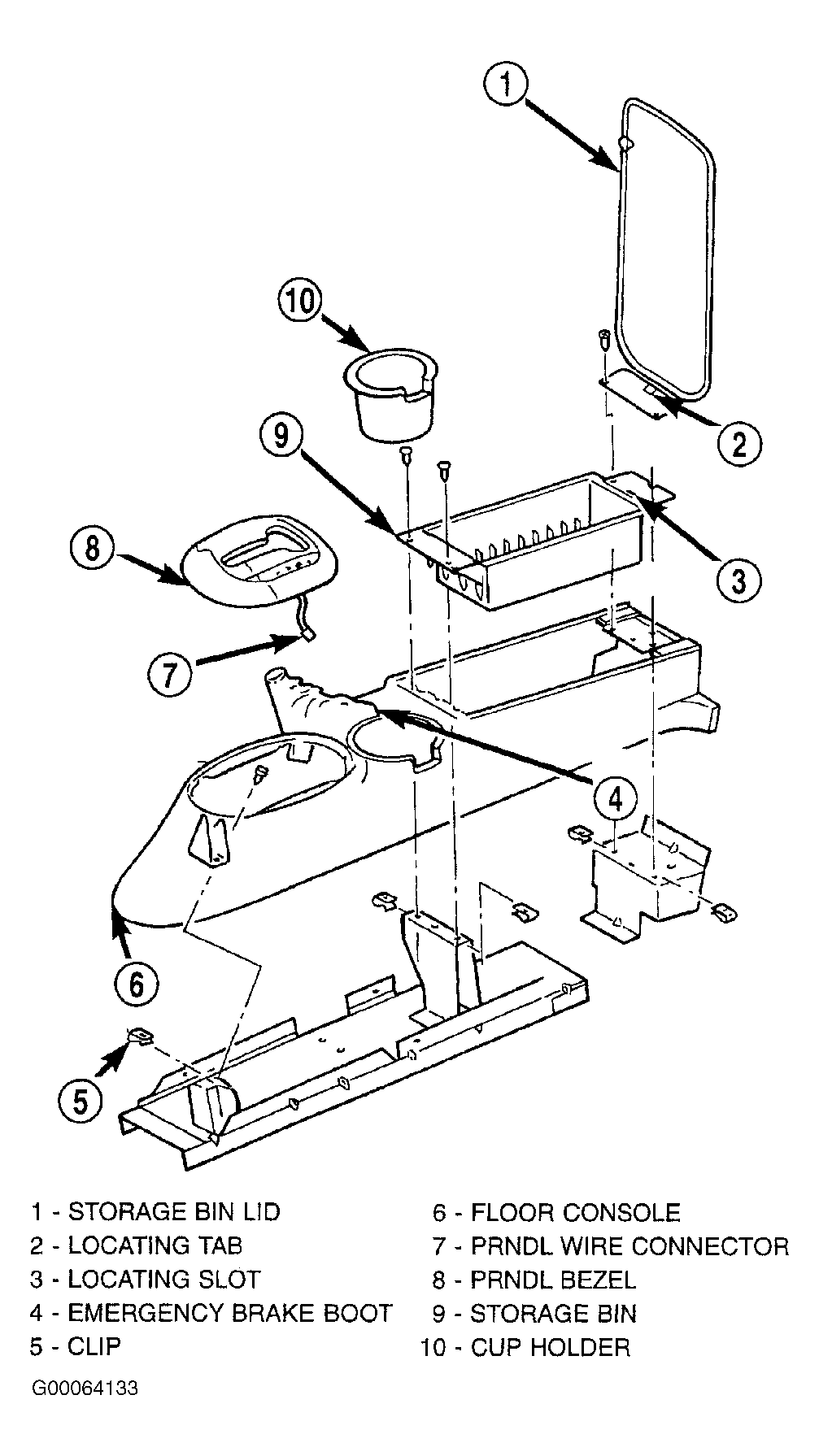

Fig 2: Exploded View Of Center Console (Prowler)

Courtesy of DAIMLERCHRYSLER CORPORATION
