Connector Identification

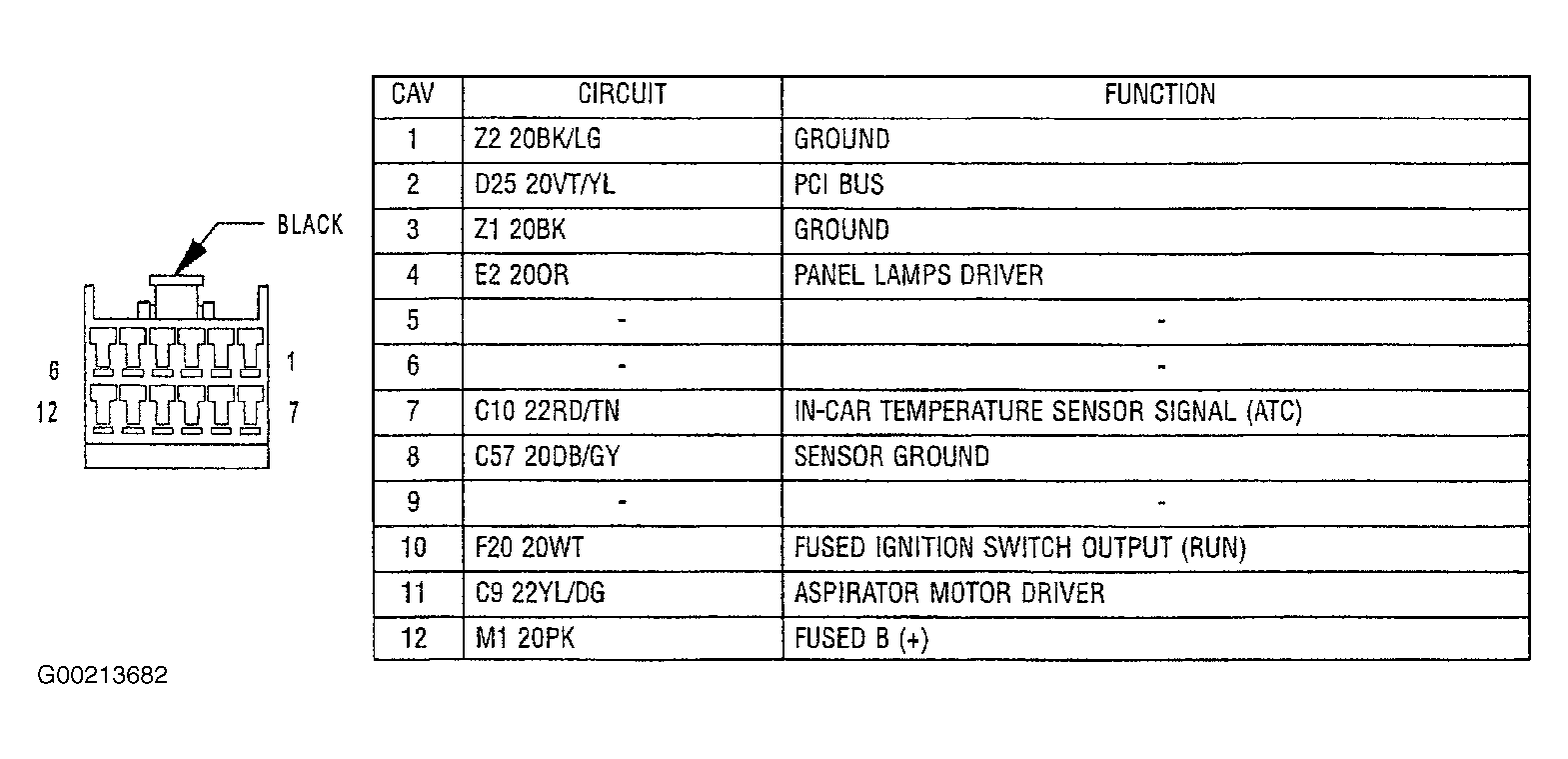

Fig 1: Identifying Automatic Temperature Control Module Connectors

G00213682

Courtesy of CHRYSLER CORP.

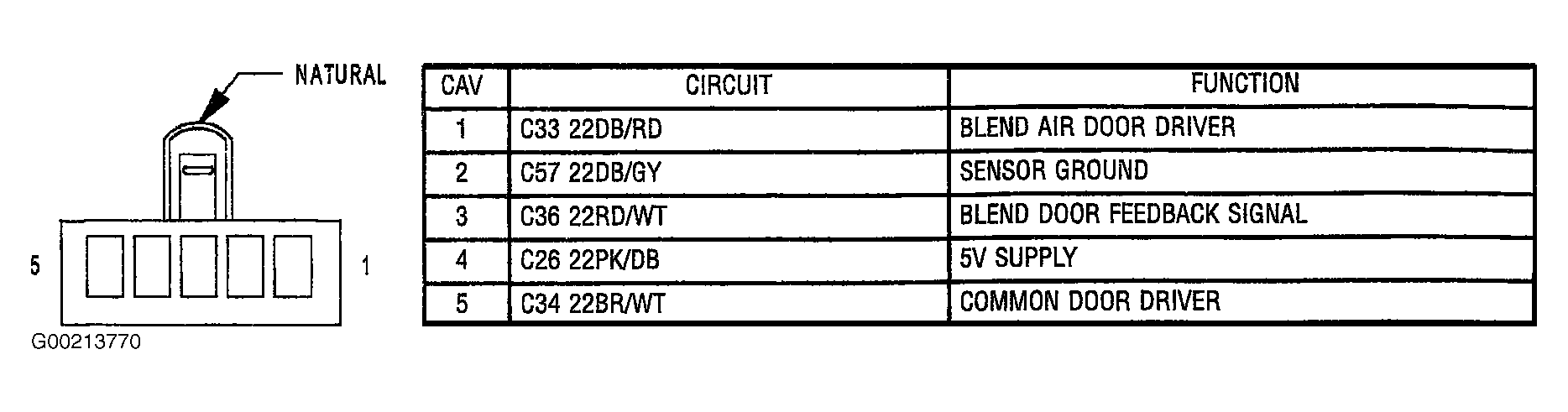

Fig 2: Identifying Blend Door Actuator Connector

G00213770

Courtesy of CHRYSLER CORP.

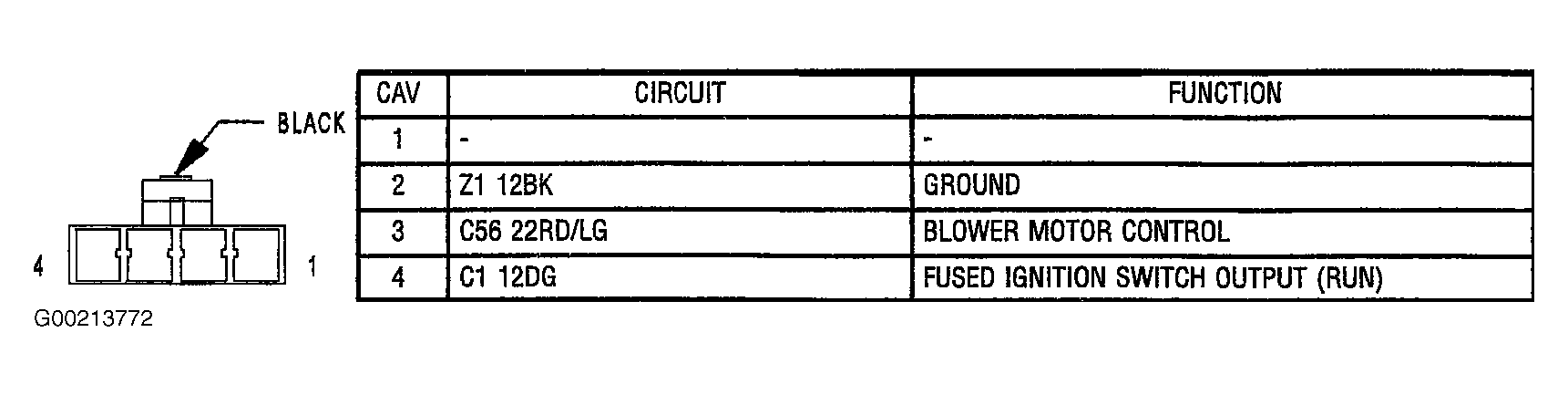

Fig 3: Identifying Blower Motor Power Module Connector

G00213772

Courtesy of CHRYSLER CORP.

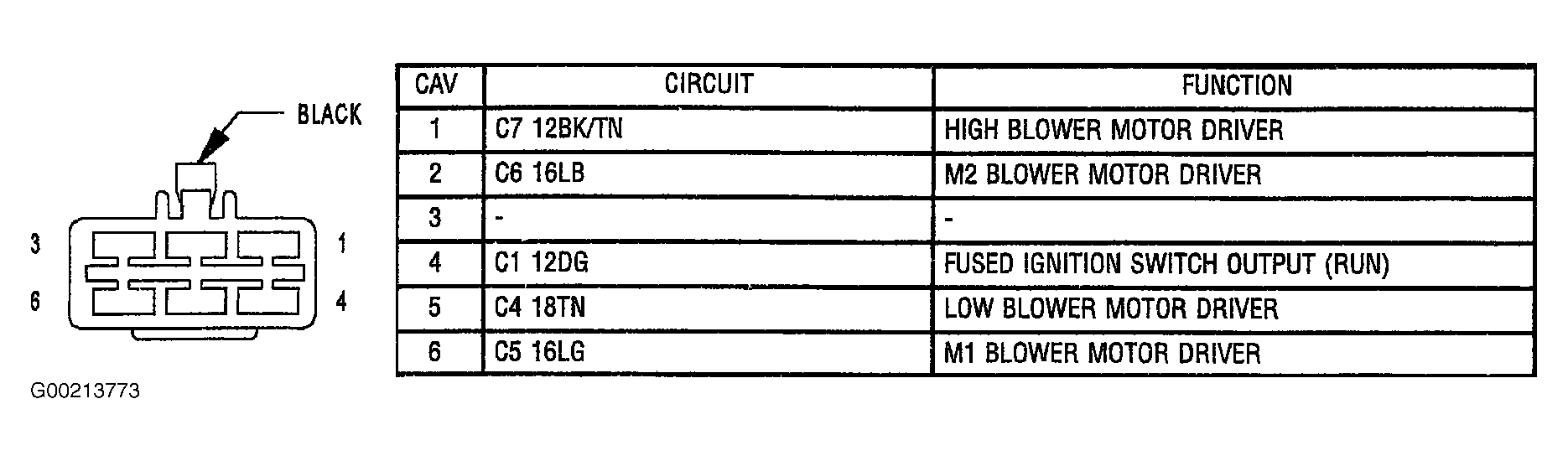

Fig 4: Identifying Blower Motor Resistor Block Connector

G00213773

Courtesy of CHRYSLER CORP.

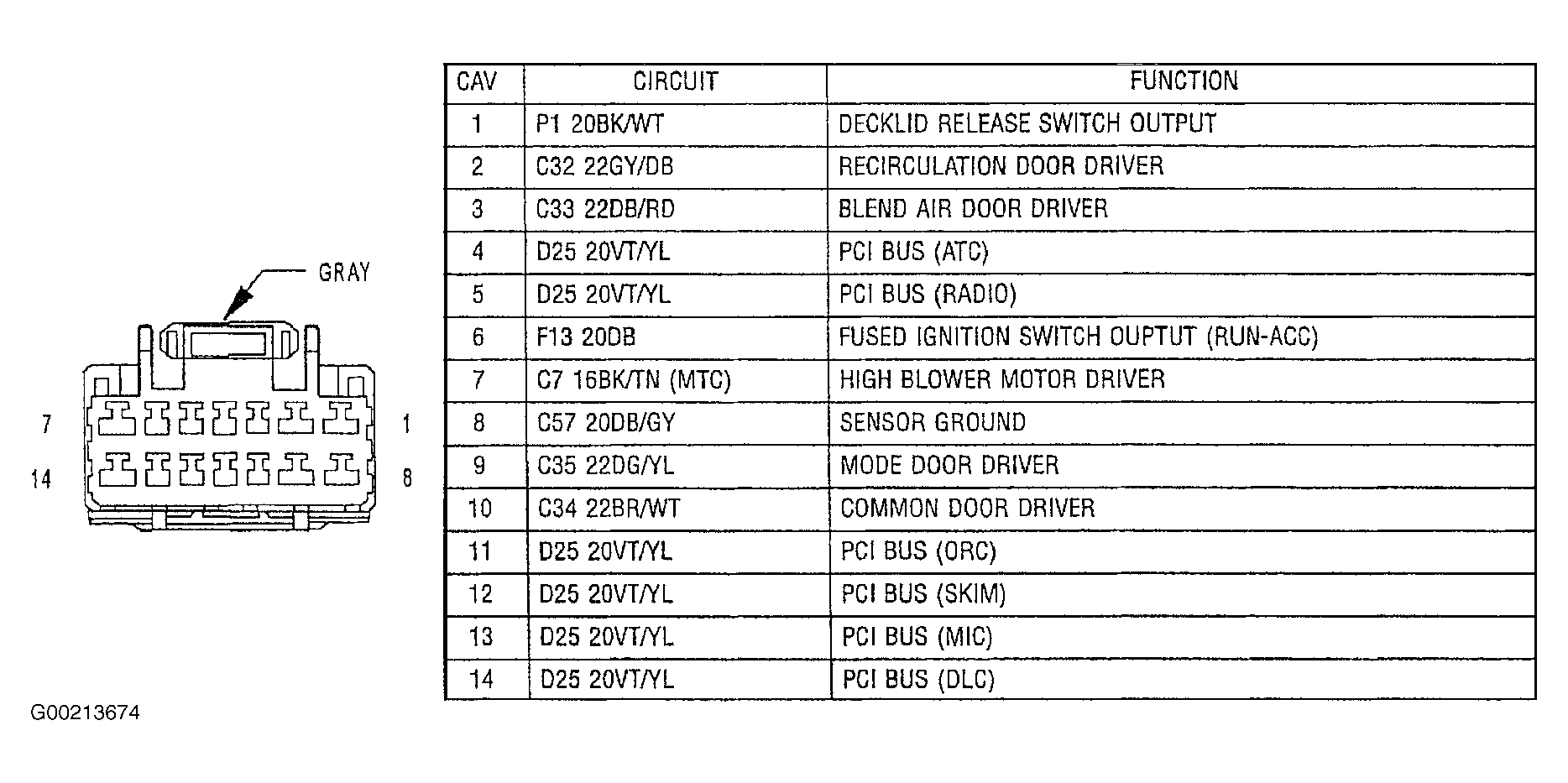

Fig 5: Identifying Body Control Module C1 Connector

G00213674

Courtesy of CHRYSLER CORP.

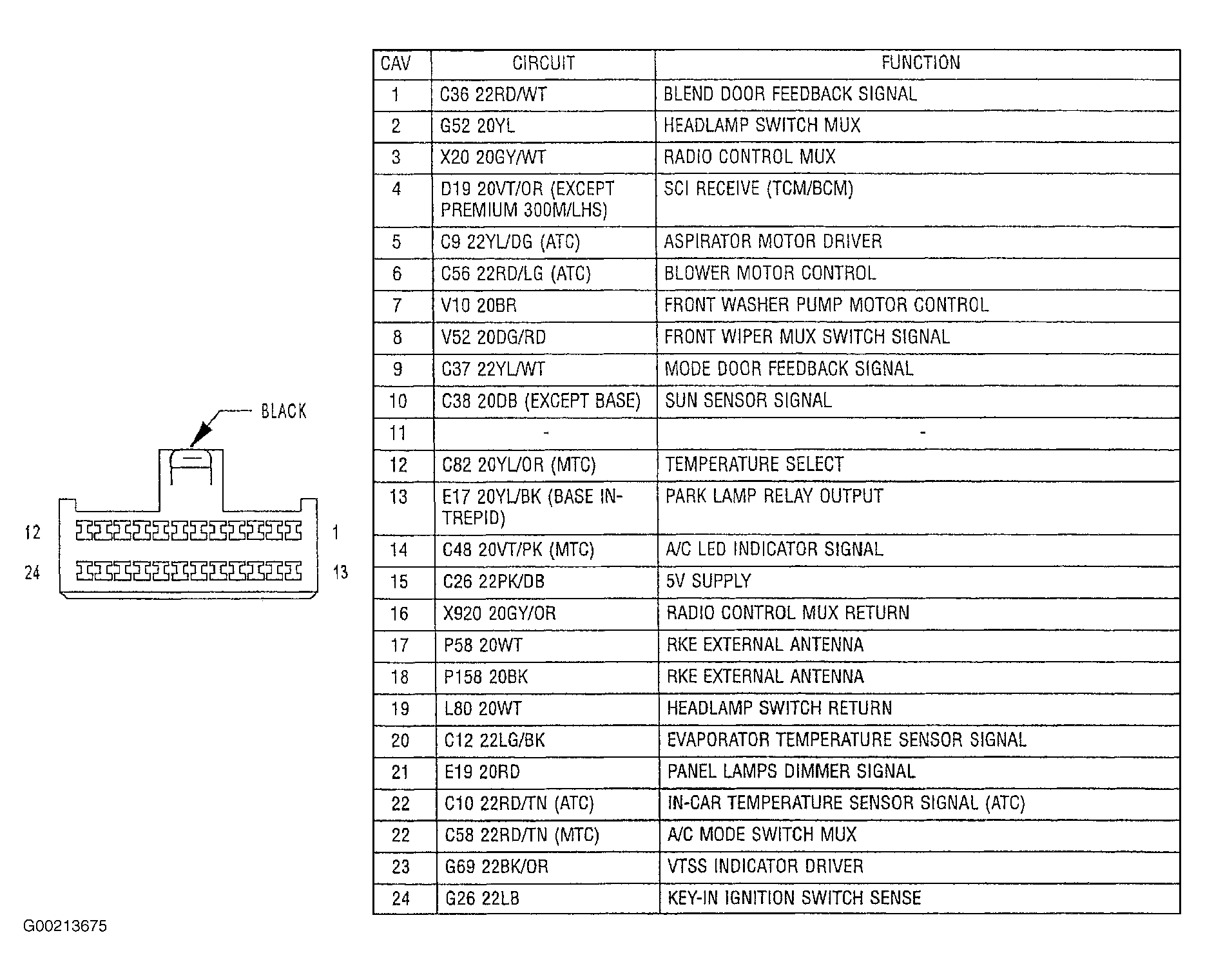

Fig 6: Identifying Body Control Module C2 Connector

G00213675

Courtesy of CHRYSLER CORP.

Fig 7: Identifying Body Control Module C3 Connector

G00213676

Courtesy of CHRYSLER CORP.

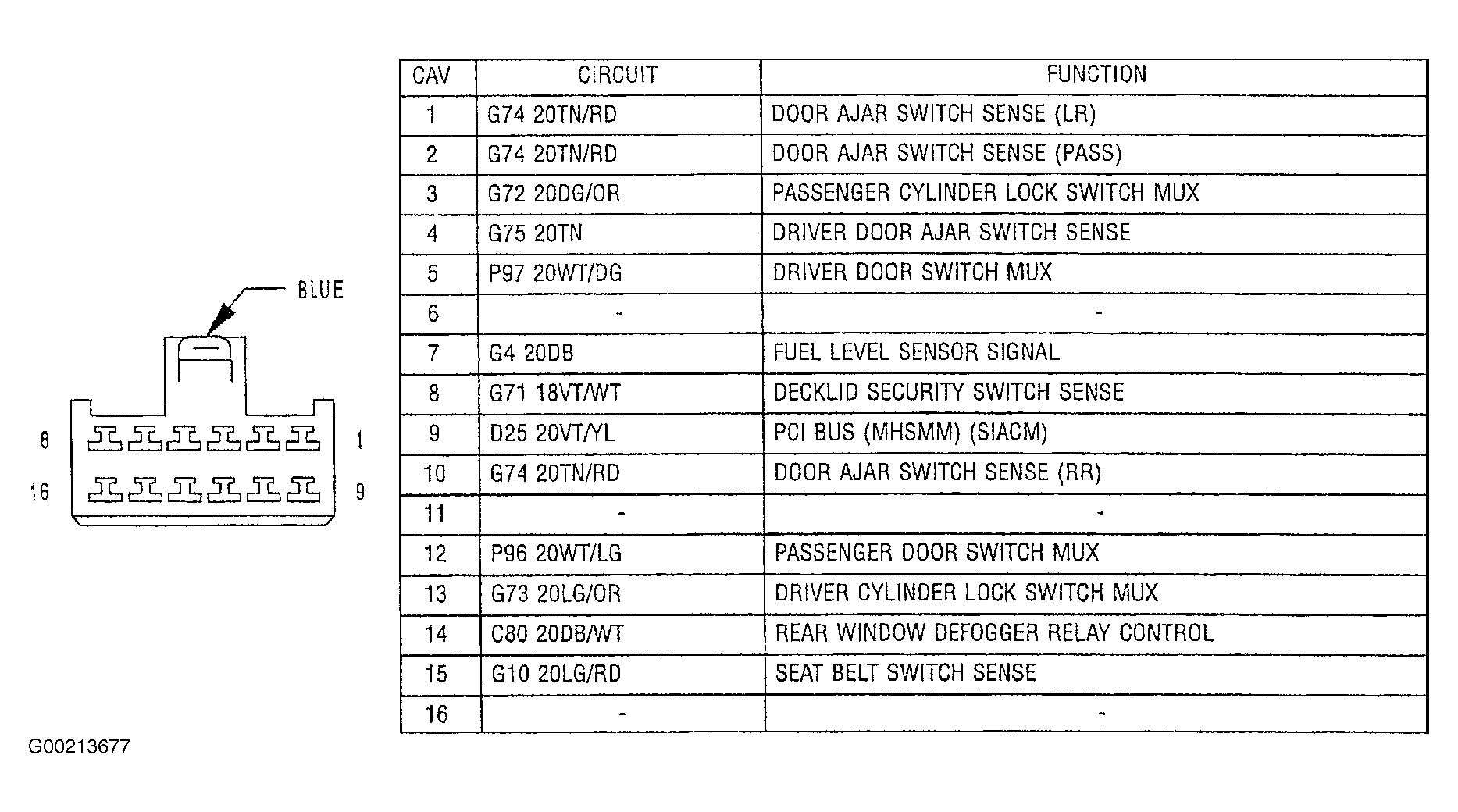

Fig 8: Identifying Body Control Module C4 Connector

G00213677

Courtesy of CHRYSLER CORP.

Fig 9: Identifying C202 Connector Instrument Panel Side

G00213766

Courtesy of CHRYSLER CORP.

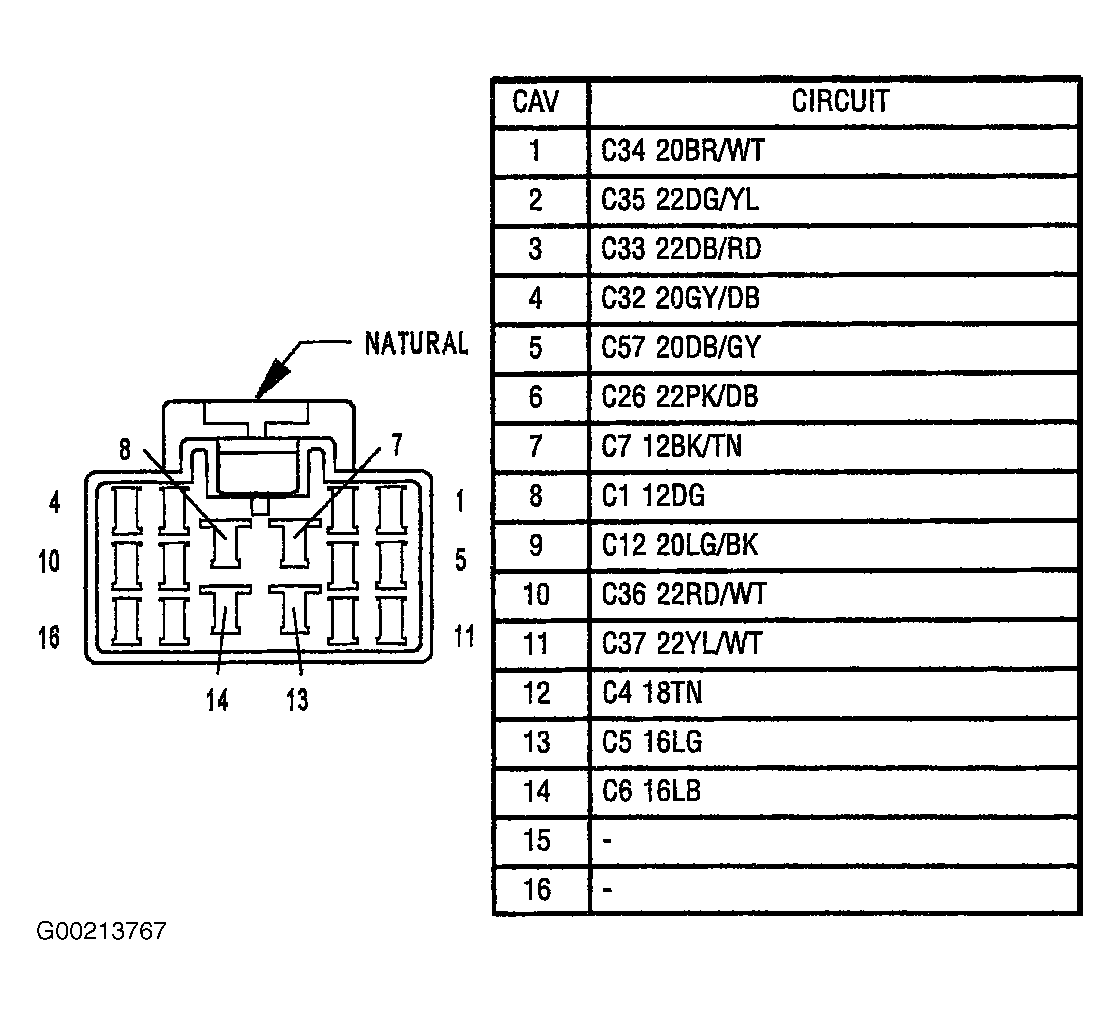

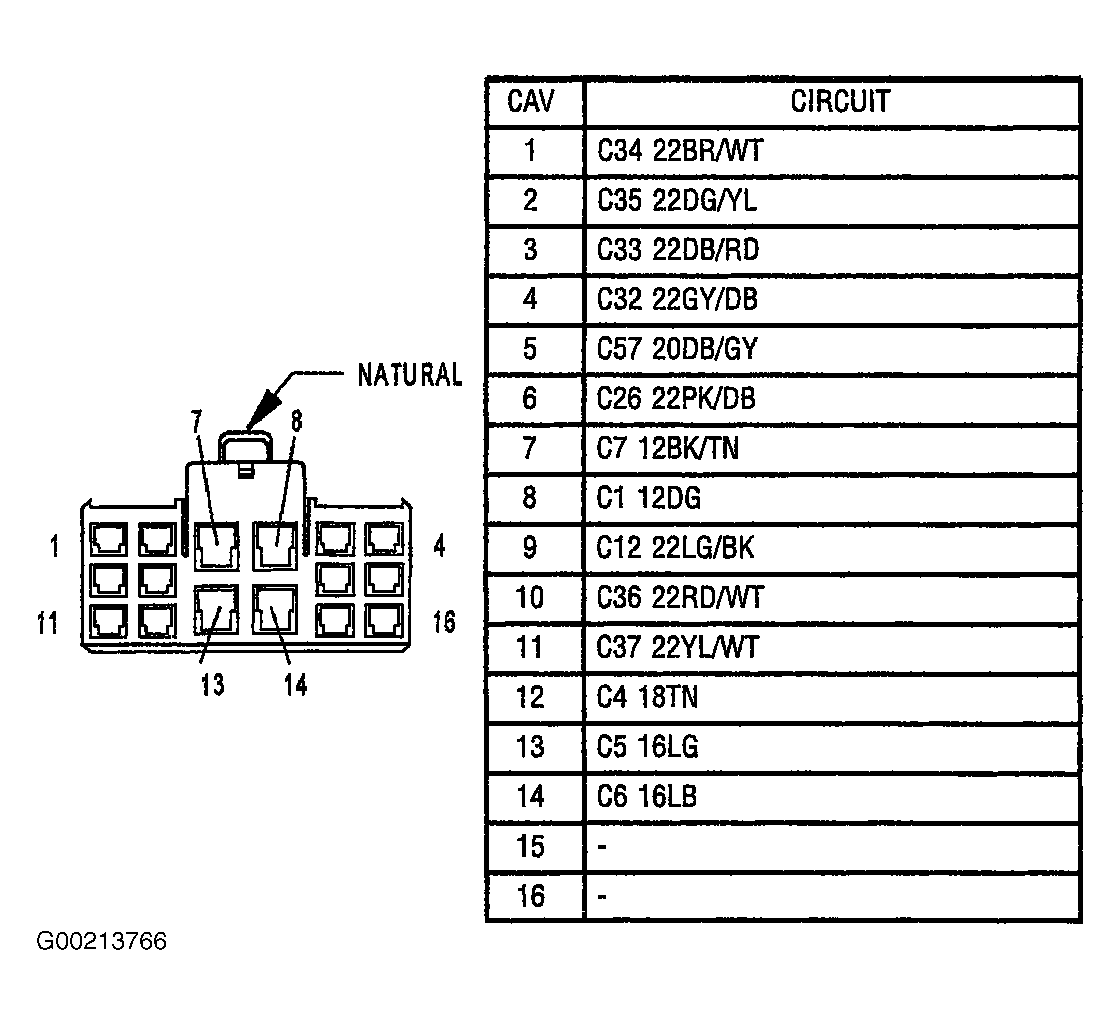

Fig 10: Identifying C202 Connector HVAC Side

G00213767

Courtesy of CHRYSLER CORP.

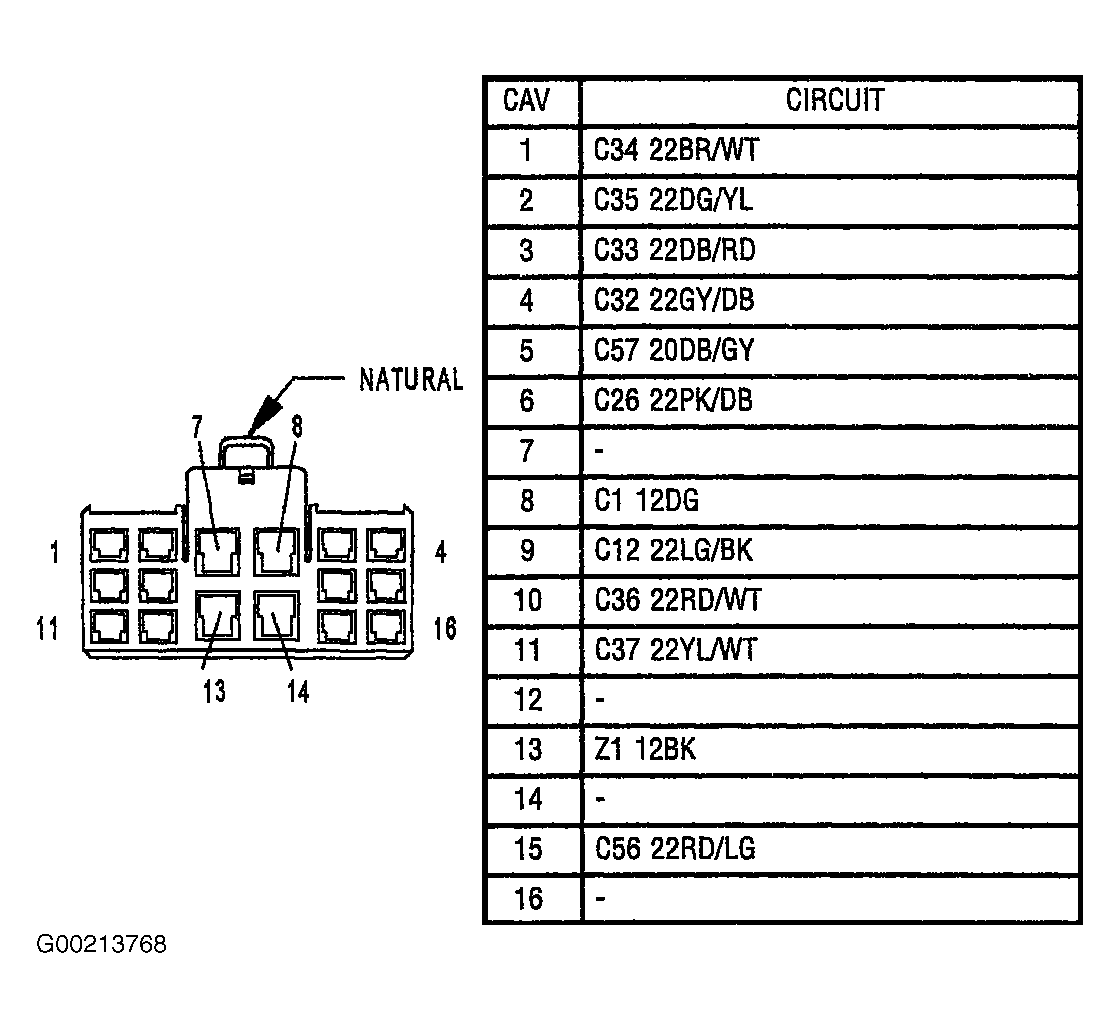

Fig 11: Identifying C203 Connector Instrument Panel Side

G00213768

Courtesy of CHRYSLER CORP.

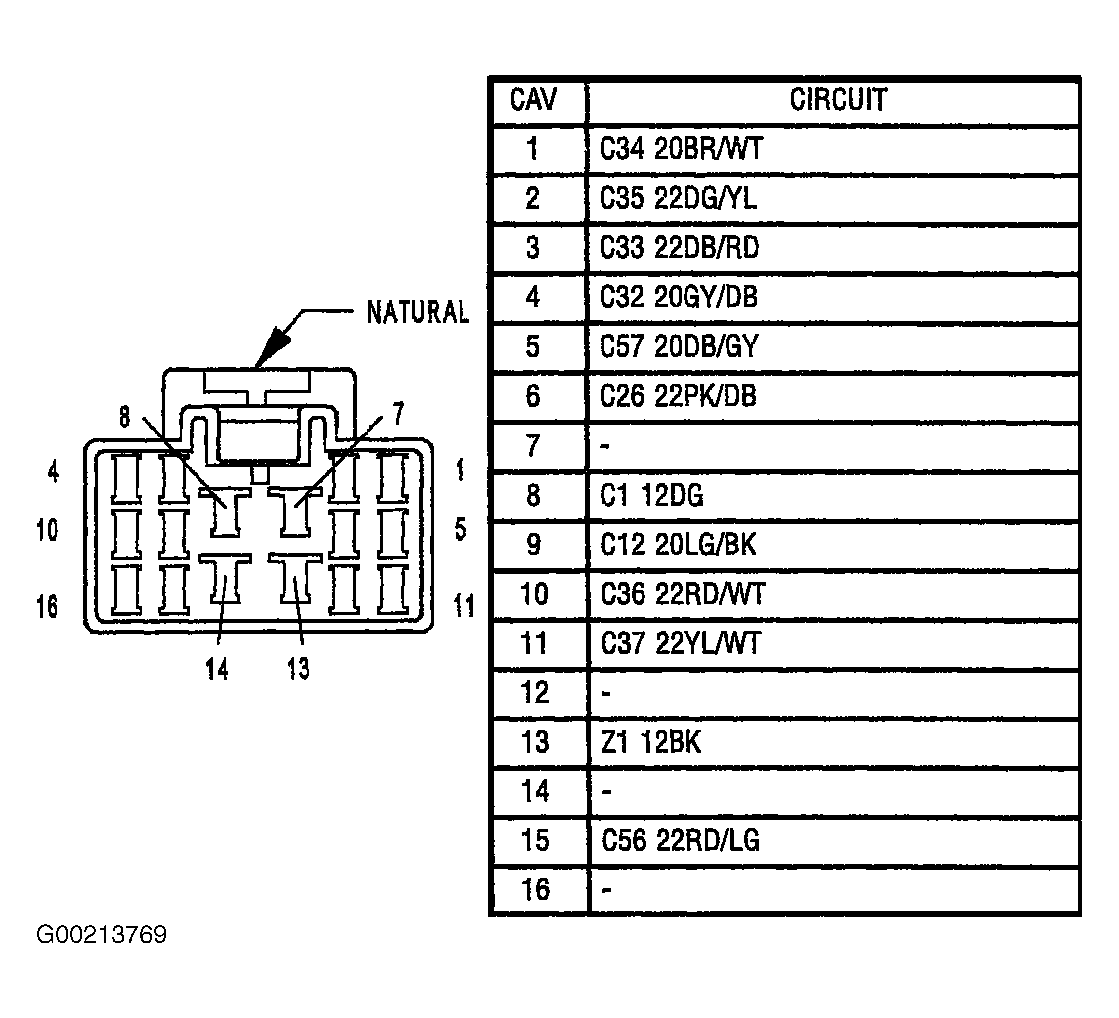

Fig 12: Identifying C203 Connector HVAC Side

G00213769

Courtesy of CHRYSLER CORP.

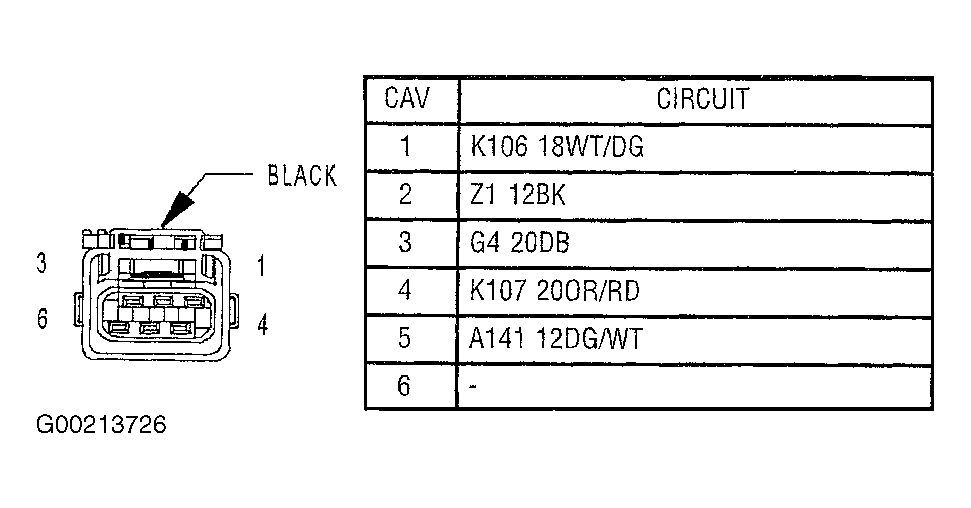

Fig 13: Identifying C308 Connector

G00213726

Courtesy of CHRYSLER CORP.

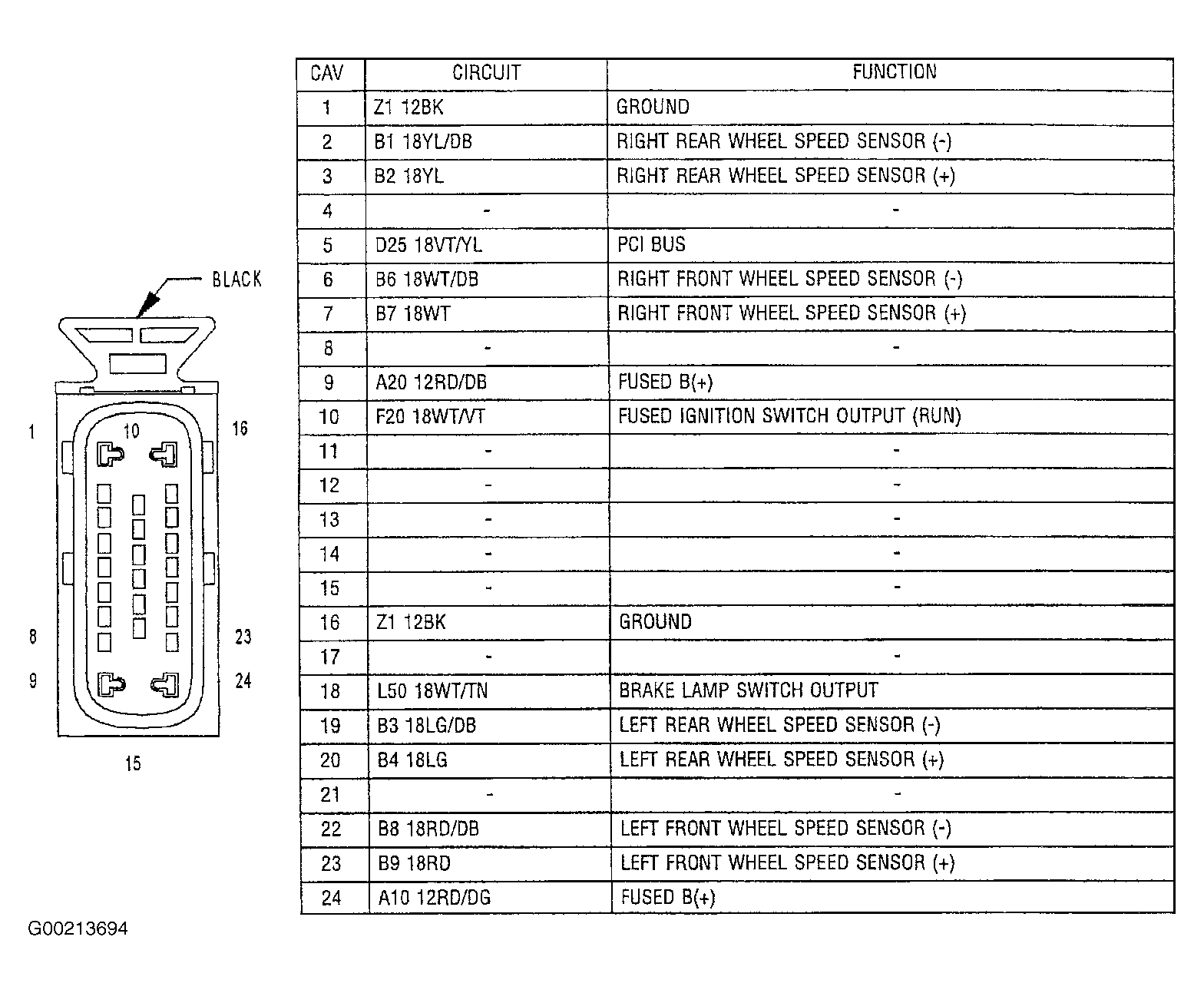

Fig 14: Identifying Controller Anti-Lock Brake Connector

G00213694

Courtesy of CHRYSLER CORP.

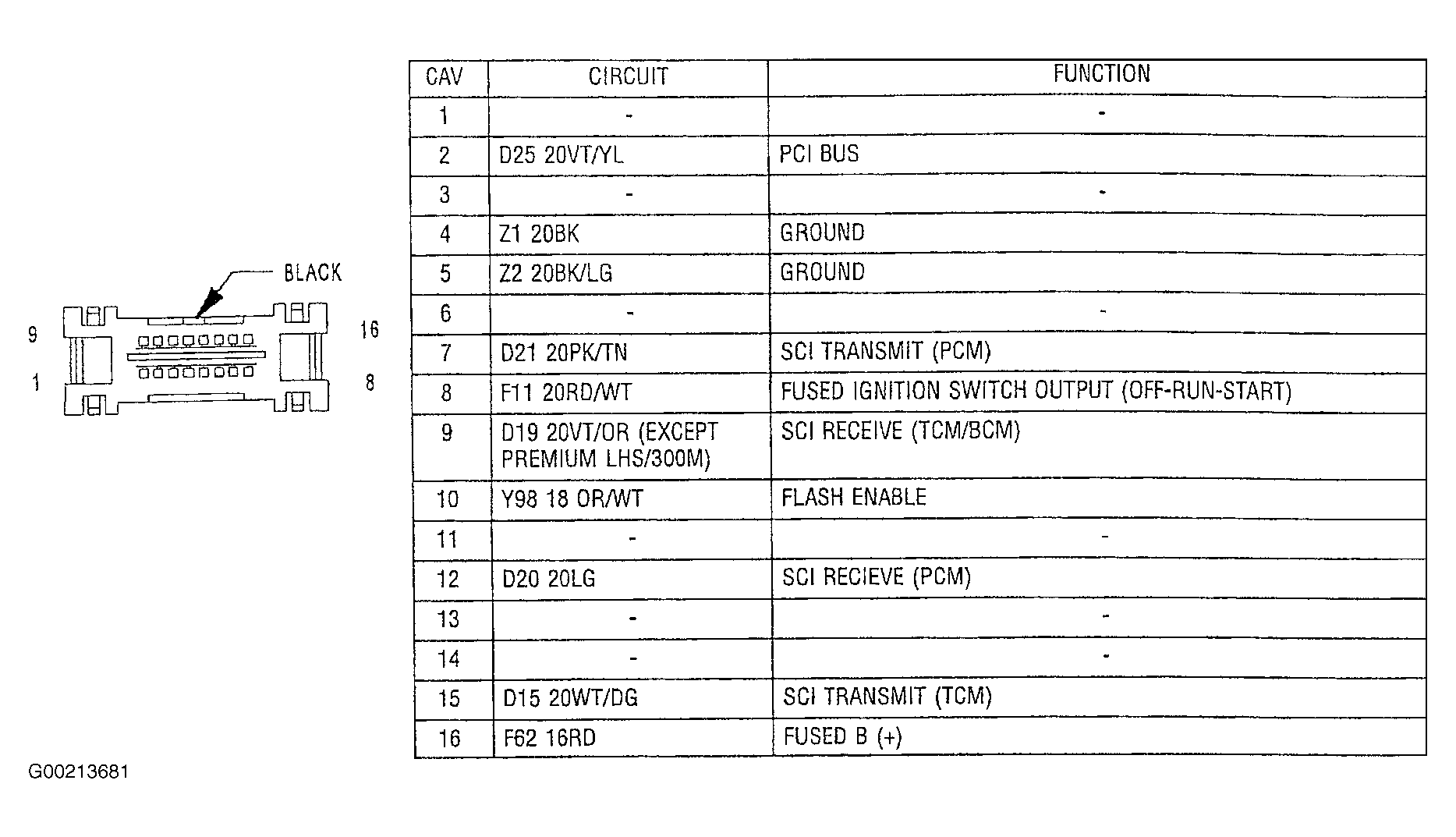

Fig 15: Identifying Data Link Connector

G00213681

Courtesy of CHRYSLER CORP.

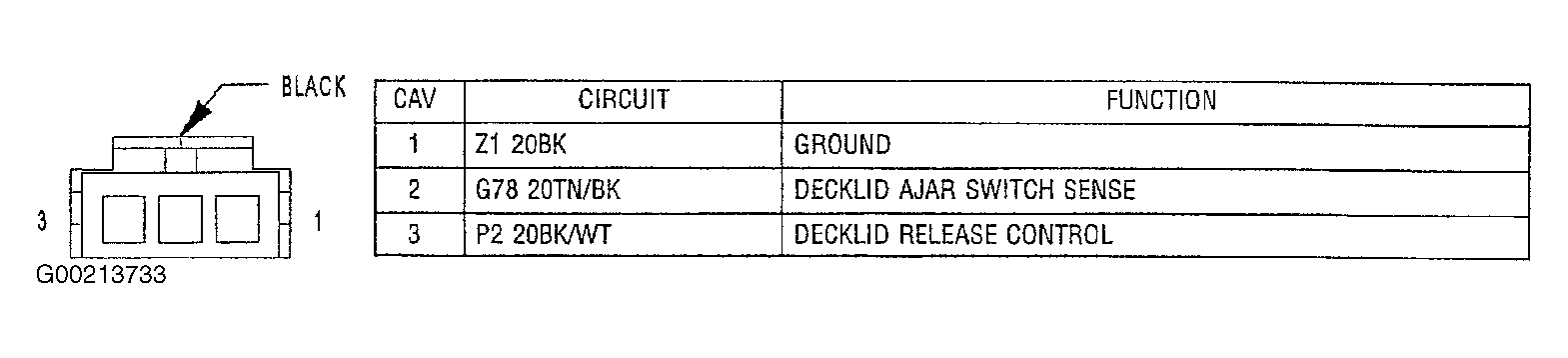

Fig 16: Identifying Deck Lid Release Solenoid/Ajar Switch Connector

G00213733

Courtesy of CHRYSLER CORP.

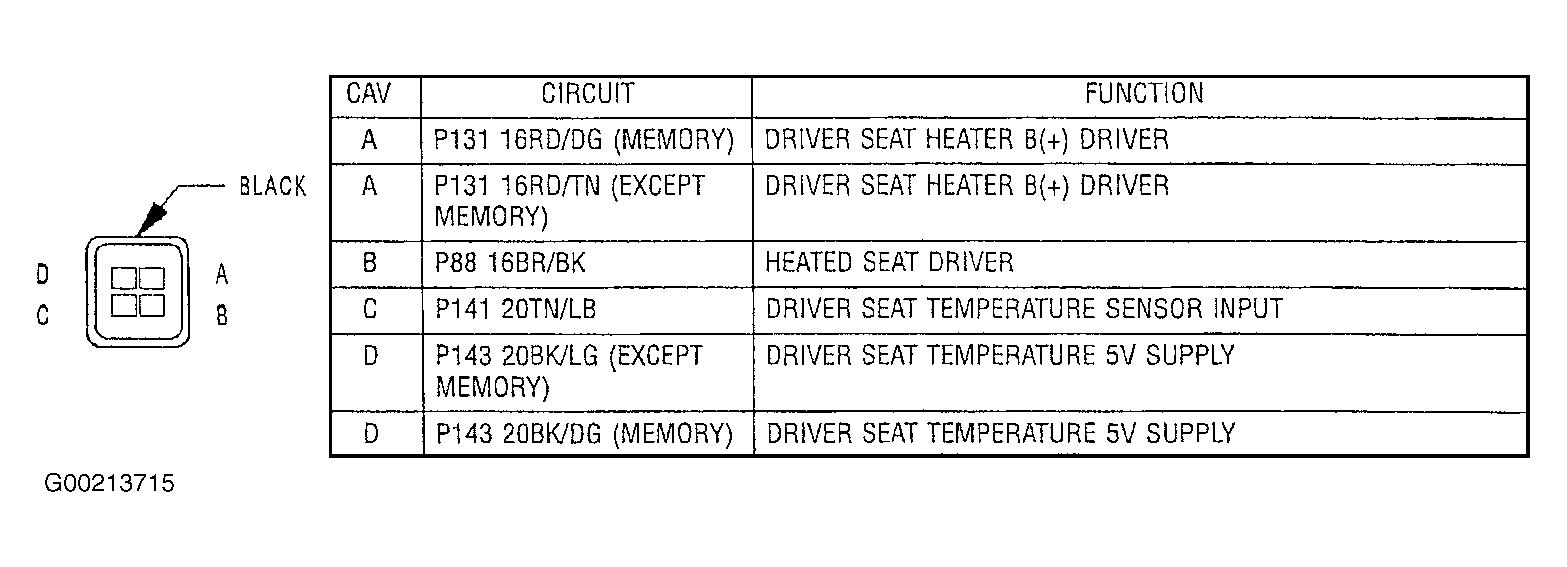

Fig 17: Identifying Driver Heated Seat Cushion Connector

G00213715

Courtesy of CHRYSLER CORP.

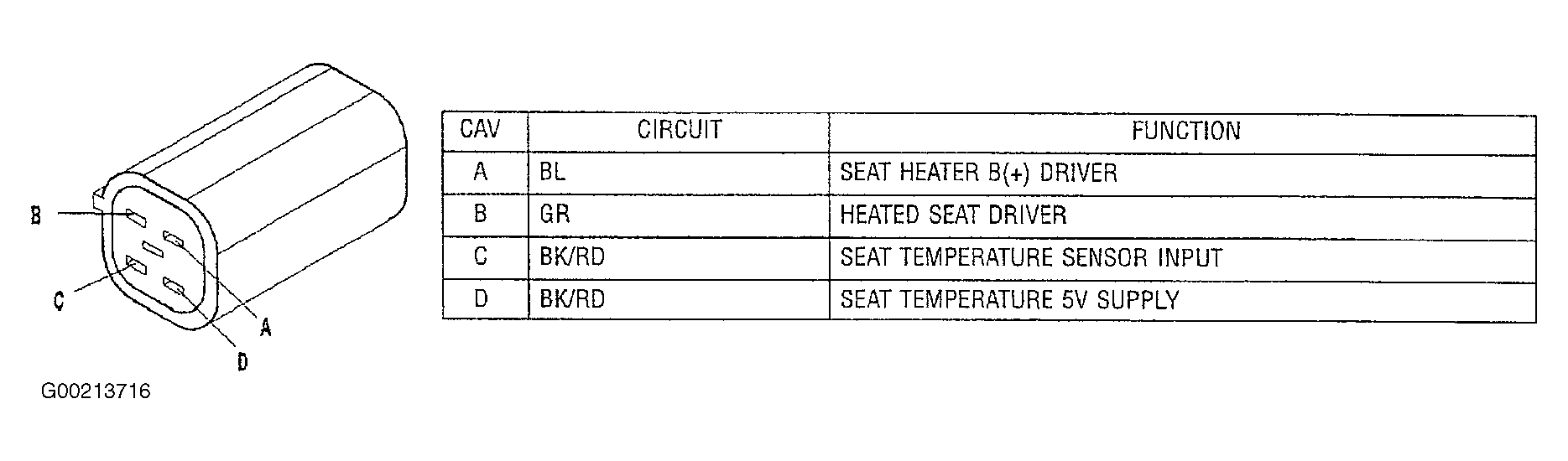

Fig 18: Identifying Driver Heated Seat Cushion (Cushion Side) Connector

G00213716

Courtesy of CHRYSLER CORP.

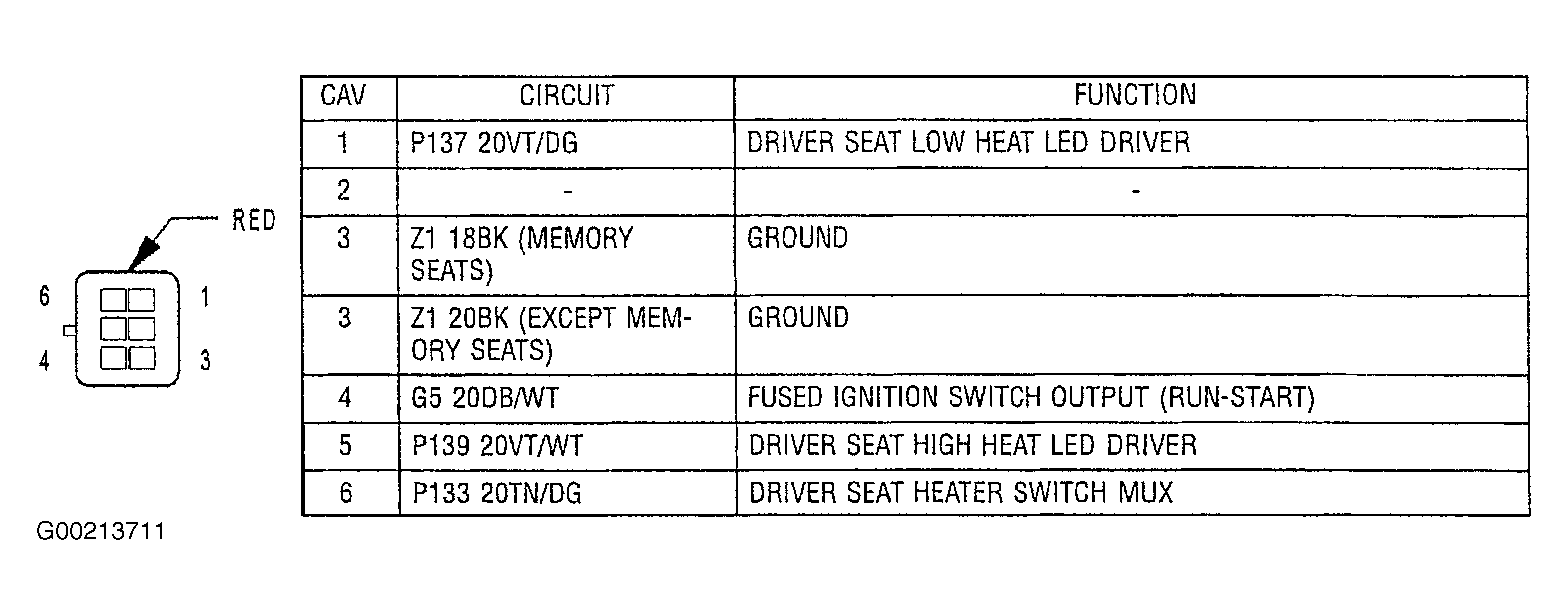

Fig 19: Identifying Driver Heated Seat Switch Connector

G00213711

Courtesy of CHRYSLER CORP.

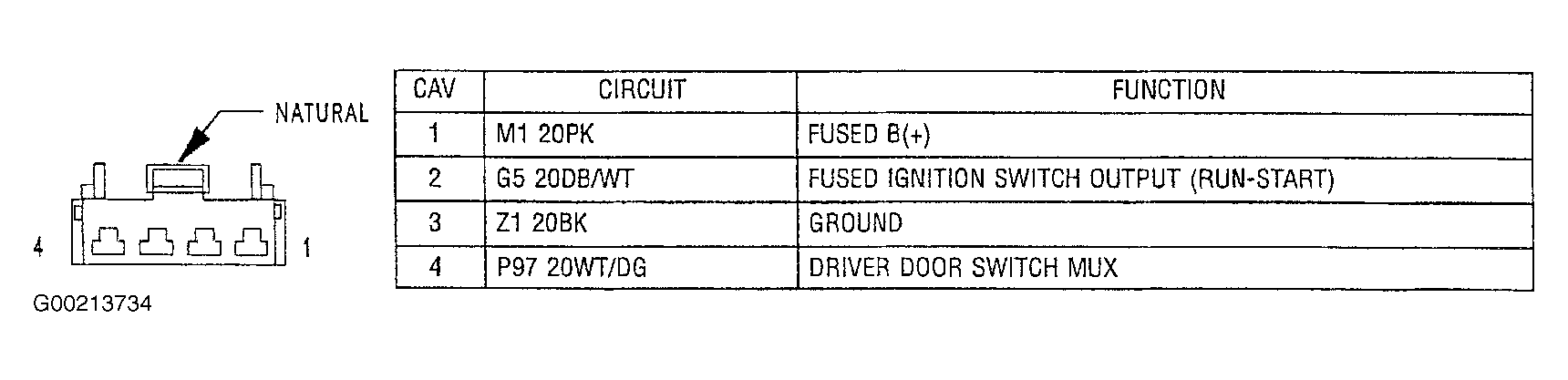

Fig 20: Identifying Power Door Lock Switch Connector

G00213734

Courtesy of CHRYSLER CORP.

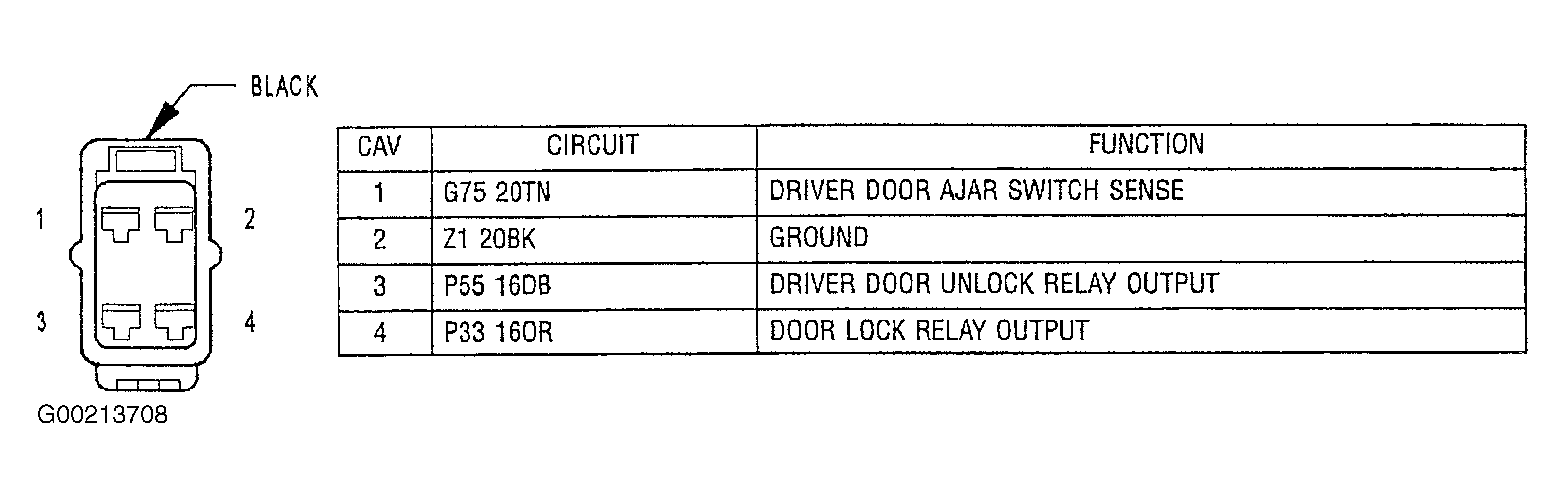

Fig 21: Identifying Driver Door Lock Motor/Ajar Switch Connector

G00213708

Courtesy of CHRYSLER CORP.

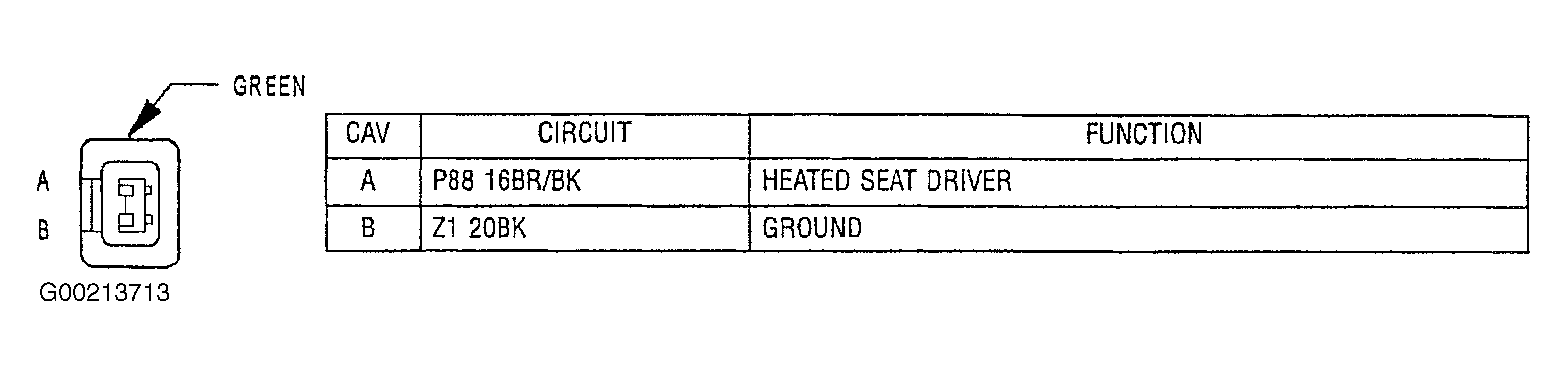

Fig 22: Identifying Driver Heated Seat Back Connector

G00213713

Courtesy of CHRYSLER CORP.

Fig 23: Identifying Driver Heated Seat Back (Seat Back Side) Connector

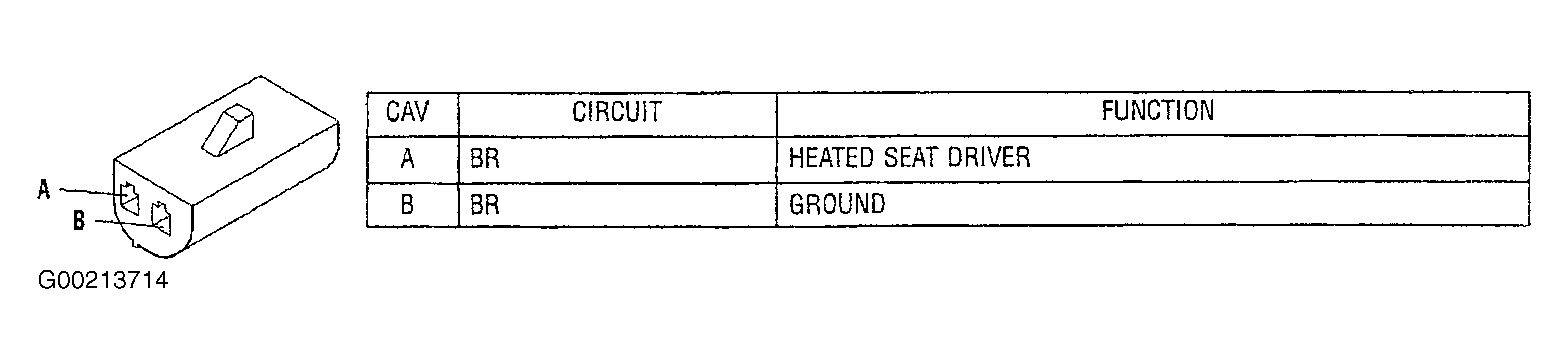

G00213714

Courtesy of CHRYSLER CORP.

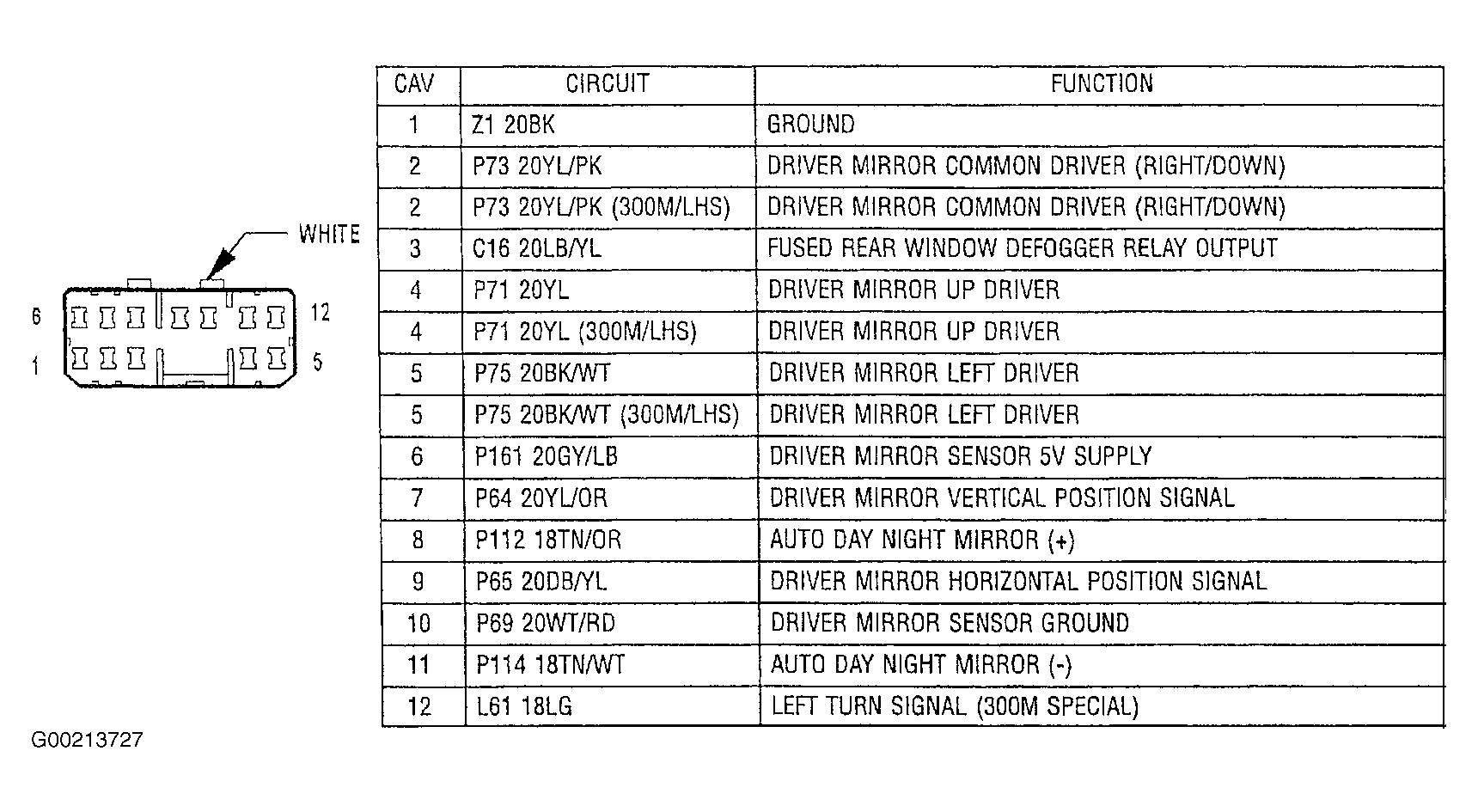

Fig 24: Identifying Driver Power Mirror Connector (Memory)

G00213727

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Driver Power Seat Front Riser Motor Sensor (Memory)

G00213731

Courtesy of CHRYSLER CORP.

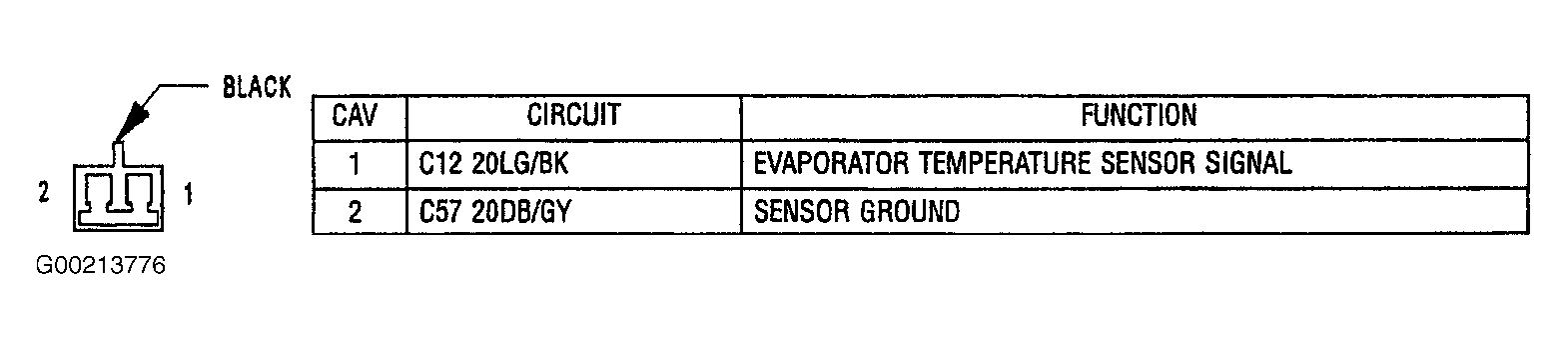

Fig 26: Identifying Evaporator Temperature Sensor Connector

G00213776

Courtesy of CHRYSLER CORP.

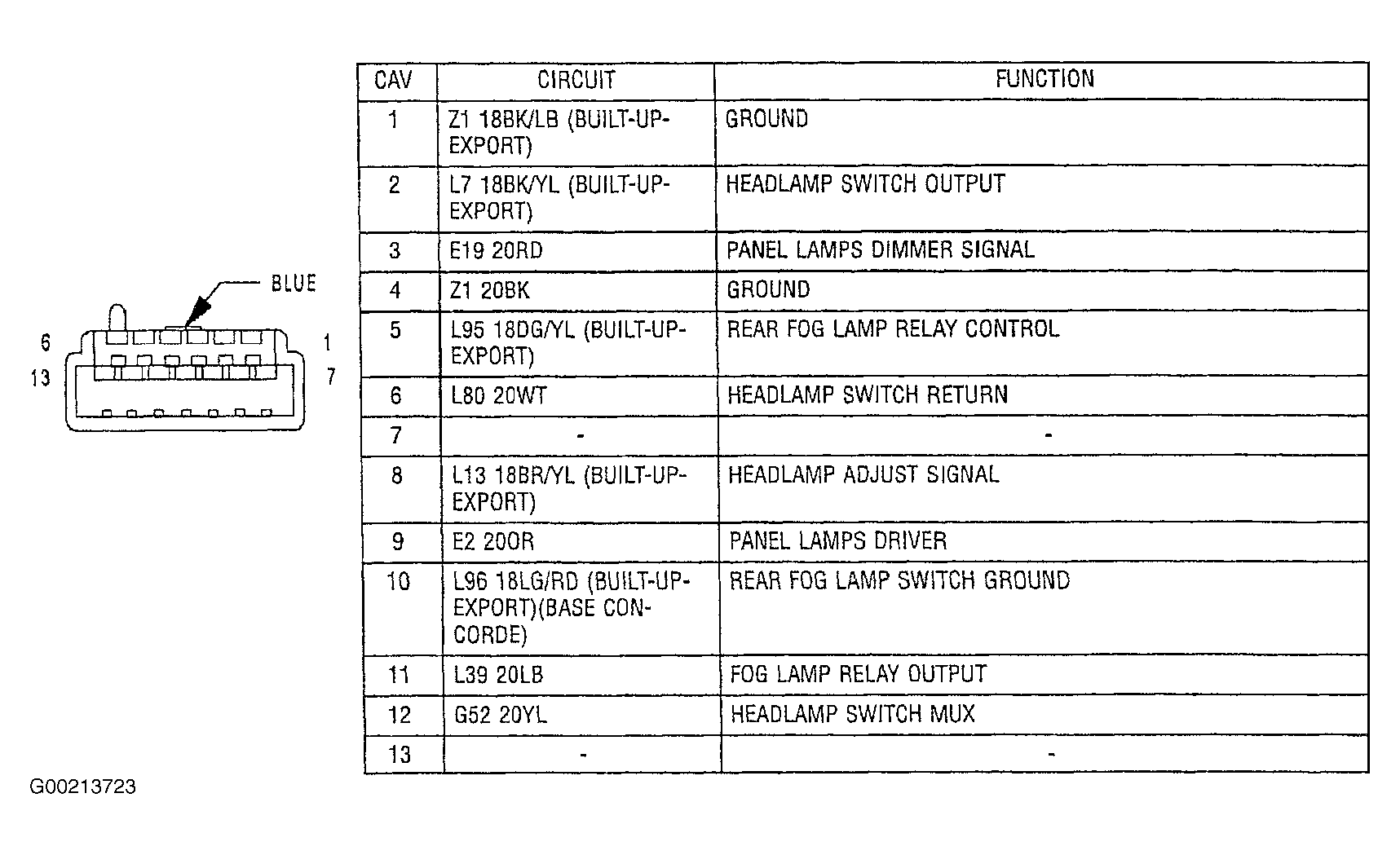

Fig 27: Identifying Headlight Switch Connector

G00213723

Courtesy of CHRYSLER CORP.

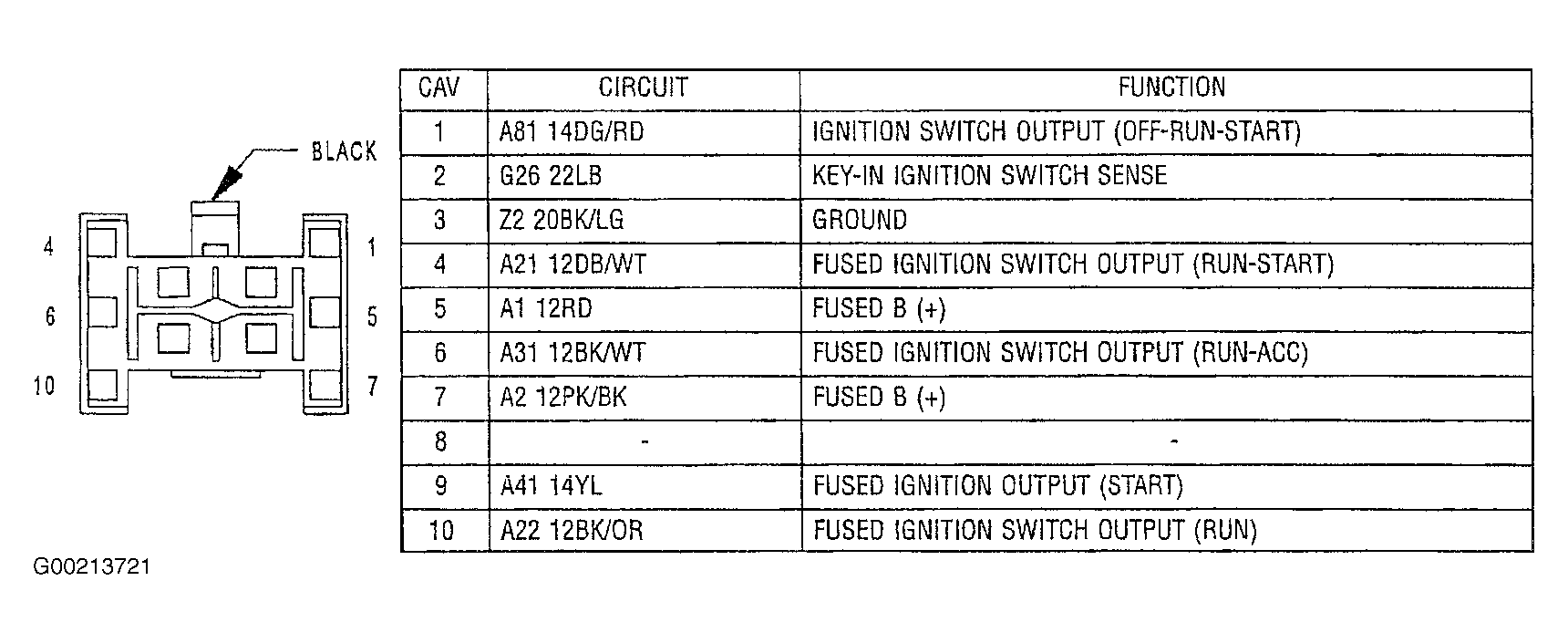

Fig 28: Identifying Ignition Switch Connector

G00213721

Courtesy of CHRYSLER CORP.

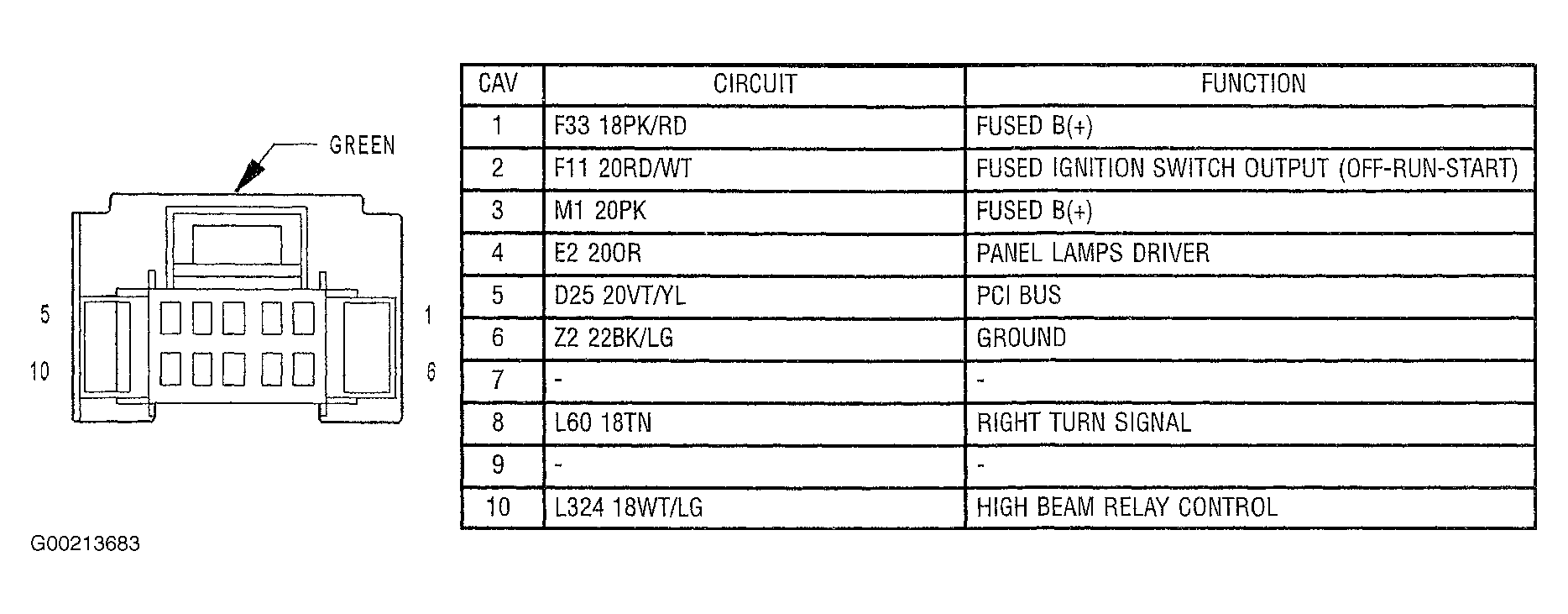

Fig 29: Identifying Instrument Cluster C1 Connector

G00213683

Courtesy of CHRYSLER CORP.

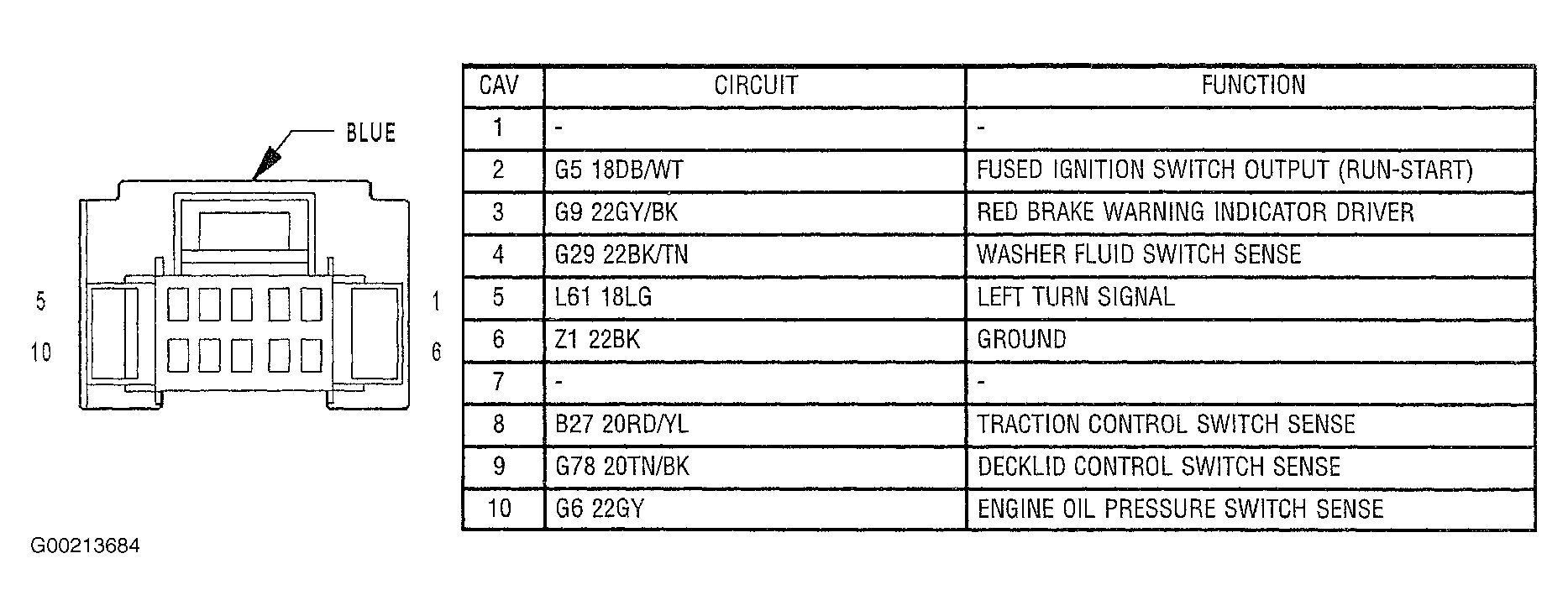

Fig 30: Identifying Instrument Cluster C2 Connector

G00213684

Courtesy of CHRYSLER CORP.

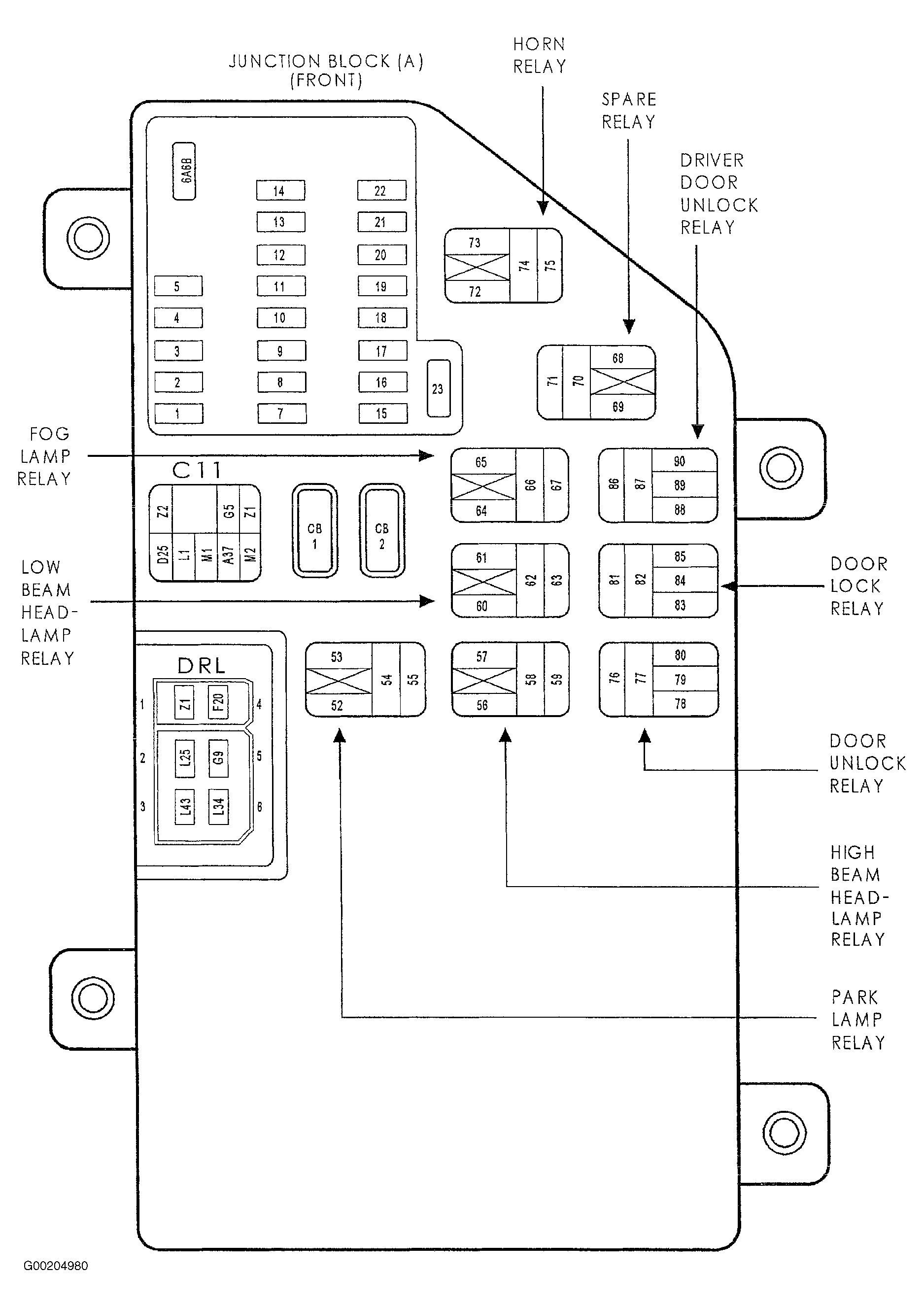

Fig 31: Identifying Junction Block (Front View)

G00204980

Courtesy of CHRYSLER CORP.

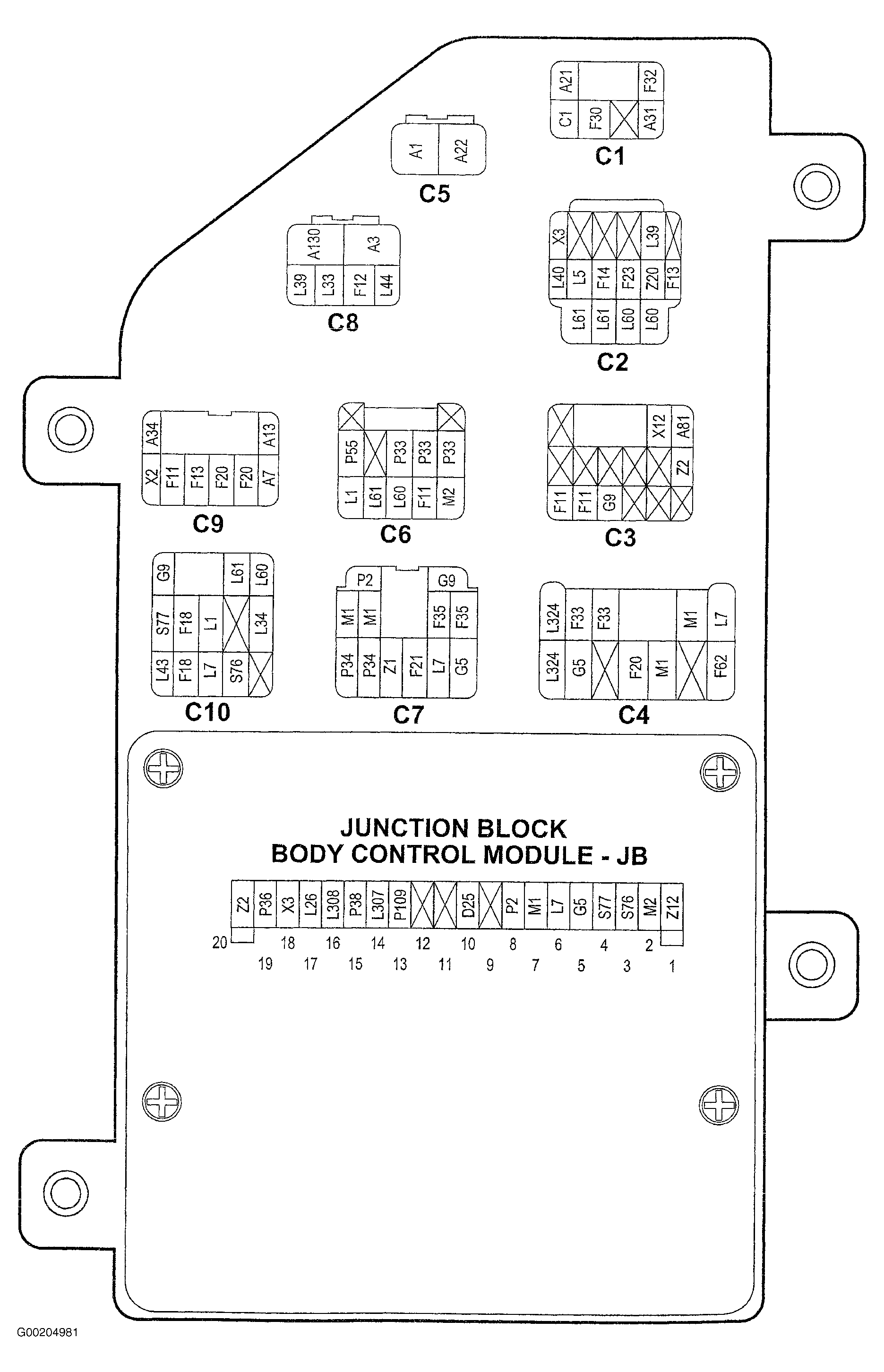

Fig 32: Identifying Junction Block (Rear View)

G00204981

Courtesy of CHRYSLER CORP.

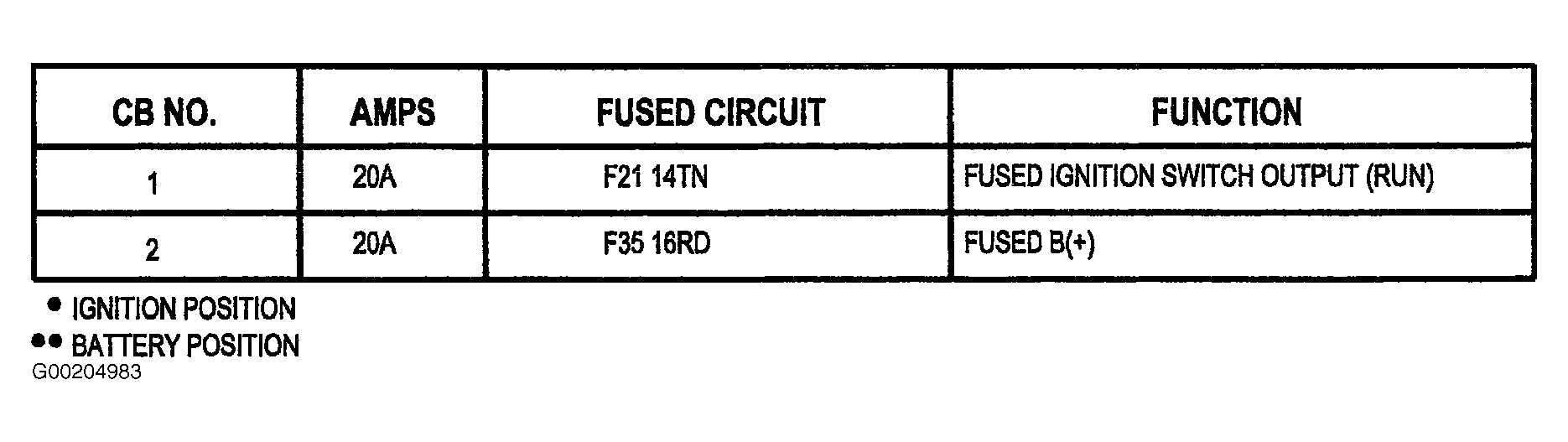

Fig 33: Identifying Junction Block Circuit Breakers

G00204983

Courtesy of CHRYSLER CORP.

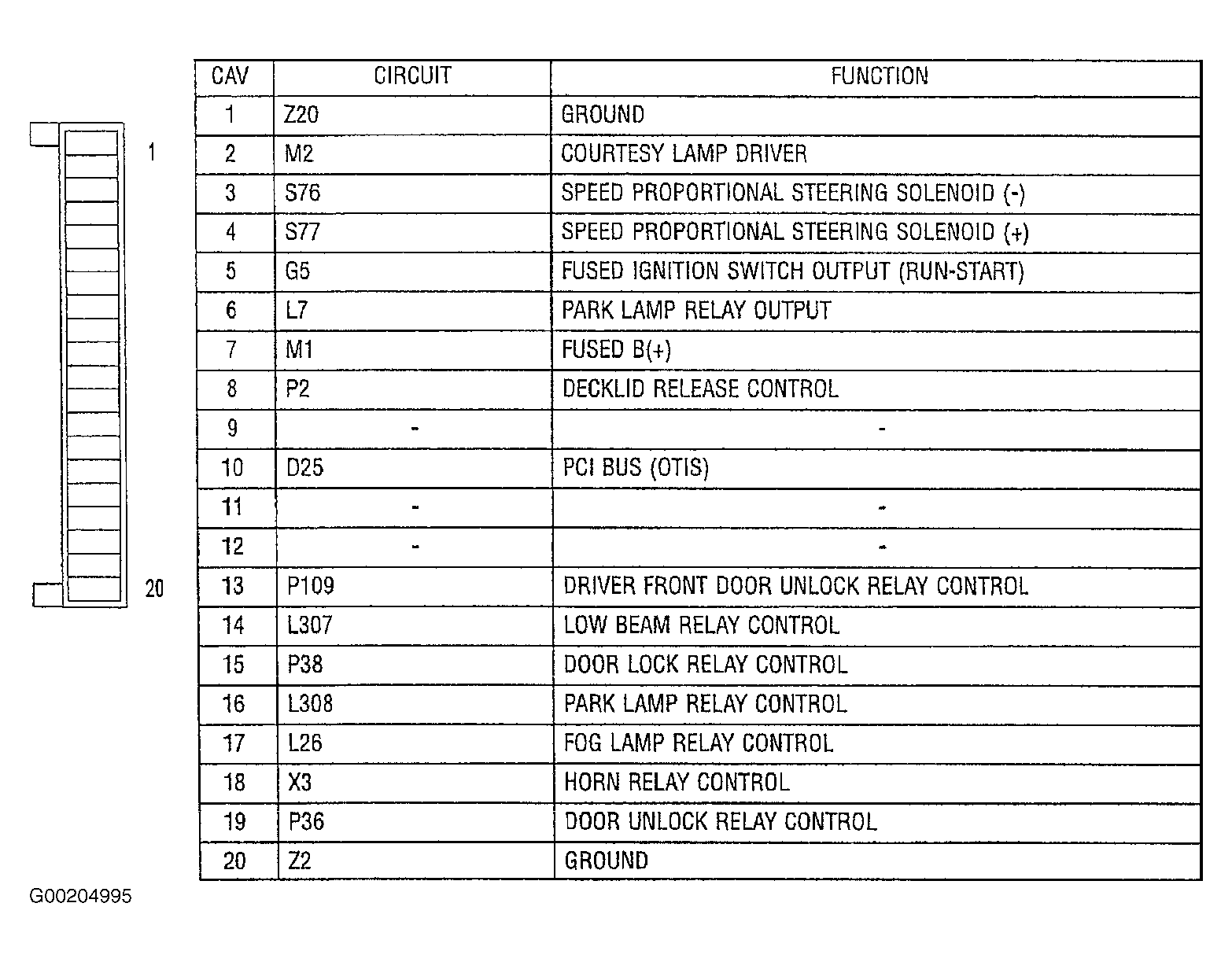

Fig 34: Identifying Junction Block Body Control Module Connector

G00204995

Courtesy of CHRYSLER CORP.

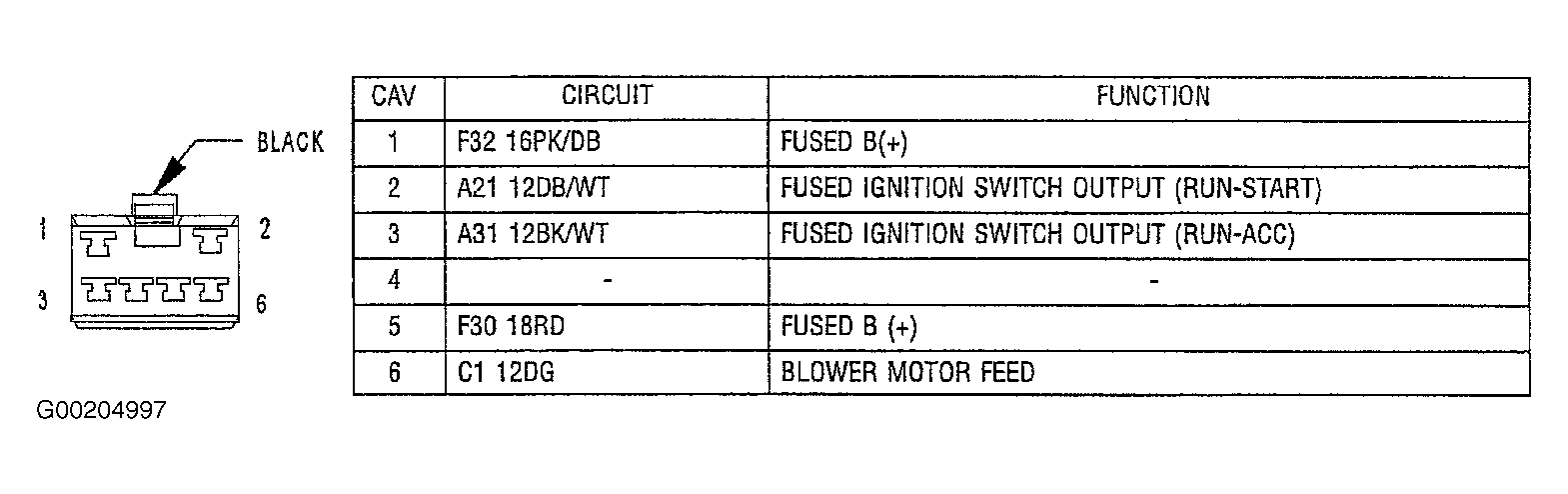

Fig 35: Identifying Junction Block C1 Connector

G00204997

Courtesy of CHRYSLER CORP.

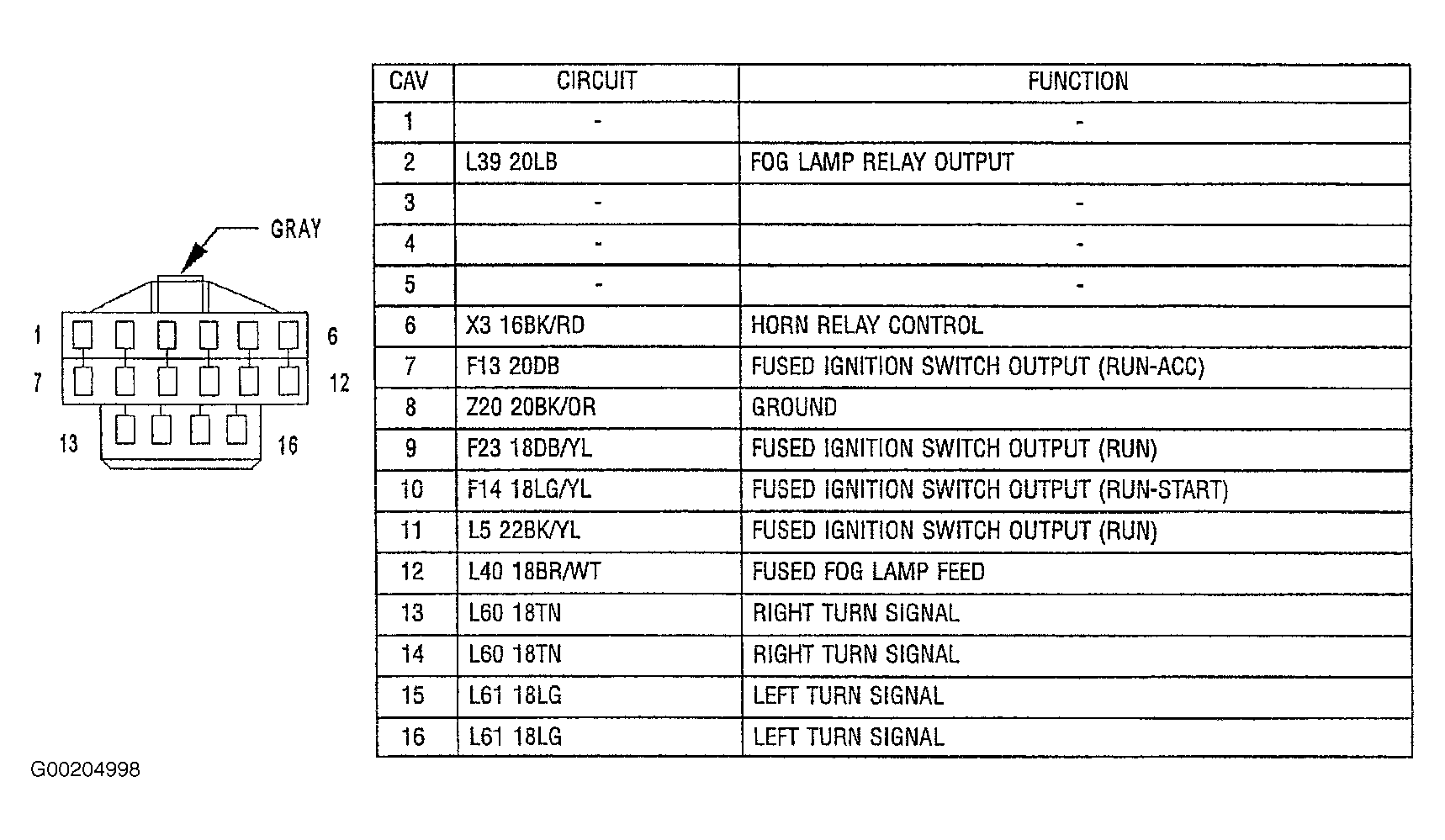

Fig 36: Identifying Junction Block C2 Connector

G00204998

Courtesy of CHRYSLER CORP.

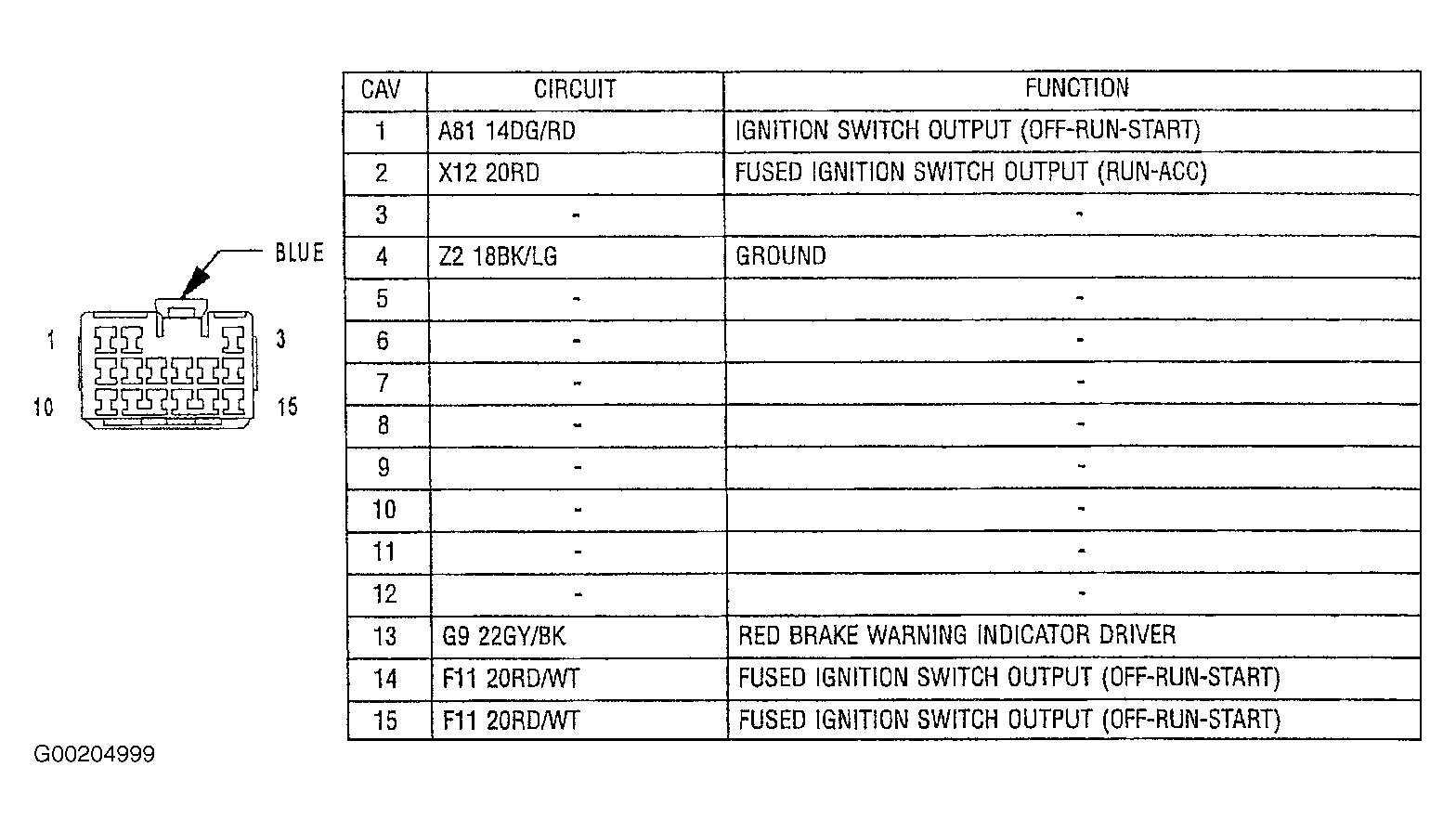

Fig 37: Identifying Junction Block C3 Connector

G00204999

Courtesy of CHRYSLER CORP.

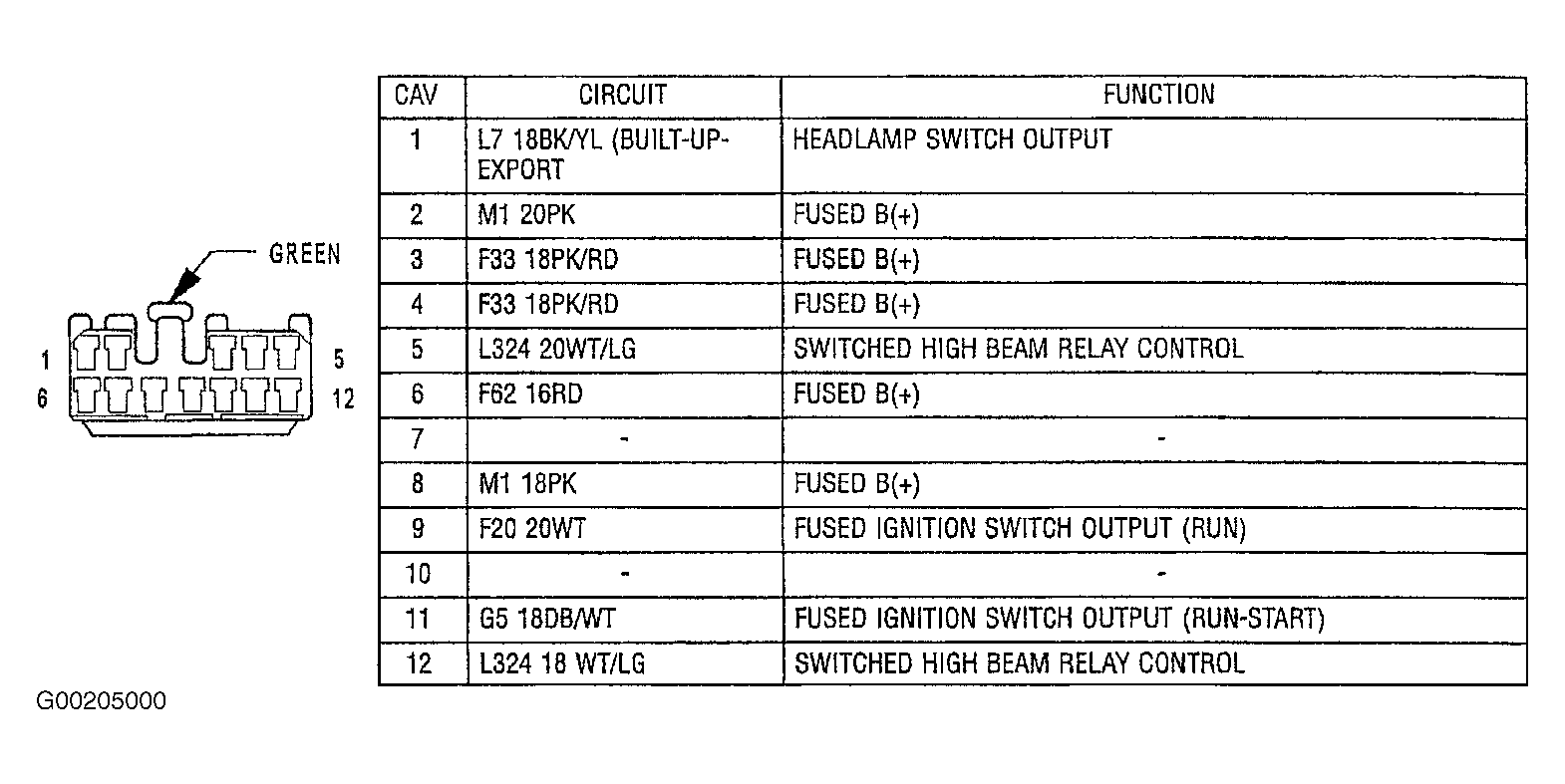

Fig 38: Identifying Junction Block C4 Connector

G00205000

Courtesy of CHRYSLER CORP.

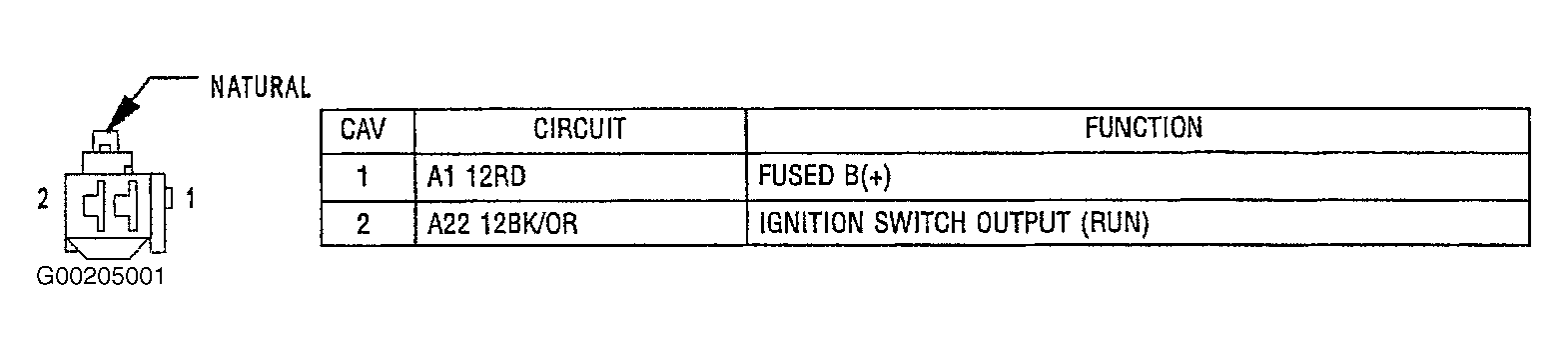

Fig 39: Identifying Junction Block C5 Connector

G00205001

Courtesy of CHRYSLER CORP.

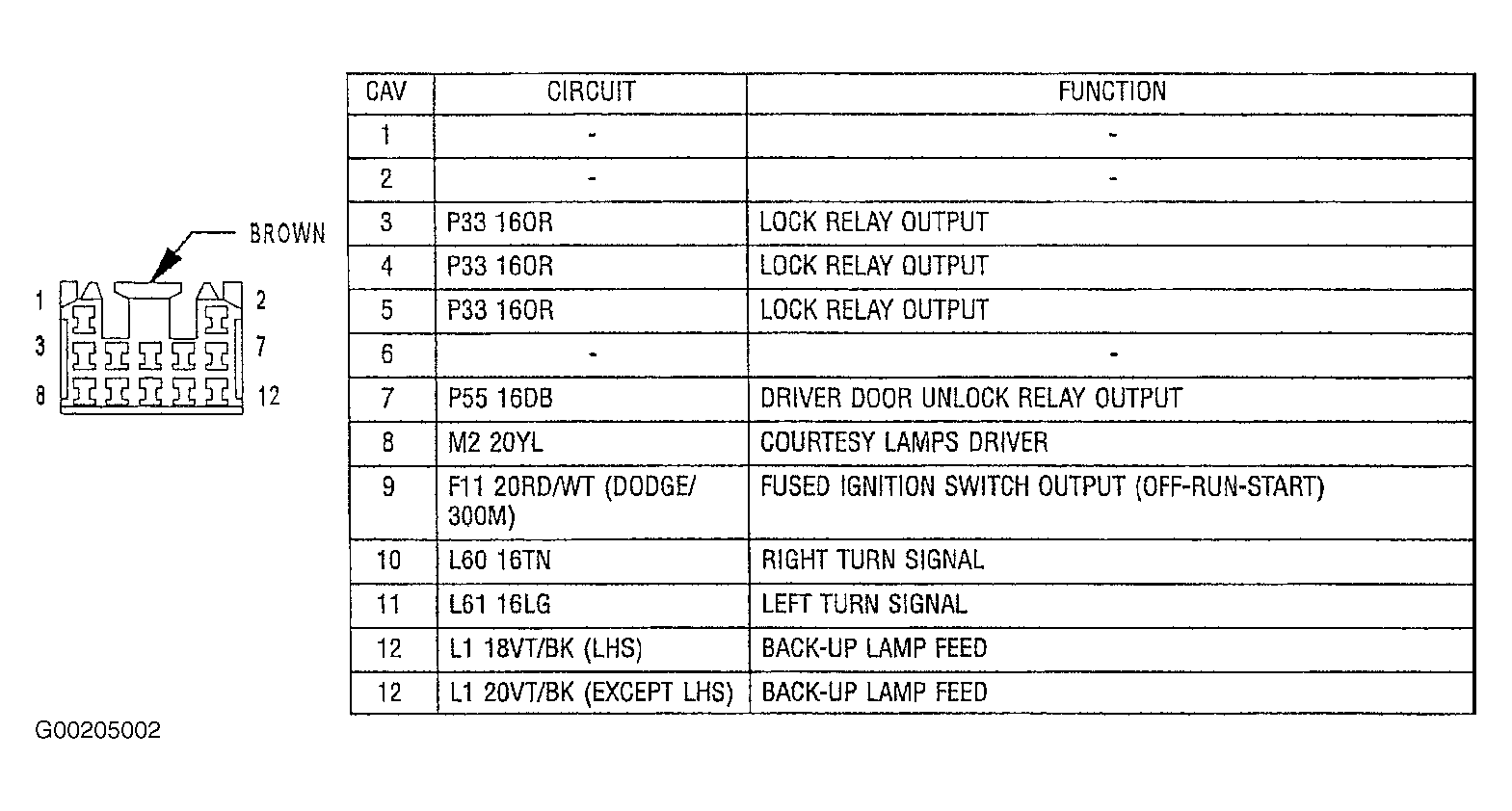

Fig 40: Identifying Junction Block C6 Connector

G00205002

Courtesy of CHRYSLER CORP.

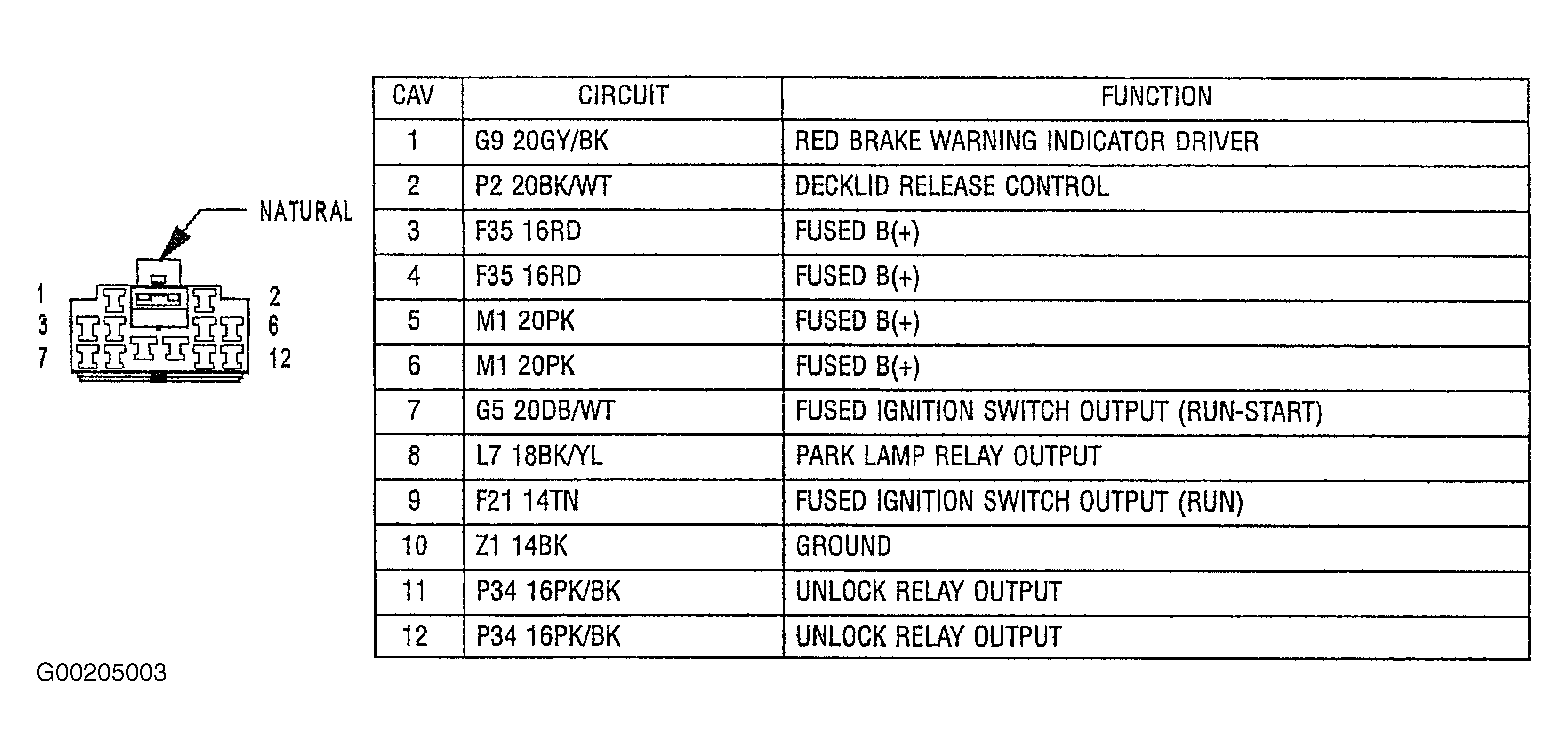

Fig 41: Identifying Junction Block C7 Connector

G00205003

Courtesy of CHRYSLER CORP.

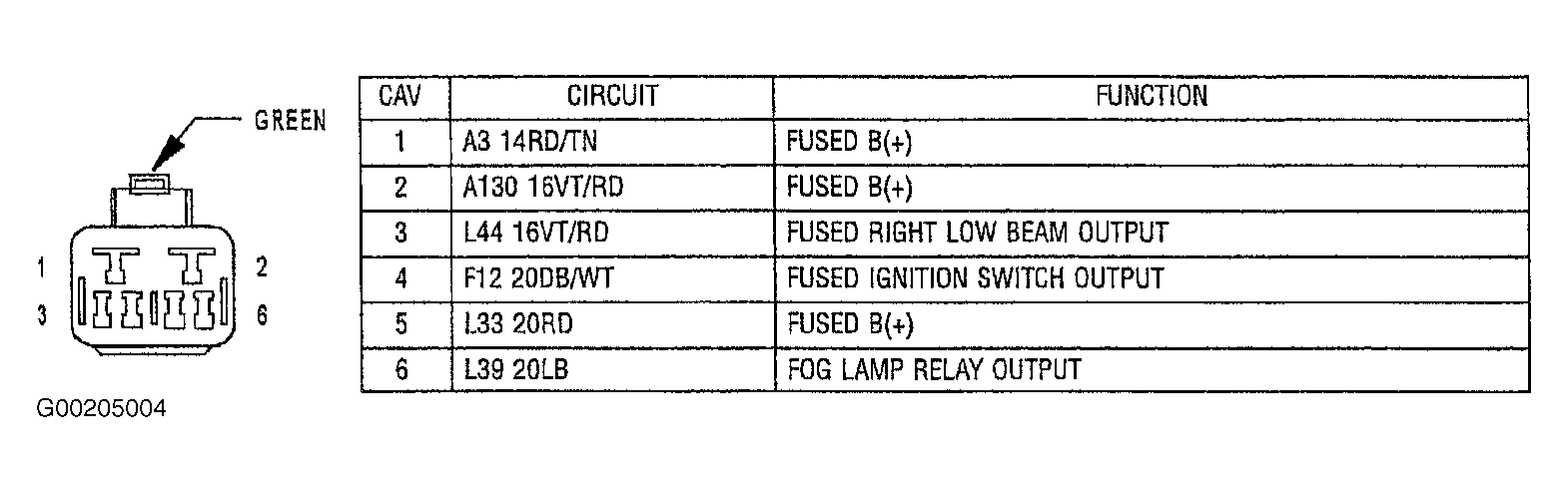

Fig 42: Identifying Junction Block C8 Connector

G00205004

Courtesy of CHRYSLER CORP.

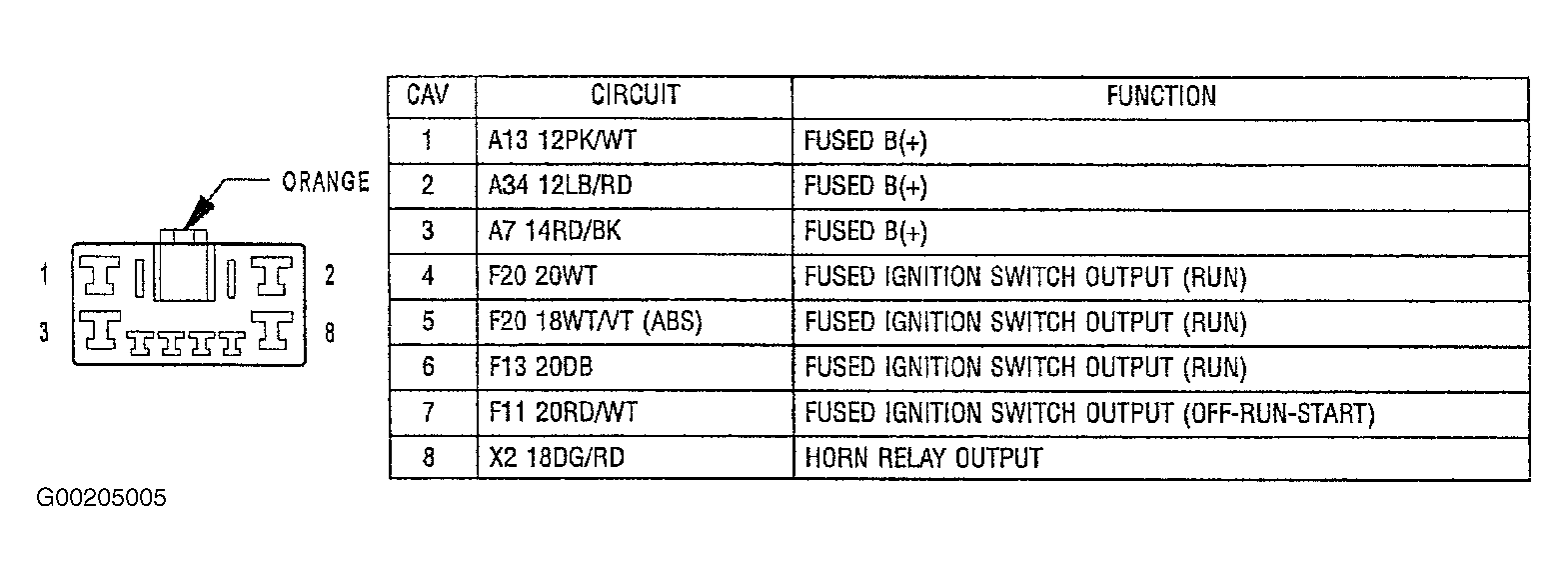

Fig 43: Identifying Junction Block C9 Connector

G00205005

Courtesy of CHRYSLER CORP.

Fig 44: Identifying Junction Block C10 Connector

G00205006

Courtesy of CHRYSLER CORP.

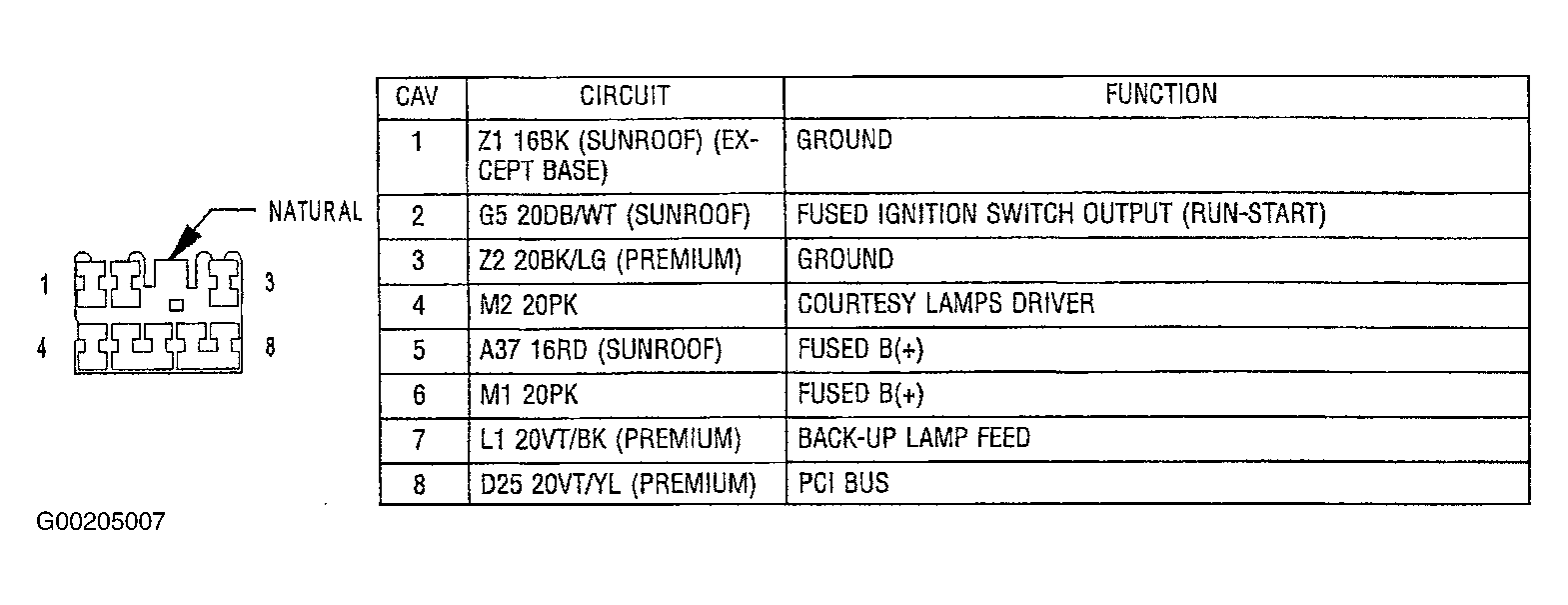

Fig 45: Identifying Junction Block C11 Connector

G00205007

Courtesy of CHRYSLER CORP.

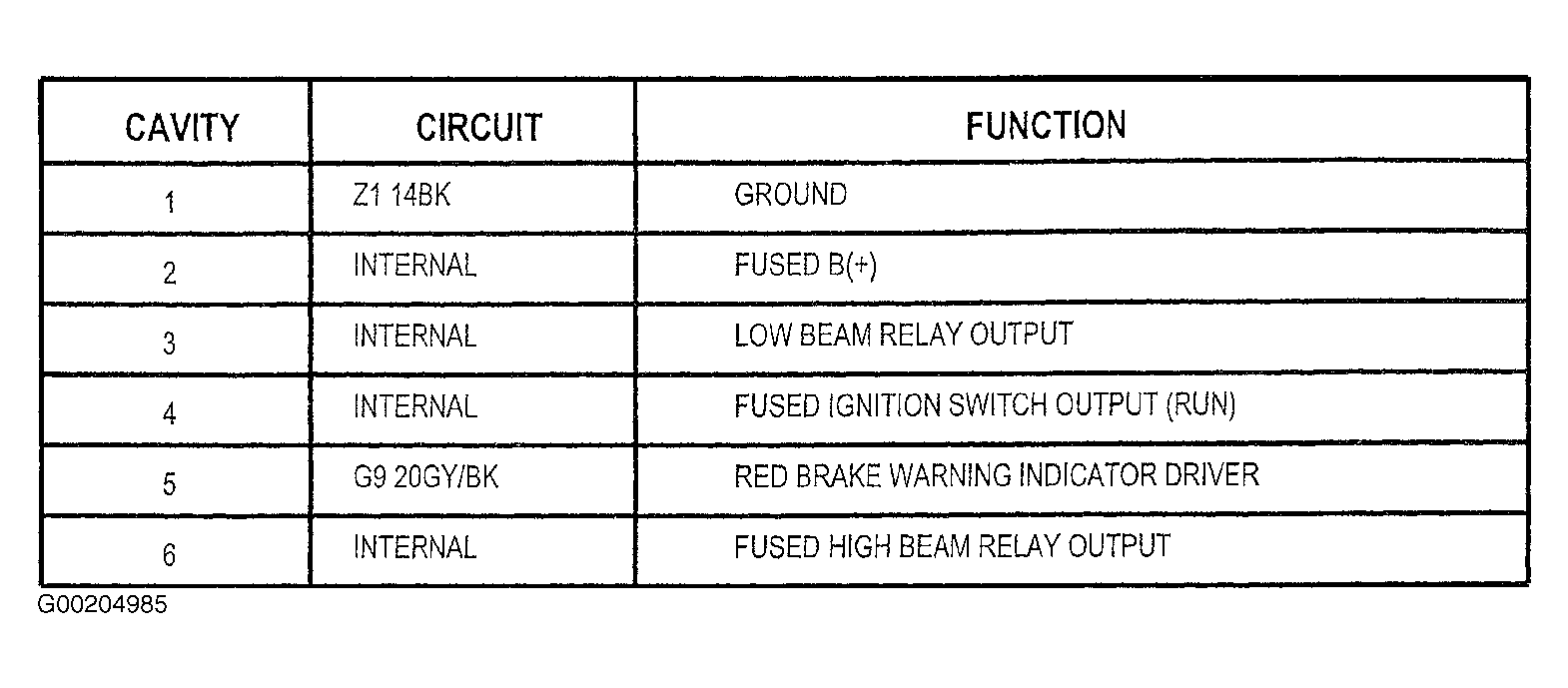

Fig 46: Identifying Junction Block Daytime Running Light Module Circuits

G00204985

Courtesy of CHRYSLER CORP.

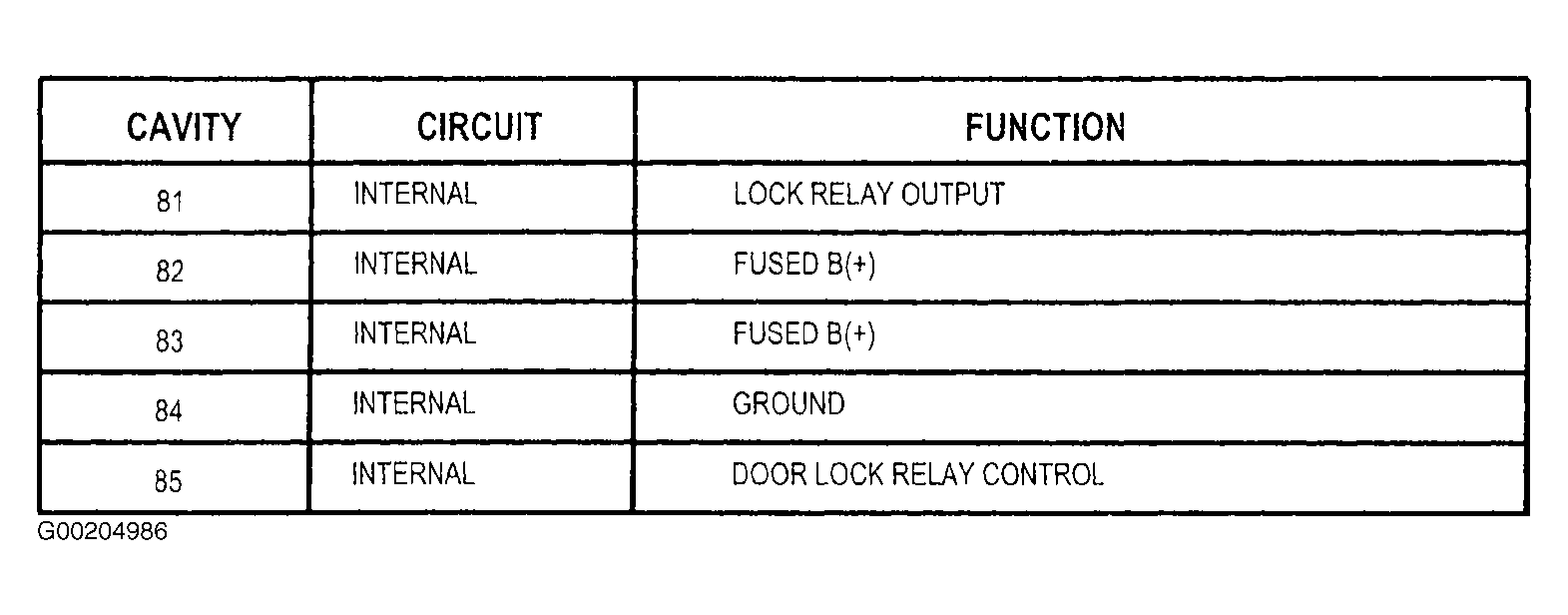

Fig 47: Identifying Junction Block Door Lock Relay Circuits

G00204986

Courtesy of CHRYSLER CORP.

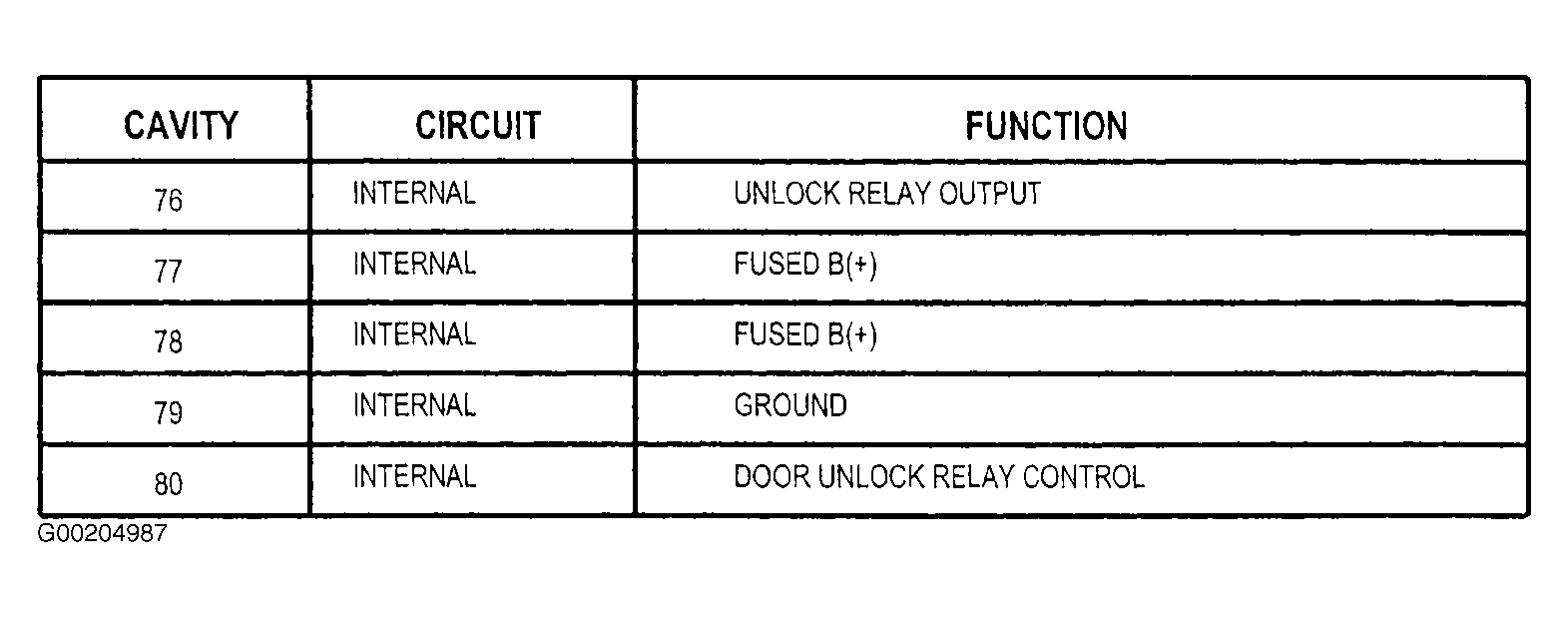

Fig 48: Identifying Junction Block Door Unlock Relay Circuits

G00204987

Courtesy of CHRYSLER CORP.

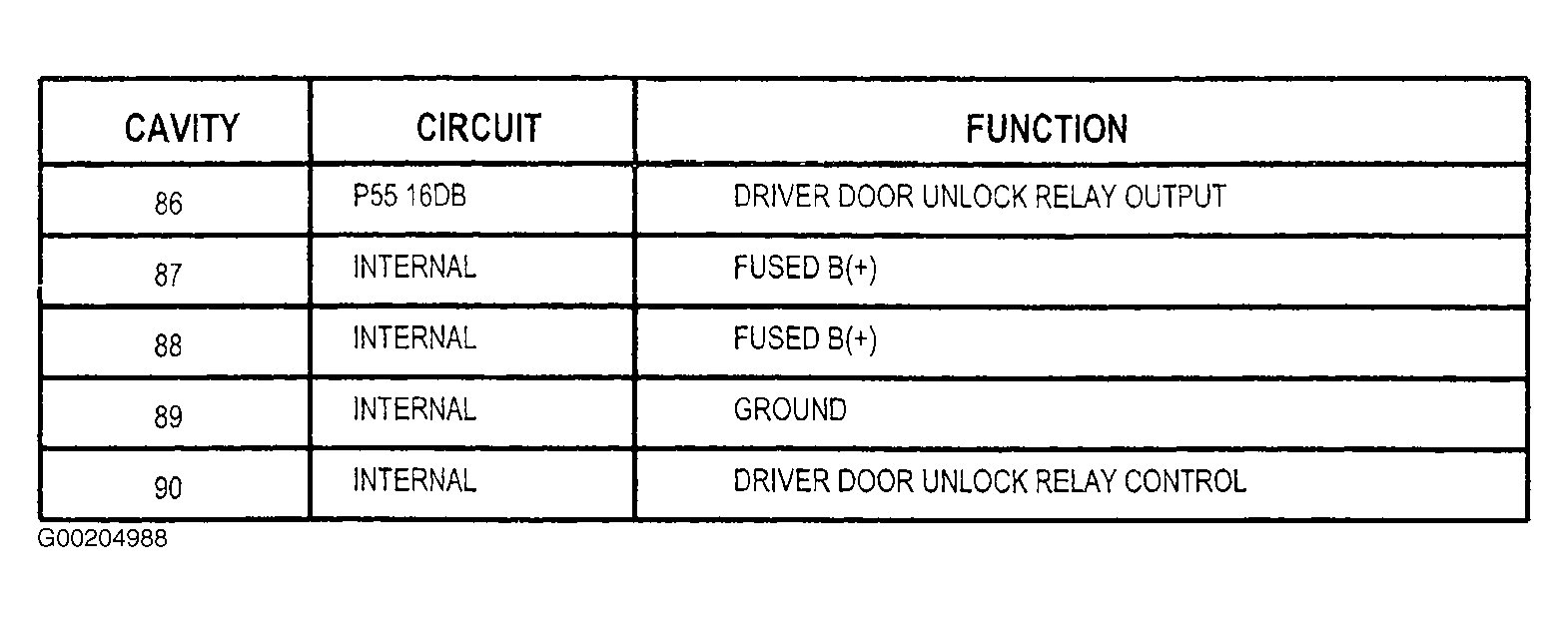

Fig 49: Identifying Junction Block Driver Door Unlock Relay Circuits

G00204988

Courtesy of CHRYSLER CORP.

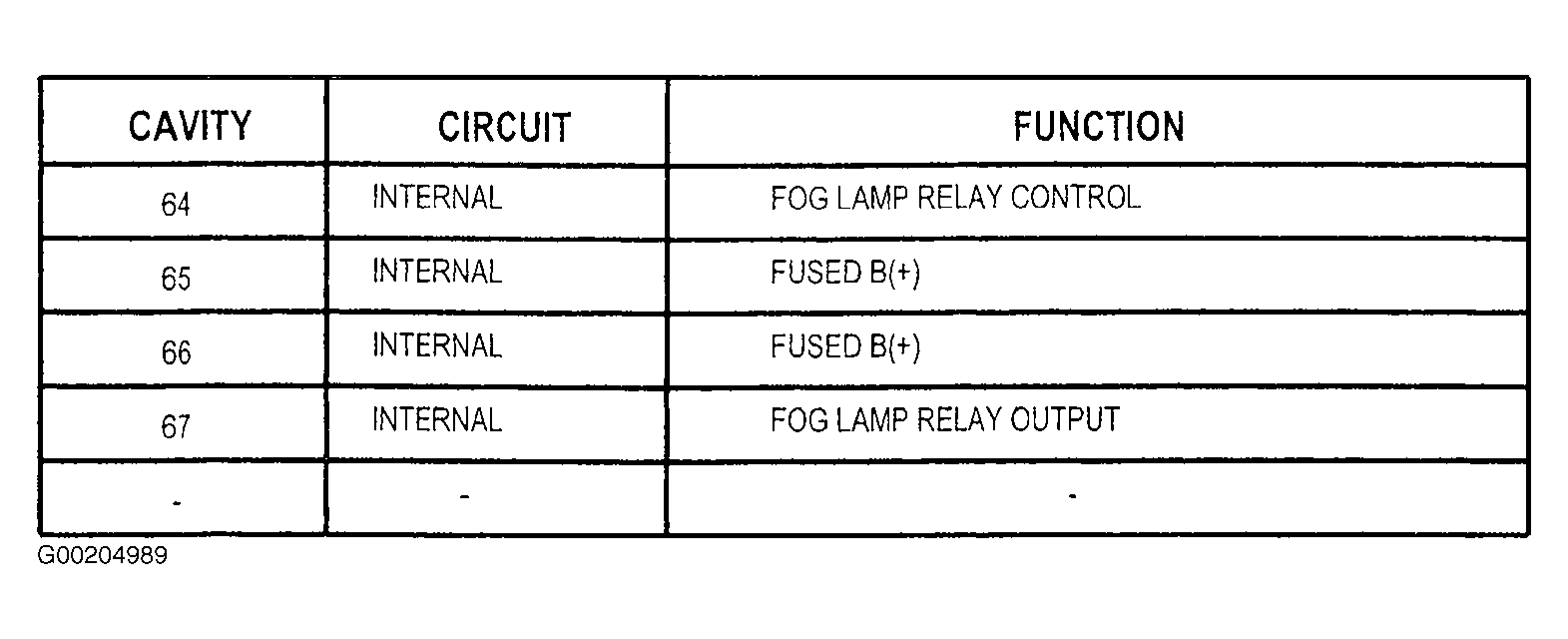

Fig 50: Identifying Junction Block Fog Light Relay Circuits

G00204989

Courtesy of CHRYSLER CORP.

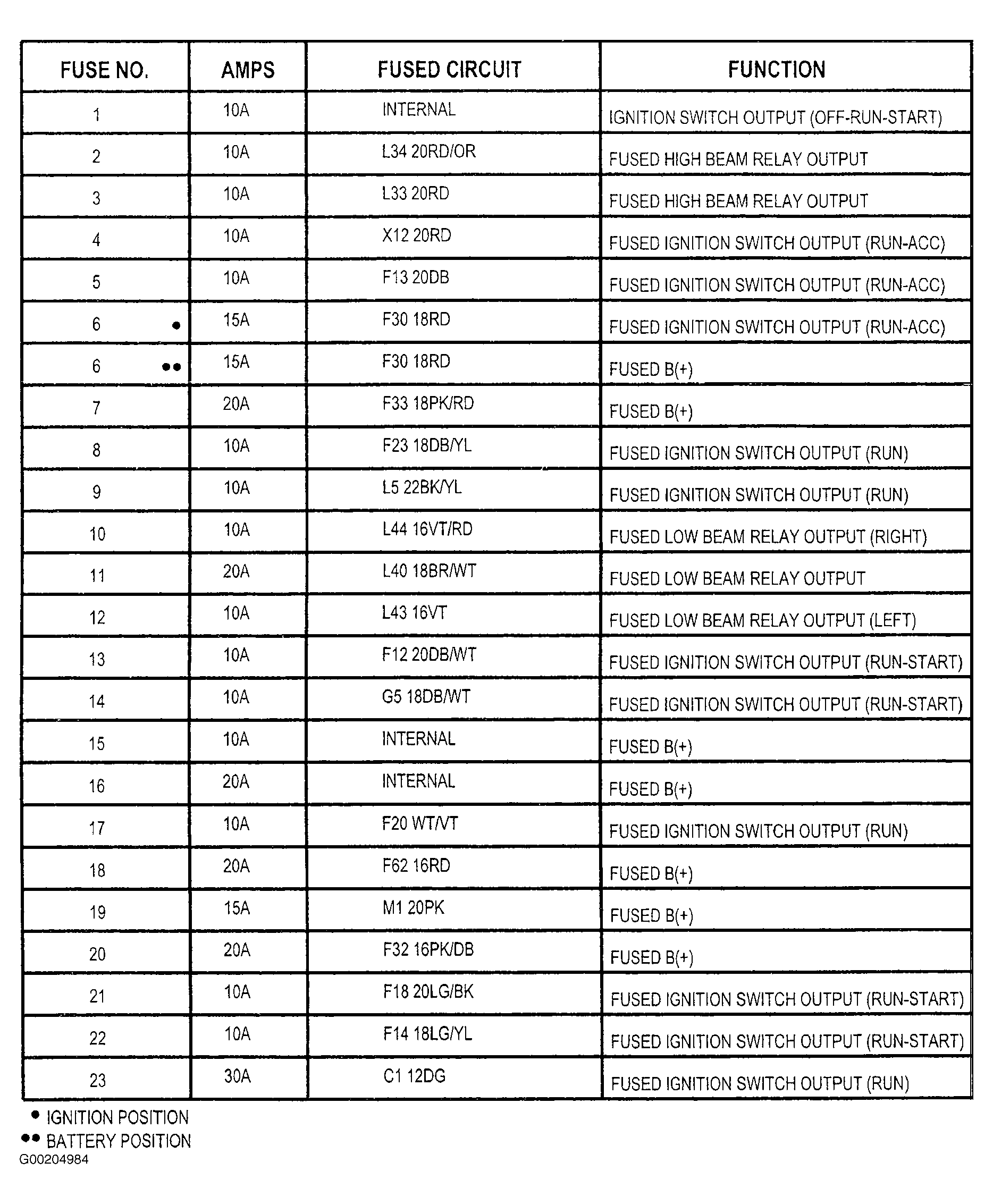

Fig 51: Identifying Junction Block Fuses

G00204984

Courtesy of CHRYSLER CORP.

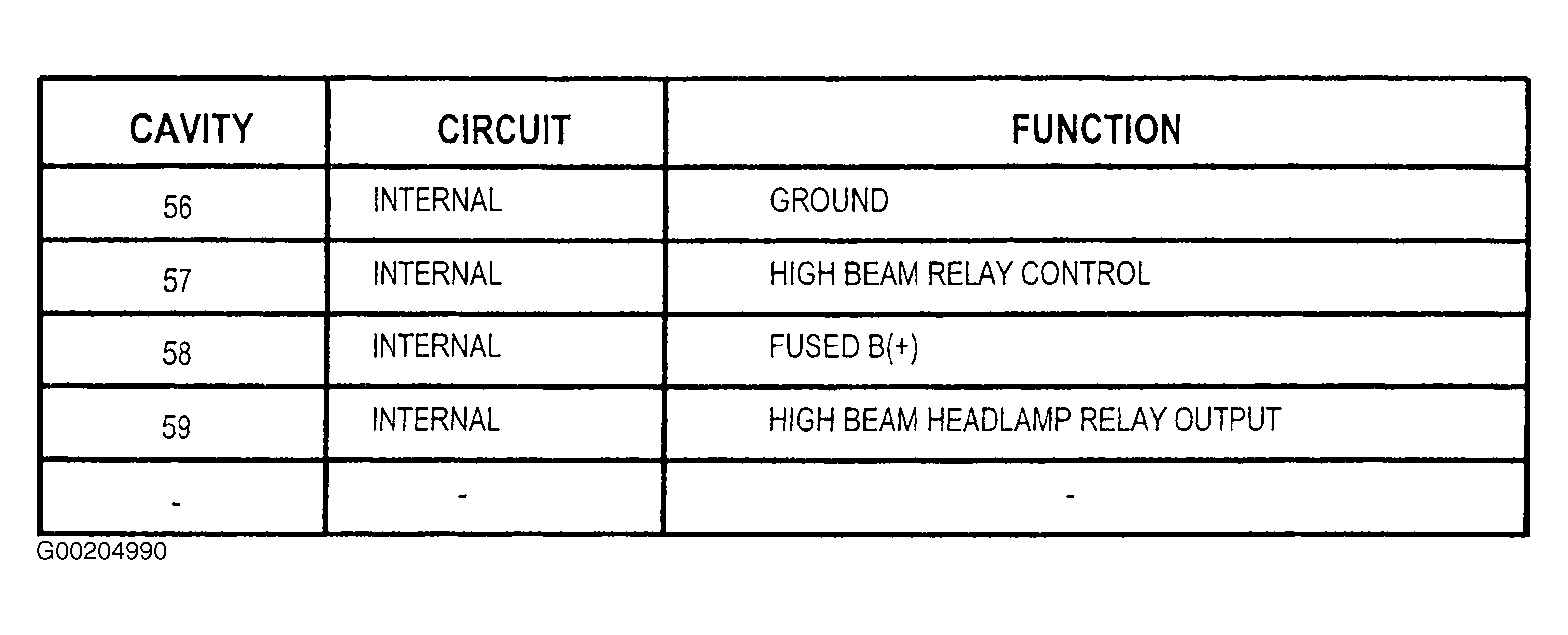

Fig 52: Identifying Junction Block High Beam Headlight Relay Circuits

G00204990

Courtesy of CHRYSLER CORP.

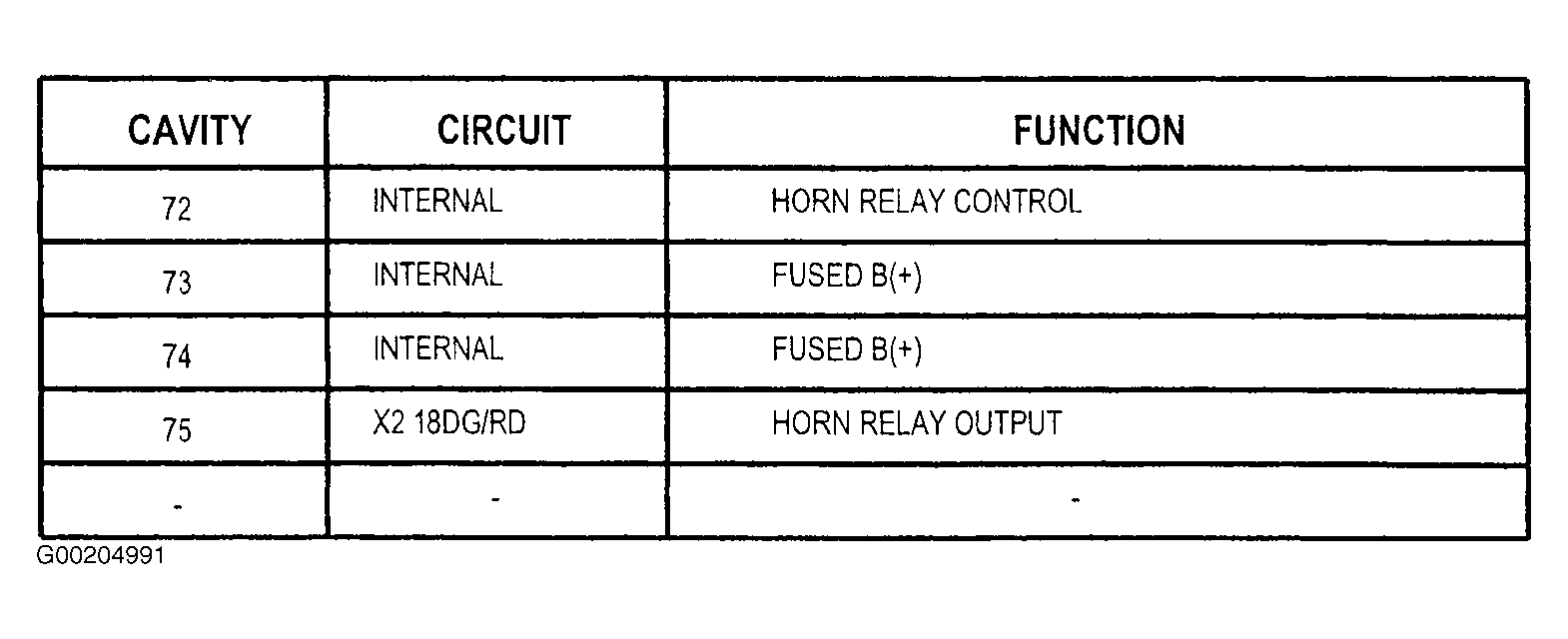

Fig 53: Identifying Junction Block Horn Relay Circuits

G00204991

Courtesy of CHRYSLER CORP.

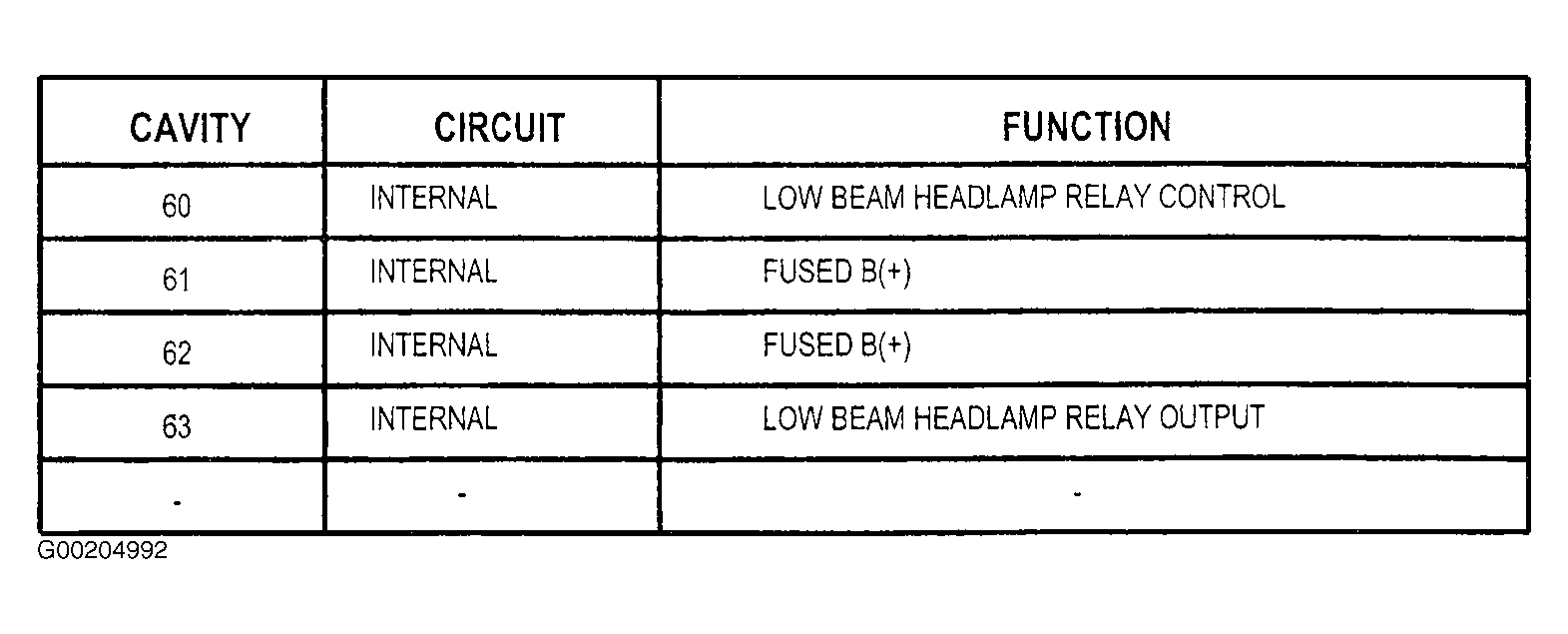

Fig 54: Identifying Junction Block Low Beam Headlight Relay Circuits

G00204992

Courtesy of CHRYSLER CORP.

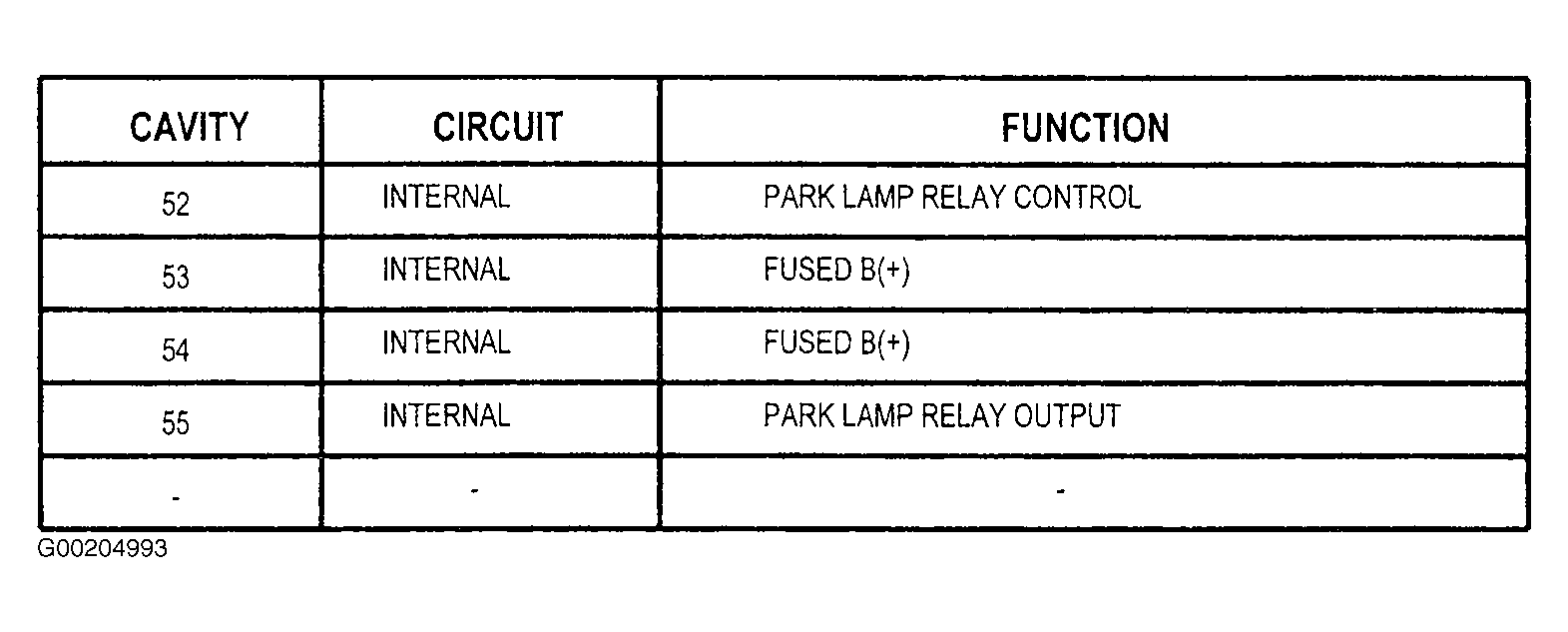

Fig 55: Identifying Junction Block Park Light Relay Circuits

G00204993

Courtesy of DAIMLERCHRYSLER CORP.

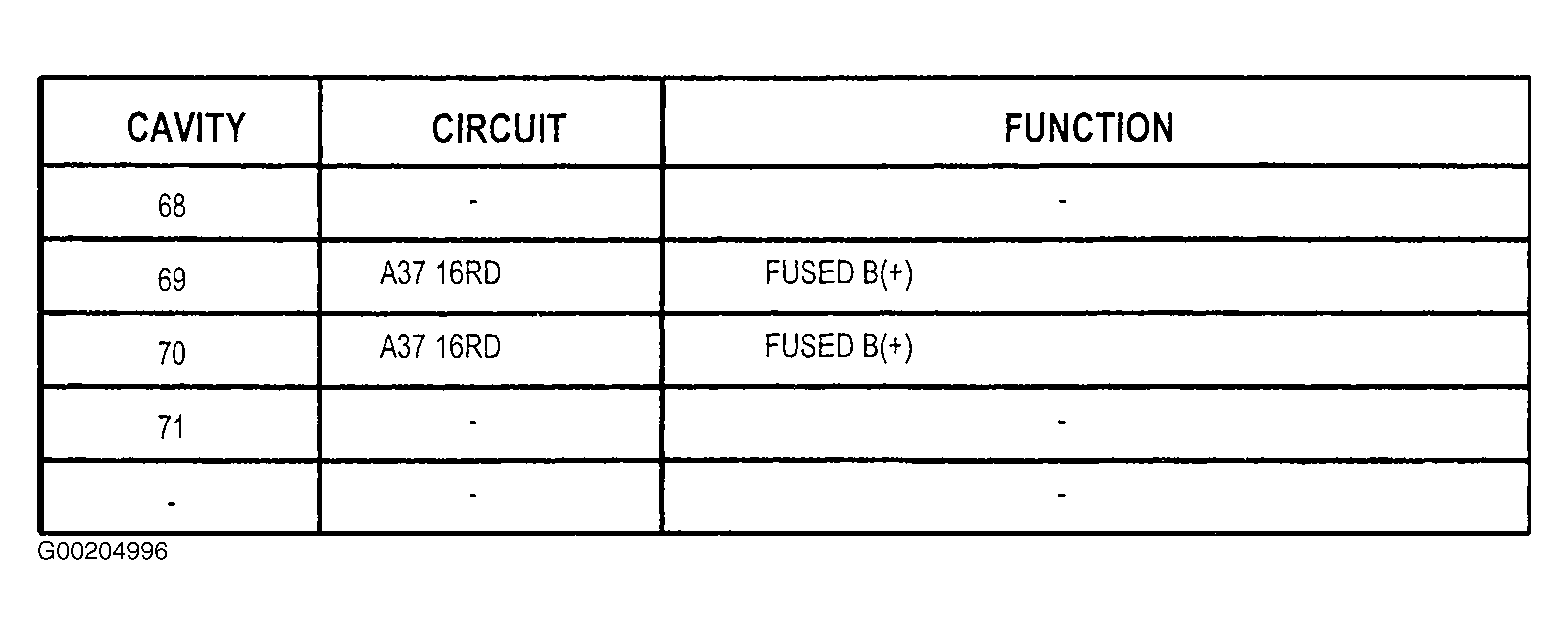

Fig 56: Identifying Junction Block Spare Relay Circuits

G00204996

Courtesy of CHRYSLER CORP.

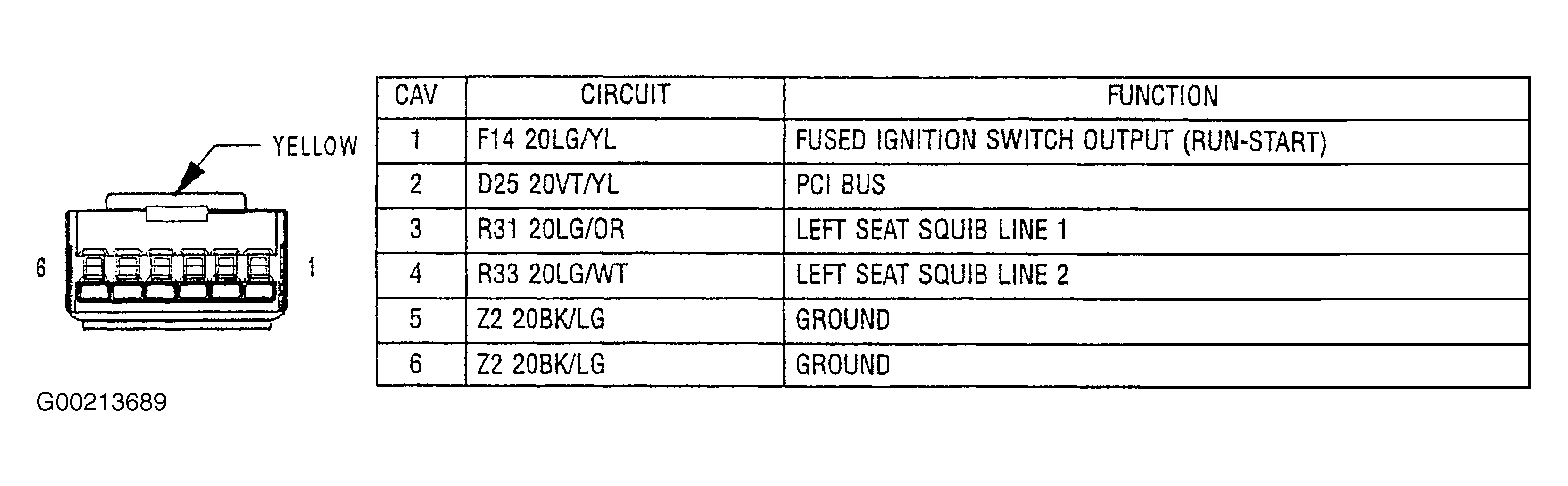

Fig 57: Identifying Left Side Impact Air Bag Control Module Connectors

G00213689

Courtesy of CHRYSLER CORP.

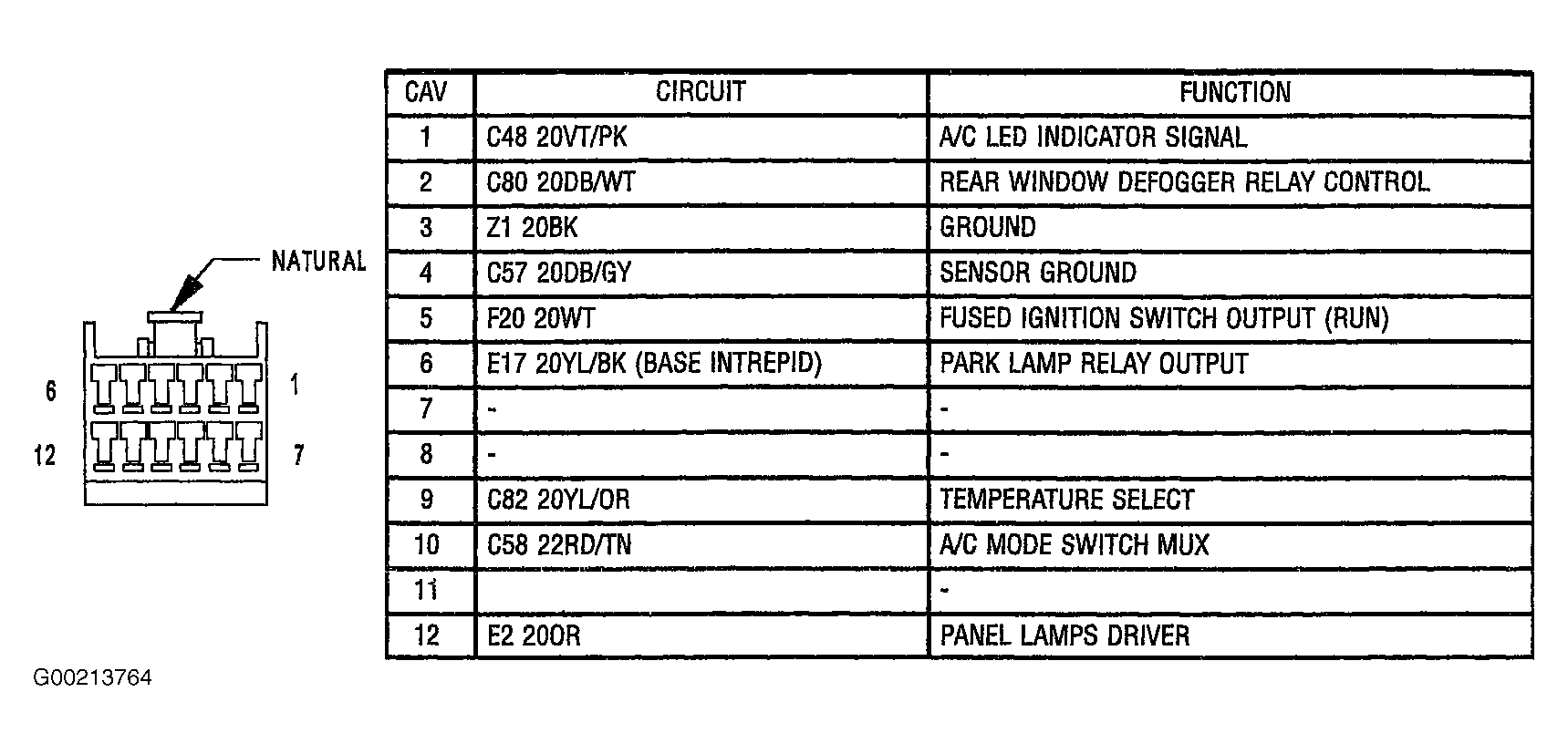

Fig 58: Identifying Manual Temperature Control Head C1 connector

G00213764

Courtesy of CHRYSLER CORP.

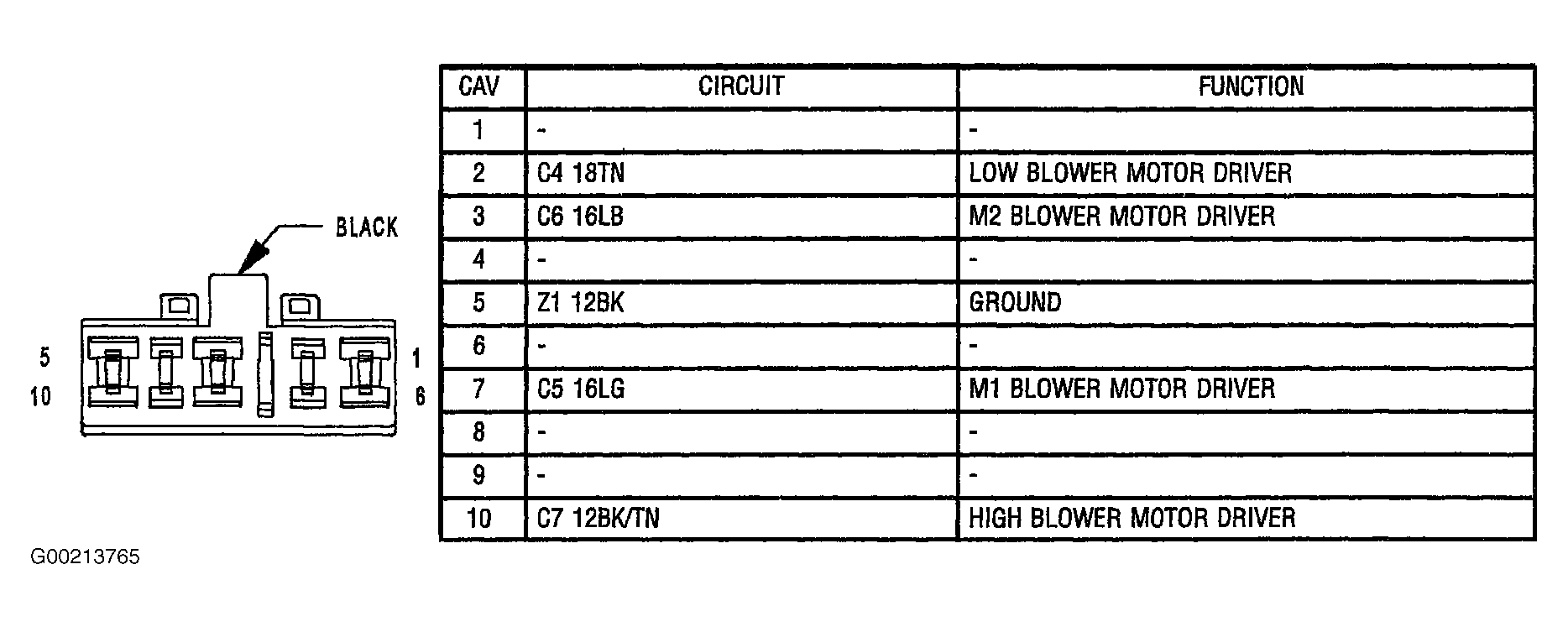

Fig 59: Identifying Manual Temperature Control Head C2 Connector

G00213765

Courtesy of CHRYSLER CORP.

Fig 60: Identifying Memory Heated Seat/Mirror Module C1 Connector

G00213685

Courtesy of CHRYSLER CORP.

Fig 61: Identifying Memory Heated Seat/Mirror Module C2 Connector

G00213686

Courtesy of CHRYSLER CORP.

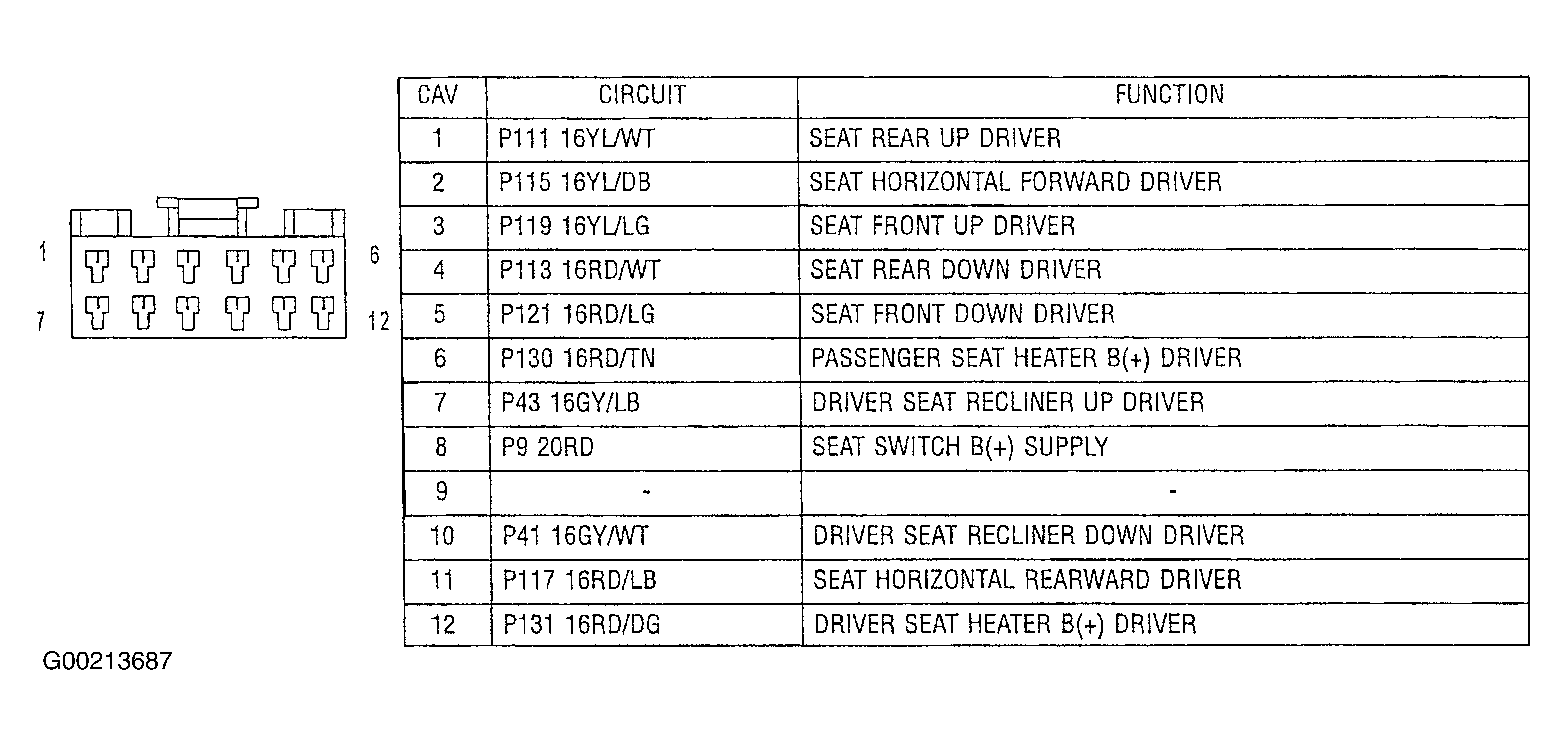

Fig 62: Identifying Memory Heated Seat/Mirror Module C3 Connector

G00213687

Courtesy of CHRYSLER CORP.

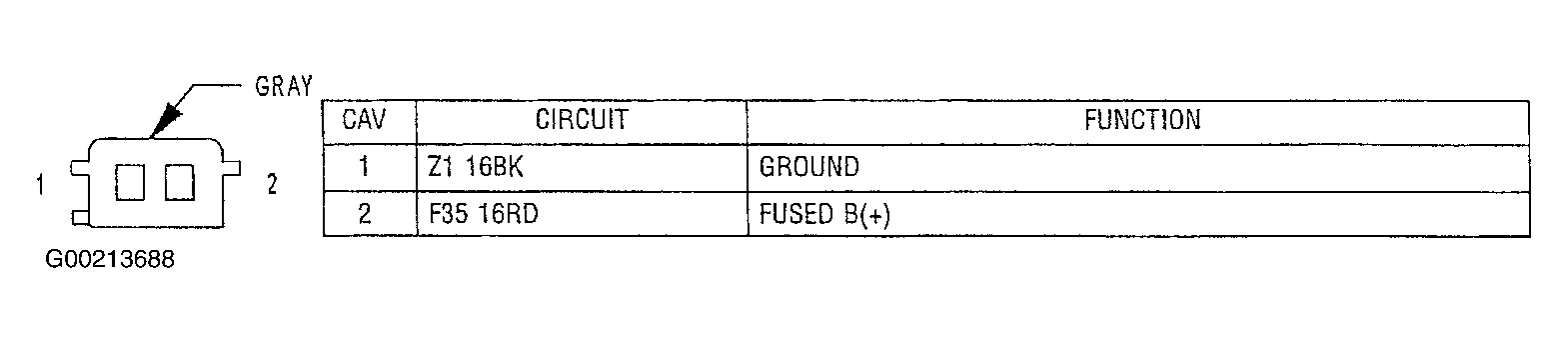

Fig 63: Identifying Memory Heated Seat/Mirror Module C4 Connector

G00213688

Courtesy of CHRYSLER CORP.

Fig 64: Identifying Memory Set Switch

G00213732

Courtesy of CHRYSLER CORP.

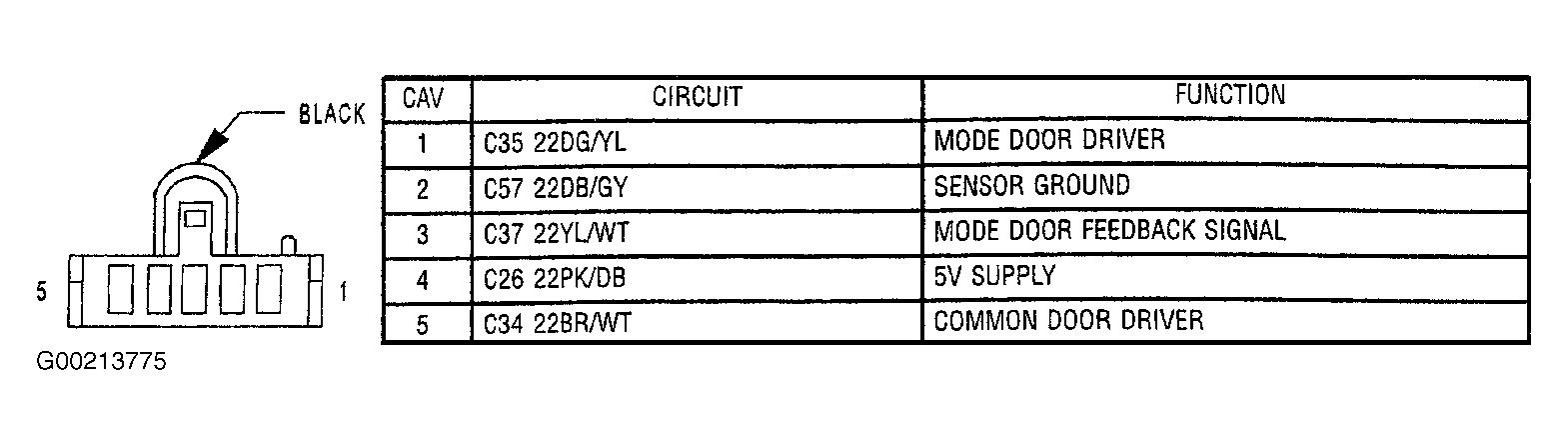

Fig 65: Identifying Mode Door Actuator Connector

G00213775

Courtesy of CHRYSLER CORP.

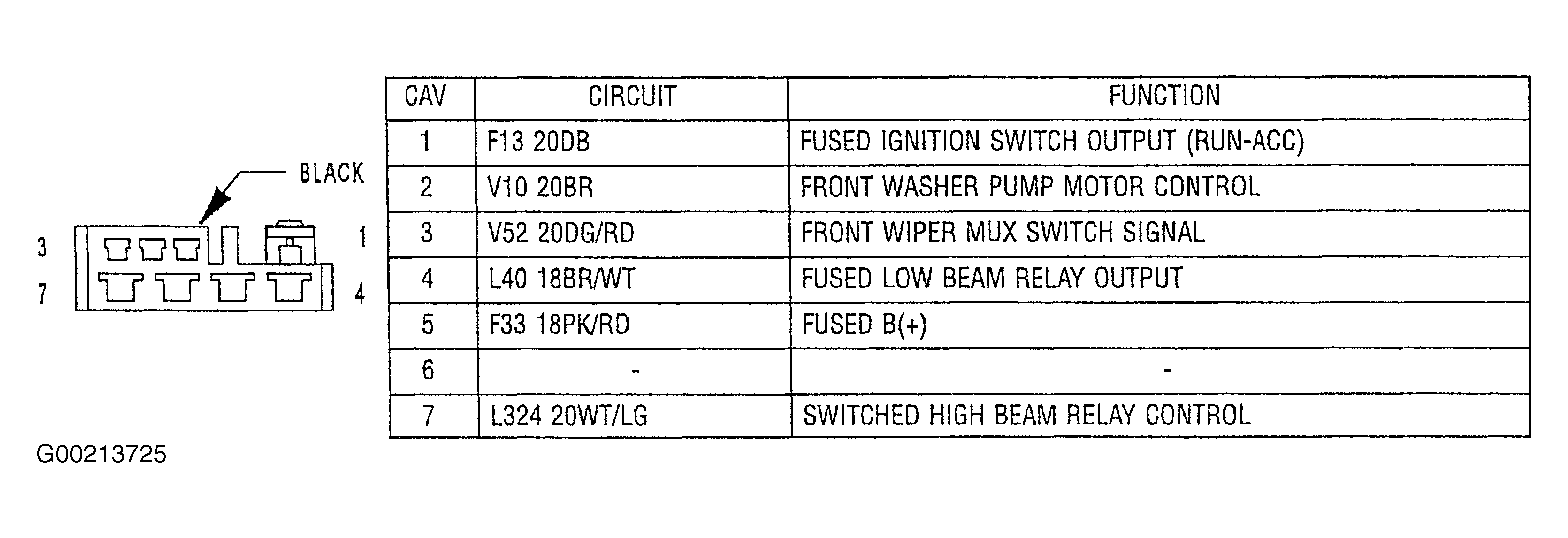

Fig 66: Identifying Multifunction Switch Connector

G00213725

Courtesy of CHRYSLER CORP.

Fig 67: Identifying Overhead Travel Information System Control Module Connectors

G00213690

Courtesy of CHRYSLER CORP.

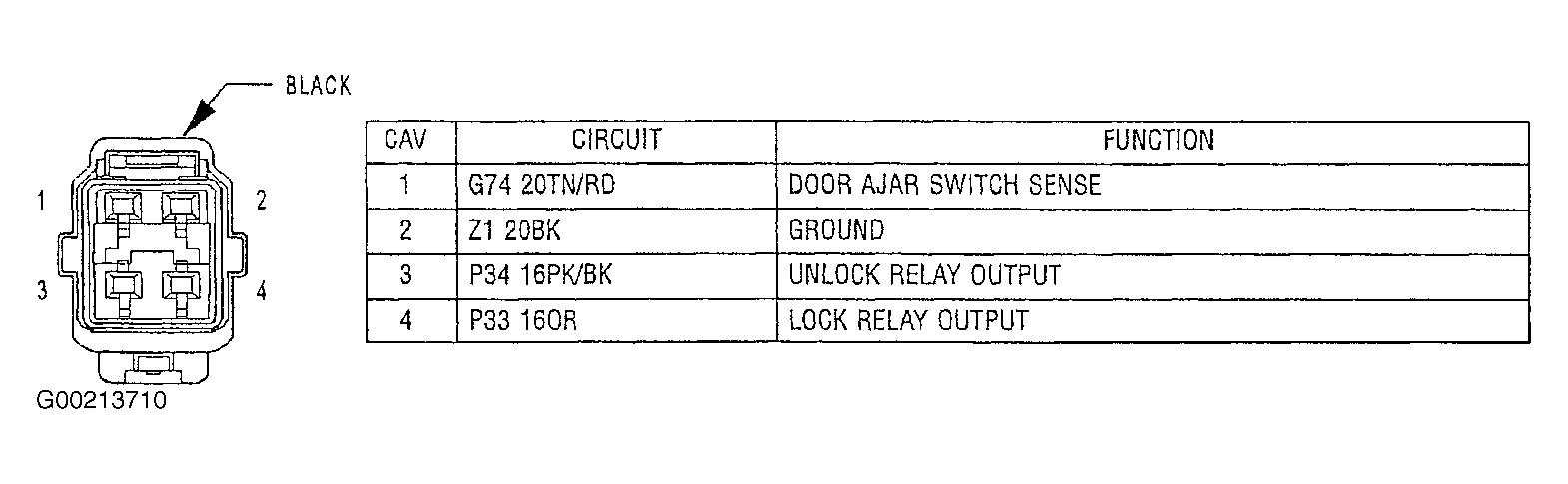

Fig 68: Identifying Passenger Door Lock Motor/Ajar Switch Connector

G00213710

Courtesy of CHRYSLER CORP.

Fig 69: Identifying Passenger Heated Seat Back Connector

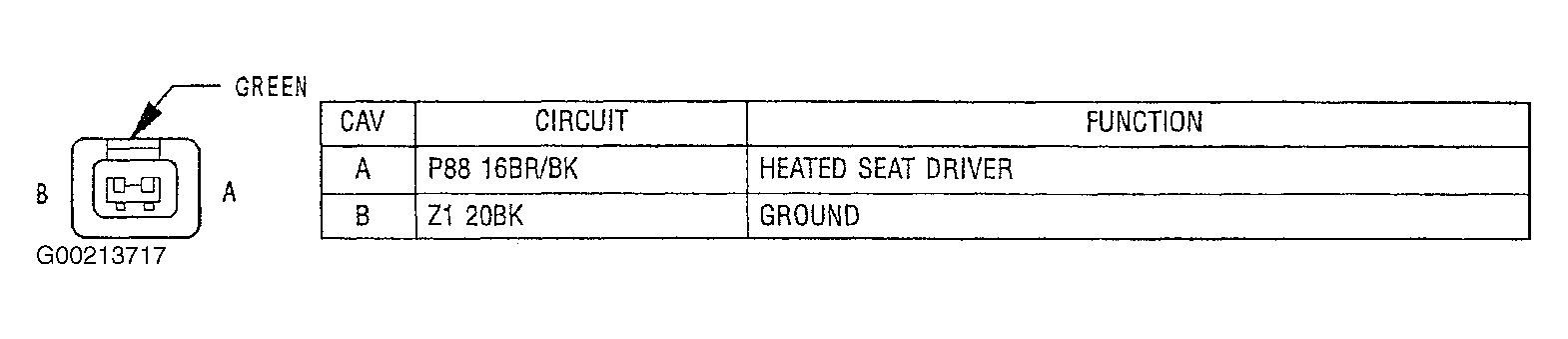

G00213717

Courtesy of CHRYSLER CORP.

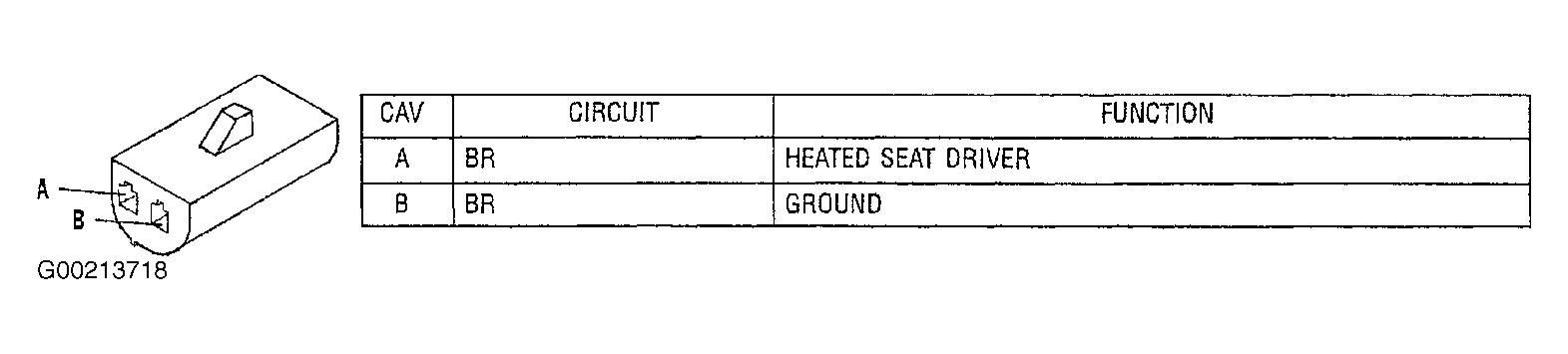

Fig 70: Identifying Passenger Heated Seat Back (Seat Back Side) Connector

G00213718

Courtesy of CHRYSLER CORP.

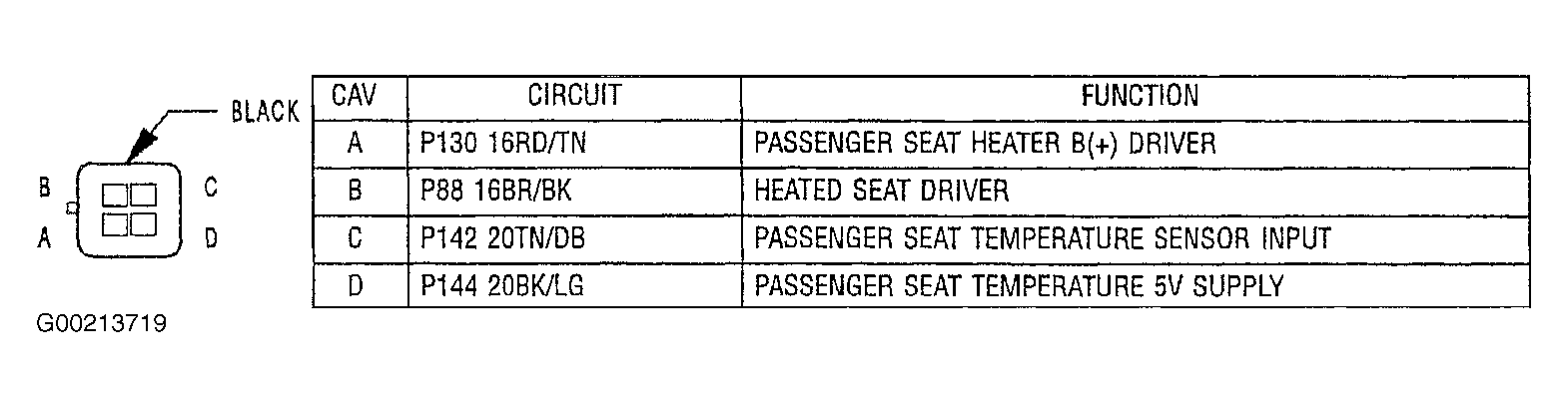

Fig 71: Identifying Passenger Heated Seat Cushion Connector

G00213719

Courtesy of CHRYSLER CORP.

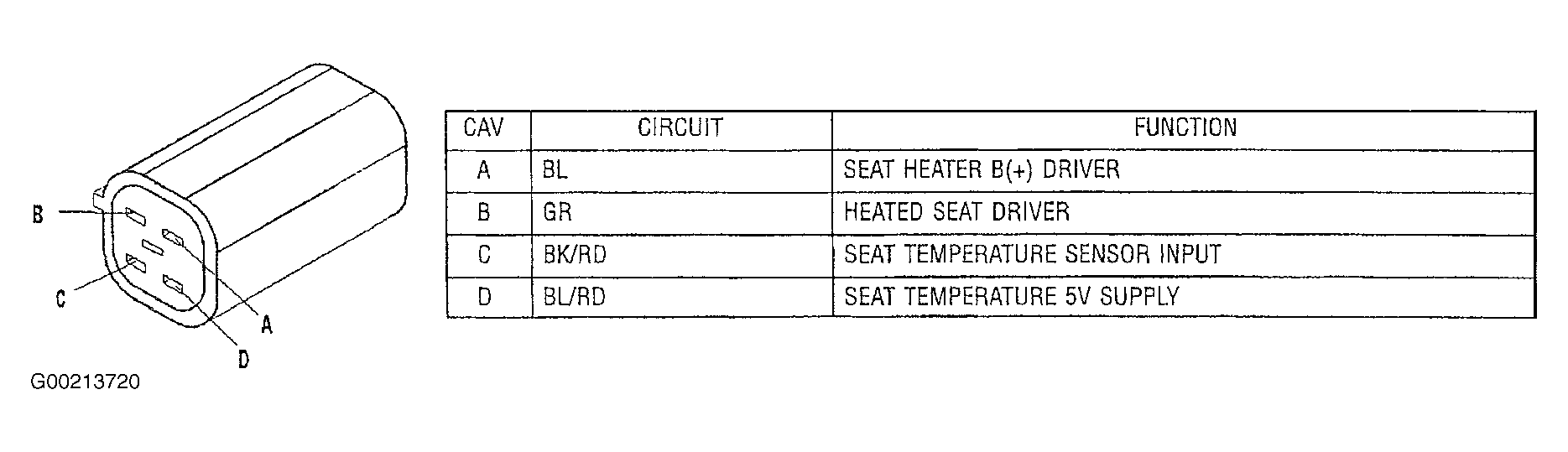

Fig 72: Identifying Passenger Heated Seat Cushion (Cushion Side) Connector

G00213720

Courtesy of CHRYSLER CORP.

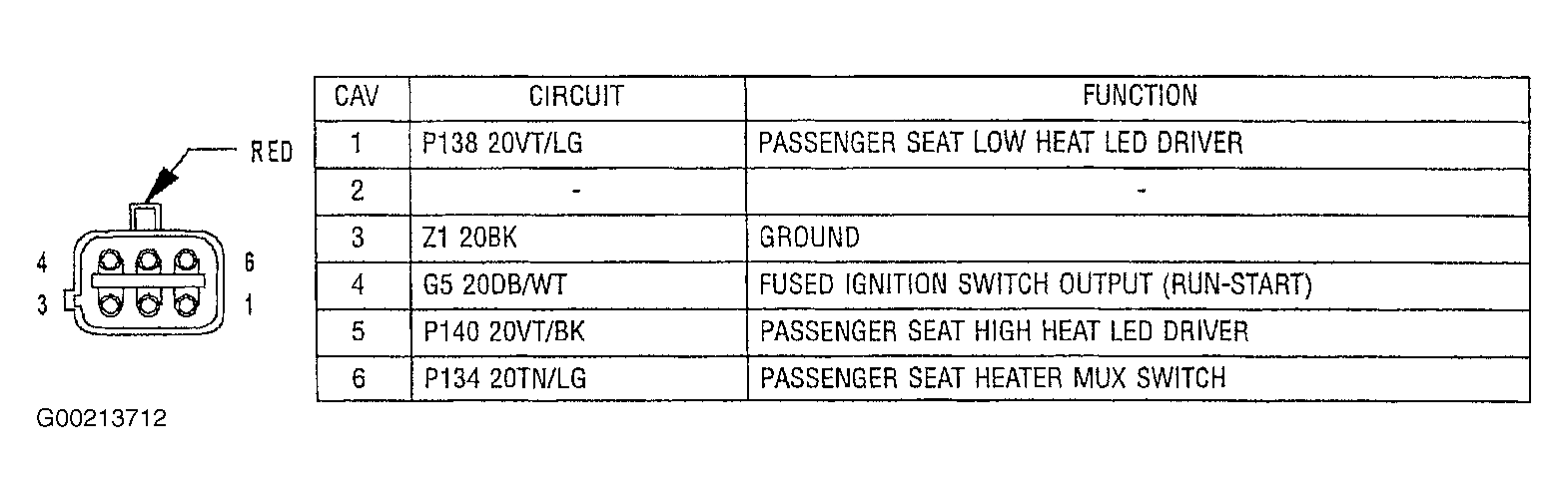

Fig 73: Identifying Passenger Heated Seat Switch Connector

G00213712

Courtesy of CHRYSLER CORP.

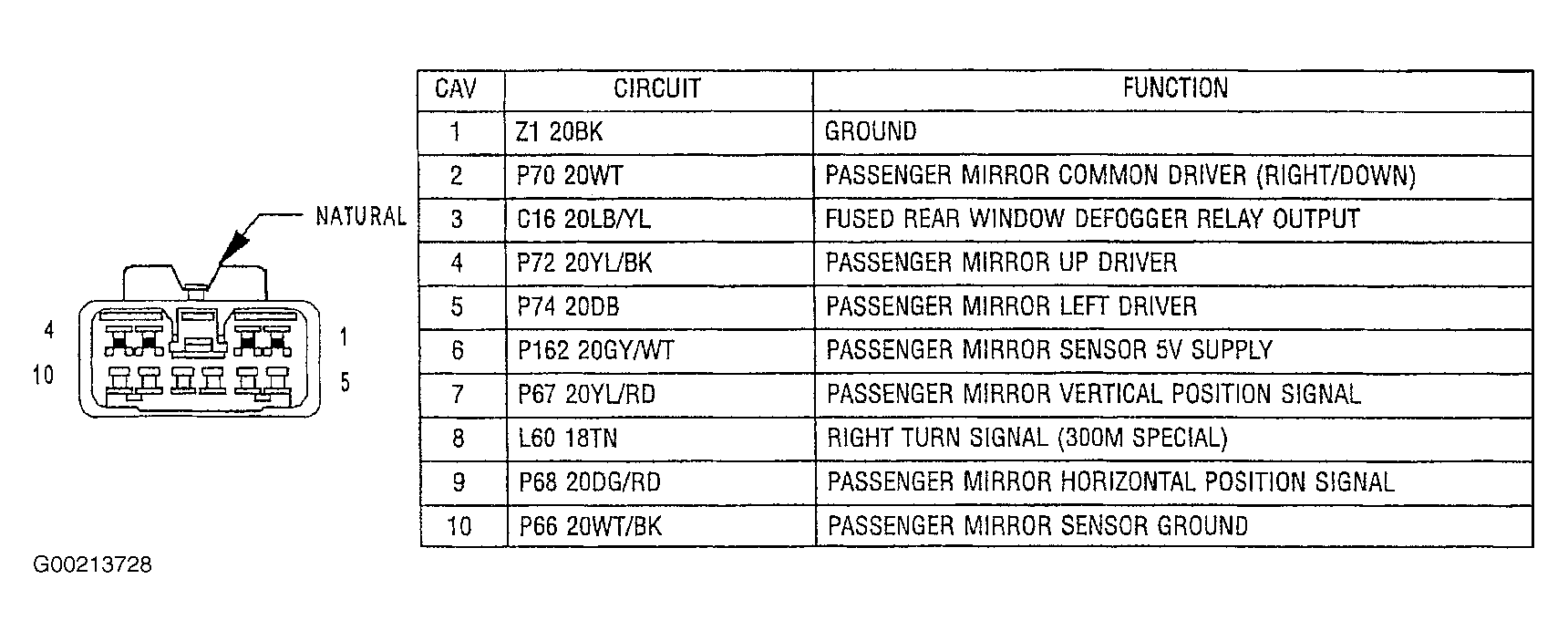

Fig 74: Identifying Passenger Power Mirror Switch (Memory) Connector

G00213728

Courtesy of CHRYSLER CORP.

Fig 75: Identifying Power Distribution Center

G00213695

Courtesy of CHRYSLER CORP.

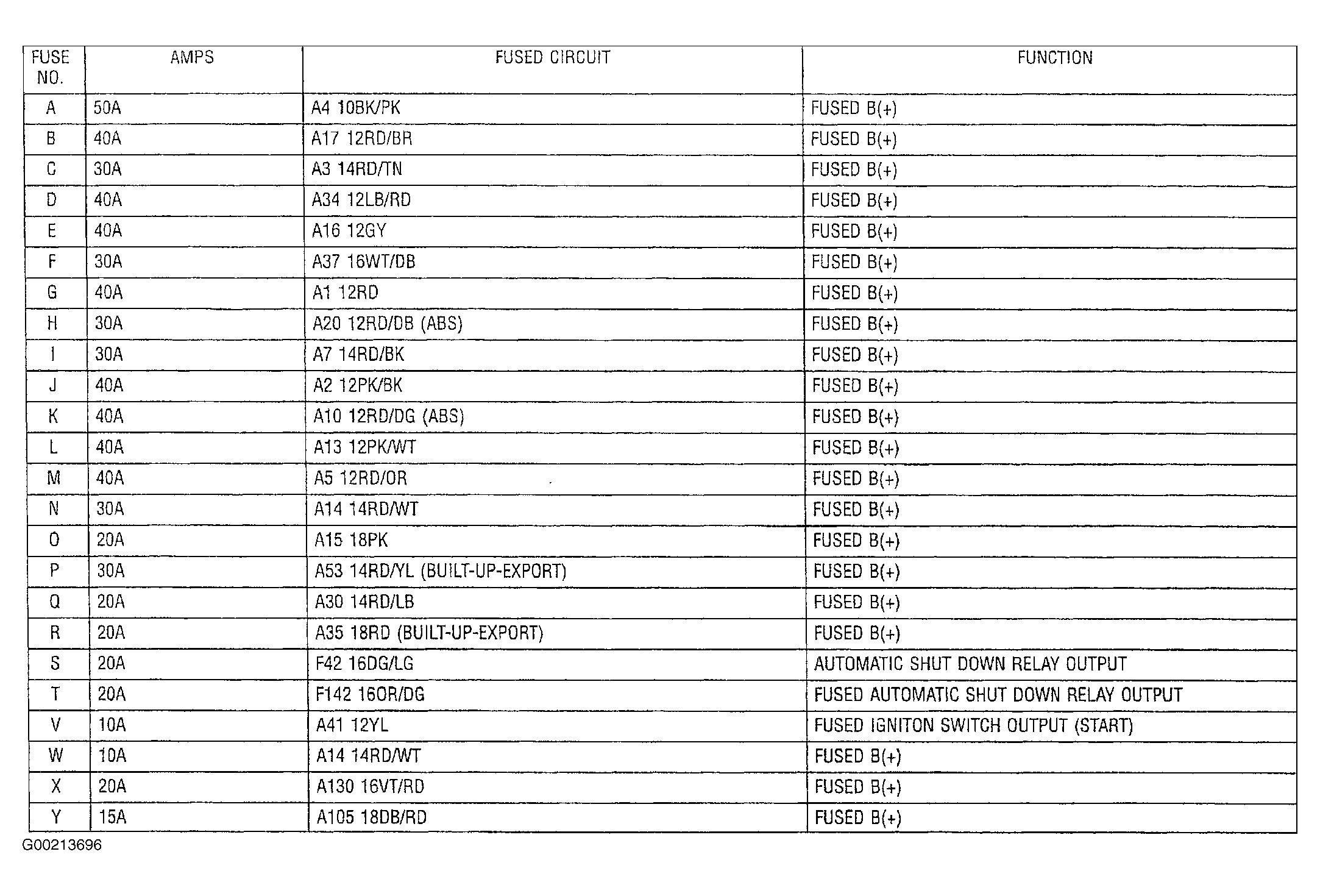

Fig 76: Identifying Power Distribution Center Fuses

G00213696

Courtesy of CHRYSLER CORP.

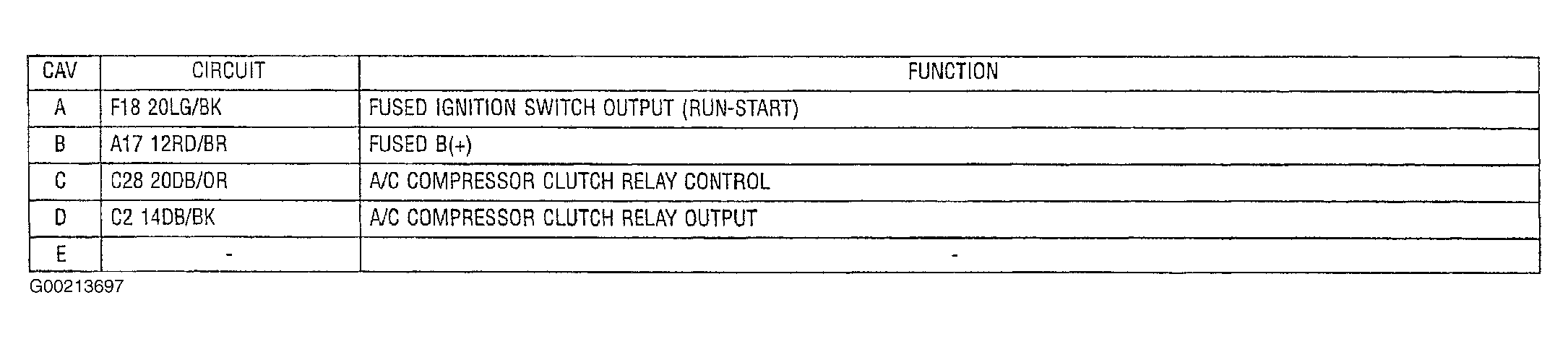

Fig 77: Identifying Power Distribution A/C Compressor Clutch Relay Circuits

G00213697

Courtesy of CHRYSLER CORP.

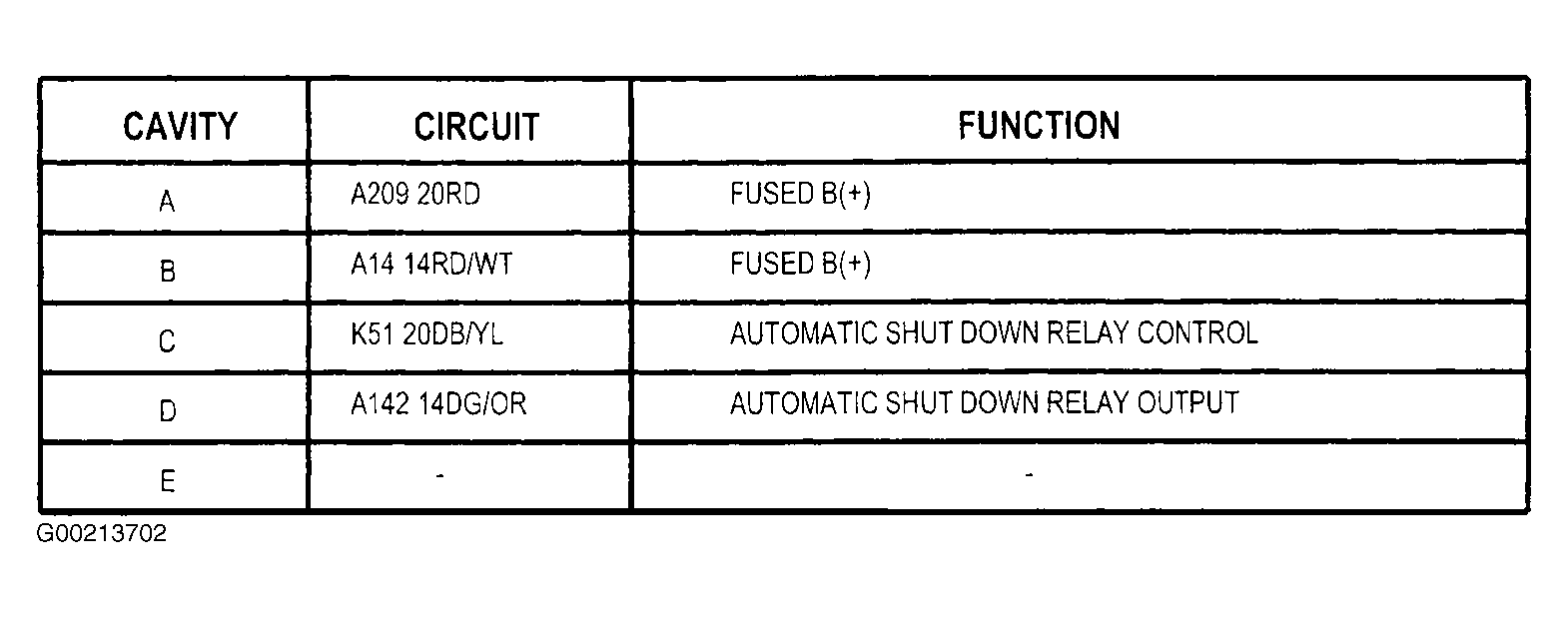

Fig 78: Identifying Power Distribution Auto Shut Down Relay Circuits

G00213702

Courtesy of CHRYSLER CORP.

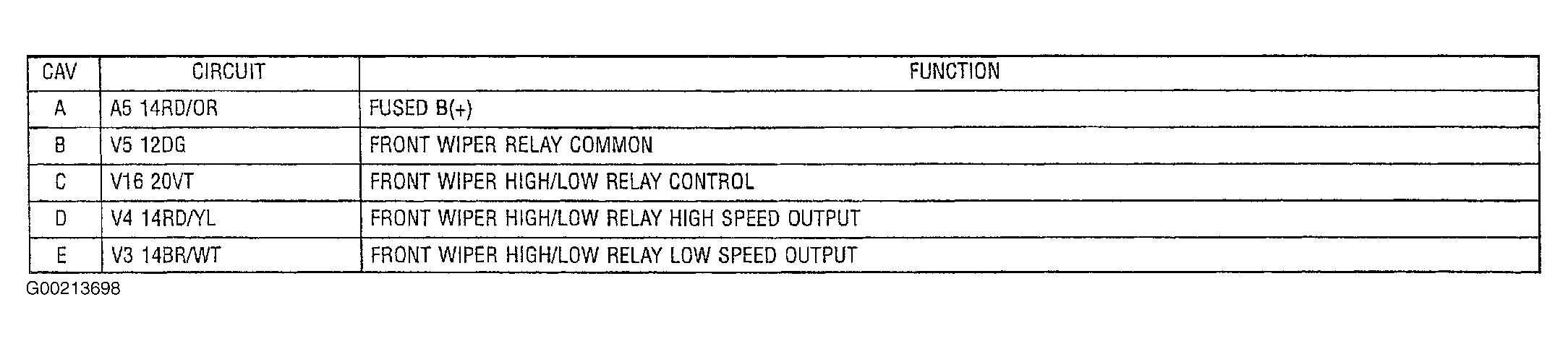

Fig 79: Identifying Power Distribution Front Wiper High/Low Relay Circuits

G00213698

Courtesy of CHRYSLER CORP.

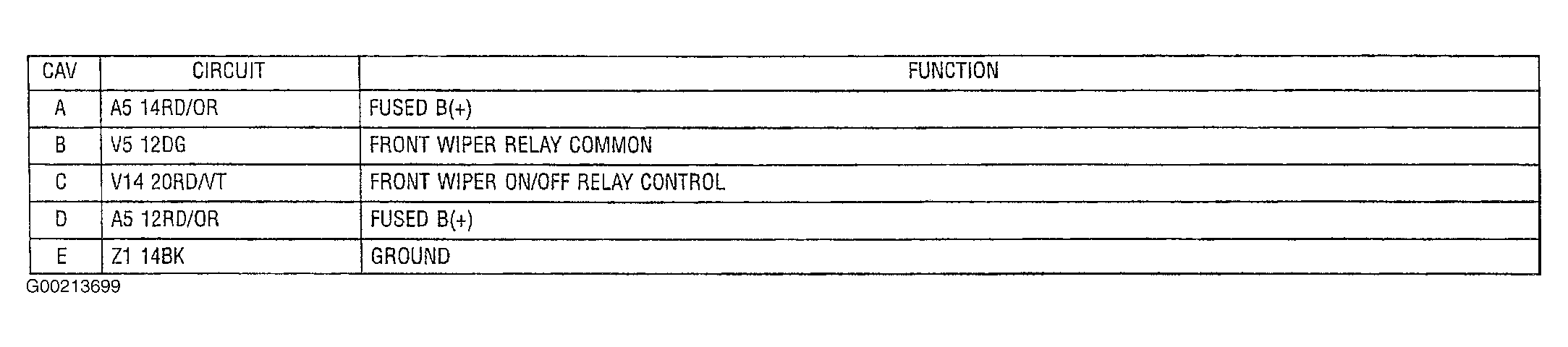

Fig 80: Identifying Power Distribution Front Wiper On/Off Relay Circuits

G00213699

Courtesy of CHRYSLER CORP.

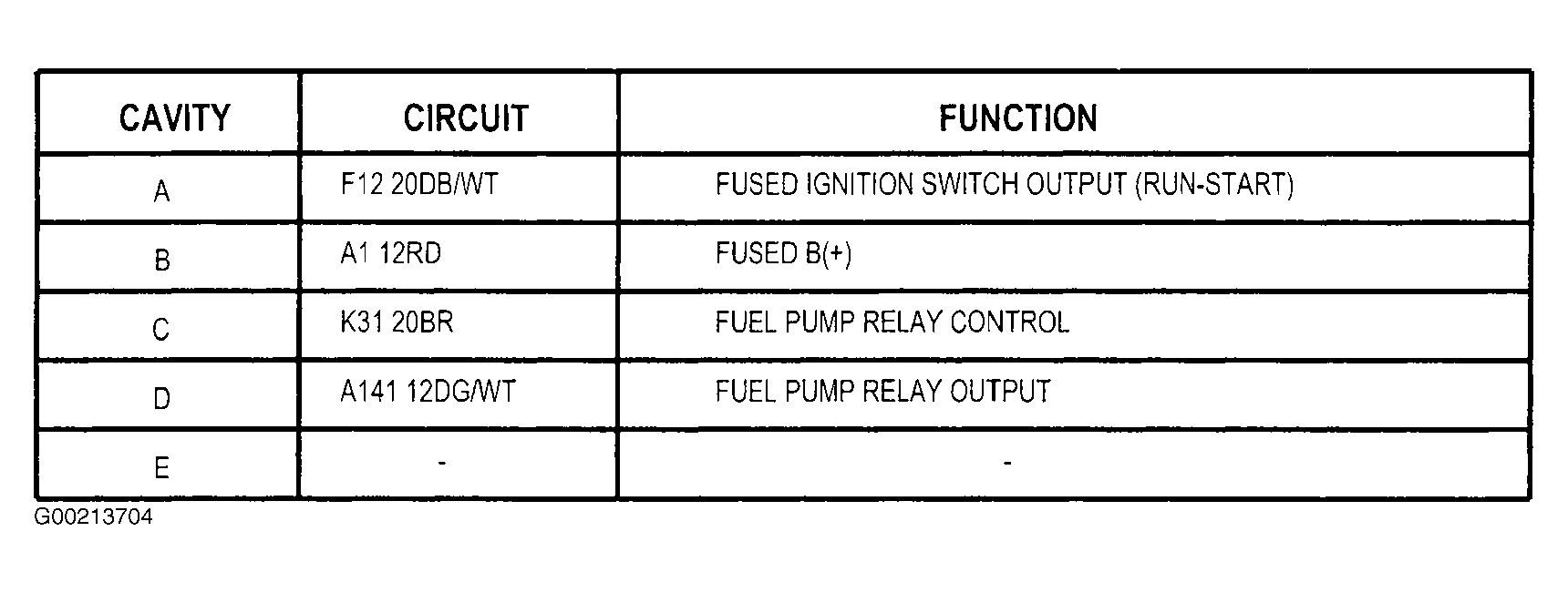

Fig 81: Identifying Power Distribution Fuel Pump Relay Circuits

G00213704

Courtesy of CHRYSLER CORP.

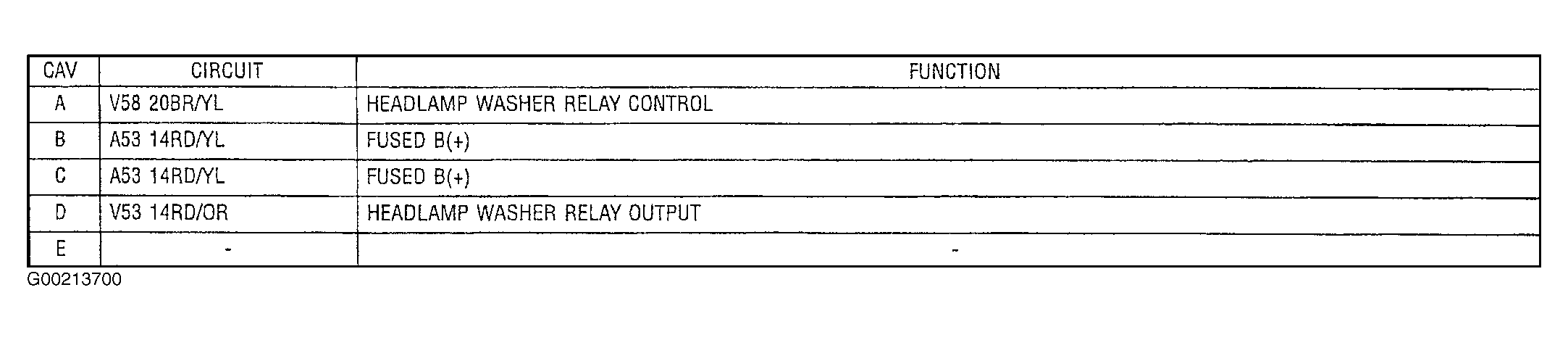

Fig 82: Identifying Power Distribution Headlight Washer Relay Circuits (Built-Up Export)

G00213700

Courtesy of CHRYSLER CORP.

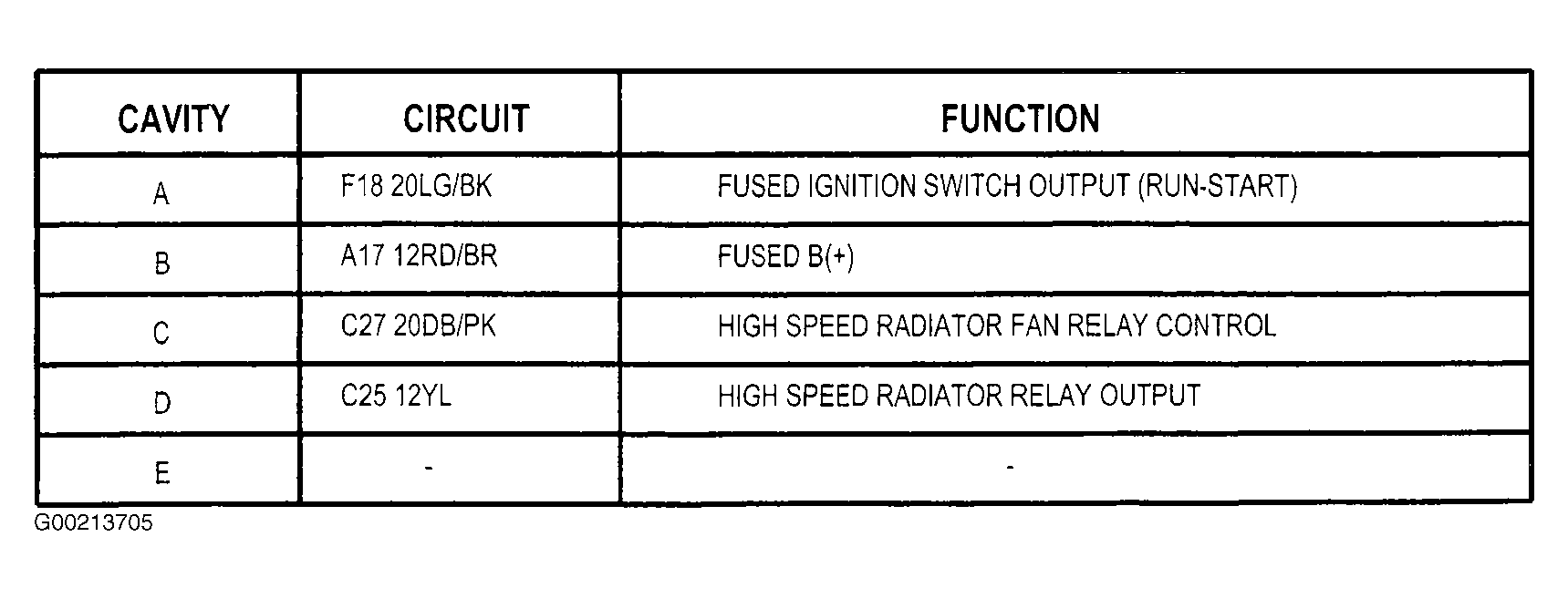

Fig 83: Identifying Power Distribution High Speed Radiator Fan Relay Circuits

G00213705

Courtesy of CHRYSLER CORP.

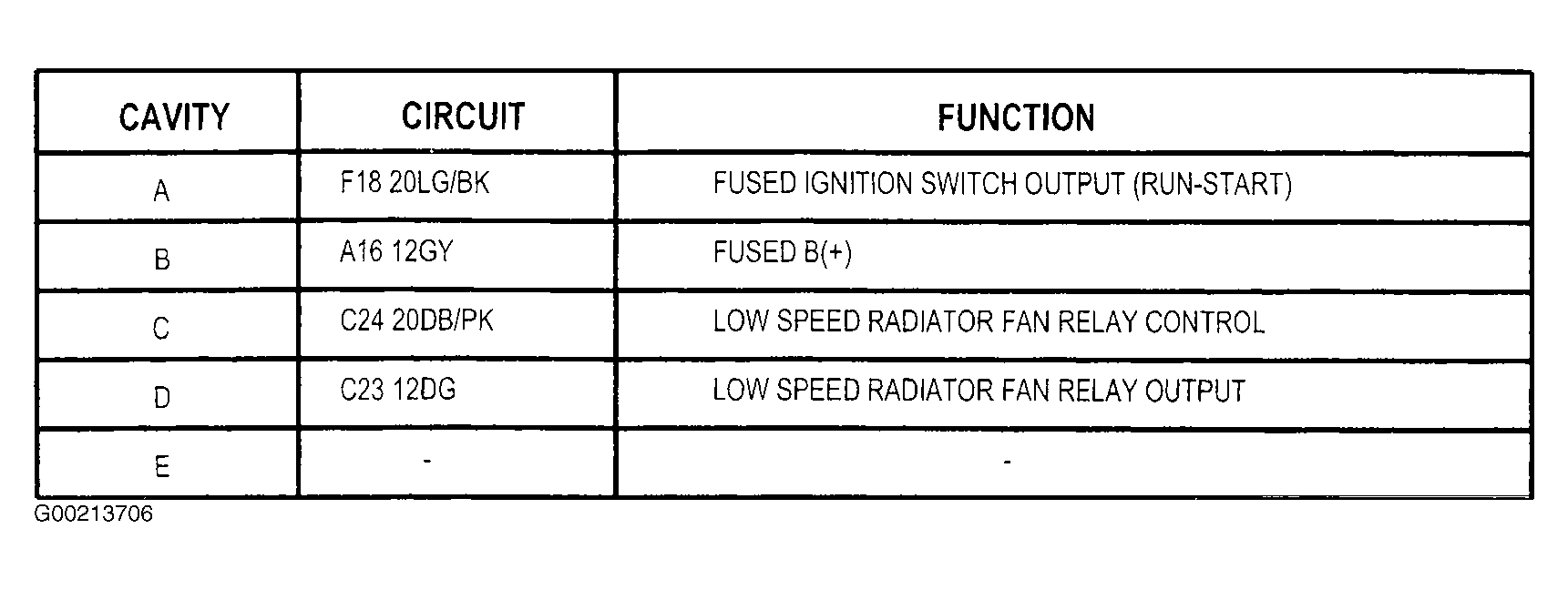

Fig 84: Identifying Power Distribution Low Speed Radiator Fan Relay Circuits

G00213706

Courtesy of CHRYSLER CORP.

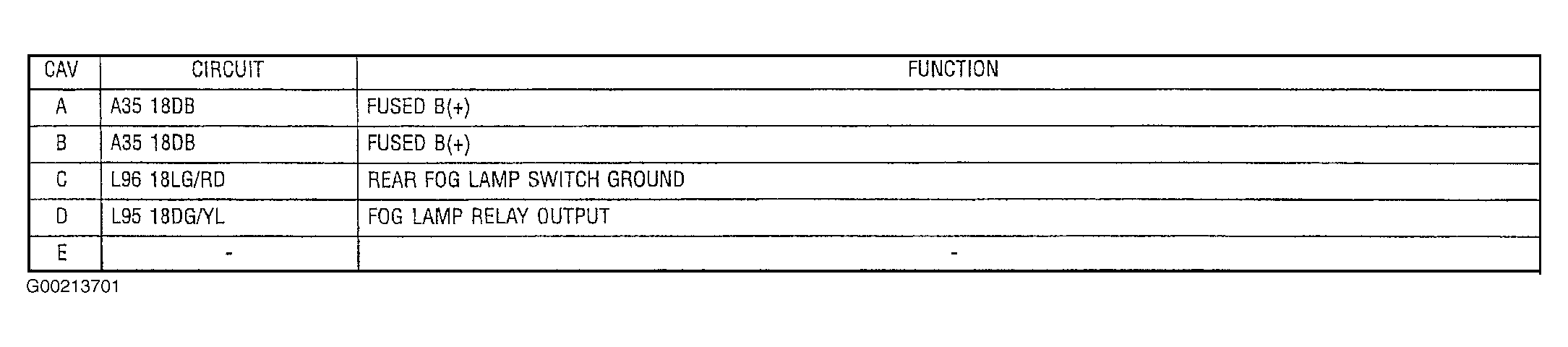

Fig 85: Identifying Power Distribution Rear Fog Light Relay Circuits (Built-Up Export)

G00213701

Courtesy of CHRYSLER CORP.

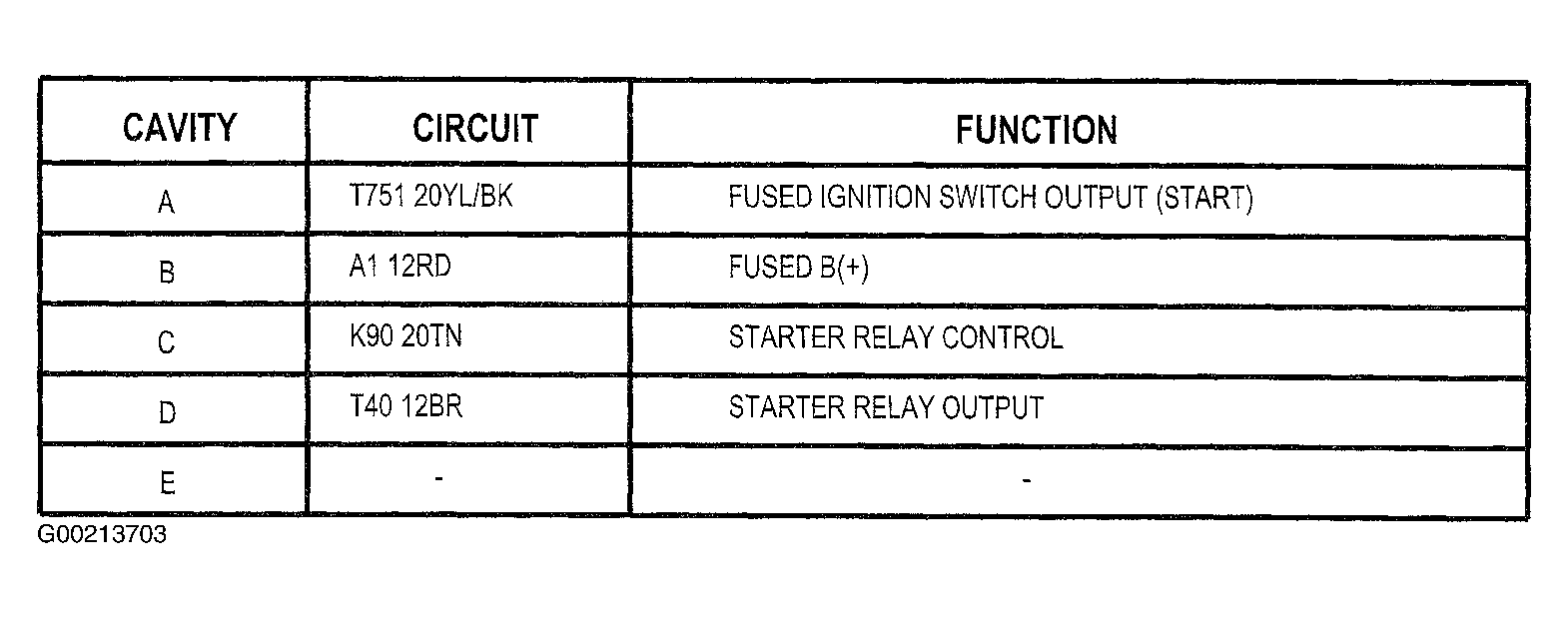

Fig 86: Identifying Power Distribution Starter Motor Relay Circuits

G00213703

Courtesy of CHRYSLER CORP.

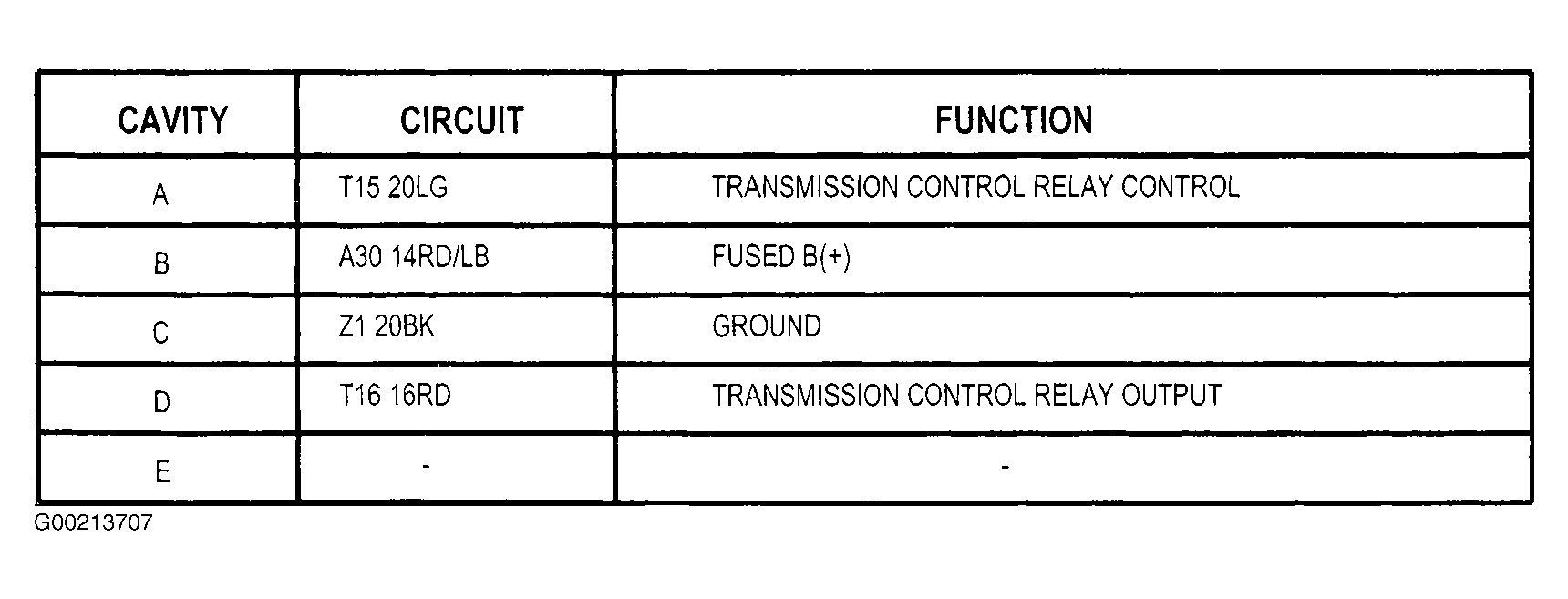

Fig 87: Identifying Power Distribution Transmission Control Relay Circuits

G00213707

Courtesy of CHRYSLER CORP.

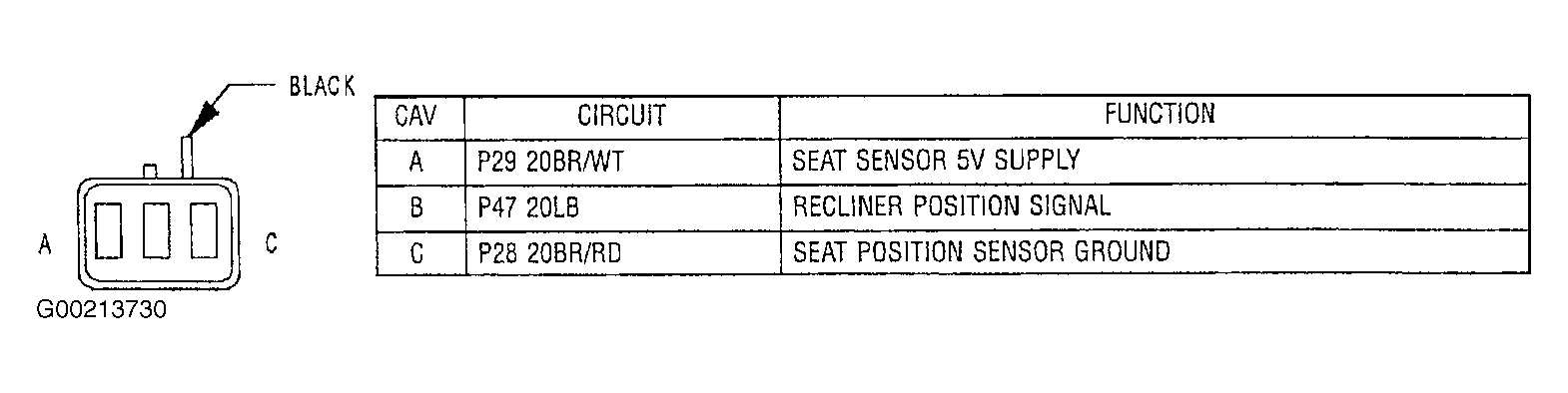

Fig 88: Identifying Power Seat Recliner Motor Sensor Connector (Memory)

G00213730

Courtesy of CHRYSLER CORP.

Fig 89: Identifying Power Seat Switch Connector

G00213729

Courtesy of CHRYSLER CORP.

Fig 90: Identifying Powertrain Control Module C1 Connector

G00205008

Courtesy of CHRYSLER CORP.

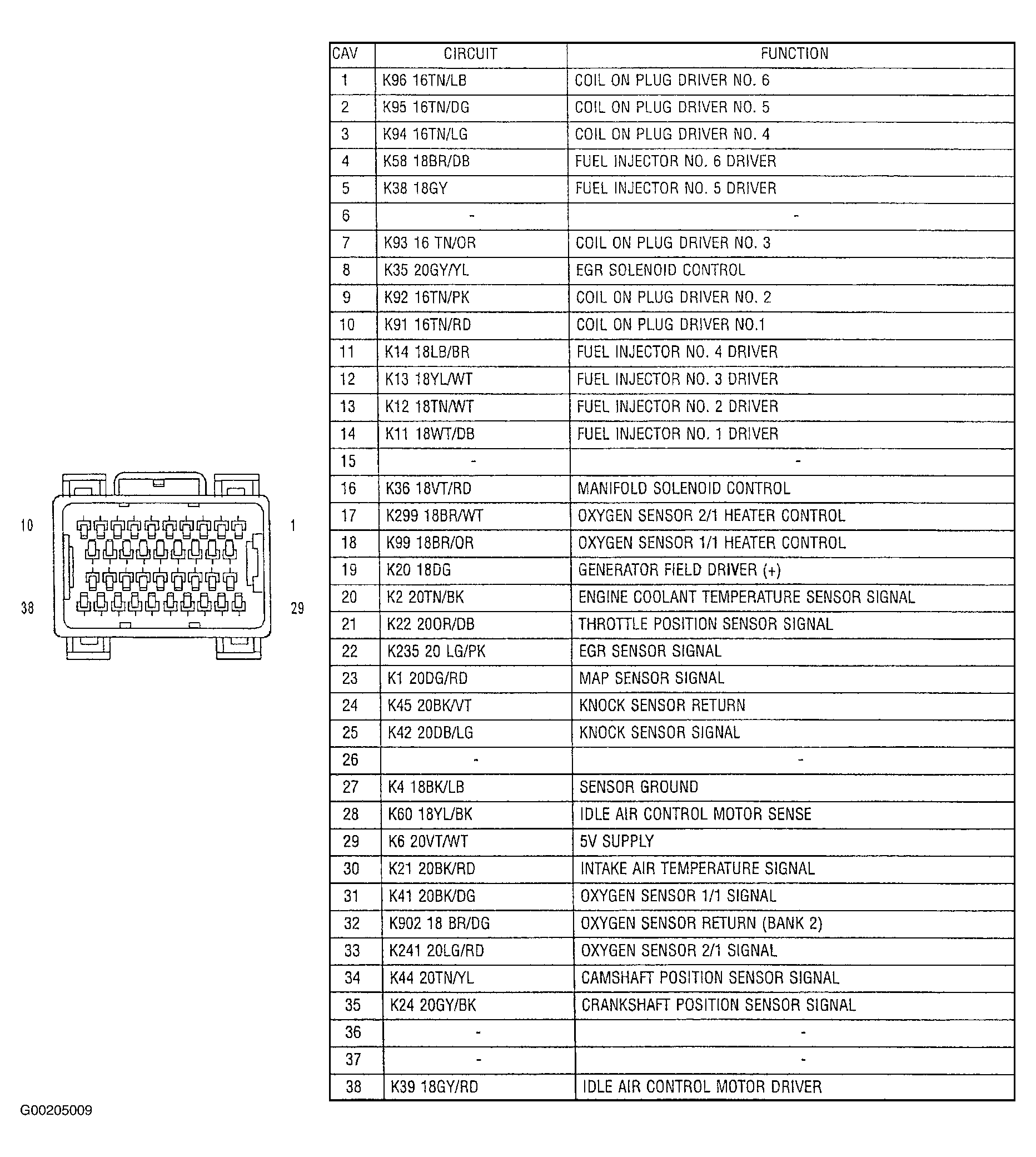

Fig 91: Identifying Powertrain Control Module C2 Connector

G00205009

Courtesy of CHRYSLER CORP.

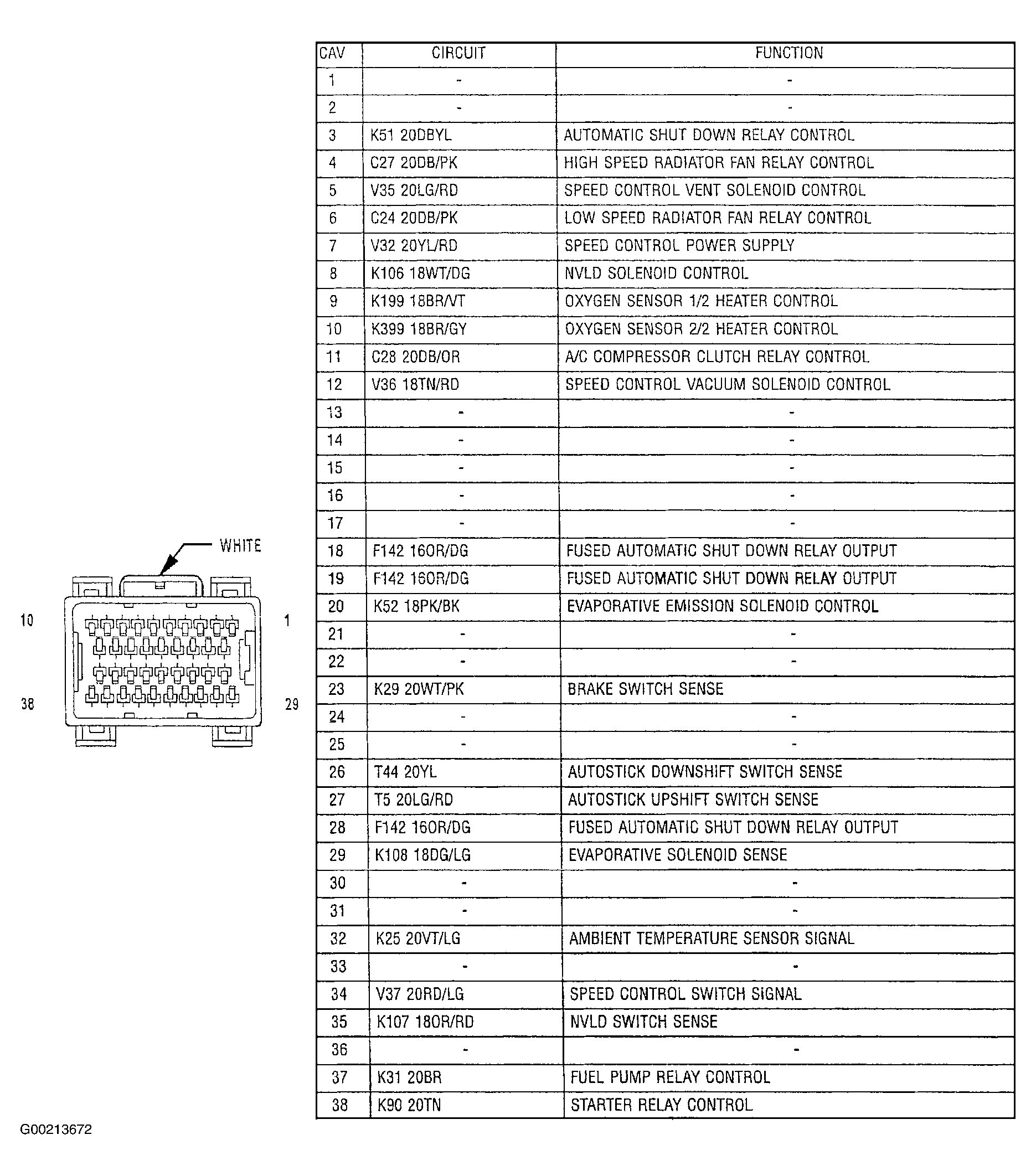

Fig 92: Identifying Powertrain Control Module C3 Connector

G00213672

Courtesy of CHRYSLER CORP.

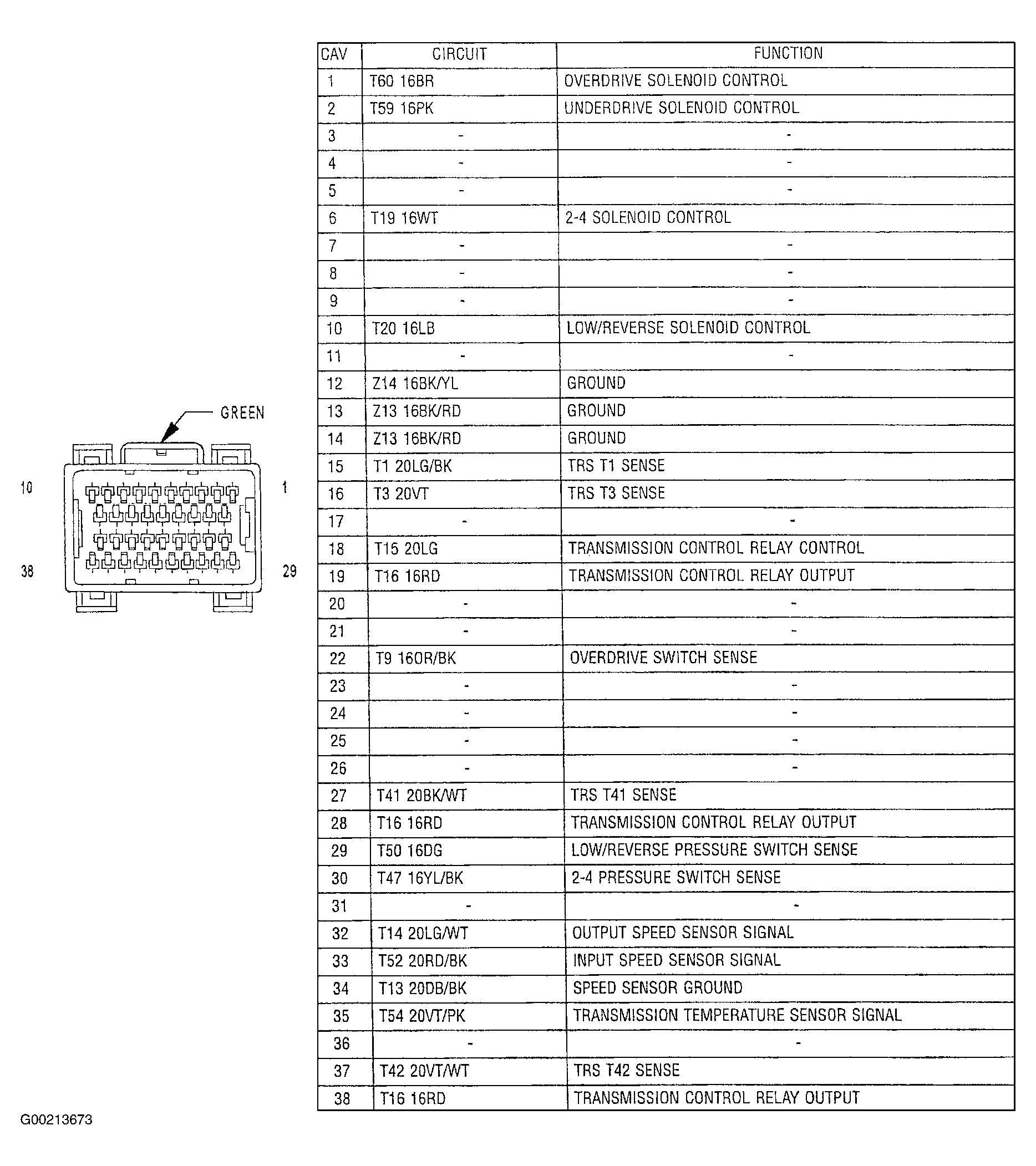

Fig 93: Identifying Powertrain Control Module C4 Connector

G00213673

Courtesy of CHRYSLER CORP.

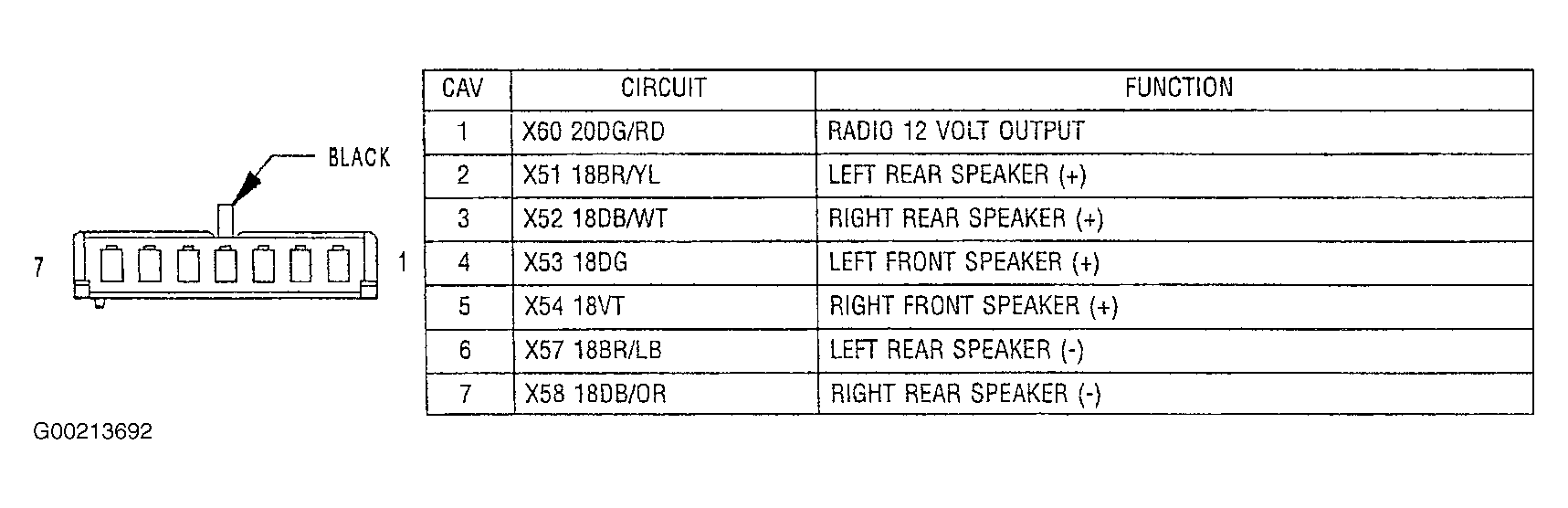

Fig 94: Identifying Radio C1 Connector (Base)

G00213692

Courtesy of CHRYSLER CORP.

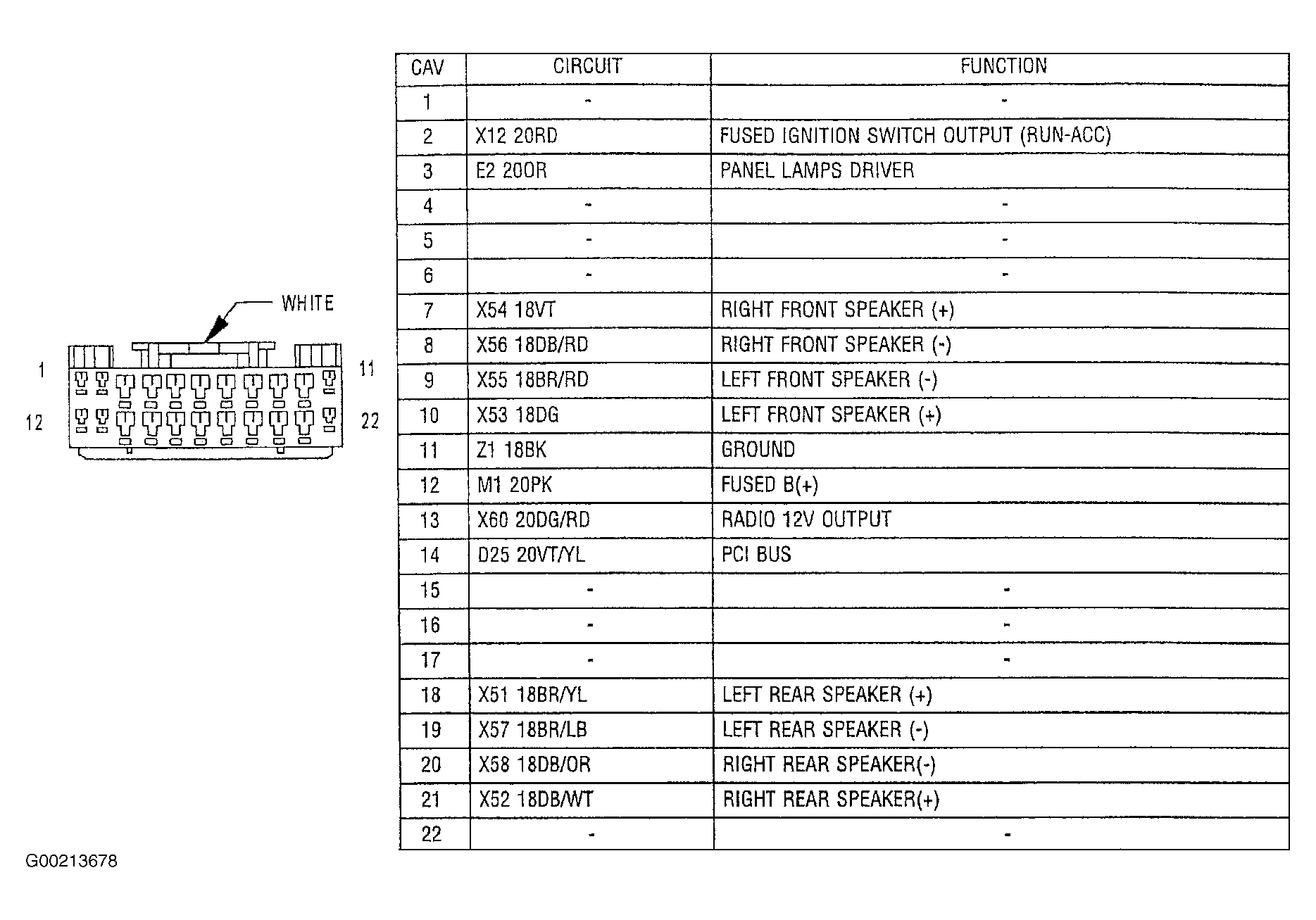

Fig 95: Identifying Radio C1 Connector (Except Base)

G00213678

Courtesy of CHRYSLER CORP.

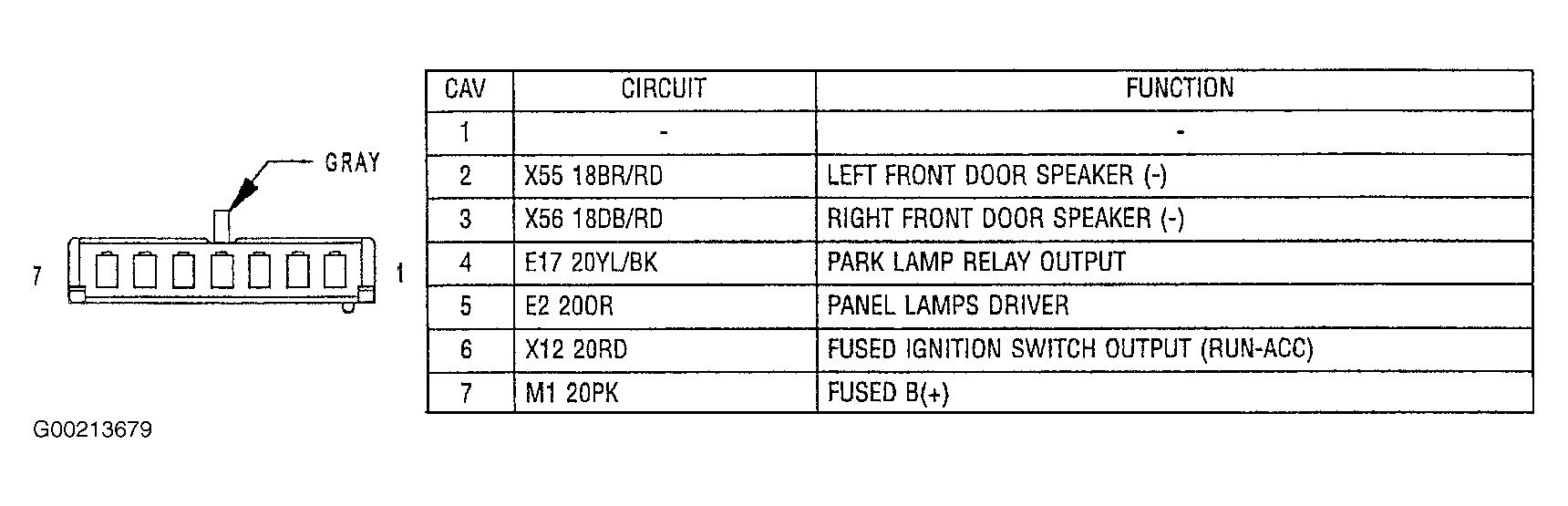

Fig 96: Identifying Radio C2 Connector (Base)

G00213679

Courtesy of CHRYSLER CORP.

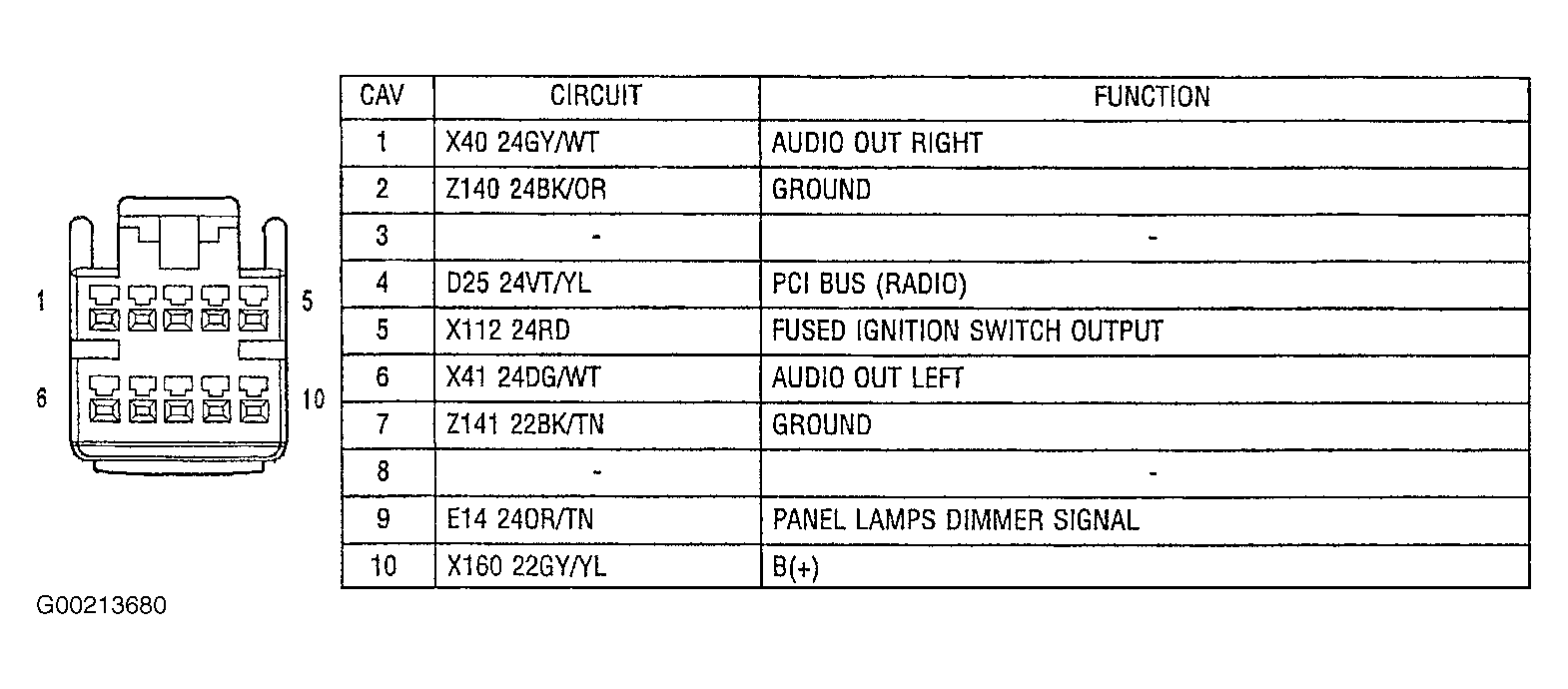

Fig 97: Identifying Radio C2 Connector (Except Base)

G00213680

Courtesy of CHRYSLER CORP.

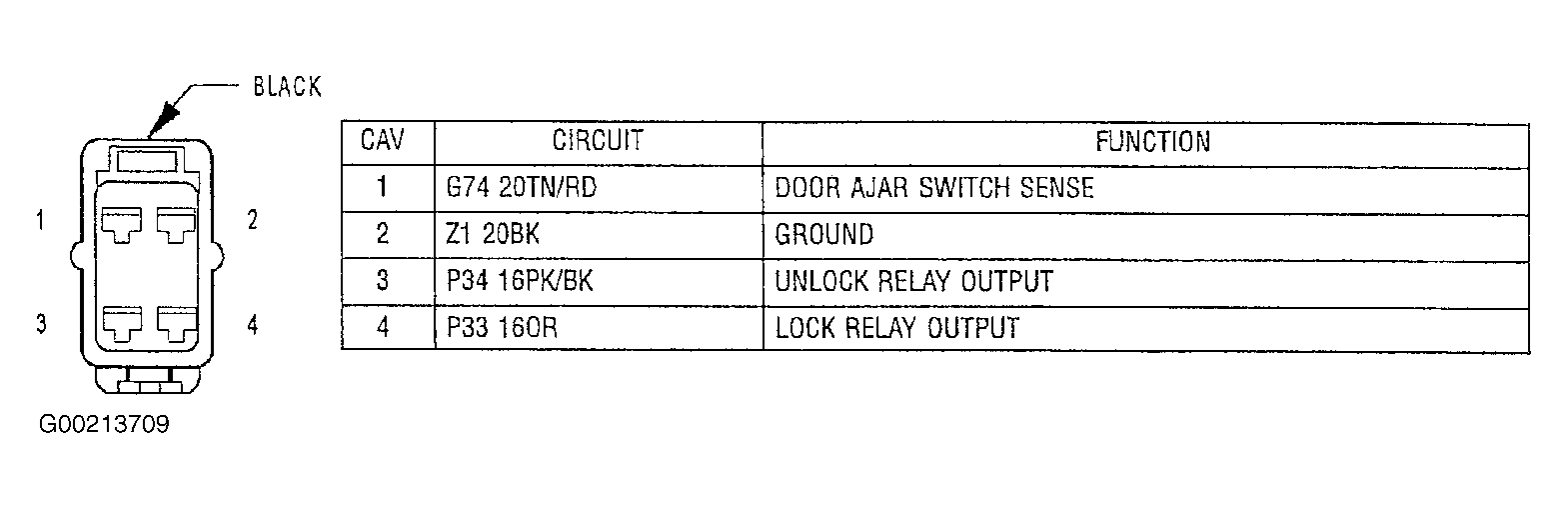

Fig 98: Identifying Rear Door Lock Motor/Ajar Switch Connector

G00213709

Courtesy of CHRYSLER CORP.

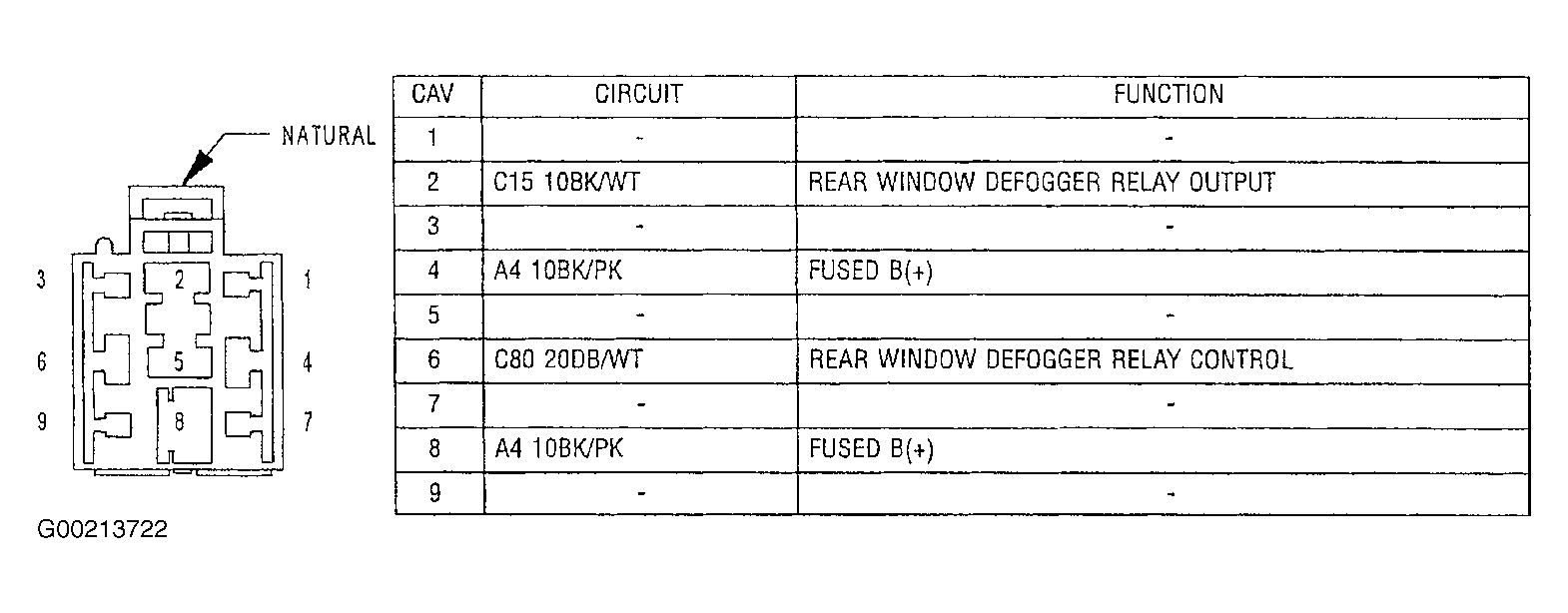

Fig 99: Identifying Rear Window Defogger Relay Connector

G00213722

Courtesy of CHRYSLER CORP.

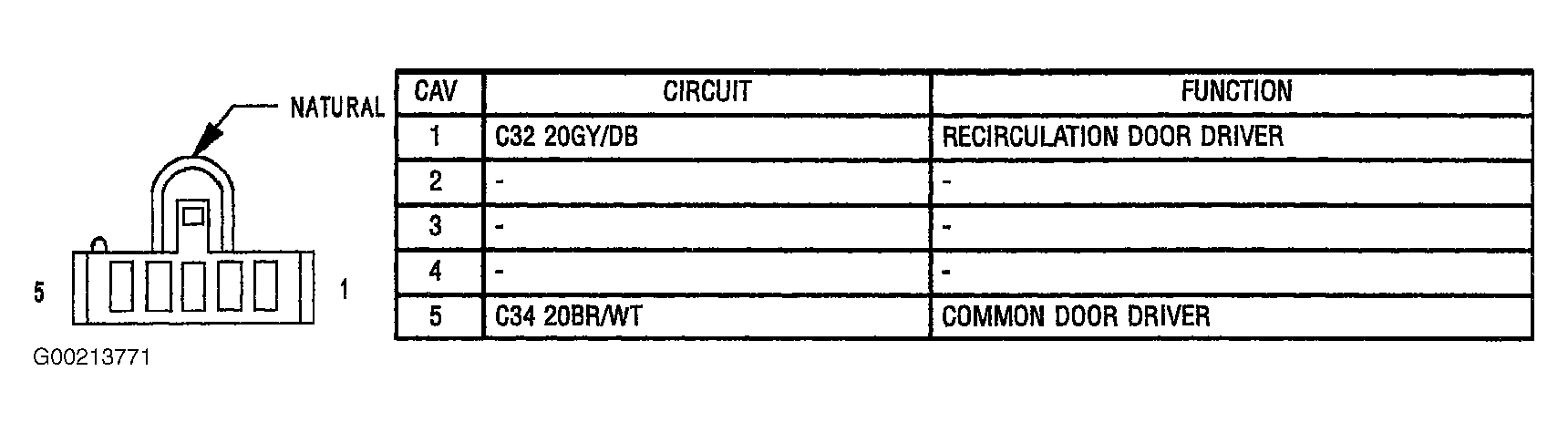

Fig 100: Identifying Recirculation Door Actuator Connector

G00213771

Courtesy of CHRYSLER CORP.

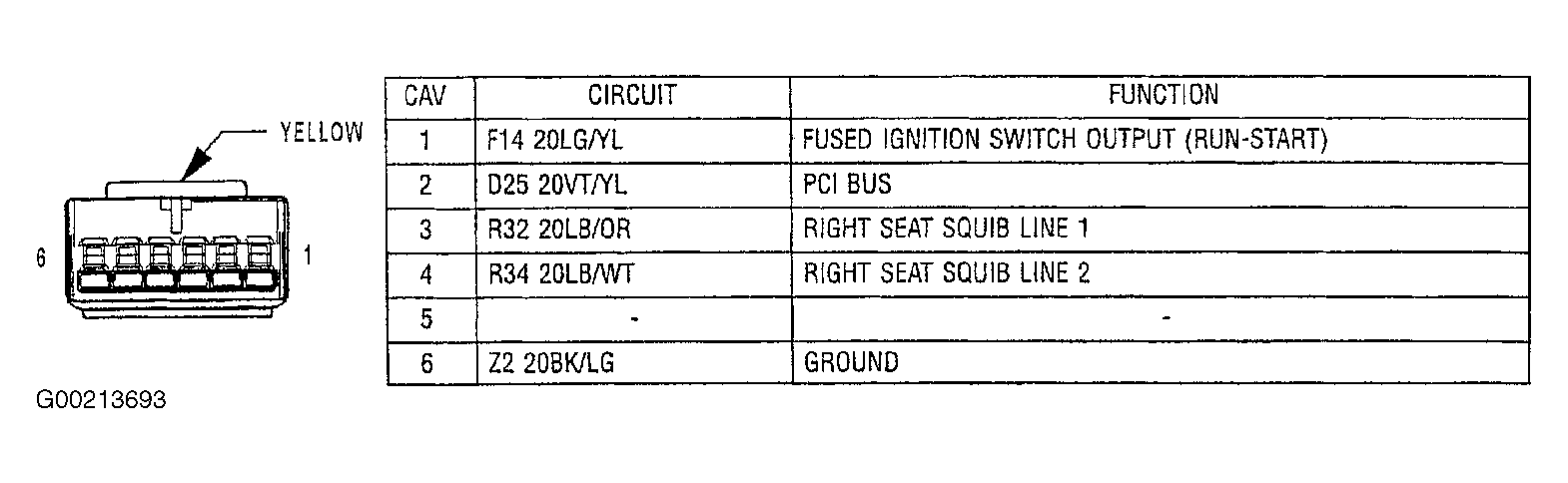

Fig 101: Identifying Right Side Impact Air Bag Control Module Connectors

G00213693

Courtesy of CHRYSLER CORP.

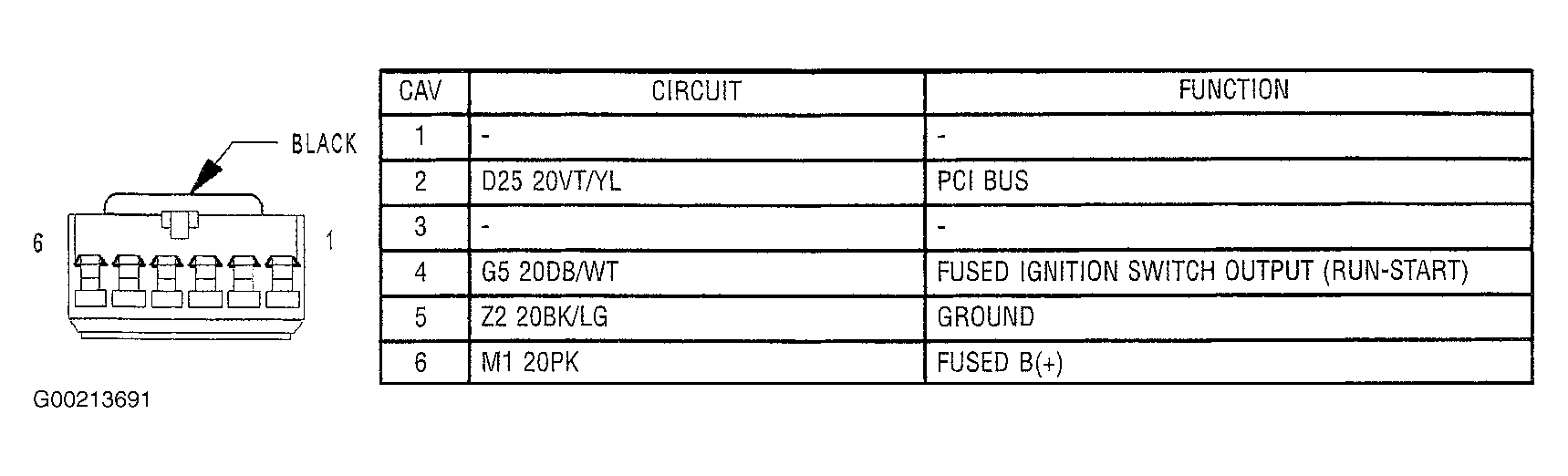

Fig 102: Identifying Sentry Key Immobilizer Module Connectors

G00213691

Courtesy of CHRYSLER CORP.

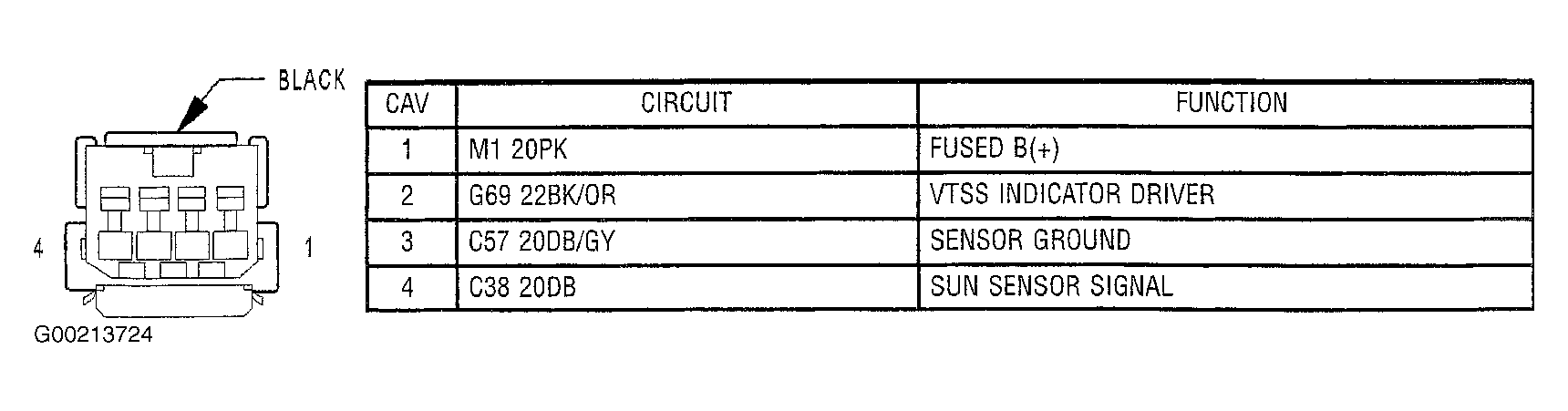

Fig 103: Identifying Sun Sensor/VTSS LED Connector

G00213724

Courtesy of CHRYSLER CORP.

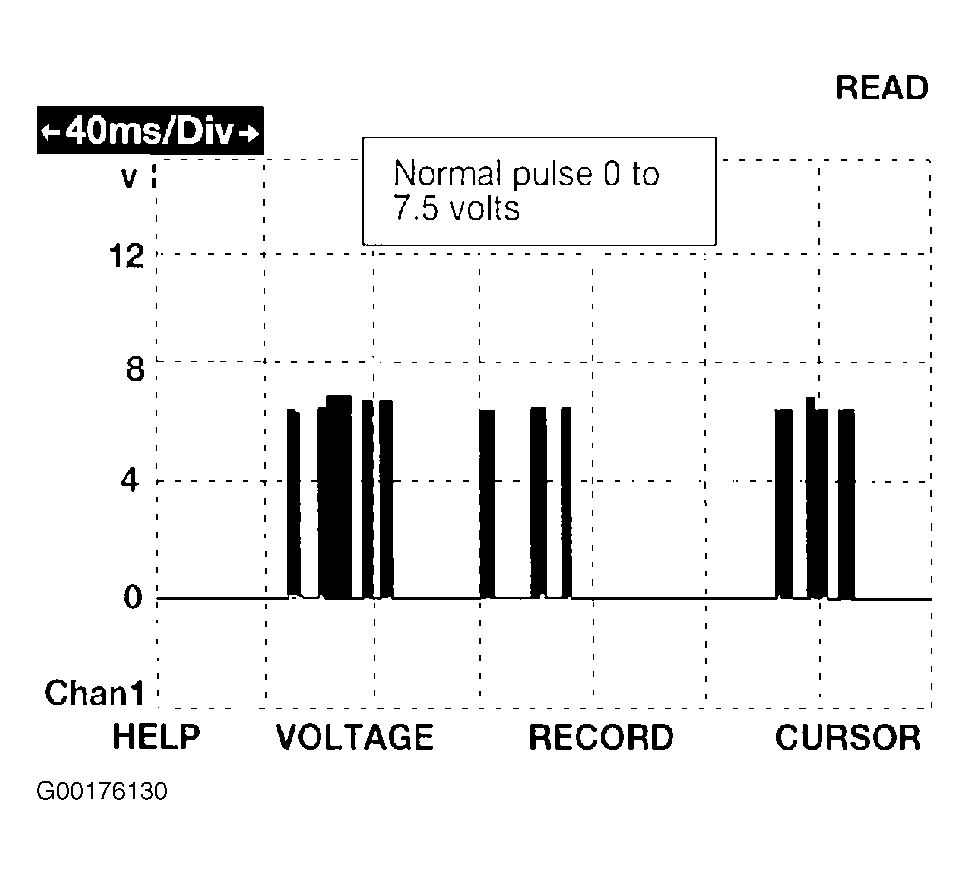

Fig 104: Identifying Typical PCI Bus Square Wave

G00176130

Courtesy of DAIMLERCHRYSLER CORPORATION

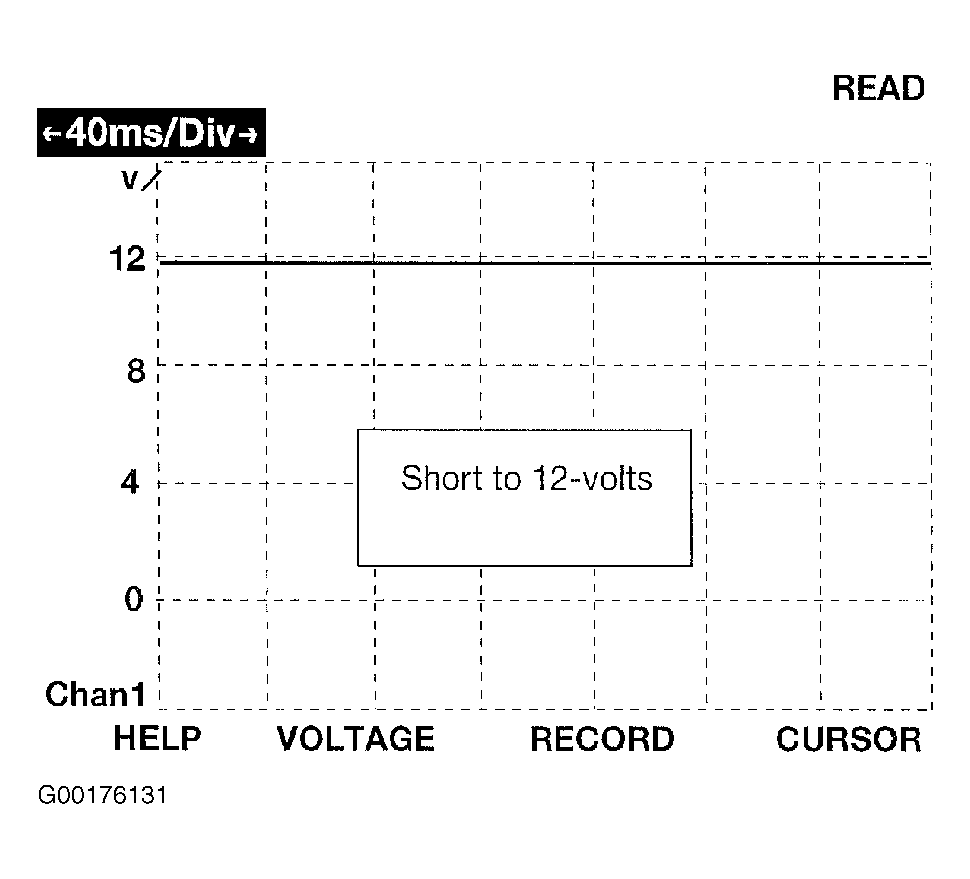

Fig 105: Identifying PCI Bus Short To 12 Volts Waveform

G00176131

Courtesy of DAIMLERCHRYSLER CORPORATION

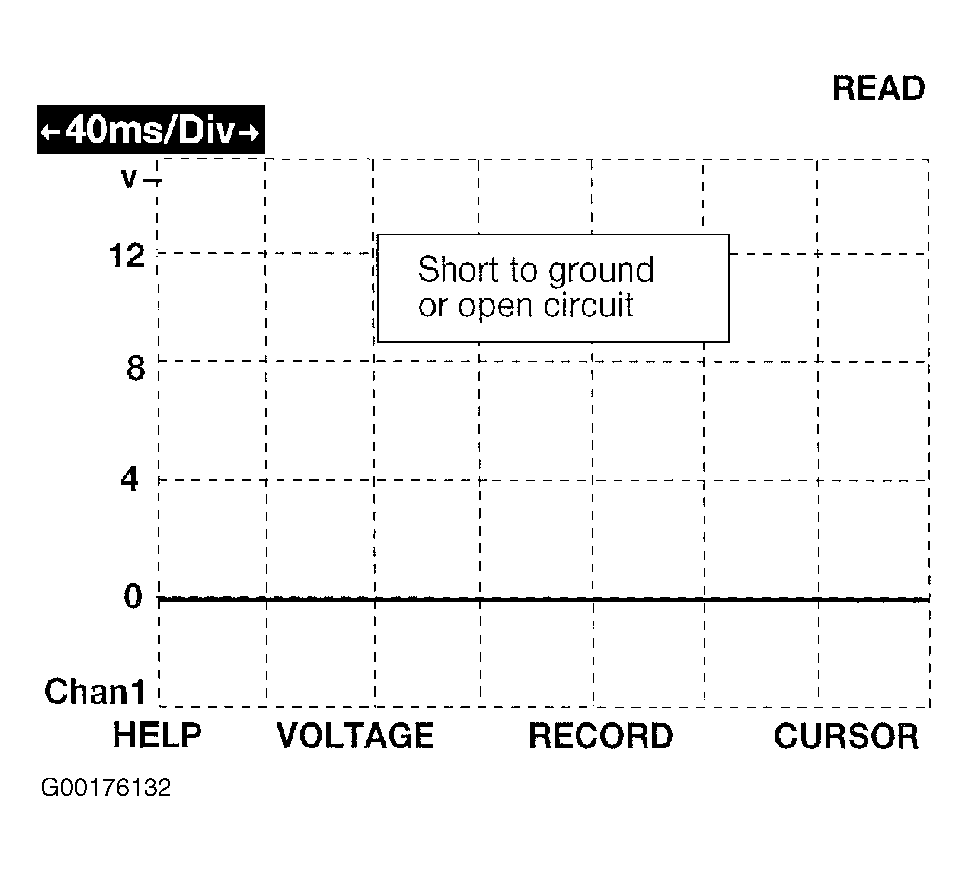

Fig 106: Identifying PCI Bus Short To Ground Or Open Circuit Waveform

G00176132

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 107: Identifying Windshield Wiper Motor Connector

G00213735
