Removal & Installation

  1. Remove door trim panel. See DOOR TRIM PANEL  . Remove door cup support bracket. Disconnect window from regulator. See Fig 1 or Fig 2 . Disconnect window motor harness connector. Loosen all bolts connecting regulator to door. Slide regulator free from door and rotate regulator out of access hole in door.
  2. To install regulator, reverse removal procedure. Align window. See ADJUSTMENTS  .

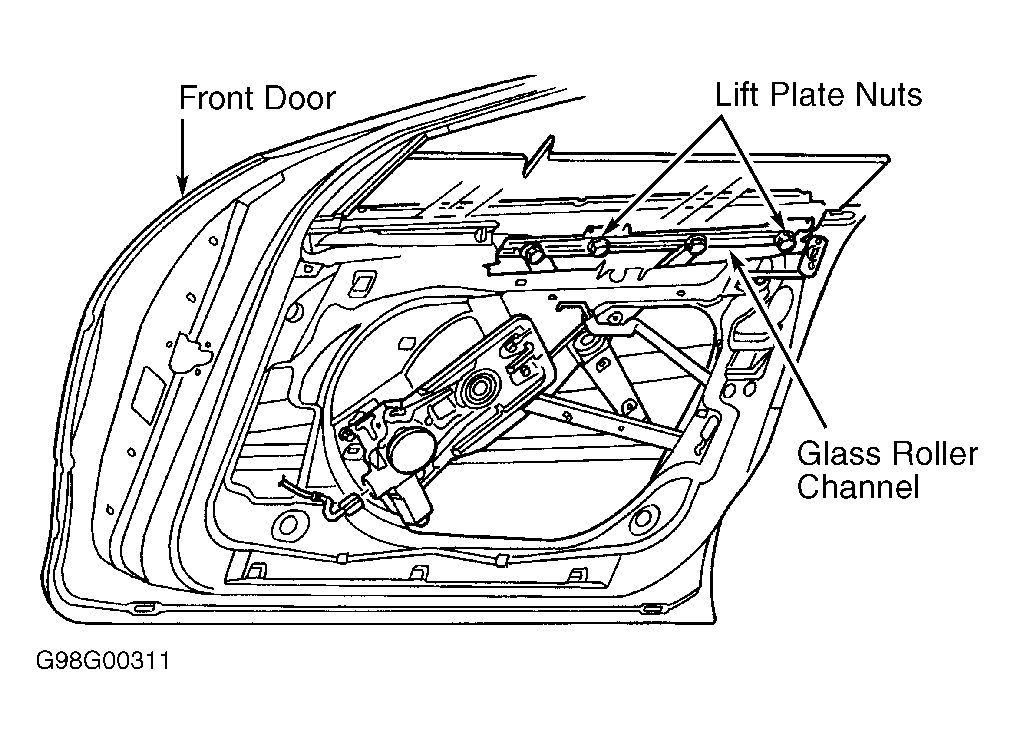

Fig 1: Disconnecting Front Window
G98G00311Courtesy of CHRYSLER CORP.

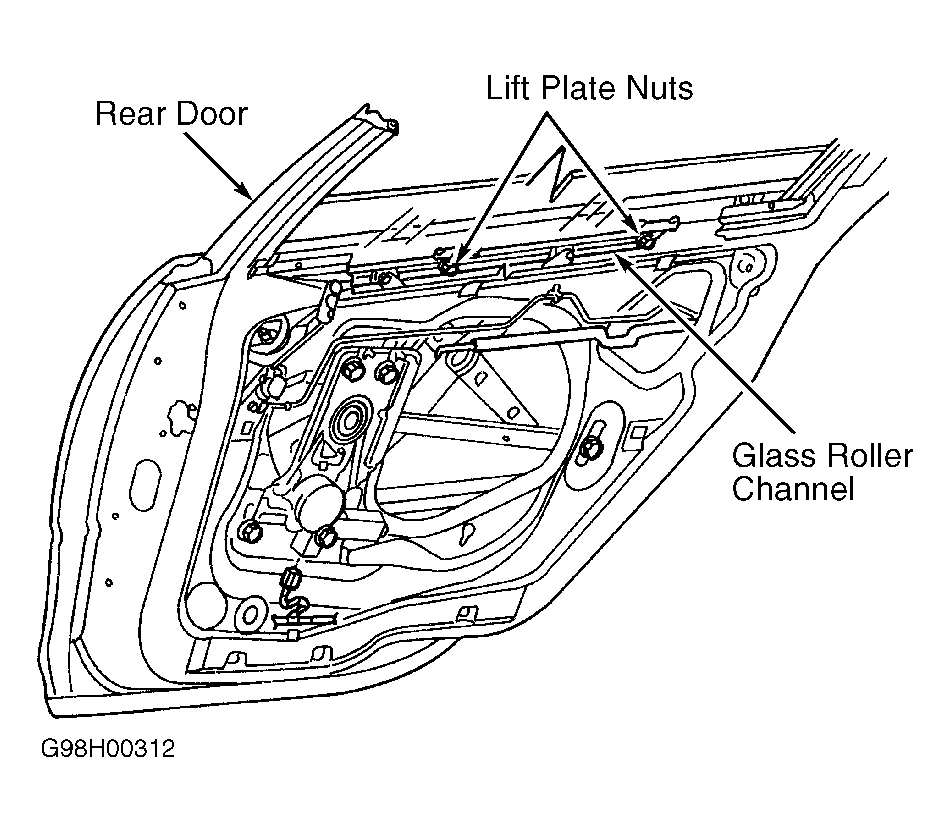

Fig 2: Disconnecting Rear Window
G98H00312Courtesy of CHRYSLER CORP.
