Component Locations

NOTE: For component locations refer to illustrations. See Fig 1 -Fig 6 .
COMPONENT LOCATIONS

Component Location
Controller Anti-Lock Brake On Left Front Frame Rail, Below Master Cylinder. See Fig 6 .
Data Link Connector (DLC) At Left Side Of Steering Column. See Fig 2 .
Deck Lid Security Switch Behind Deck Lid Lock Cylinder
Electro-Mechanical Instrument Cluster Module Integral Part Of Instrument Cluster
Fuse Block Under Left Side Of Instrument Panel. See Fig 2 .
Left Side Impact Air Bag Control Module At Base Of Left "B" Pillar. See Fig 3 .
Occupant Restraint Controller Under Center Of Floor Console. See Fig 1 .
Powertrain Control Module (PCM) In Left Front Of Engine Compartment, Below Air Cleaner Housing. See Fig 6 .
Power Distribution Center On Left Side Of Engine Compartment, Near Battery. See Fig 6 .
Right Side Impact Air Bag Control Module At Base Of Right "B" Pillar. See Fig 3 .
Remote Keyless Entry (RKE) Module Under Center Of Dash, Above HVAC Controls. See Fig 4 .
Sentry Key Immobilizer Module (SKIM) On Right Side Of Steering Column. See Fig 5 .

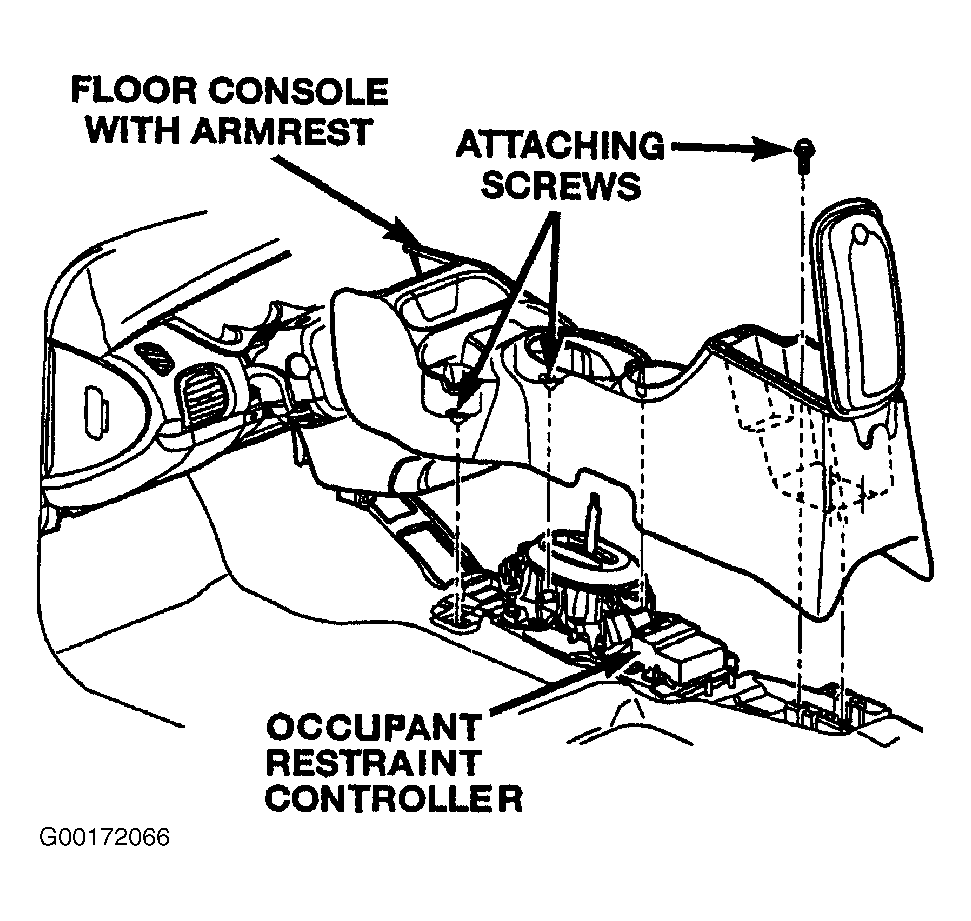

Fig 1: Locating Occupant Restraint Controller
G00172066Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Locating Fuse Block & Data Link Connector
G00172069Courtesy of DAIMLERCHRYSLER CORP.

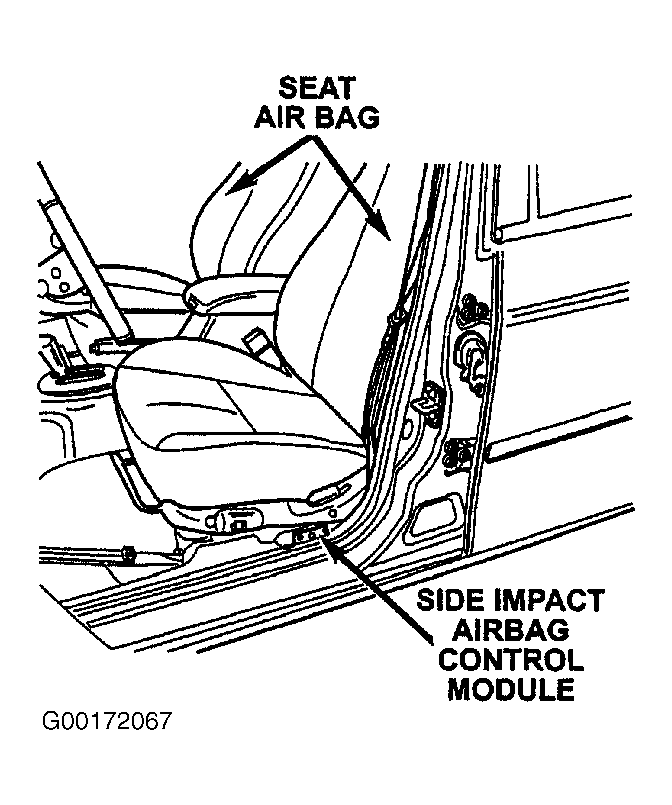

Fig 3: Locating Side Impact Airbag Control Modules
G00172067Courtesy of DAIMLERCHRYSLER CORP.

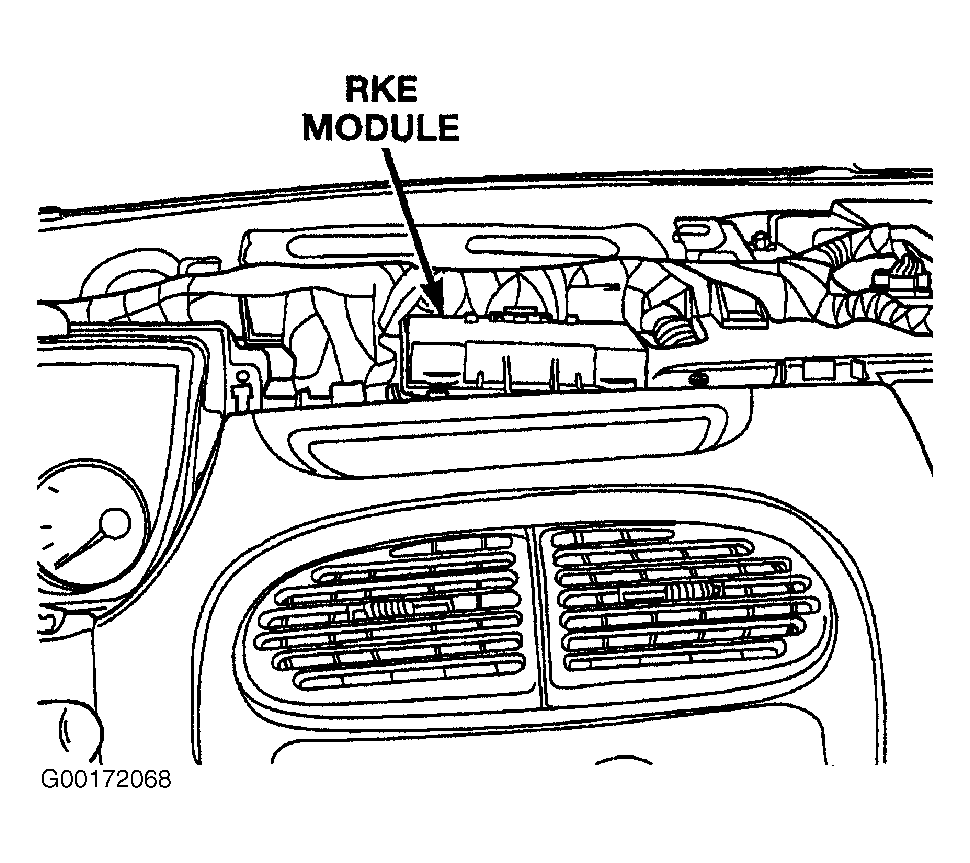

Fig 4: Locating Remote Keyless Entry Module
G00172068Courtesy of DAIMLERCHRYSLER CORP.

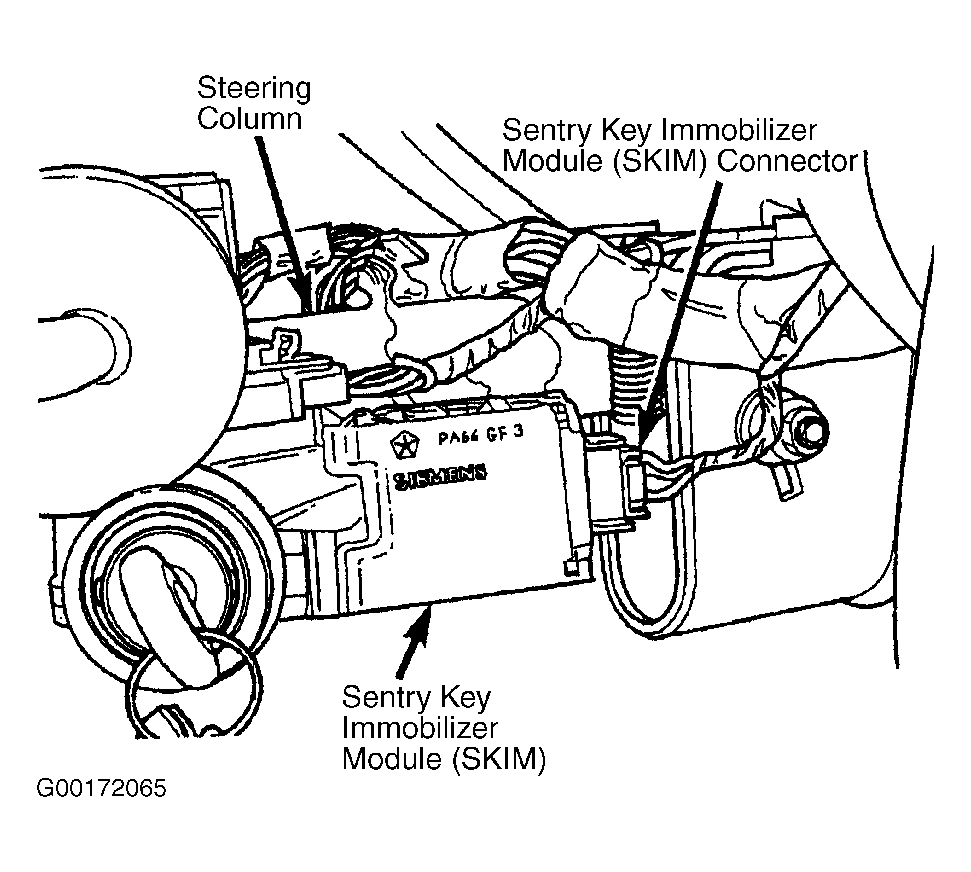

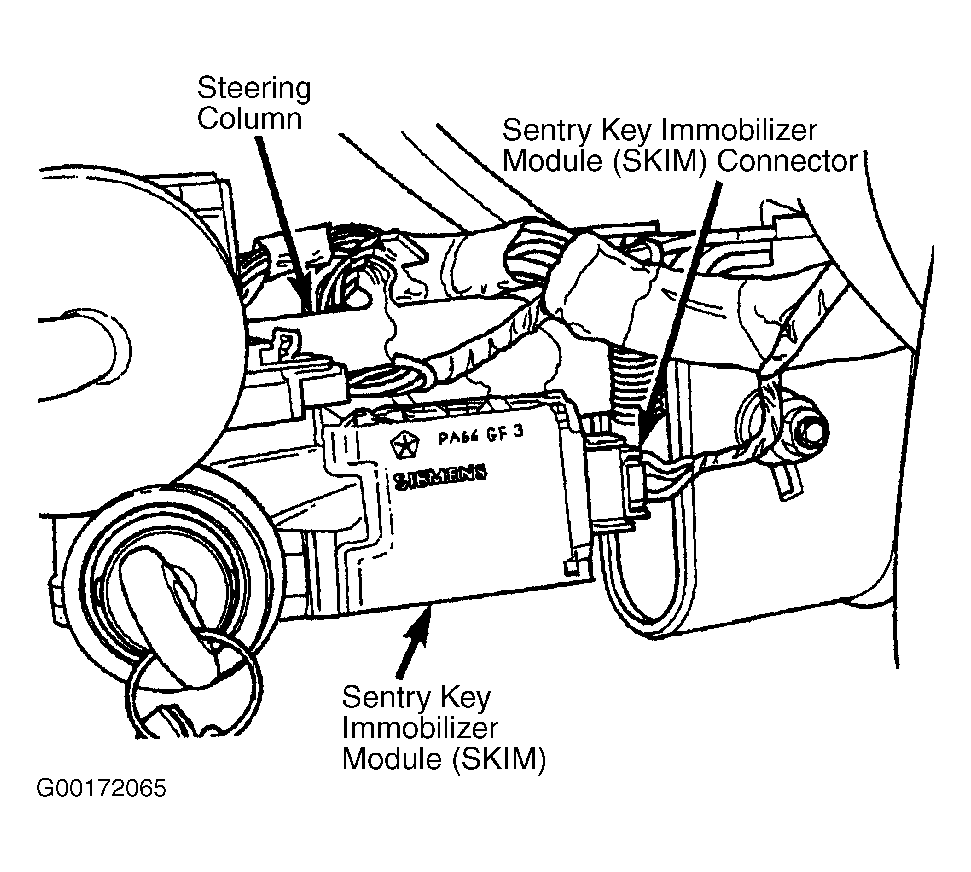

Fig 5: Locating Sentry Key Immobilizer Module
G00172065Courtesy of DAIMLERCHRYSLER CORP.

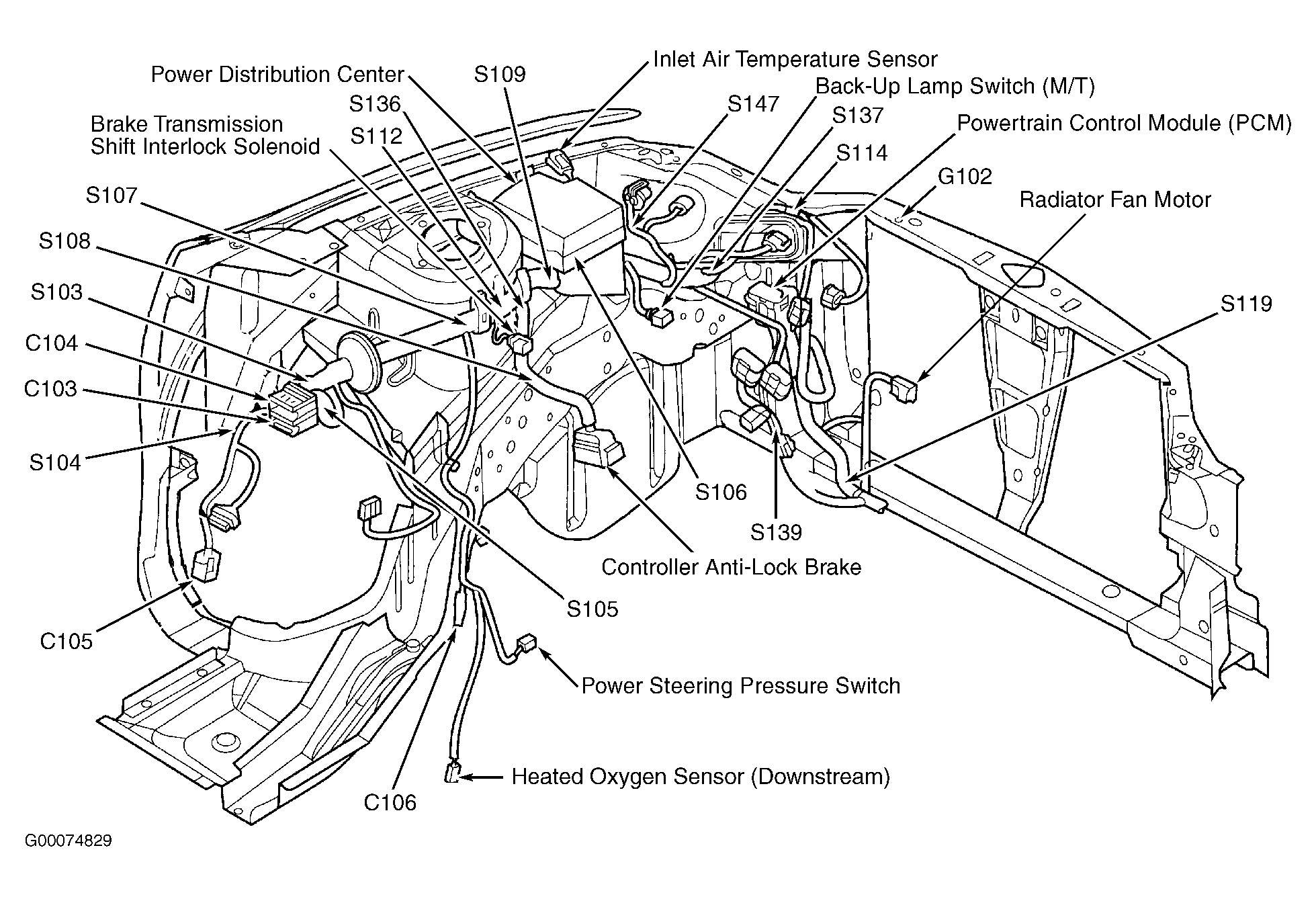

Fig 6: Locating Anti-Lock Brake Controller, Power Distribution Center & Powertrain Control Module
G00074829Courtesy of DAIMLERCHRYSLER CORP.
