Verification Test VER-3

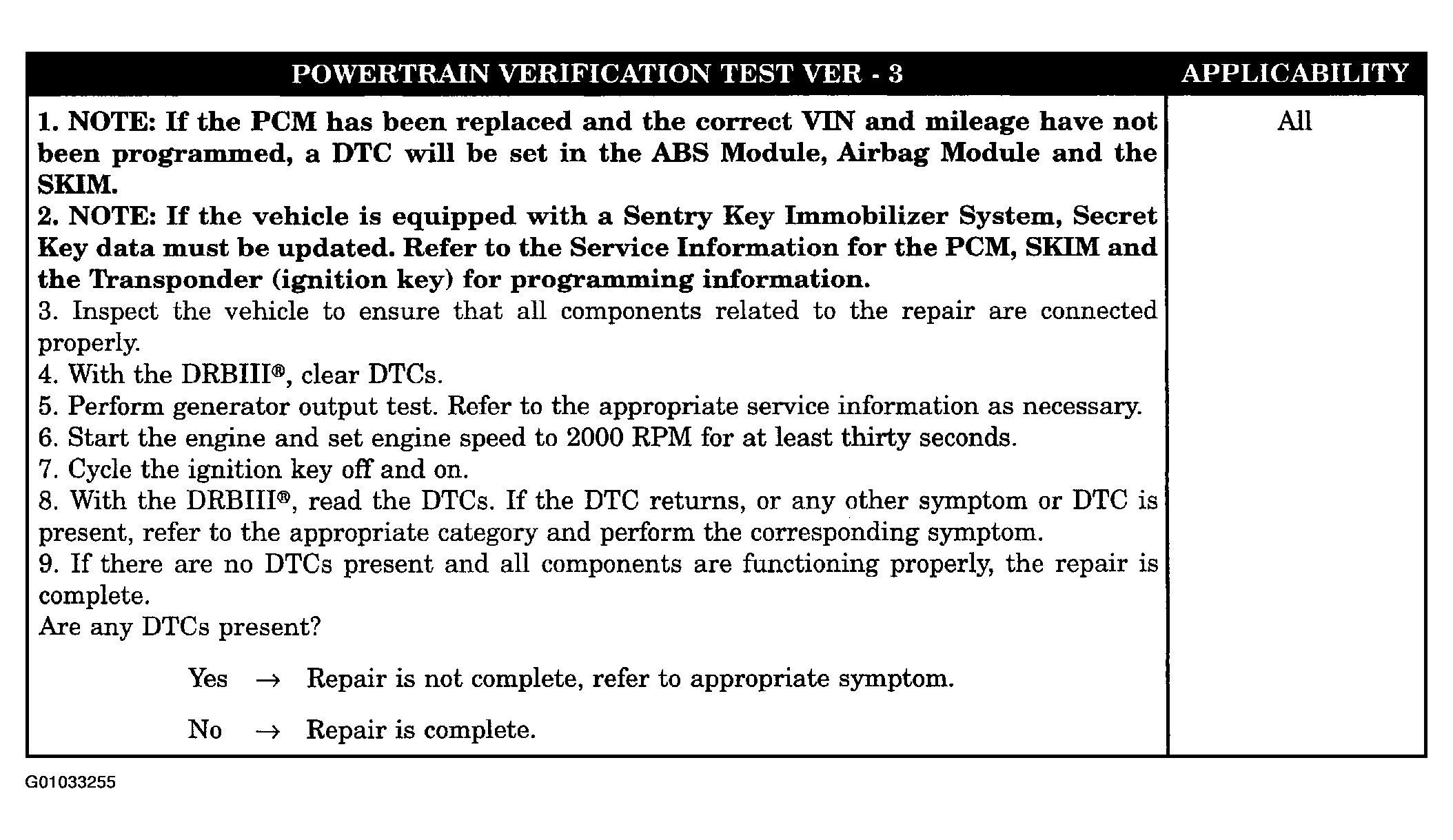

Fig 1: Verification Test VER-3

G01033255

Courtesy of DAIMLERCHRYSLER CORP.
