Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

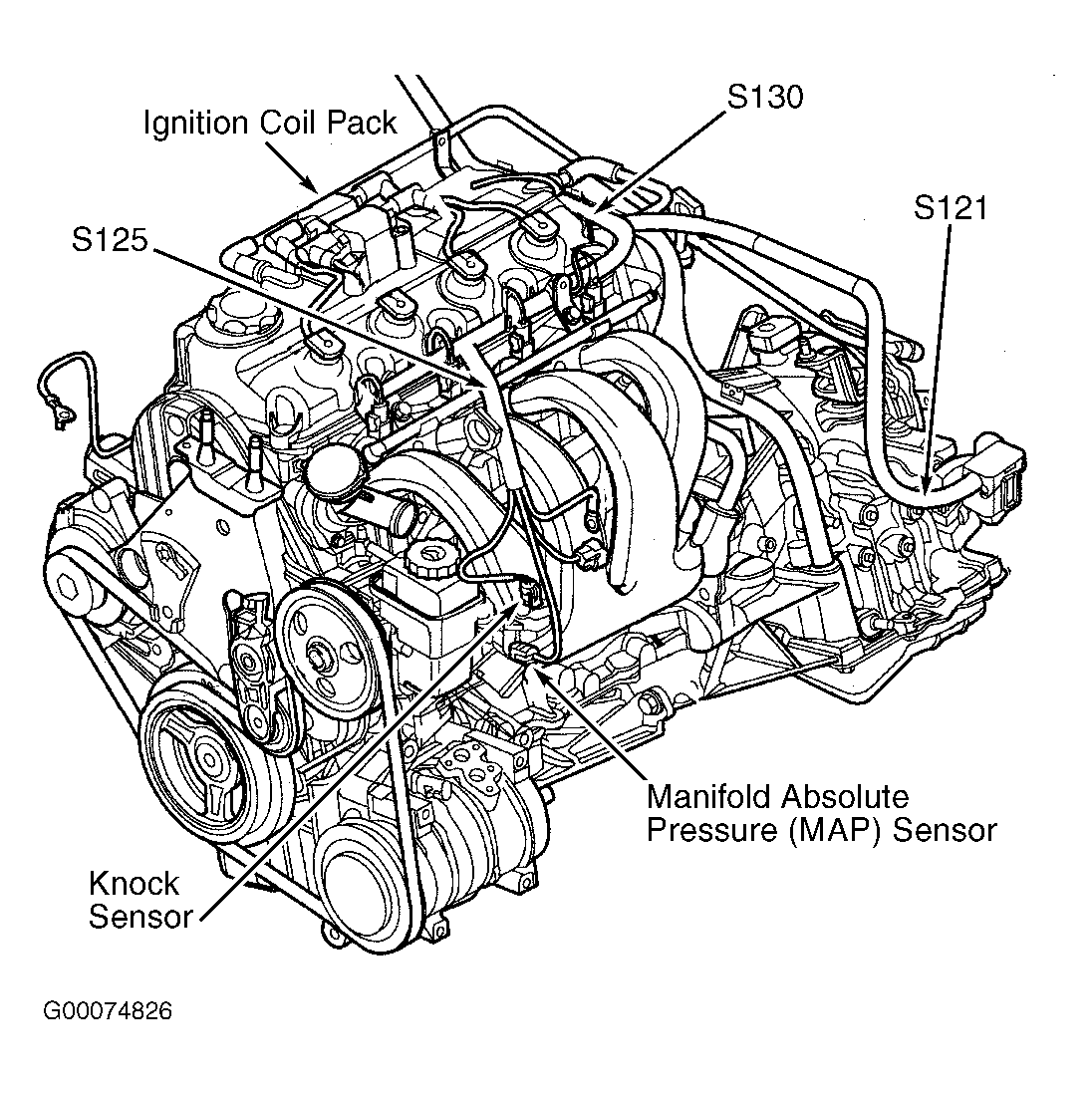

Fig 1: Left Side Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

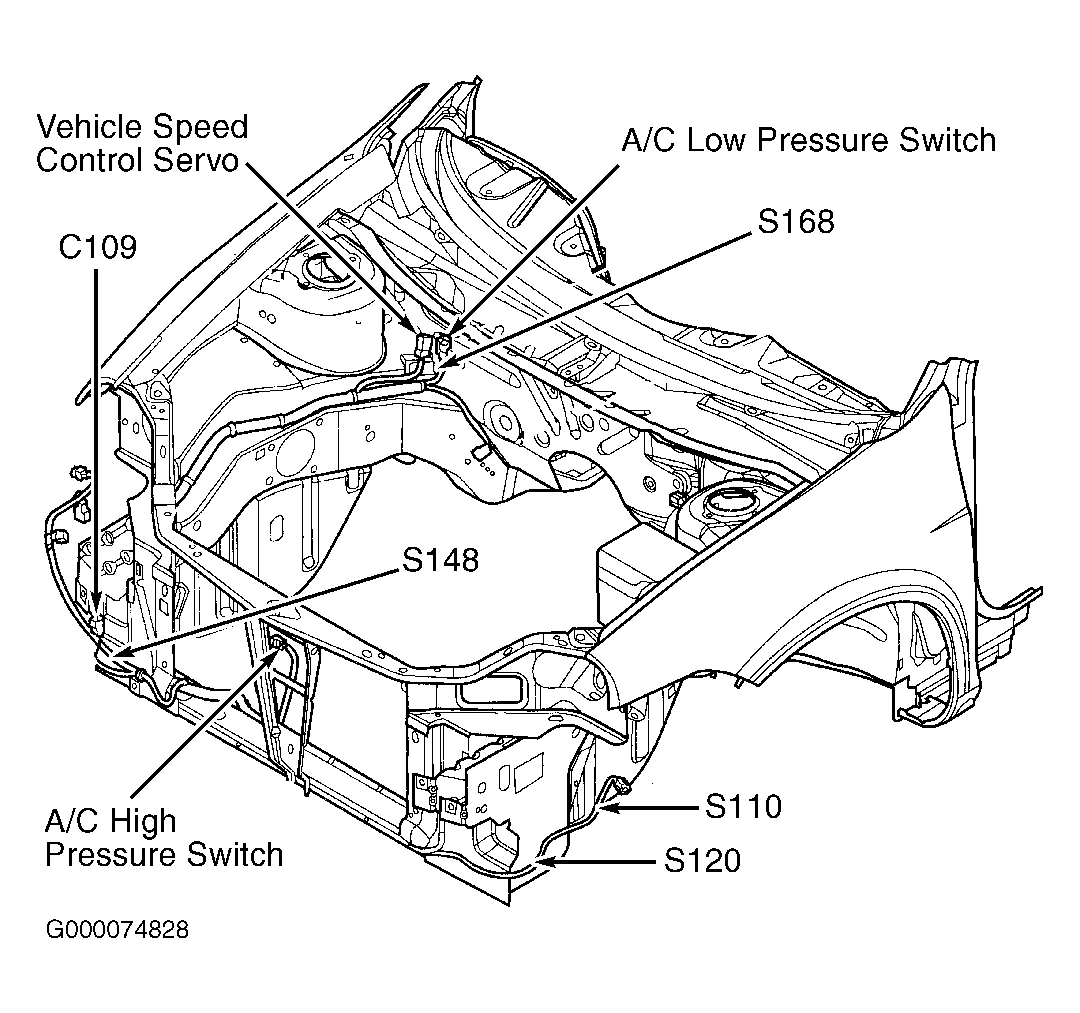

Fig 3: Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

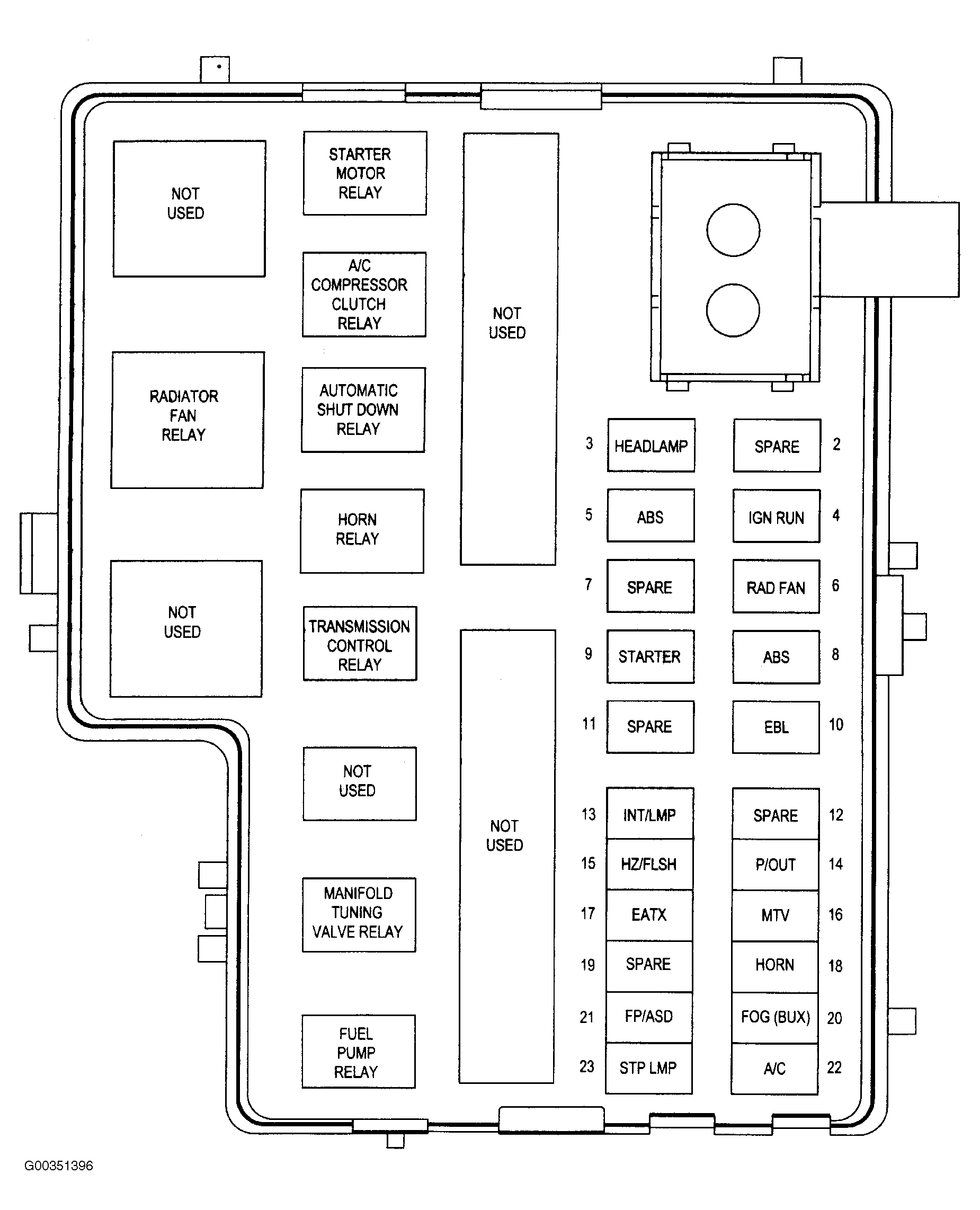

Fig 5: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
