Component Locations

NOTE: See Fig 1 -Fig 21 for component locations.

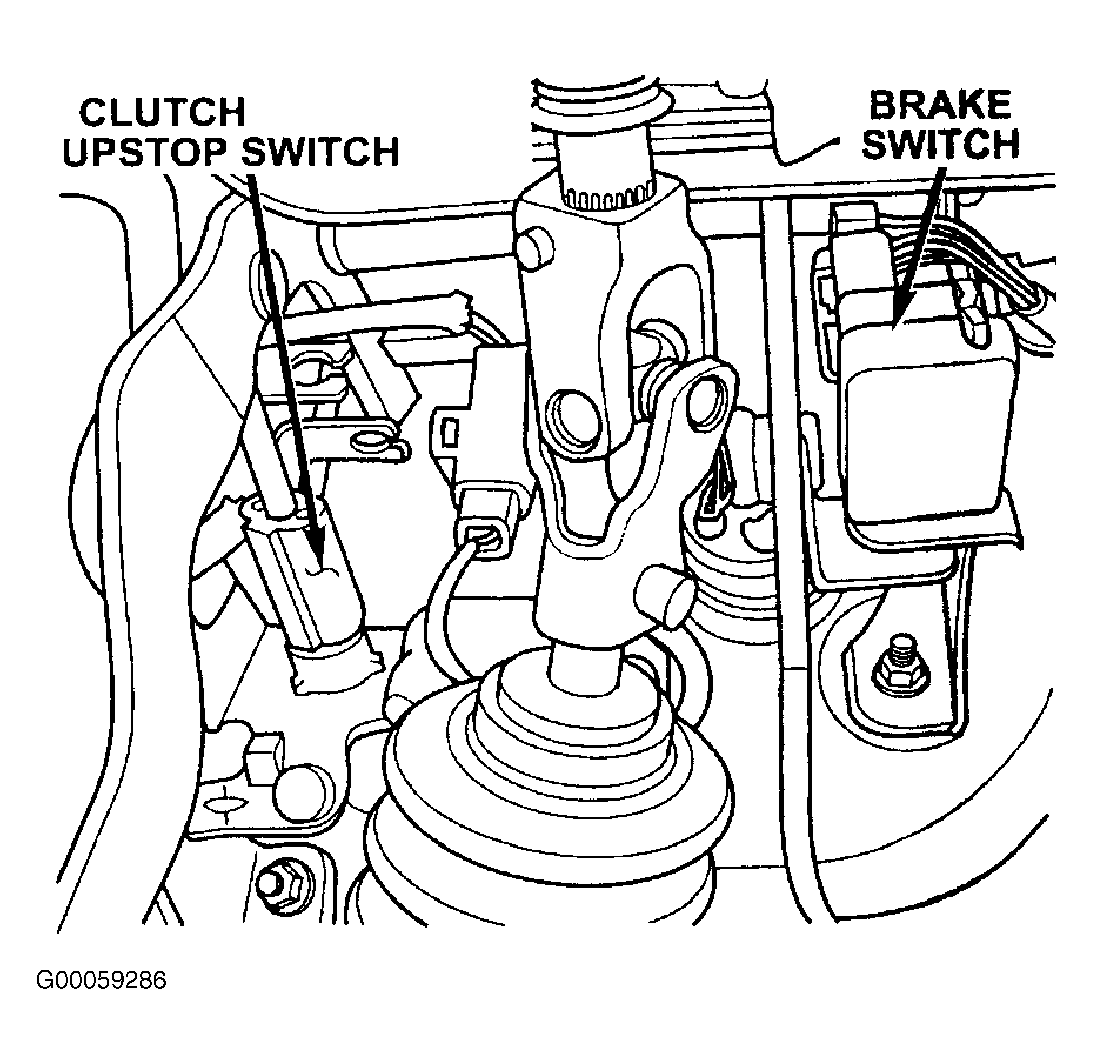

Fig 1: Locating Brake Switch & Clutch Upstop Switch

G00059286

Courtesy of DAIMLERCHRYSLER CORP.

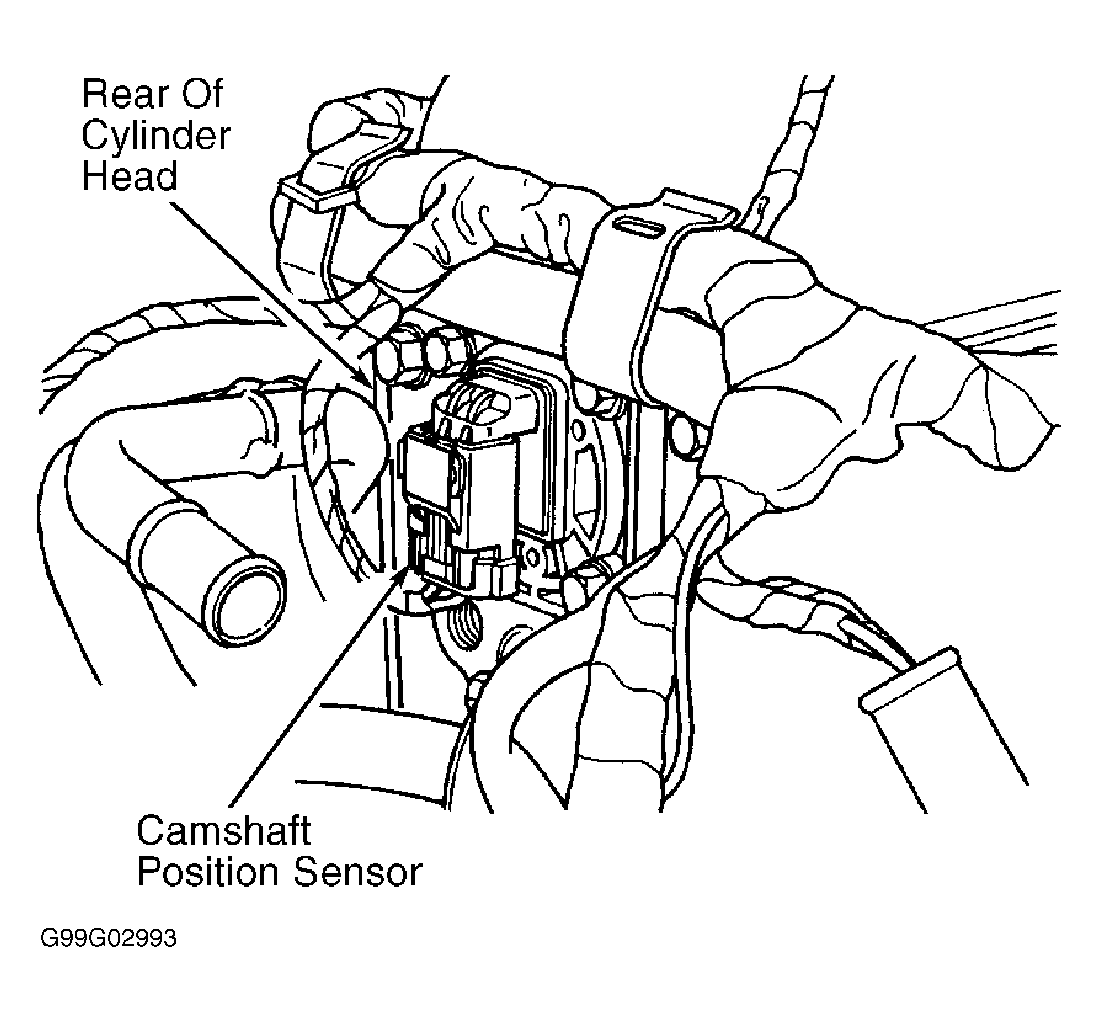

Fig 2: Locating Camshaft Position Sensor

G99G02993

Courtesy of DAIMLERCHRYSLER CORPORATION

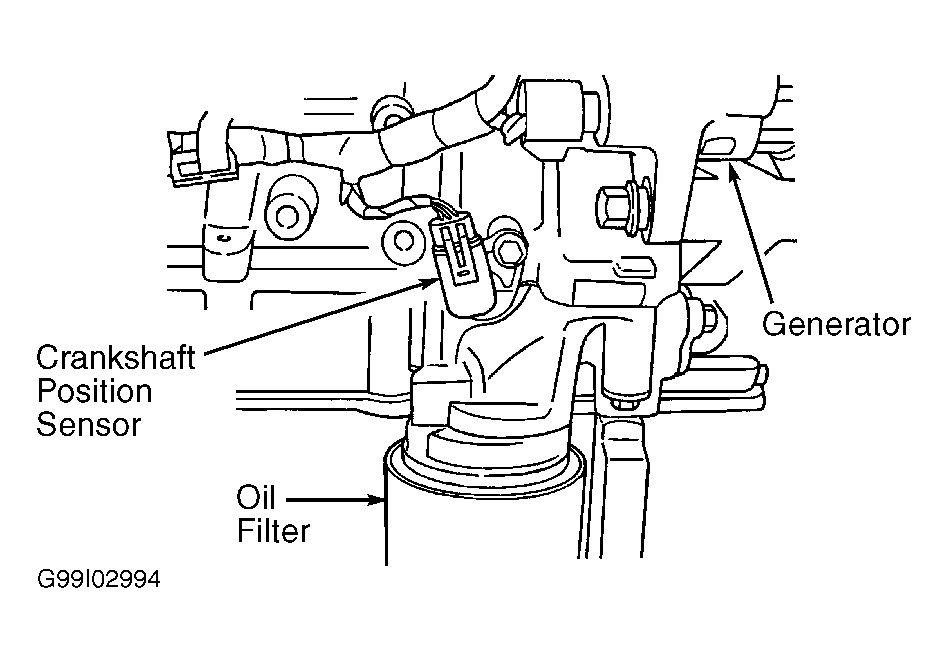

Fig 3: Locating Crankshaft Position Sensor

G99I02994

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Locating Data Link Connector

G99E02987

Courtesy of DAIMLERCHRYSLER CORP.

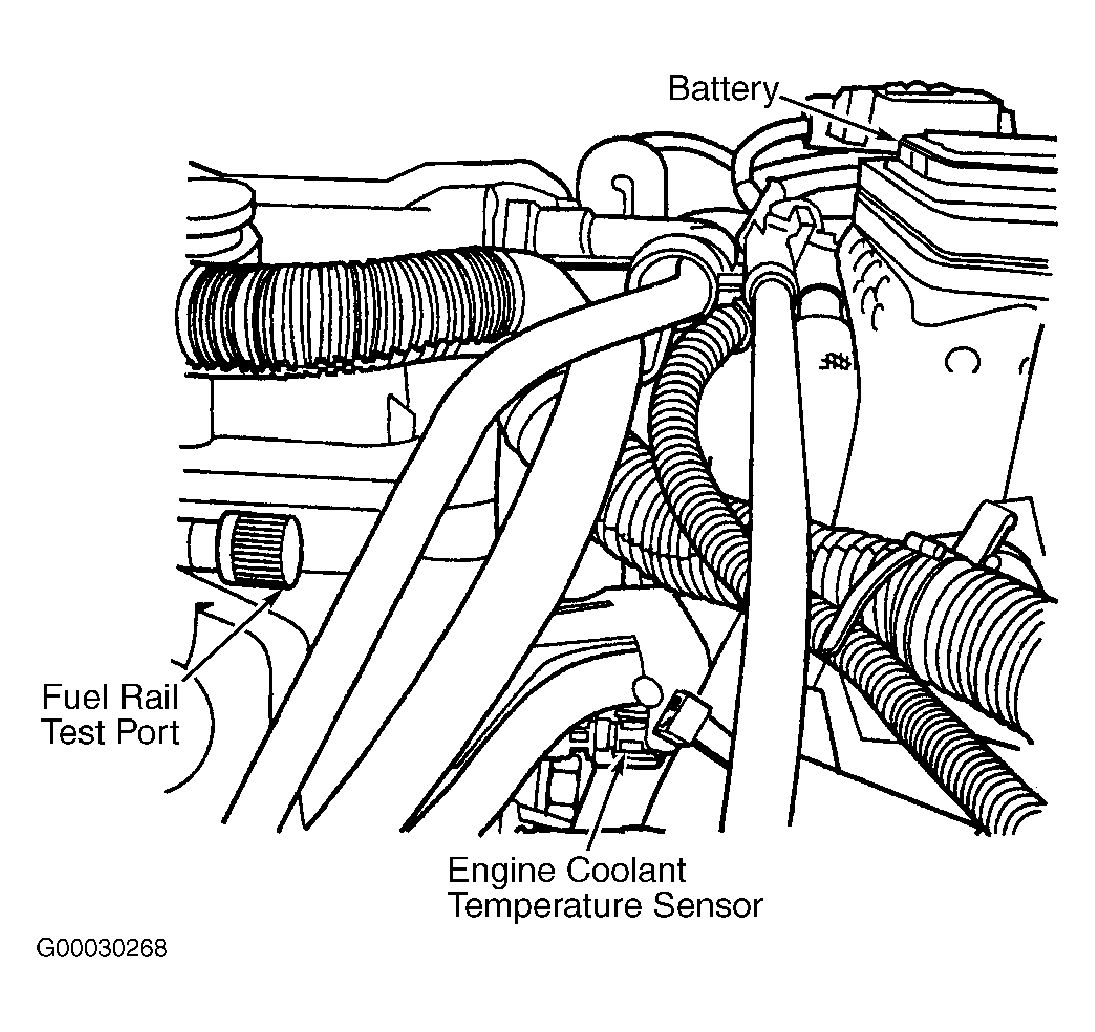

Fig 5: Locating Engine Coolant Temperature Sensor

G00030268

Courtesy of DAIMLERCHRYSLER CORPORATION

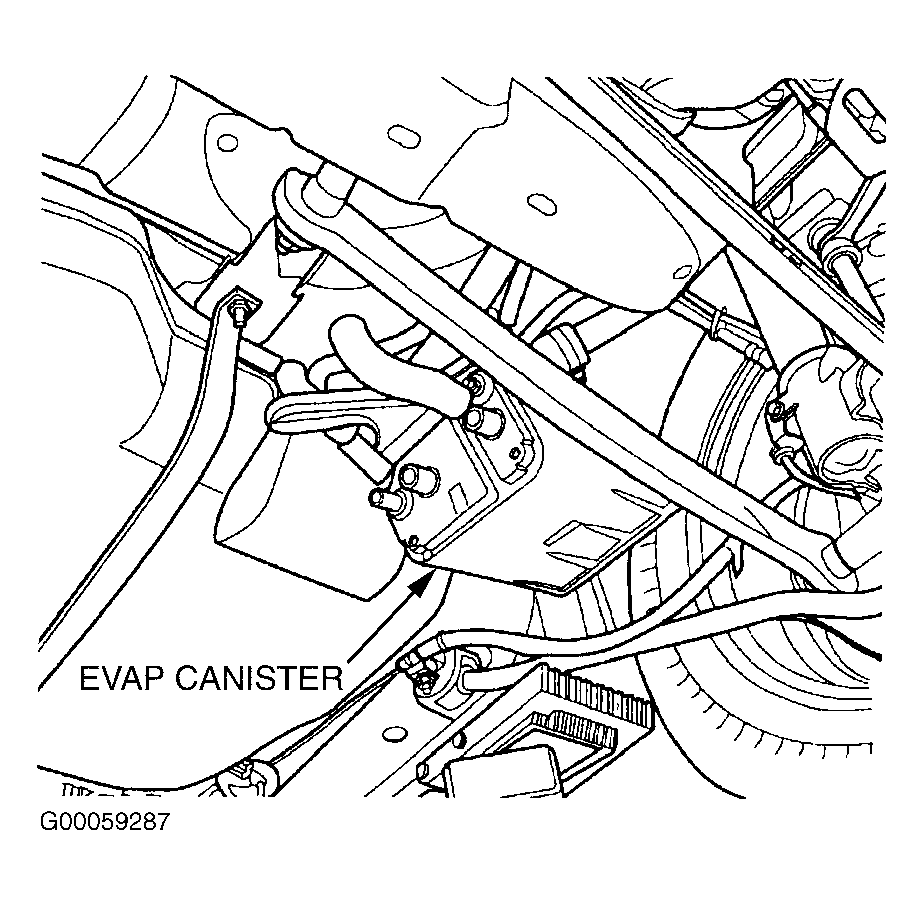

Fig 6: Locating Evaporative Emissions Canister

G00059287

Courtesy of DAIMLERCHRYSLER CORP.

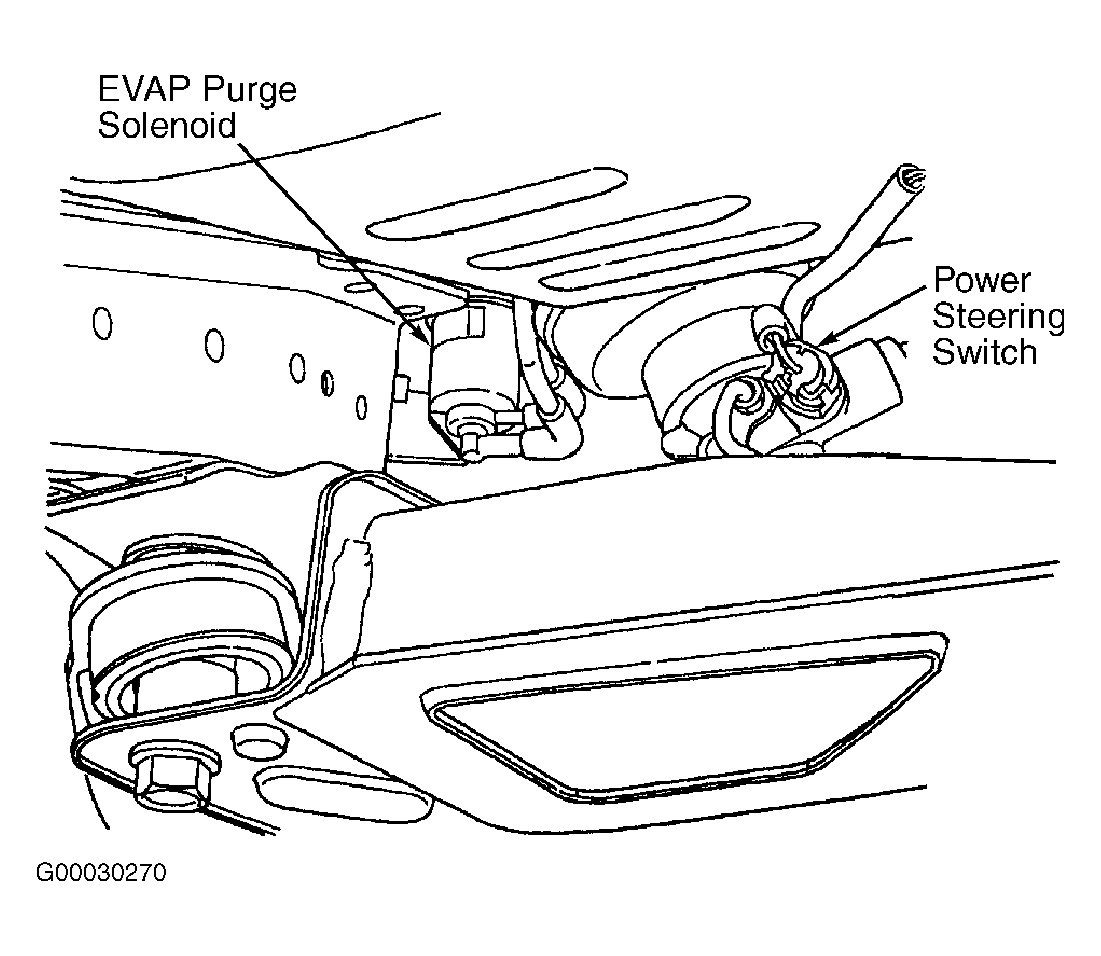

Fig 7: Locating Evaporative Emissions Purge Solenoid & Power Steering Switch

G00030270

Courtesy of DAIMLERCHRYSLER CORPORATION

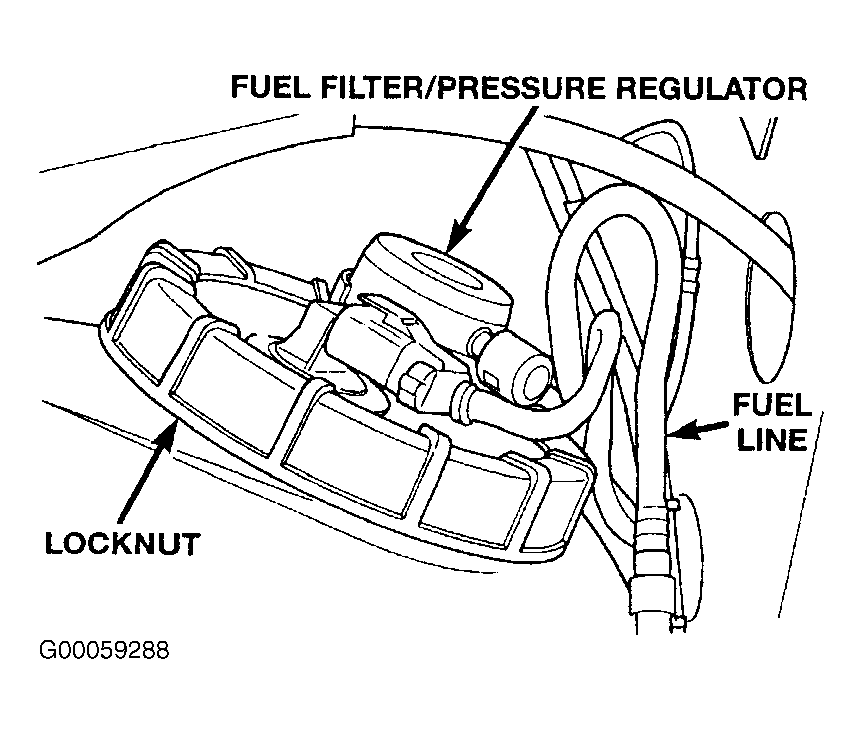

Fig 8: Locating Fuel Filter Pressure Regulator

G00059288

Courtesy of DAIMLERCHRYSLER CORP.

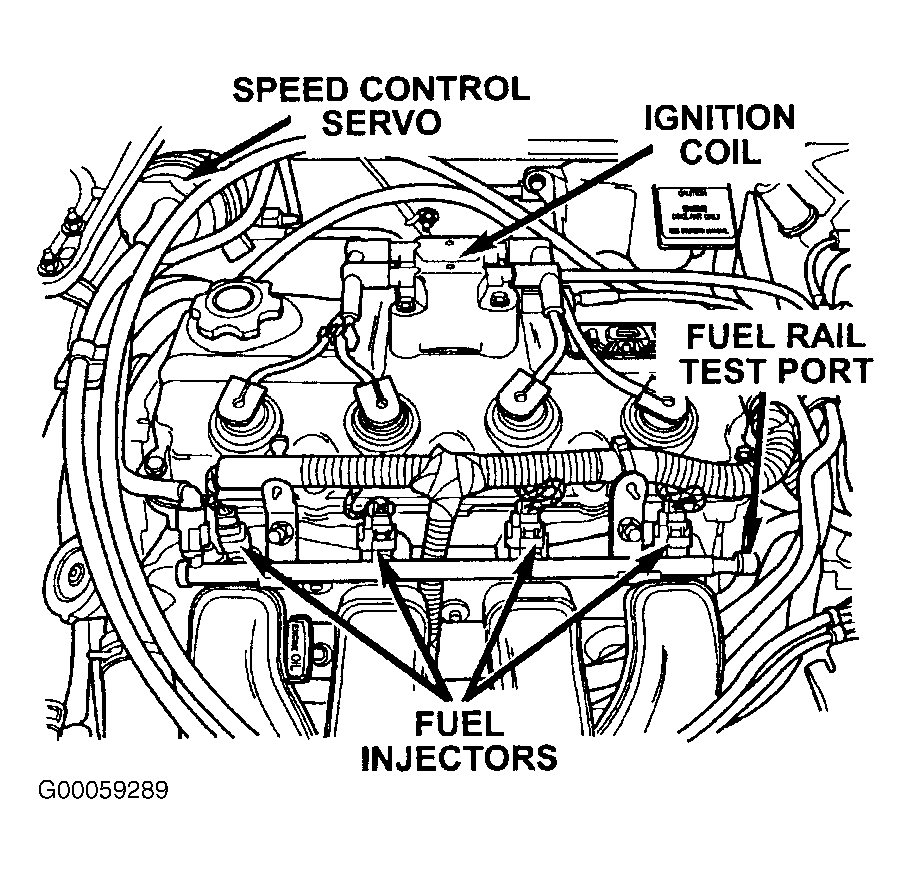

Fig 9: Locating Fuel Injectors, Fuel Rail Test Port, Ignition Coil & Speed Control Servo

G00059289

Courtesy of DAIMLERCHRYSLER CORP.

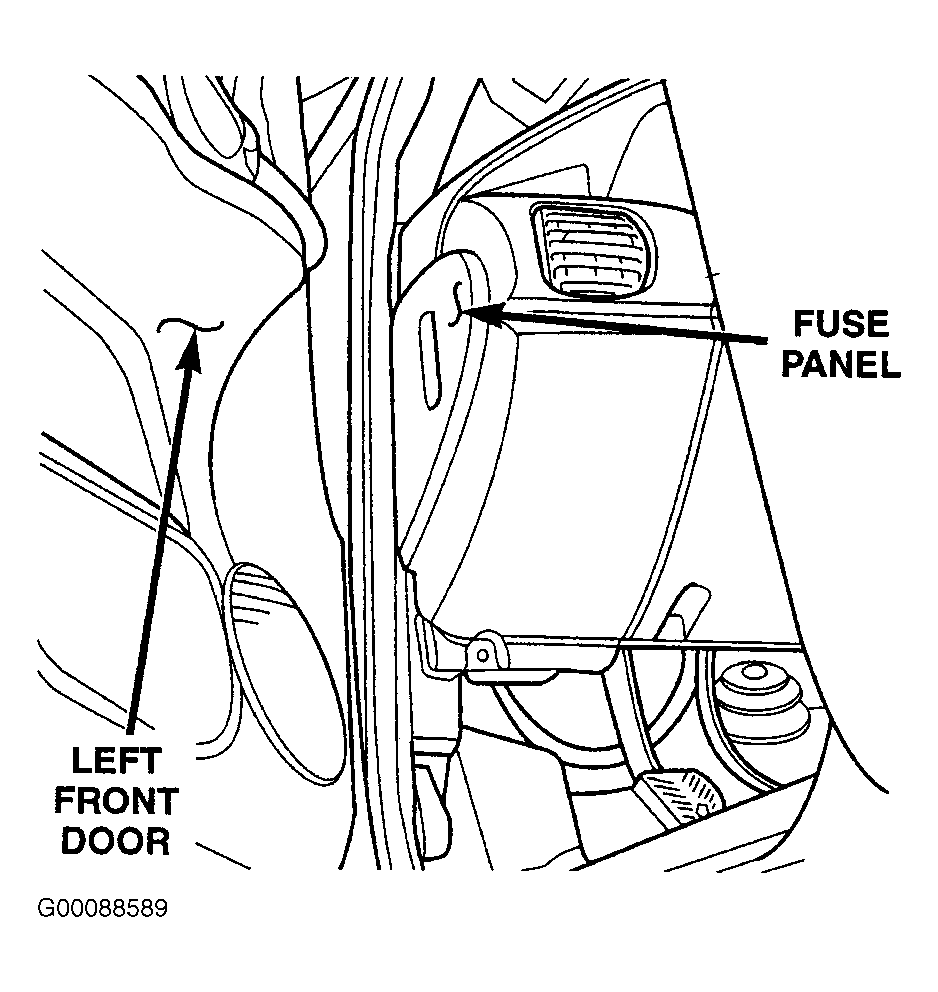

Fig 10: Locating Fuse Panel

G00088589

Courtesy of DAIMLERCHRYSLER CORP.

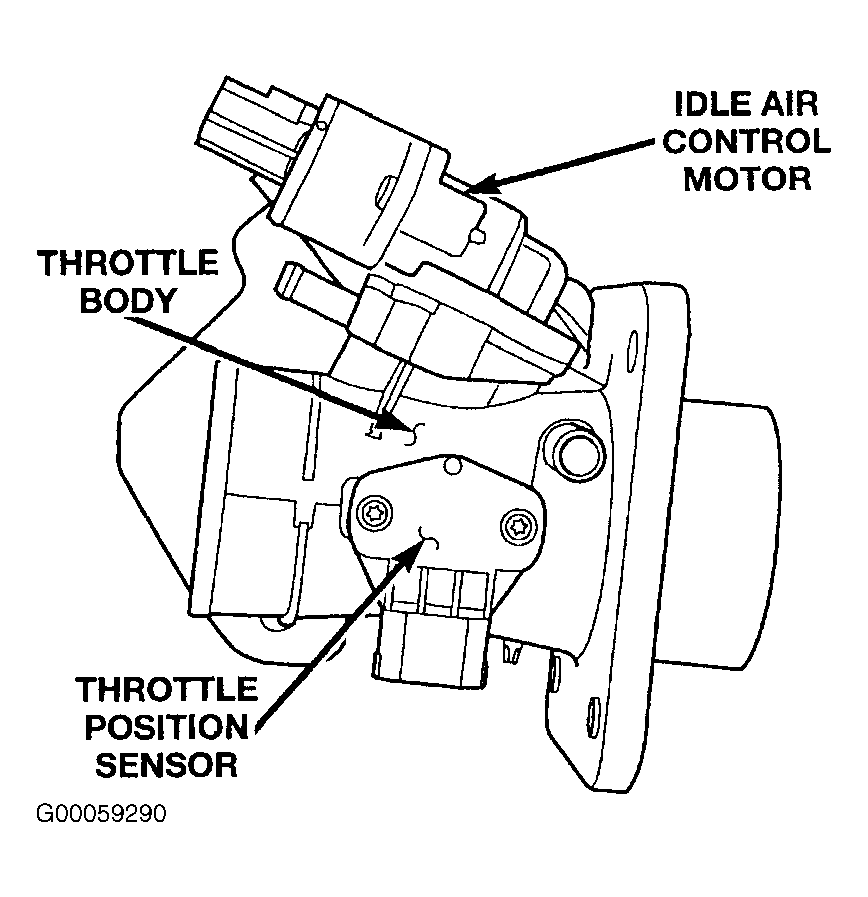

Fig 11: Locating Idle Air Control Motor & Throttle Position Sensor

G00059290

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Locating Inlet Air Temperature Sensor & Power Distribution Center

G00059291

Courtesy of DAIMLERCHRYSLER CORP.

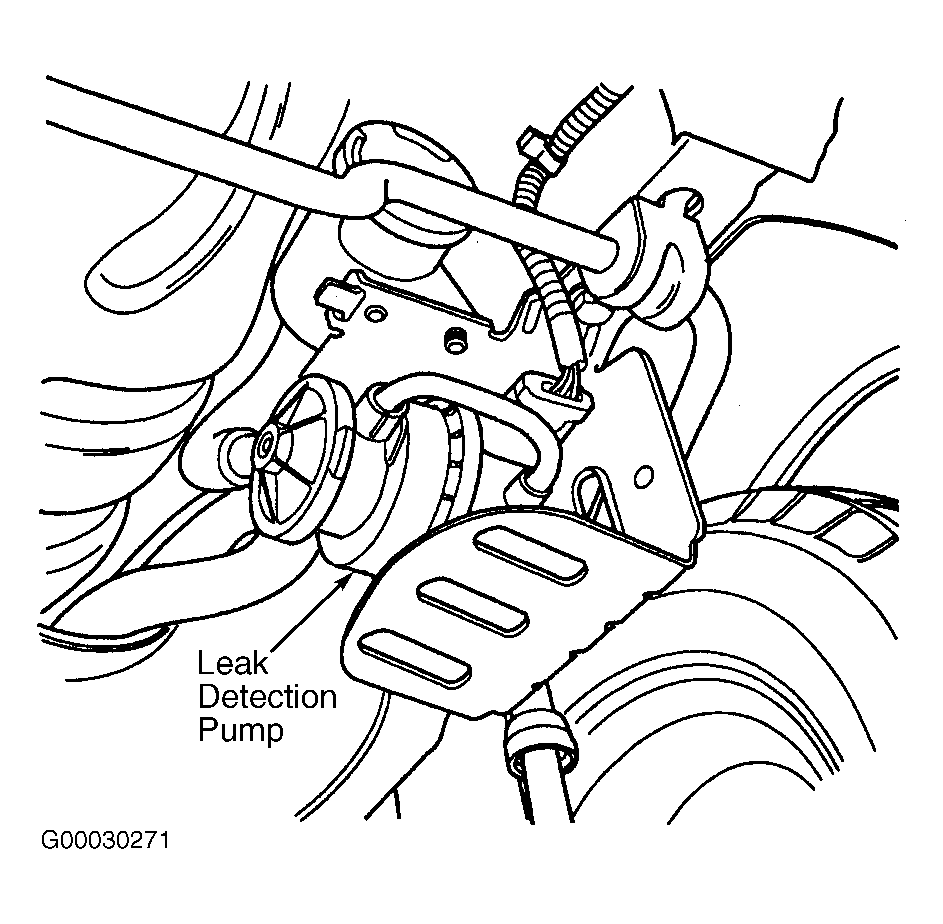

Fig 13: Locating Leak Detection Pump

G00030271

Courtesy of DAIMLERCHRYSLER CORPORATION

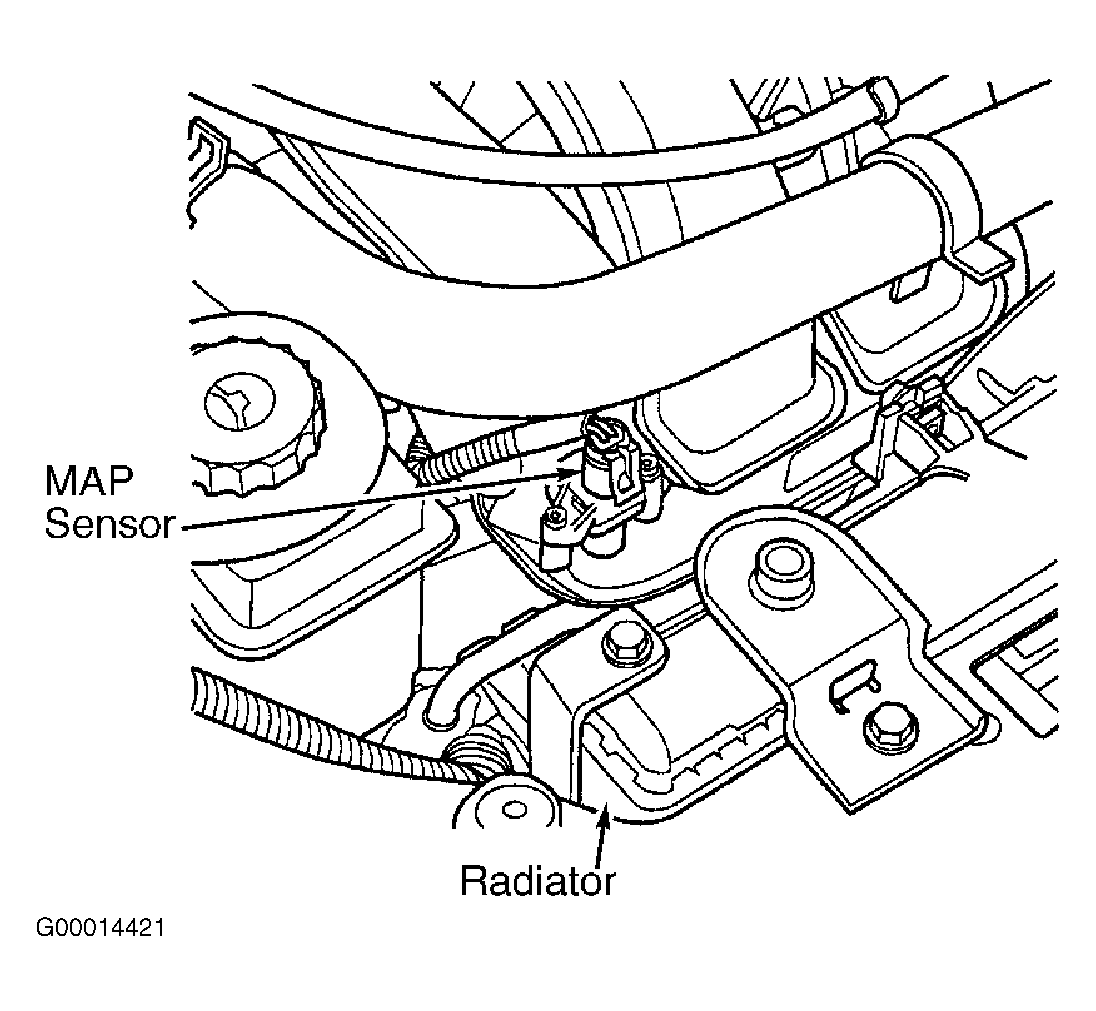

Fig 14: Locating Manifold Absolute Pressure Sensor

G00014421

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Locating Powertrain Control Module

G00012687

Courtesy of DAIMLERCHRYSLER CORPORATION

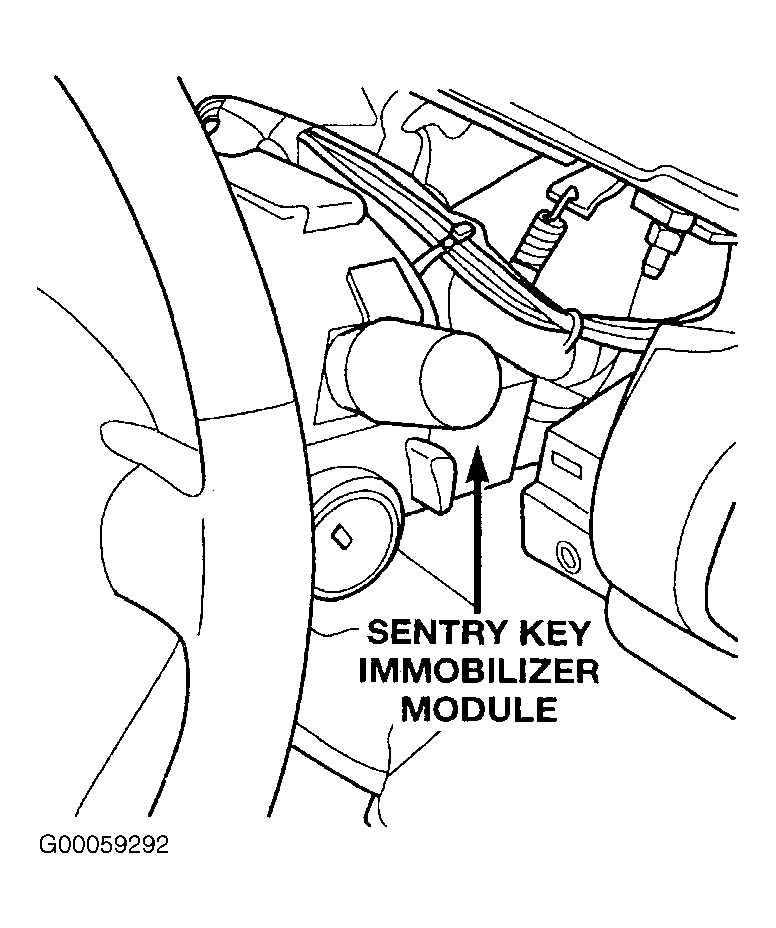

Fig 16: Locating Sentry Key Immobilizer Module

G00059292

Courtesy of DAIMLERCHRYSLER CORP.

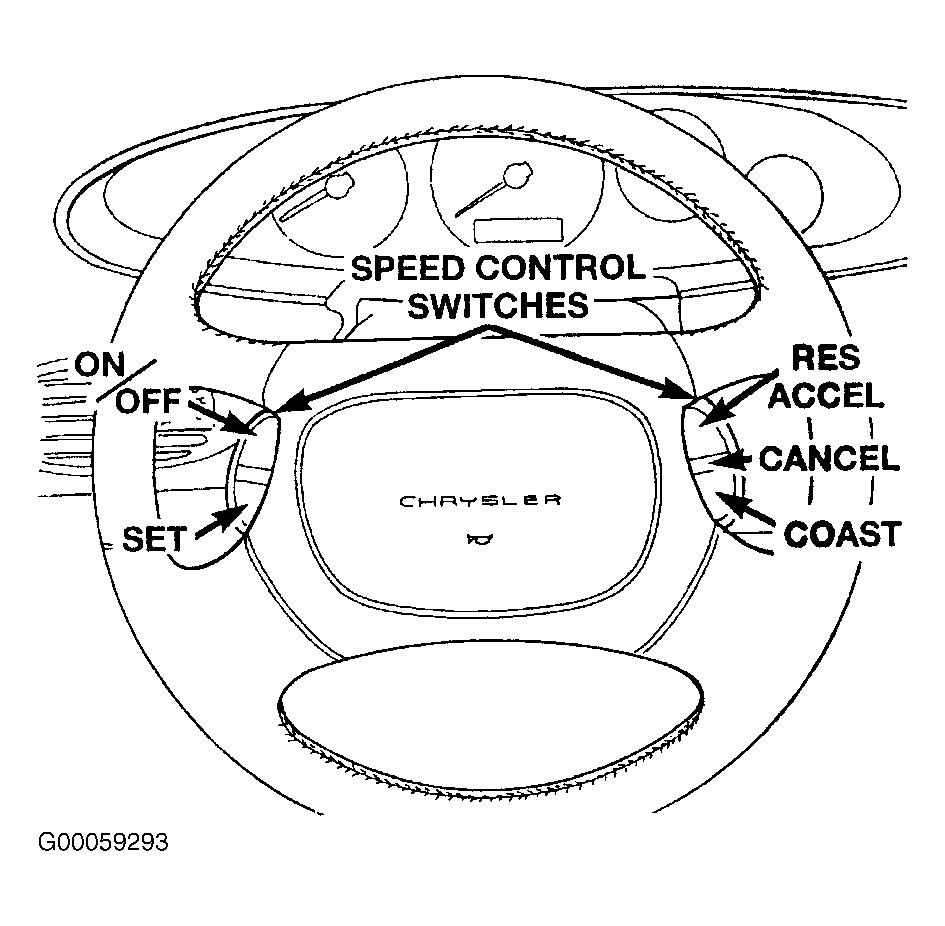

Fig 17: Locating Speed Control Switches

G00059293

Courtesy of DAIMLERCHRYSLER CORP.

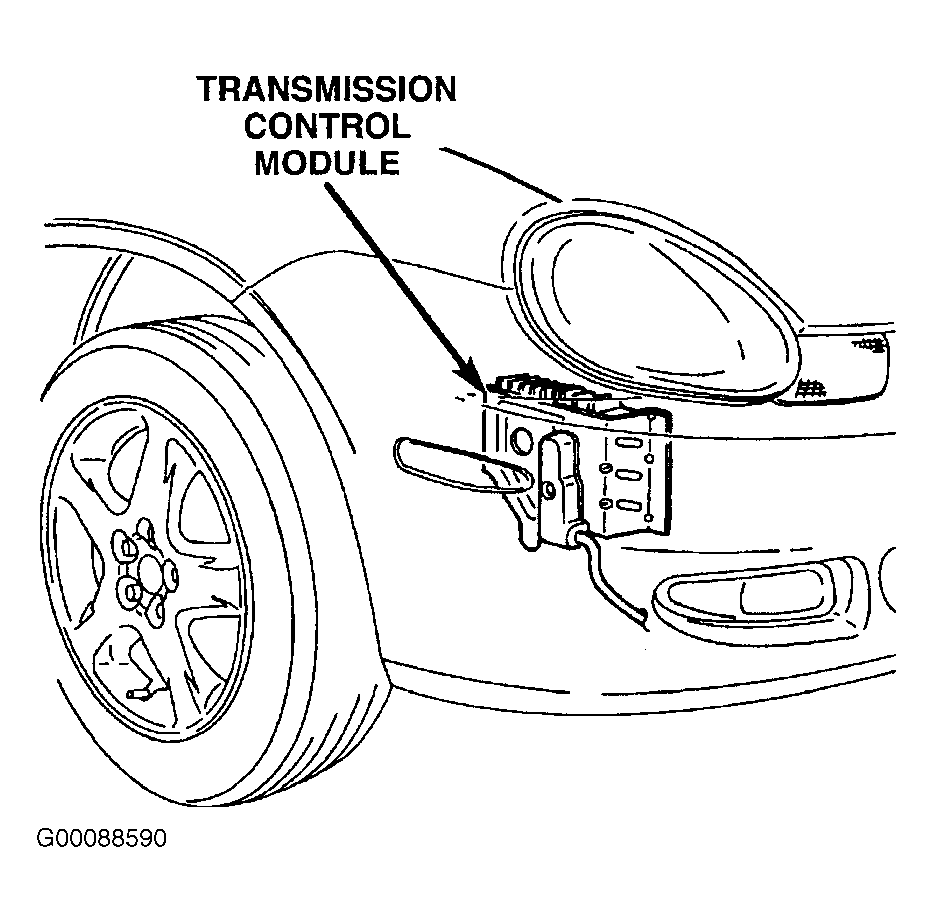

Fig 18: Locating Transmission Control Module

G00088590

Courtesy of DAIMLERCHRYSLER CORP.

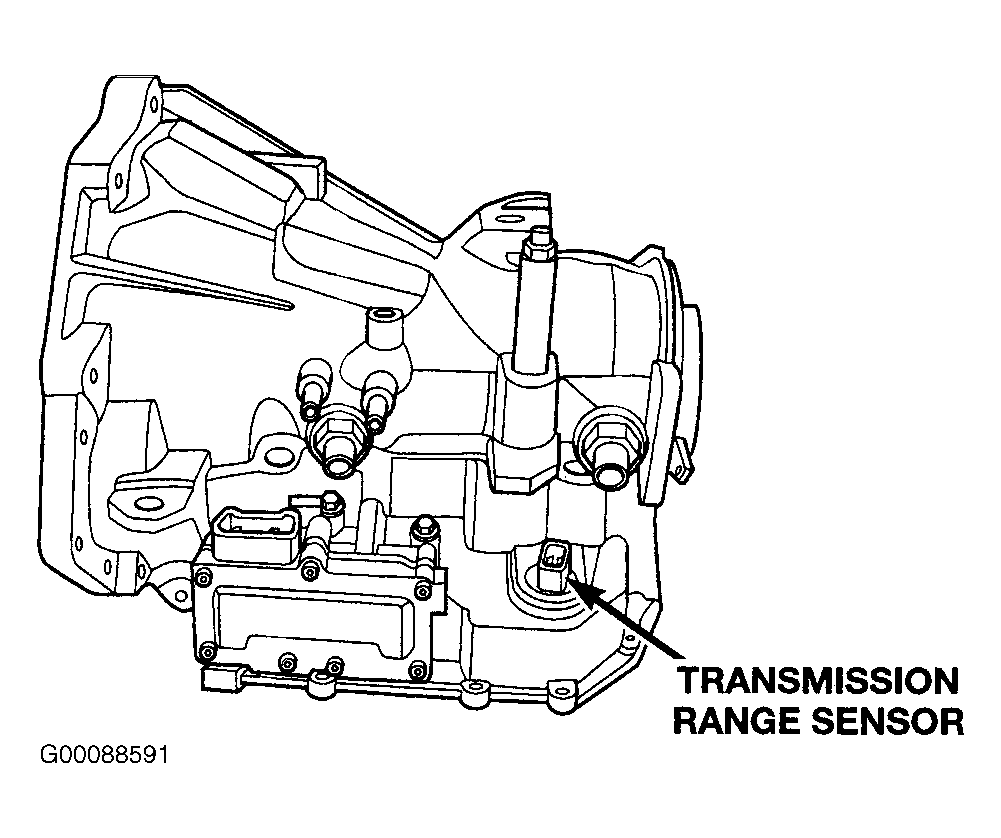

Fig 19: Locating Transmission Range Sensor

G00088591

Courtesy of DAIMLERCHRYSLER CORP.

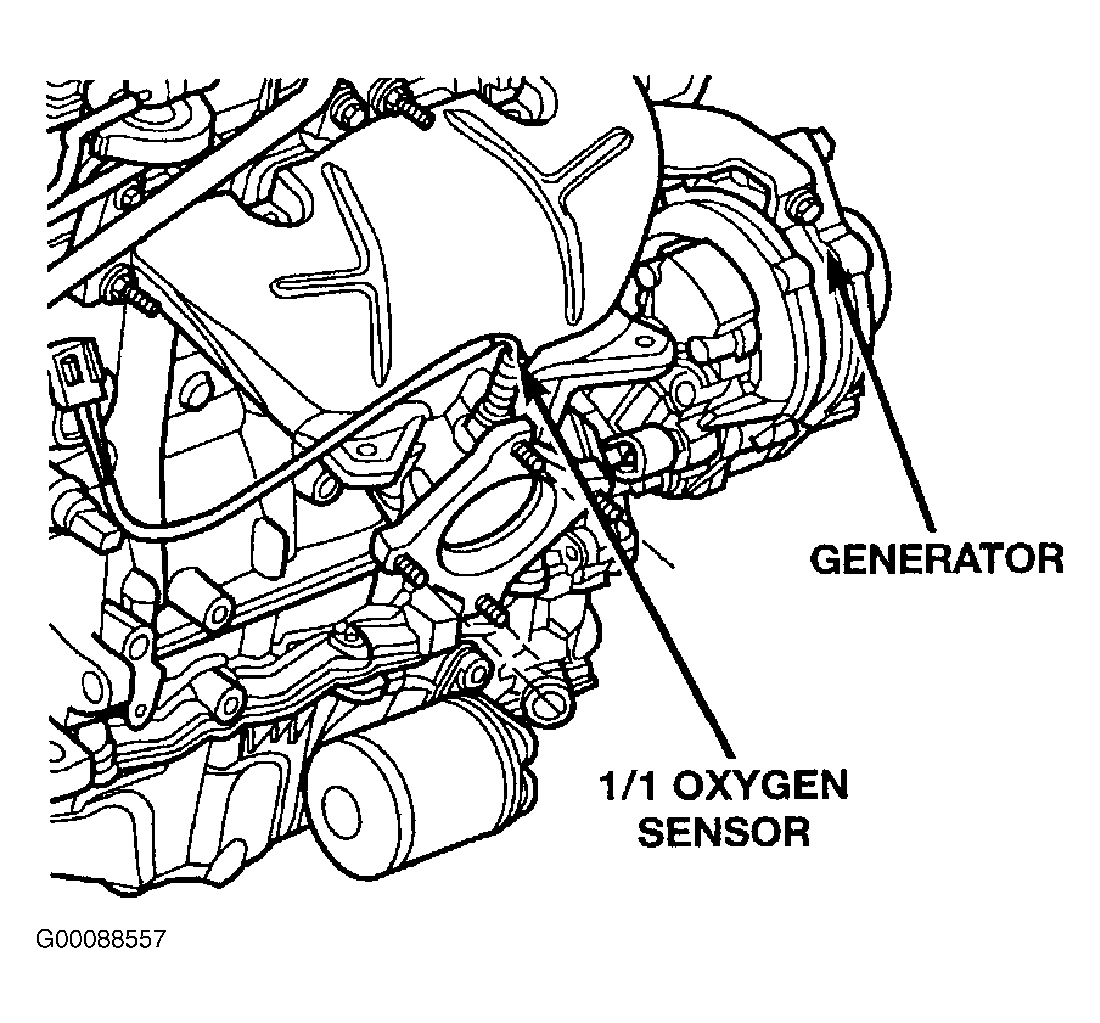

Fig 20: Locating 1/1 Oxygen Sensor

G00088557

Courtesy of DAIMLERCHRYSLER CORP.

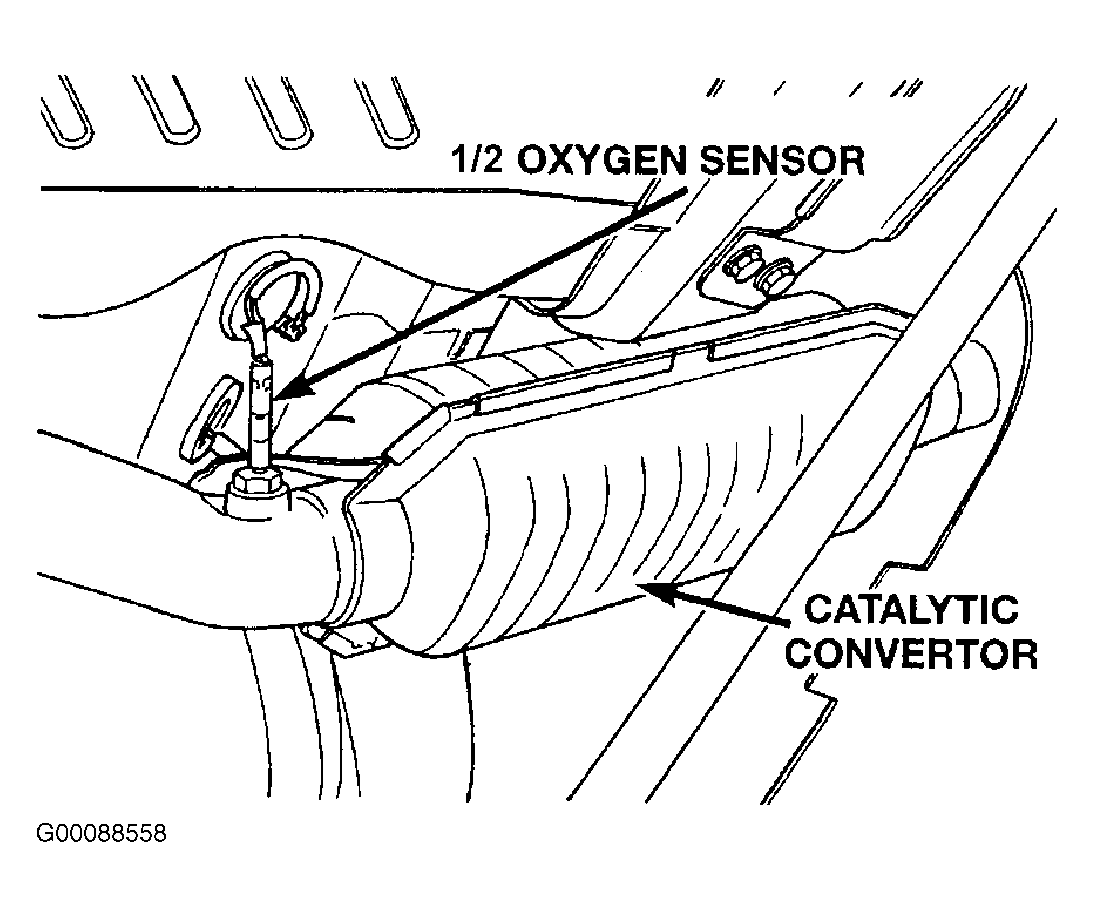

Fig 21: Locating 1/2 Oxygen Sensor

G00088558

Courtesy of DAIMLERCHRYSLER CORP.
