41TE Automatic Transaxle: Operation

Transmission output is directed to an integral differential by a transfer gear system in the following input-to-output ratios:

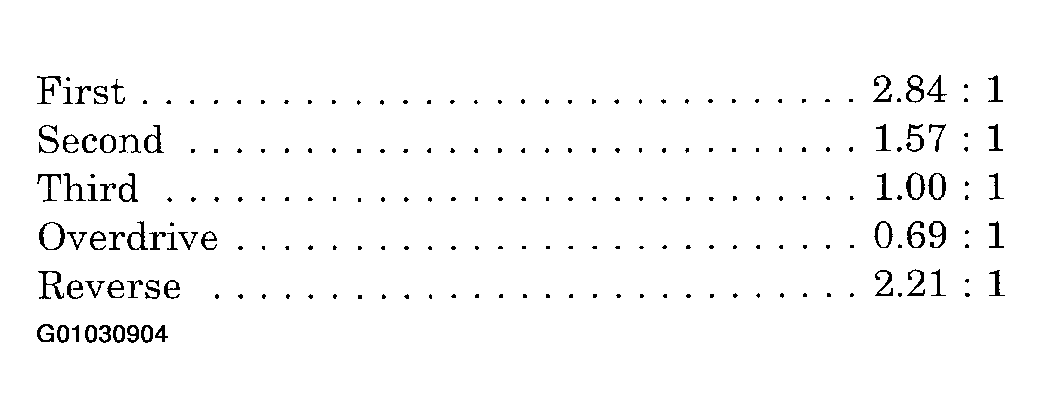

Fig 1: Identifying Transaxle Gear Ratios

Courtesy of DAIMLERCHRYSLER CORP.
