41TE Automatic Transaxle: Specifications

General Specifications Chart

DESCRIPTION SPECIFICATION
Transaxle Type Fully adaptive, electronically controlled, four speed automatic with torque converter and integral differential
Cooling Method Oil-to-Water Heat Exhanger
Lubrication Pump (internal-external gear-type

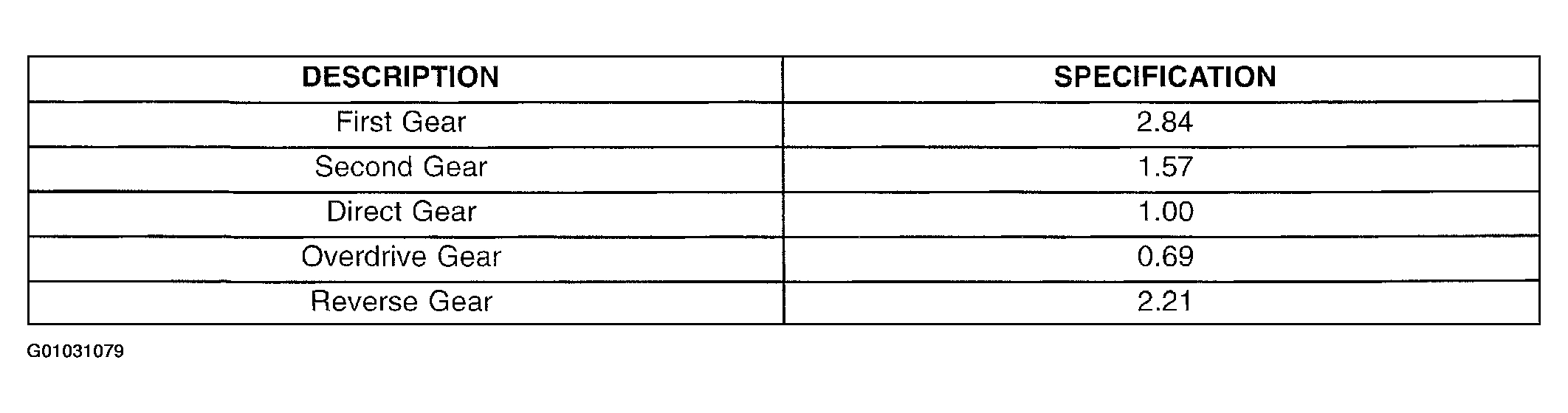

Fig 1: Gear Ratios Chart
G01031079Courtesy of DAIMLERCHRYSLER CORP.

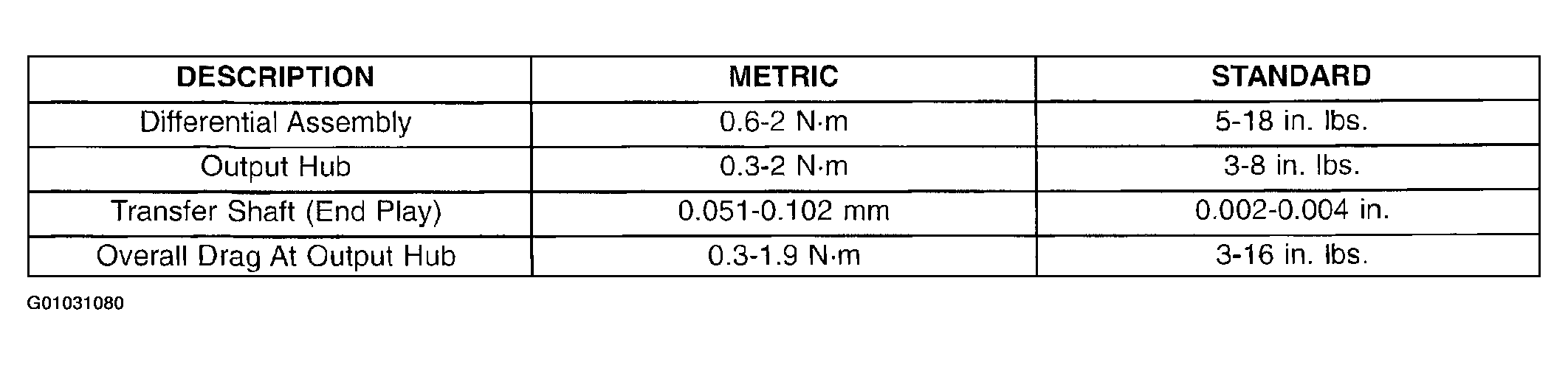

Fig 2: Bearing Settings (End Play & Turning Torque) Chart
G01031080Courtesy of DAIMLERCHRYSLER CORP.

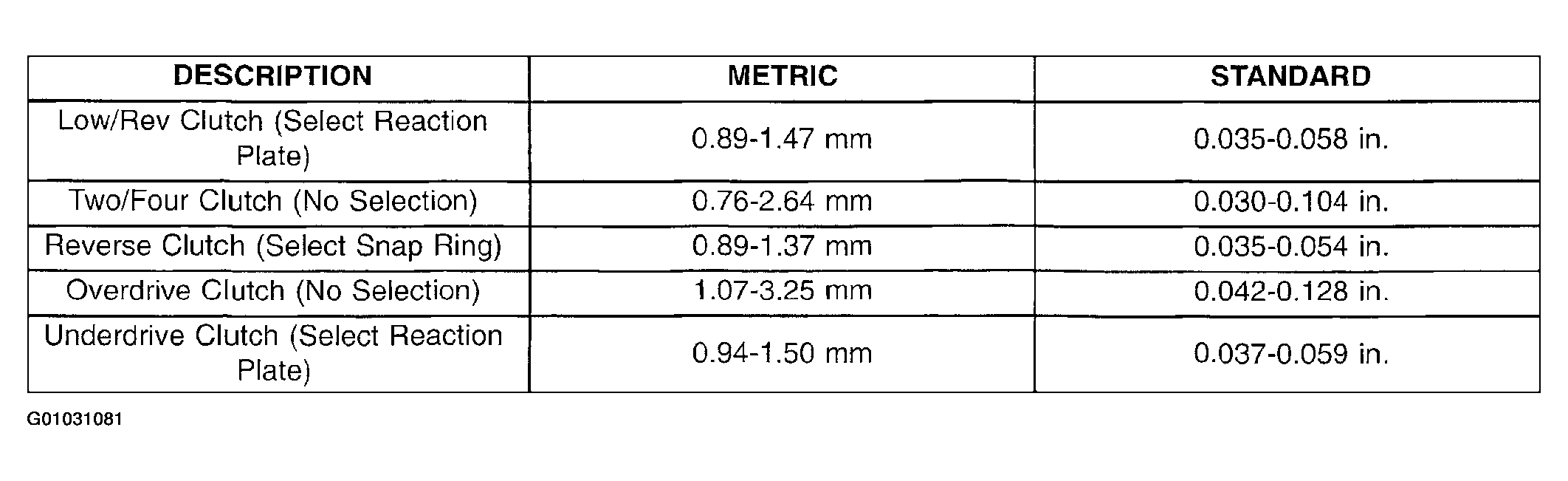

Fig 3: Clutch Clearances Chart
G01031081Courtesy of DAIMLERCHRYSLER CORP.

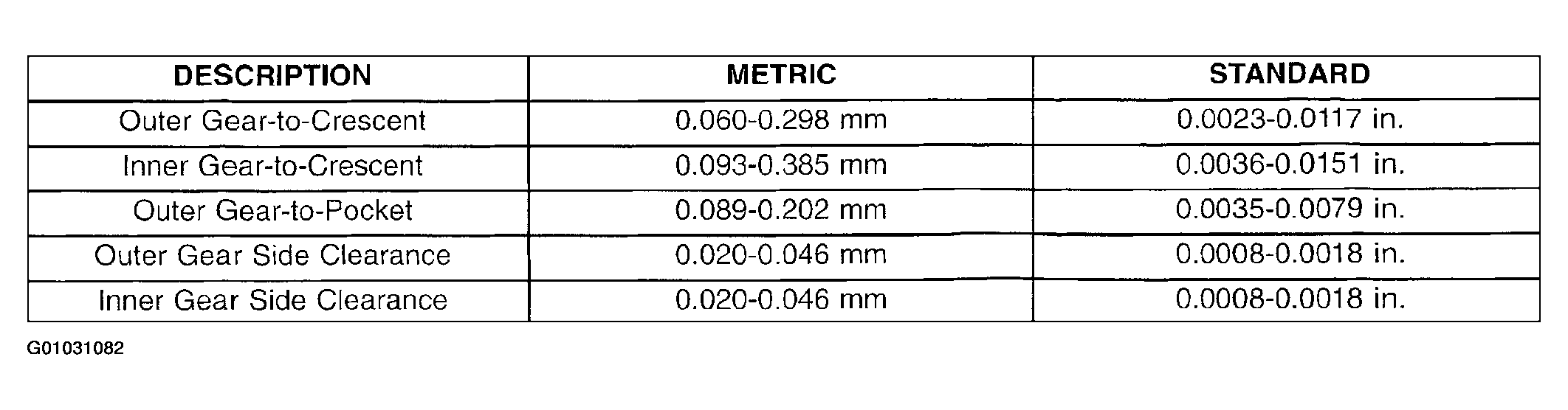

Fig 4: Oil Pump Clearances Chart
G01031082Courtesy of DAIMLERCHRYSLER CORP.

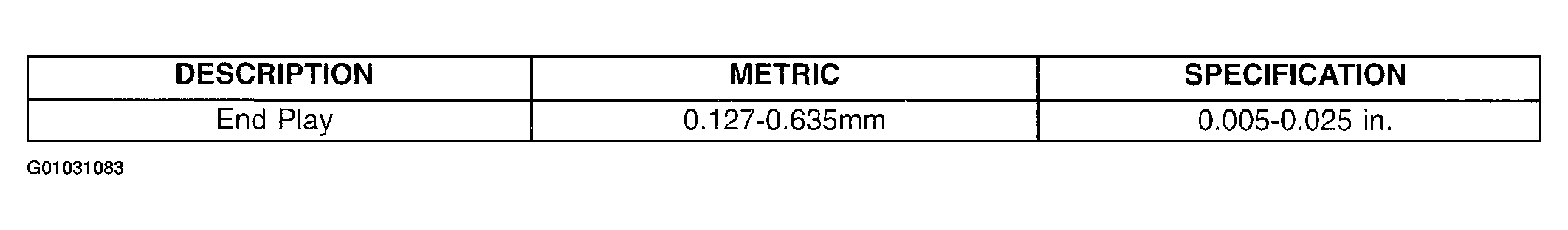

Fig 5: Input Shaft Chart
G01031083Courtesy of DAIMLERCHRYSLER CORP.
Torque Specifications

DESCRIPTION N.m Ft. Lbs. In. Lbs.
Bolt, Differential Cover-to-Case 19 --- 165
Bolt, Differential Ring Gear-to-Case 95 70 ---
Bolt, Differential Bearing Retainer-to-Case 28 21 ---
Bolt, Driveplate-to-Crankshaft 95 70 ---
Bolt, Extension Housing/ Plate-to-Case 28 21 ---
Bolt, Oil Pan-to-Case 19 --- 165
Bolt, Output Gear 271 200 ---
Bolt, Output Gear Stirrup/Strap 23 17 ---
Bolt, Oil Pump-to-Case 27 20 ---
Bolt, Reaction Support-to-Case 27 20 ---
Bolt, Solenoid/Pressure Switch Assy.-to-Case 12 --- 110
Bolt, Torque Converter-to-Driveplate 75 55 ---
Bolt, Transfer Gear Cover 20 --- 175
Bolt, Valve Body-to-Case 12 --- 105
Fitting, Oil Cooler Line 12 --- 105
Nut, Tranfer Gear 271 200 ---
Tap, Transaxle Pressure 5 --- 45
Screw, L/R Clutch Retainer 5 --- 45
Screw, Solenoid/Pressure Switch Assy. Connector 4 --- 35
Screw, Valve Body-to-Transfer Plate 5 --- 45
Sensor, Input Speed 27 20 ---
Sensor, Output Speed 27 20 ---
Sensor, Transmission Range Sensor 5 --- 45
