Driving Clutches: Operation: Notes
The three input clutches are responsible for driving different components of the planetary geartrain.
NOTE:

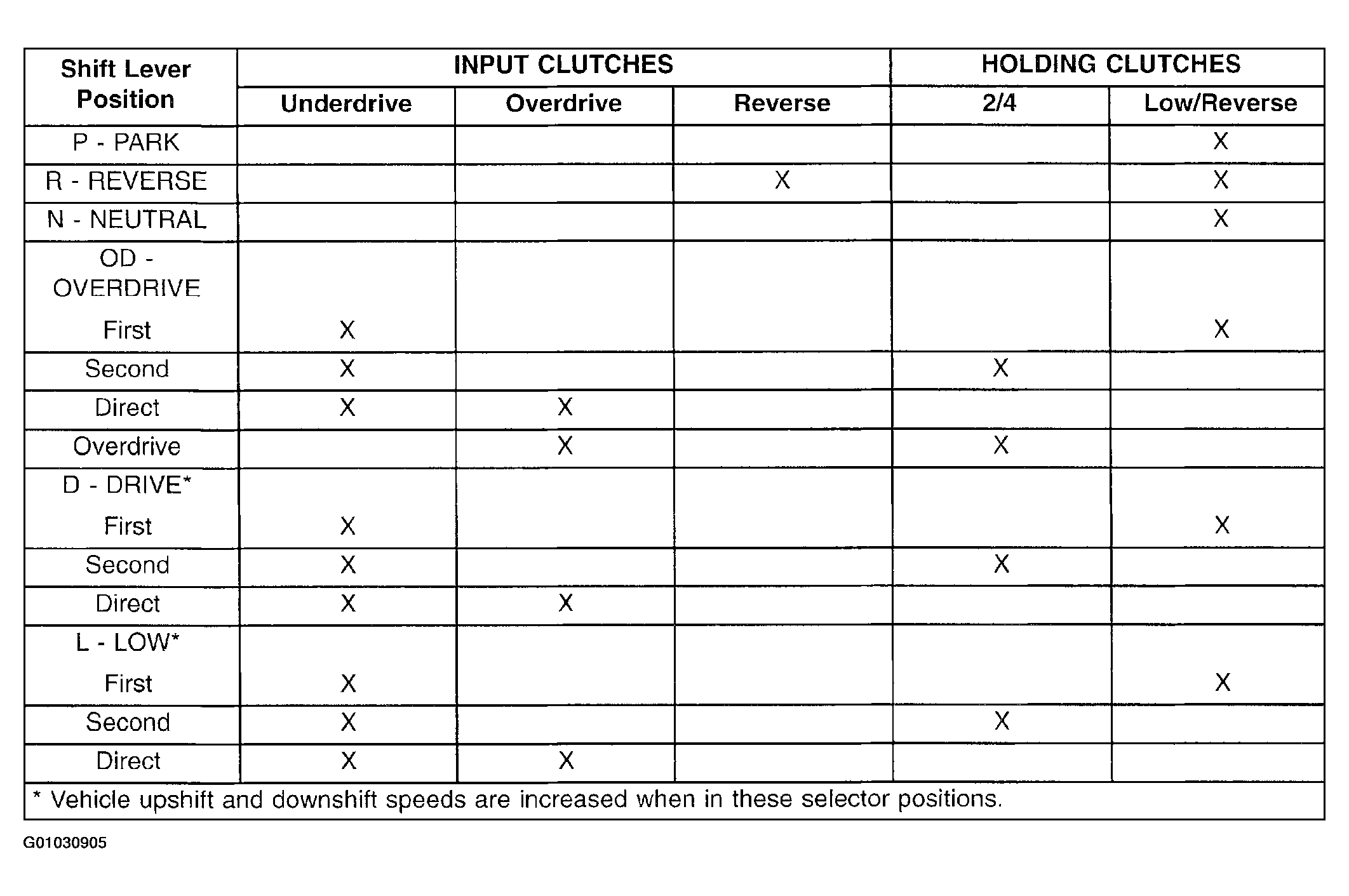

Refer to the "Elements In Use" chart (Figure) for a collective view of which clutch elements are applied at each position of the selector lever.
