Shift Interlock Mechanism: Removal

  1. Remove the steering column lower cover. (Fig 1).
    Fig 1: Removing/Installing Steering Column Lower Cover
    G01031260Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the steering column upper and lower shrouds. (Fig 2).
    Fig 2: Removing/Installing Steering Column Shrouds
    G01031261Courtesy of DAIMLERCHRYSLER CORP.
  3. Turn the ignition key to the "OFF" or "ON/RUN" position. (Fig 3).

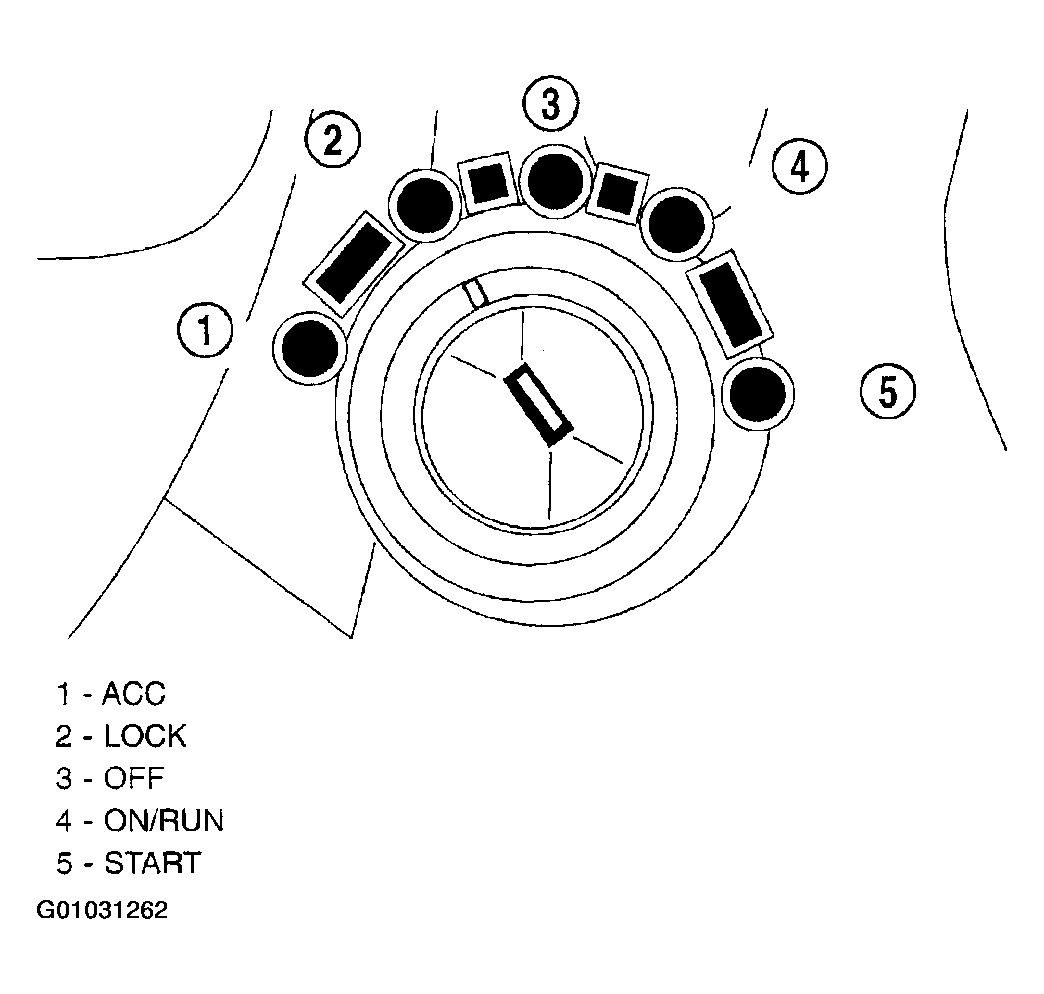

    Fig 3: Identifying Ignition Key Positions
    G01031262Courtesy of DAIMLERCHRYSLER CORP.
  4. Grasp the interlock cable and connector firmly. Remove the interlock cable. (Fig 4).

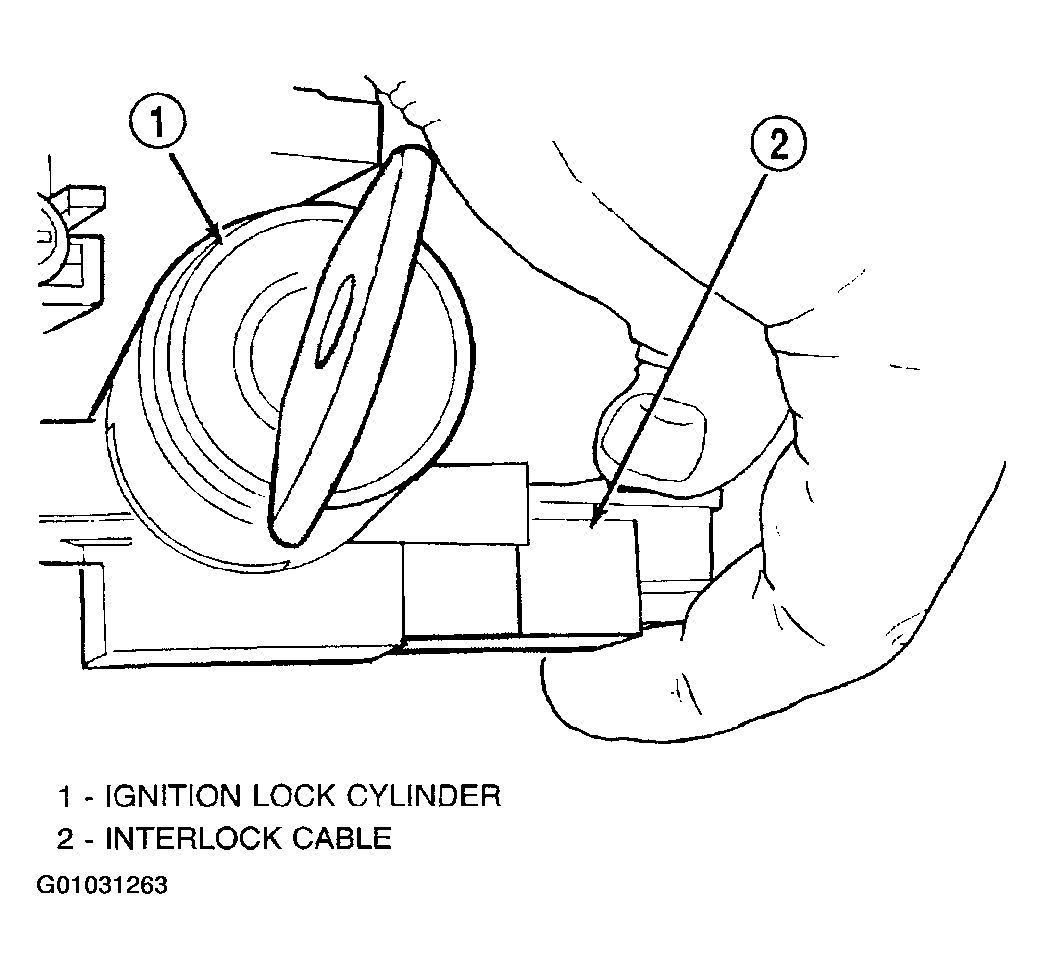

    Fig 4: Removing Interlock Cable
    G01031263Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the two interlock mechanism-to-steering column attaching screws. (Fig 5). Remove the interlock housing.

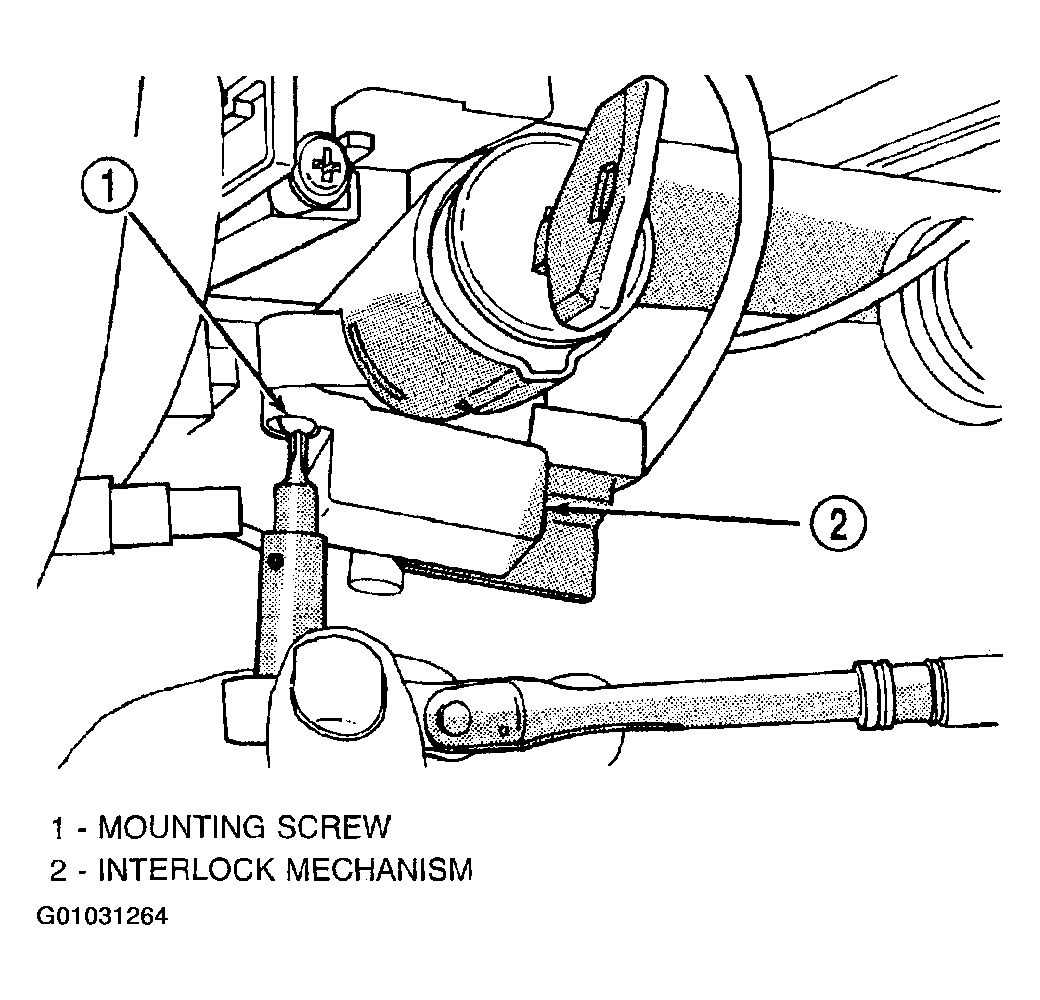

    Fig 5: Removing Interlock Mechanism
    G01031264Courtesy of DAIMLERCHRYSLER CORP.
