Speed Sensor - Input: Description

The Input Speed Sensor is a two-wire magnetic pickup device that generates AC signals as rotation occurs. It is threaded into the transaxle case (Fig 1), sealed with an "O" ring. (Fig 2), and is considered a primary input to the Transmission Control Module (TCM).

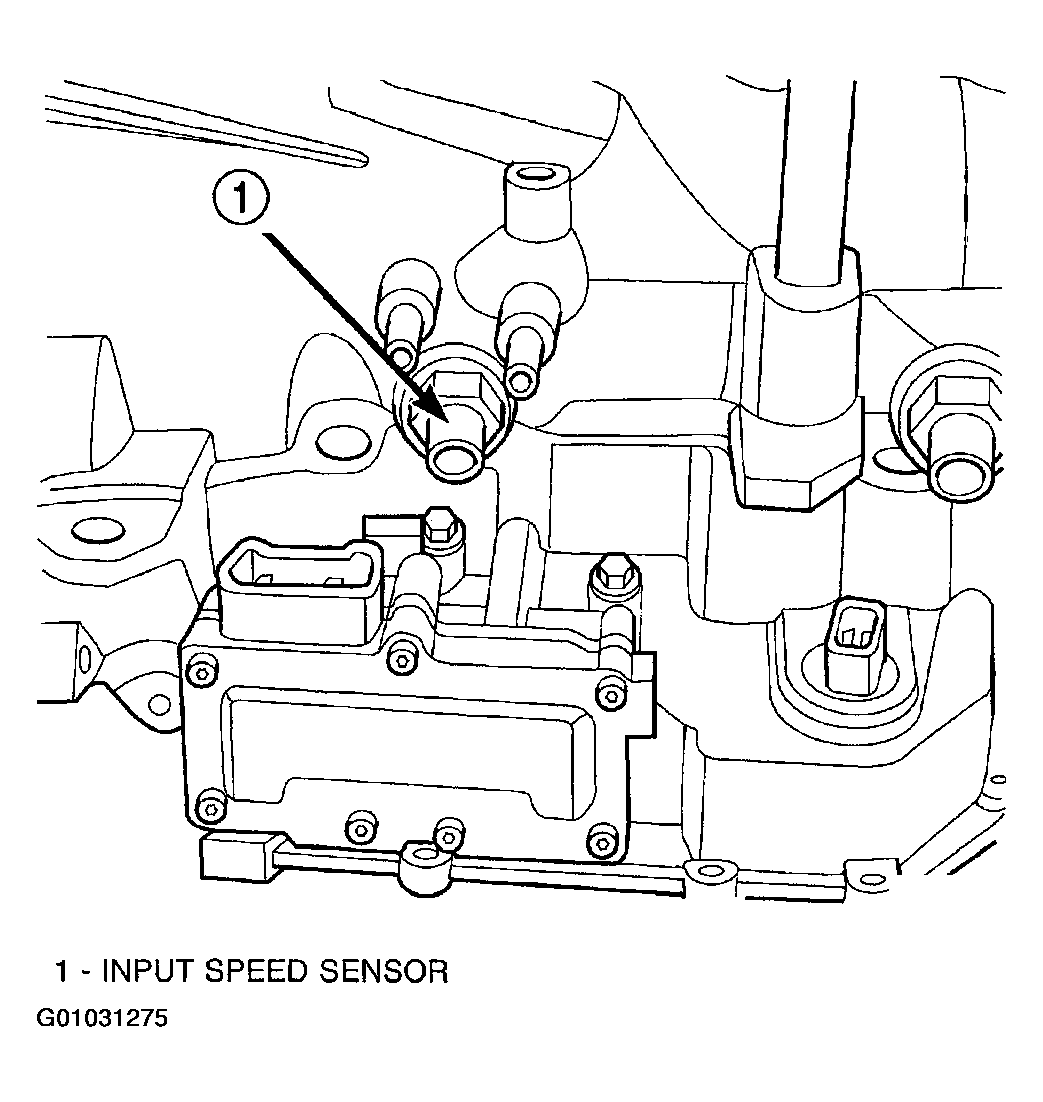

Fig 1: Identifying Input Speed Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

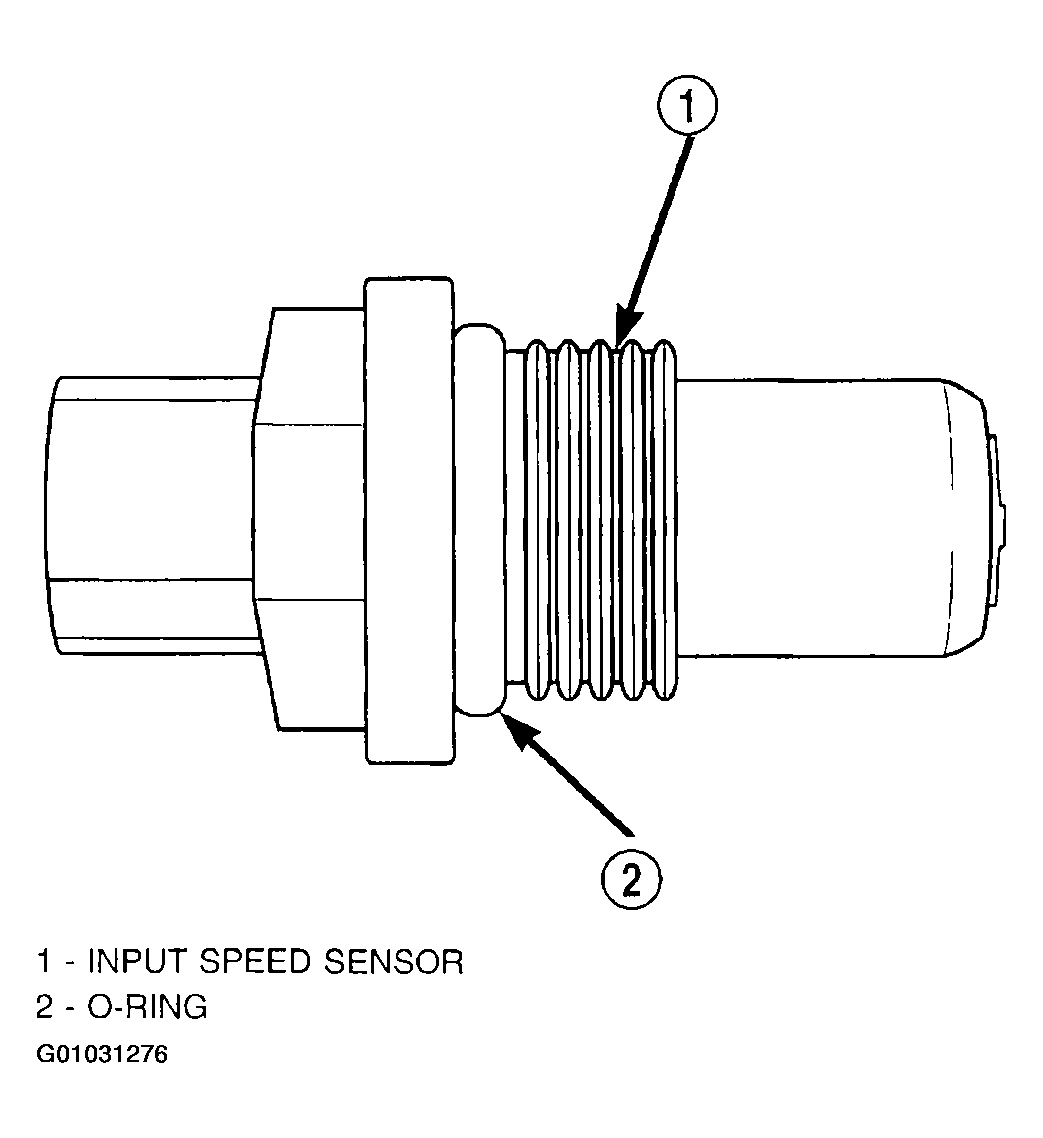

Fig 2: Identifying "O" Ring Location

Courtesy of DAIMLERCHRYSLER CORP.
