Speed Sensor - Output: Description

The Output Speed Sensor is a two-wire magnetic pickup device that generates an AC signal as rotation occurs. It is threaded into the transaxle case (Fig 1), sealed with an "O" ring (Fig 2), and is considered a primary input to the Transmission Control Module (TCM).

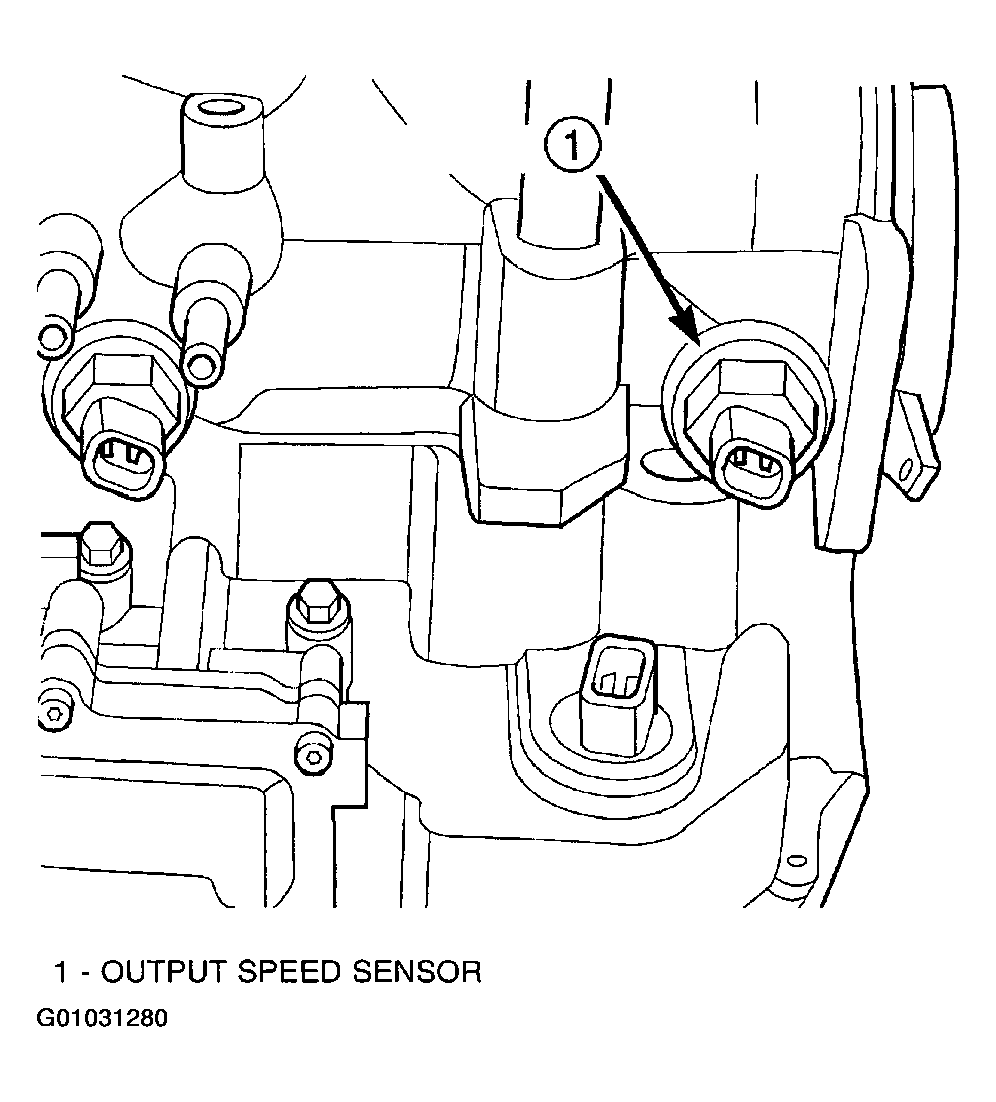

Fig 1: Identifying Output Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

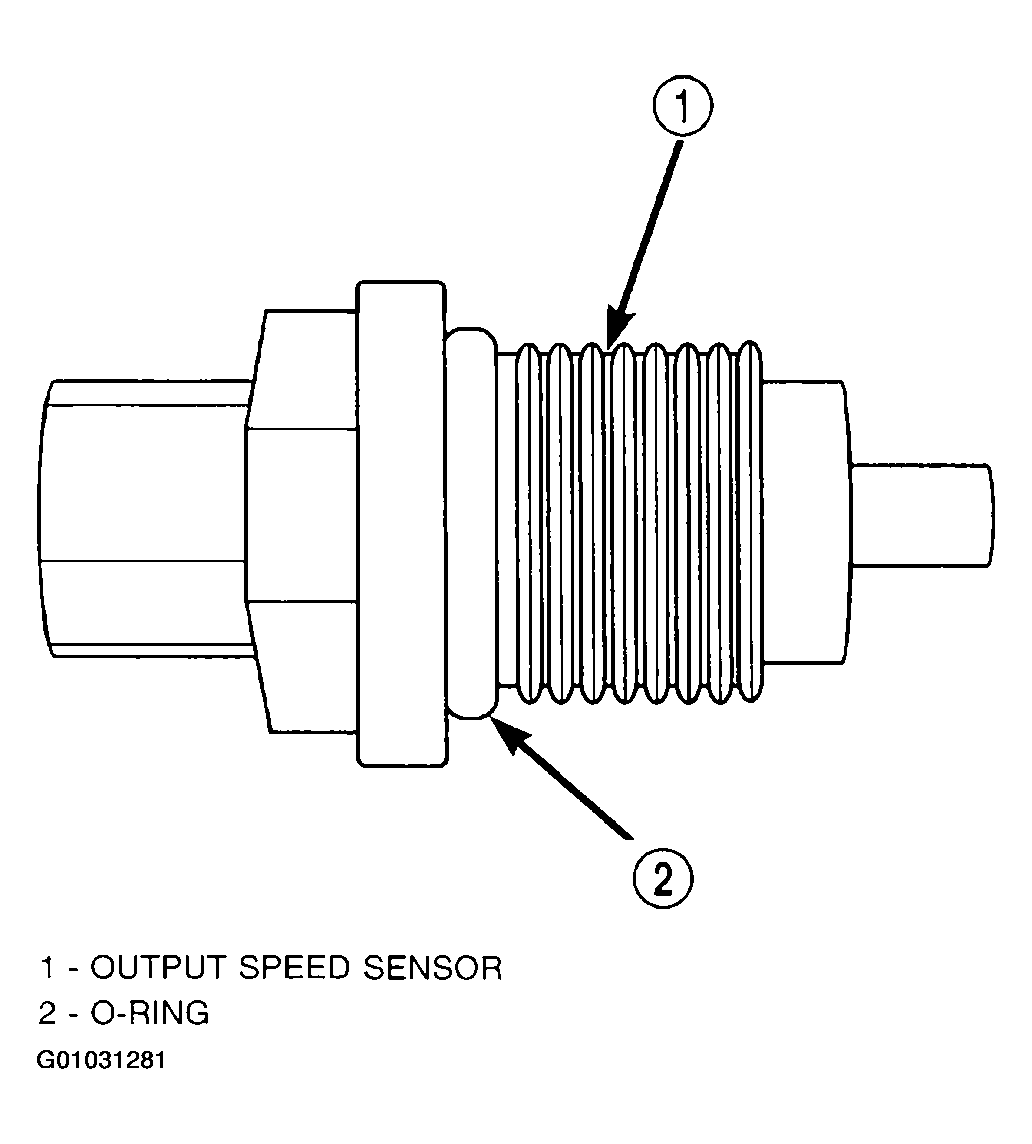

Fig 2: Identifying "O" Ring Location

Courtesy of DAIMLERCHRYSLER CORP.
