Transmission Control Relay: Description

The transmission control relay is located in the Power Distribution Center (PDC), which is located on the left side of the engine compartment. (Fig 1).

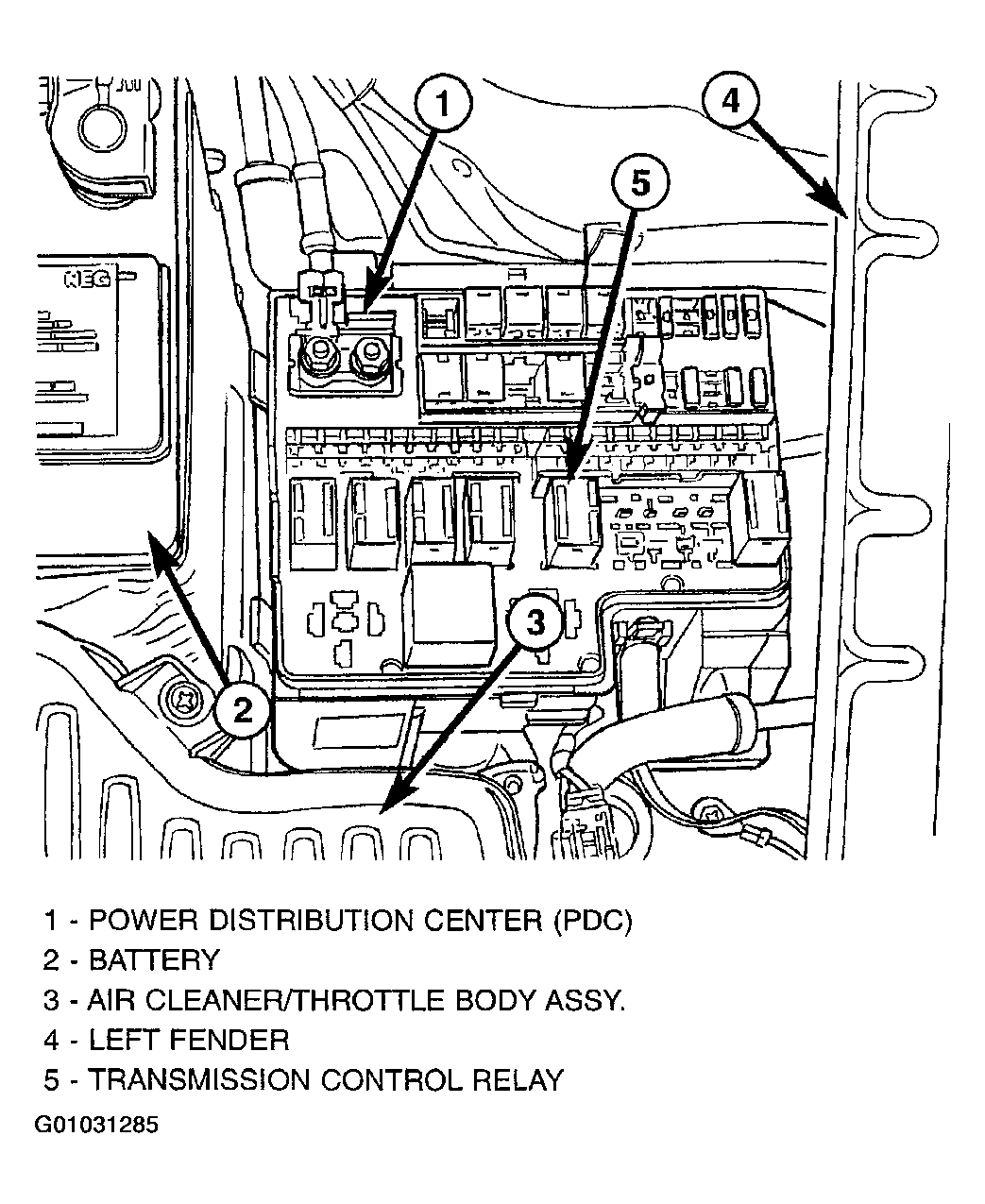

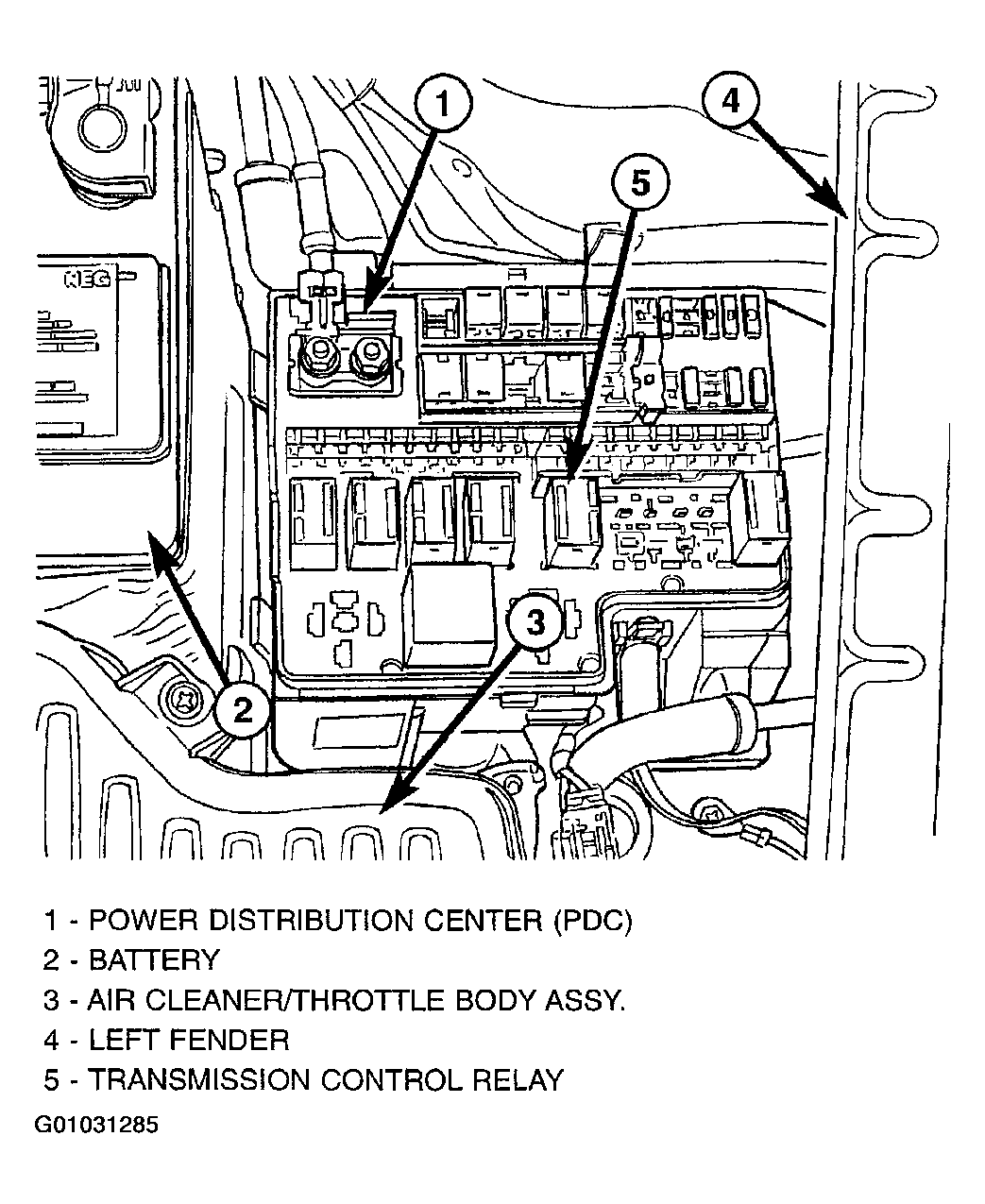

Fig 1: Identifying Transmission Control Relay Location

Courtesy of DAIMLERCHRYSLER CORP.
