Valve Body: Disassembly

NOTE: If valve body assembly is being reconditioned, the TCM Quick Learn Procedure must be performed. Refer to DIAGNOSIS - 41TE article.

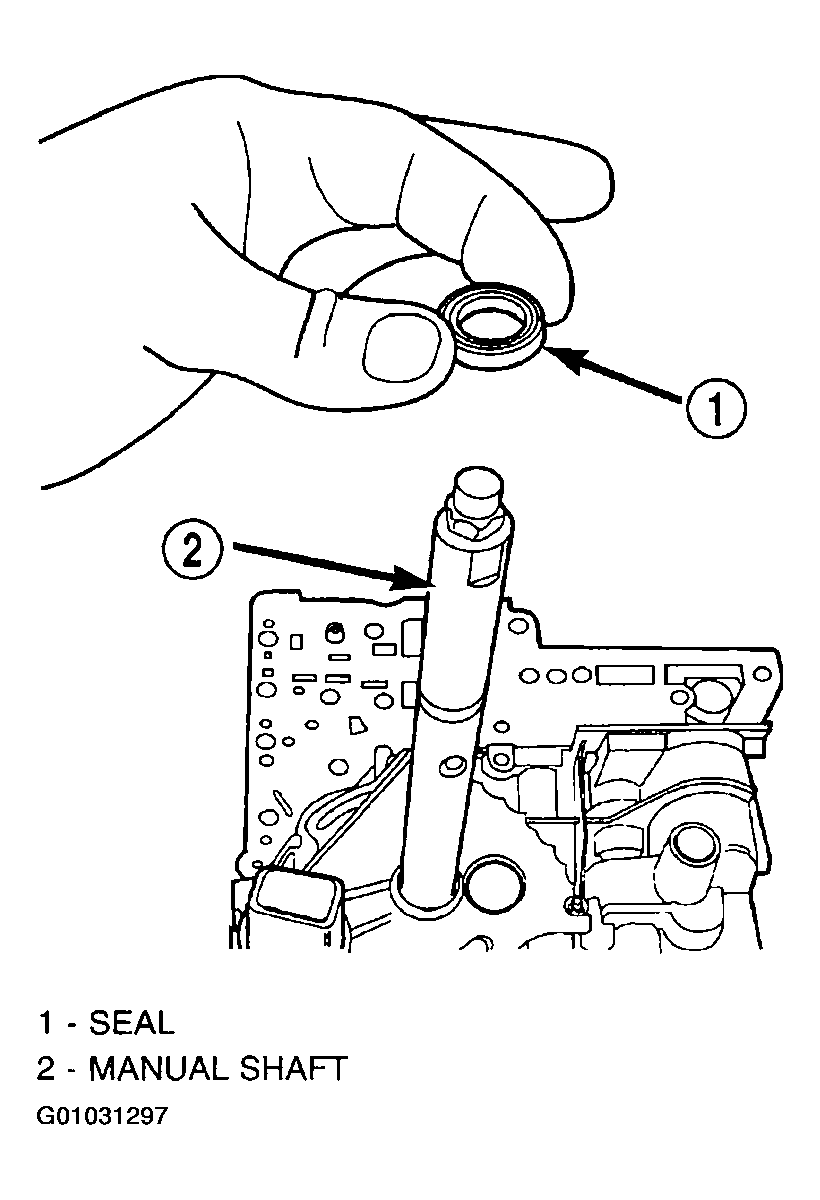

Remove manual shaft seal. (Fig 1).

Fig 1: Removing Manual Shaft Seal
Courtesy of DAIMLERCHRYSLER CORP.
Remove Transmission Range Sensor retaining screw. (Fig 2).

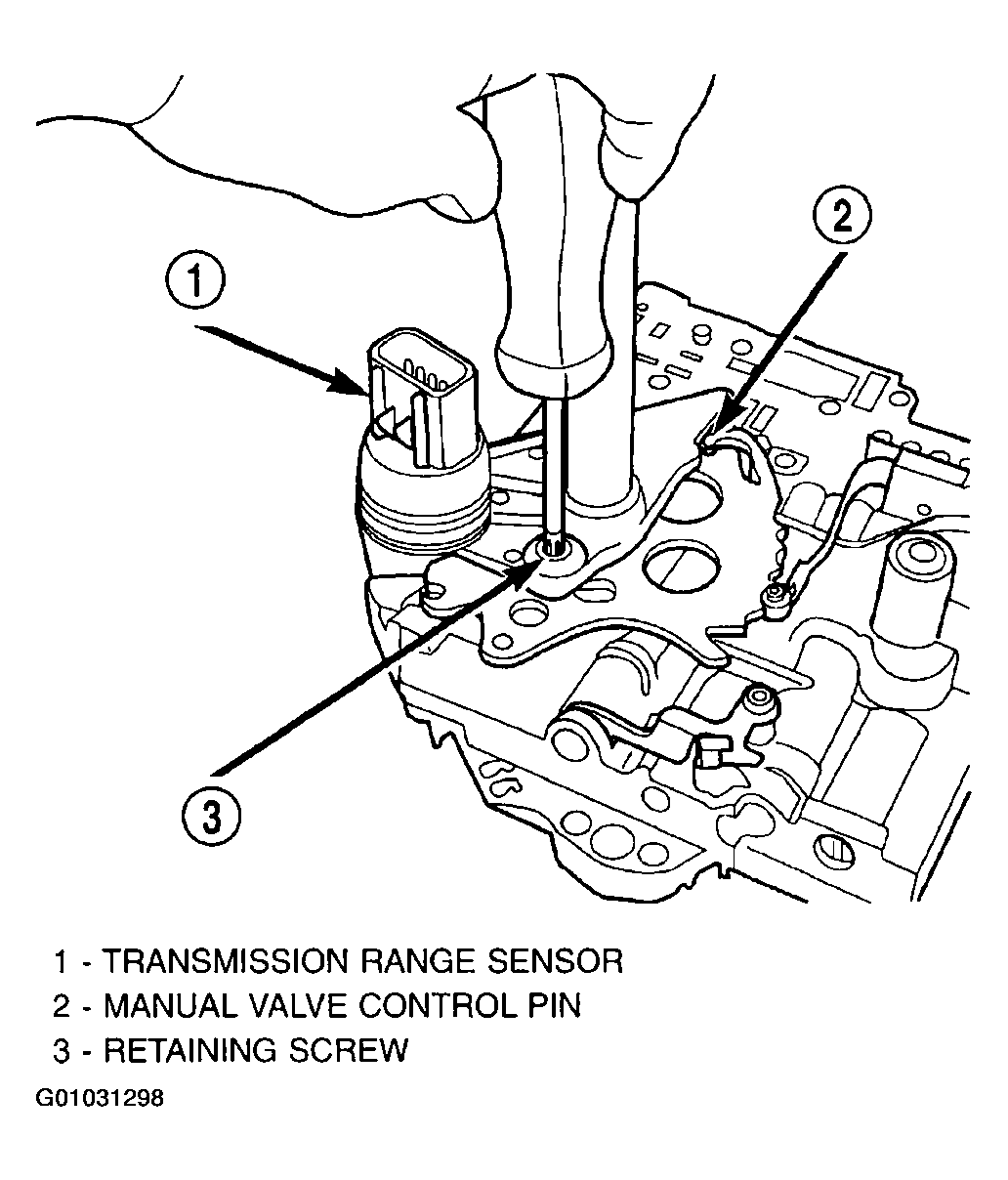

Fig 2: Removing Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove Manual Shaft/Rooster Comb and Transmission Range Sensor. (Fig 3).

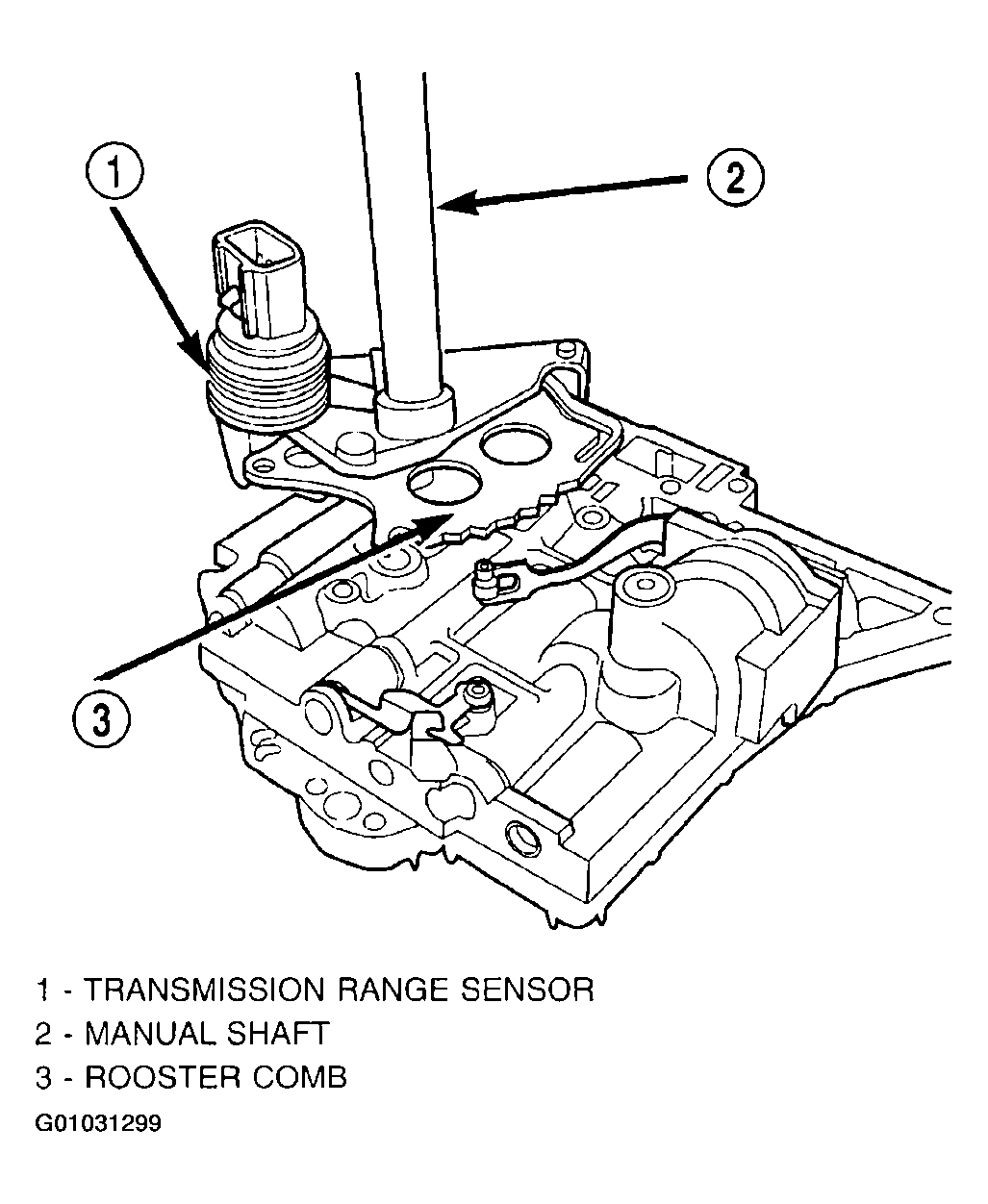

Fig 3: Removing Manual Shaft/Rooster Comb & Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.

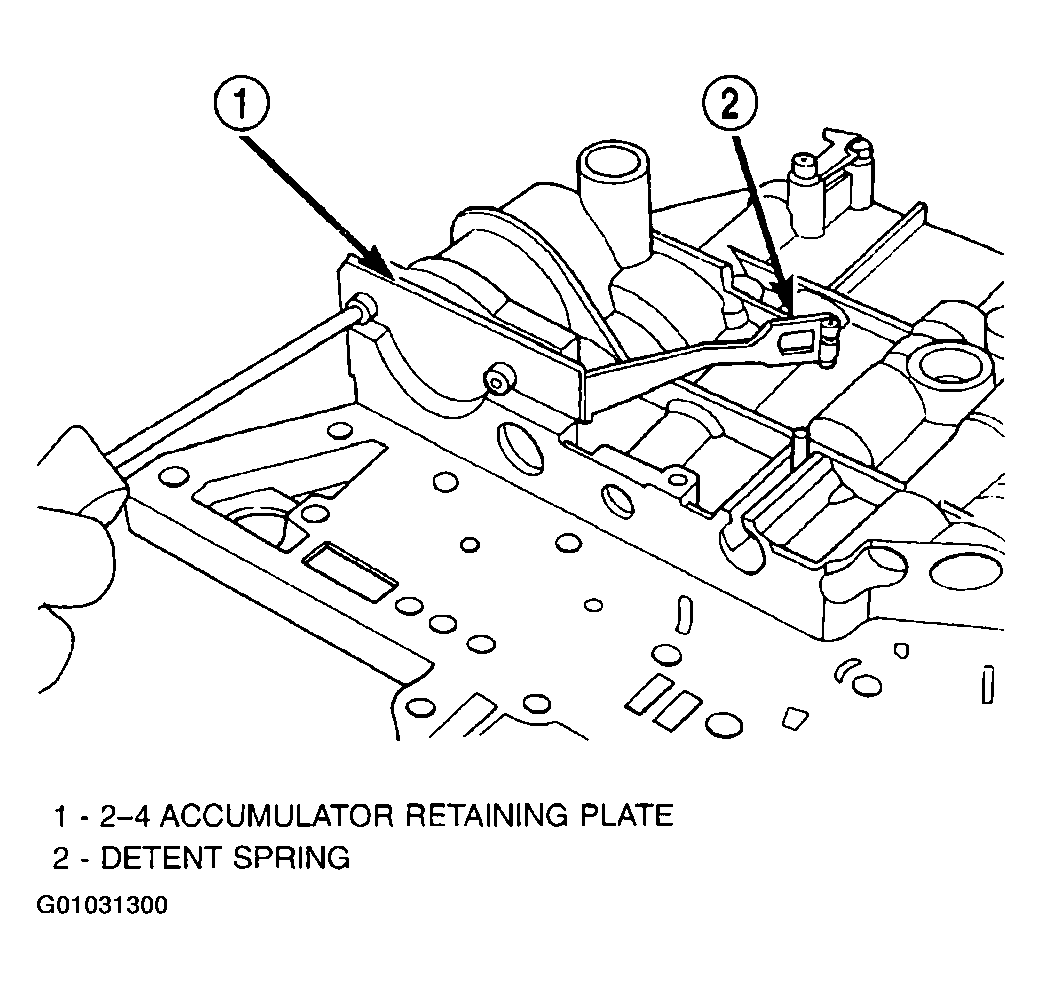

Remove 2/4 accumulator retaining plate. (Fig 4).

Fig 4: Removing 2/4 Accumulator Retaining Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2/4 accumulator components as shown in (Fig 5).

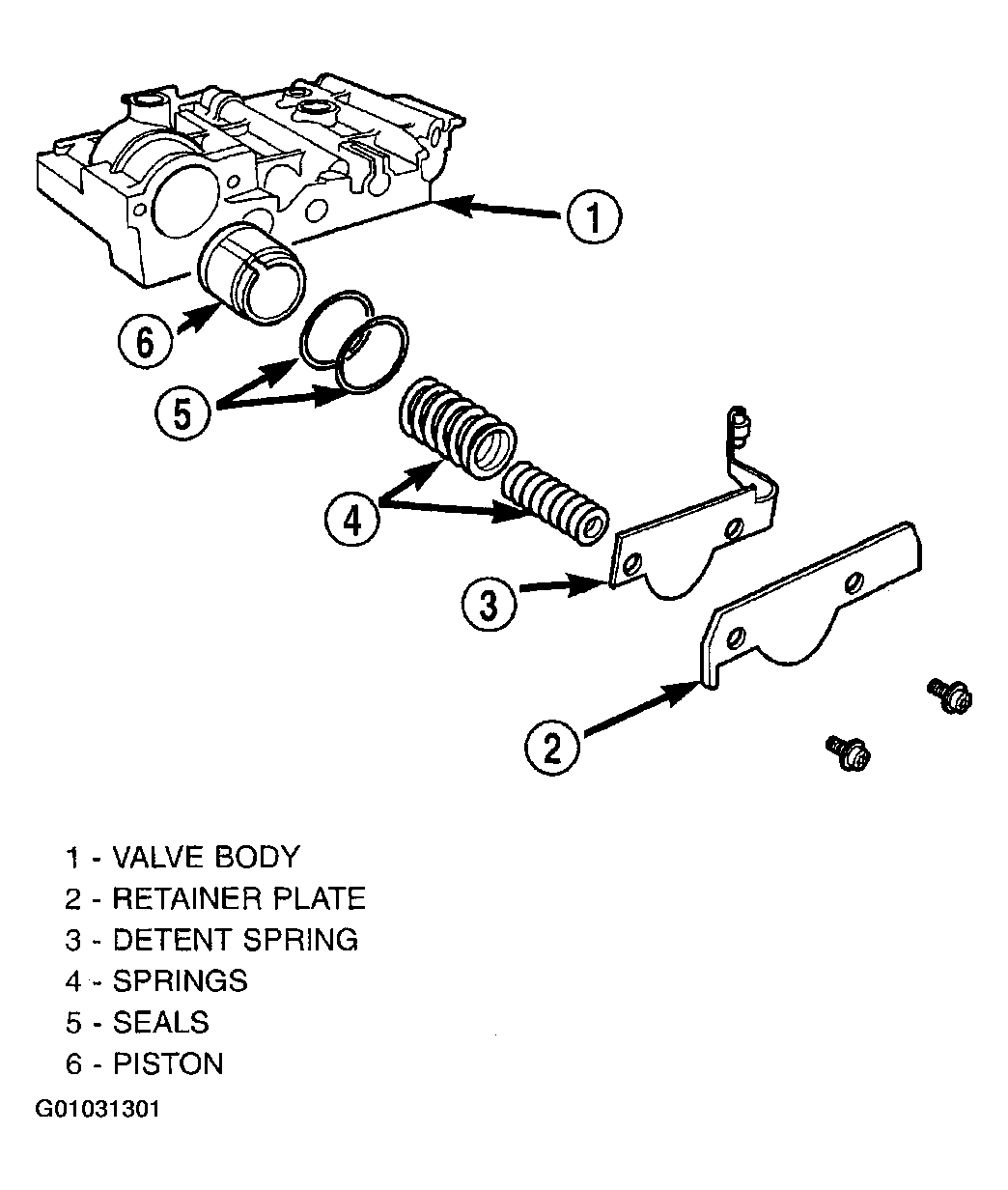

Fig 5: Exploded View Of 2/4 Accumulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove valve body to transfer plate screws. (Fig 6).

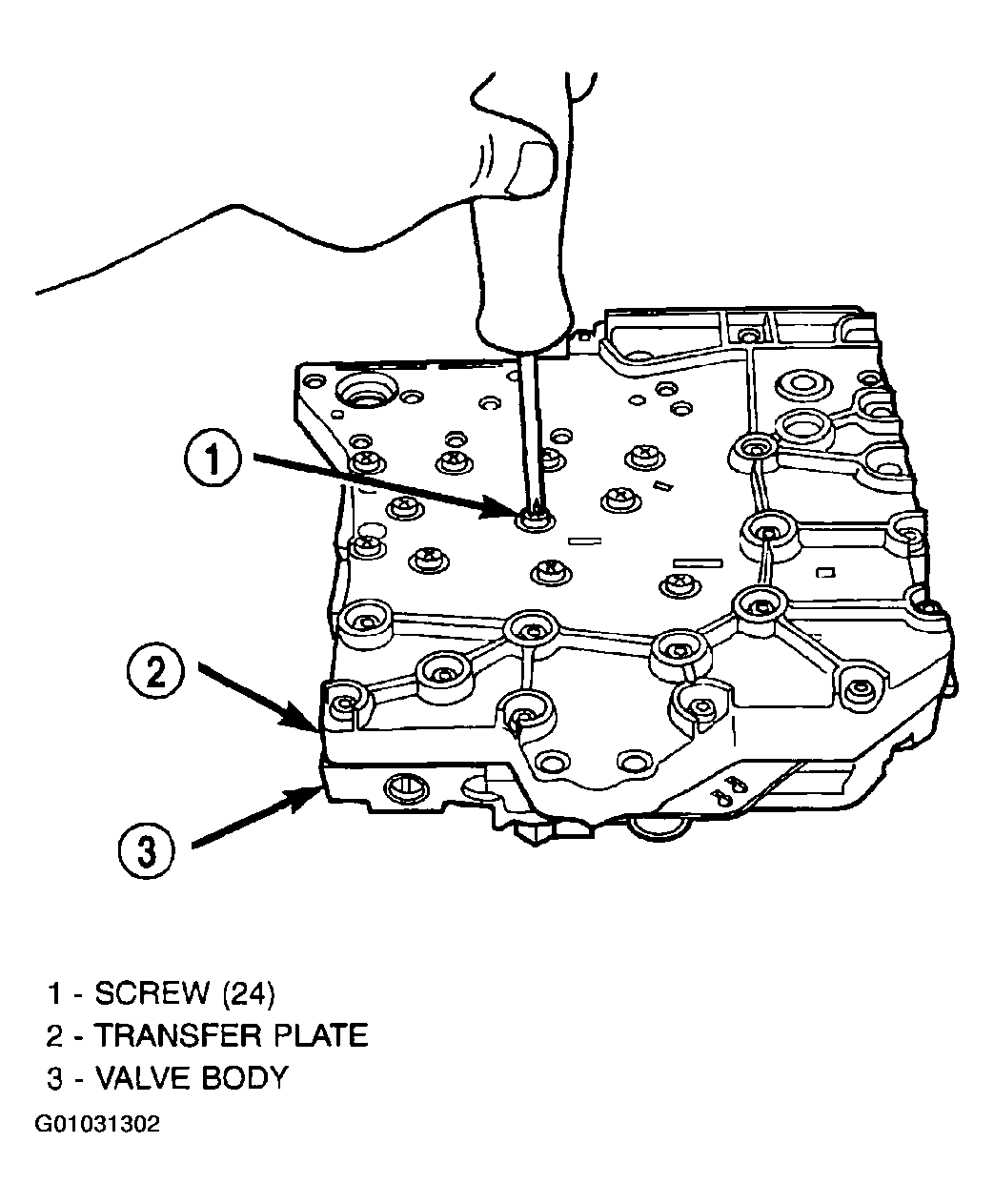

Fig 6: Removing Valve Body To Transfer Plate Screws
Courtesy of DAIMLERCHRYSLER CORP.
Invert assembly and remove transfer plate. (Fig 7). Beware of loose check balls.

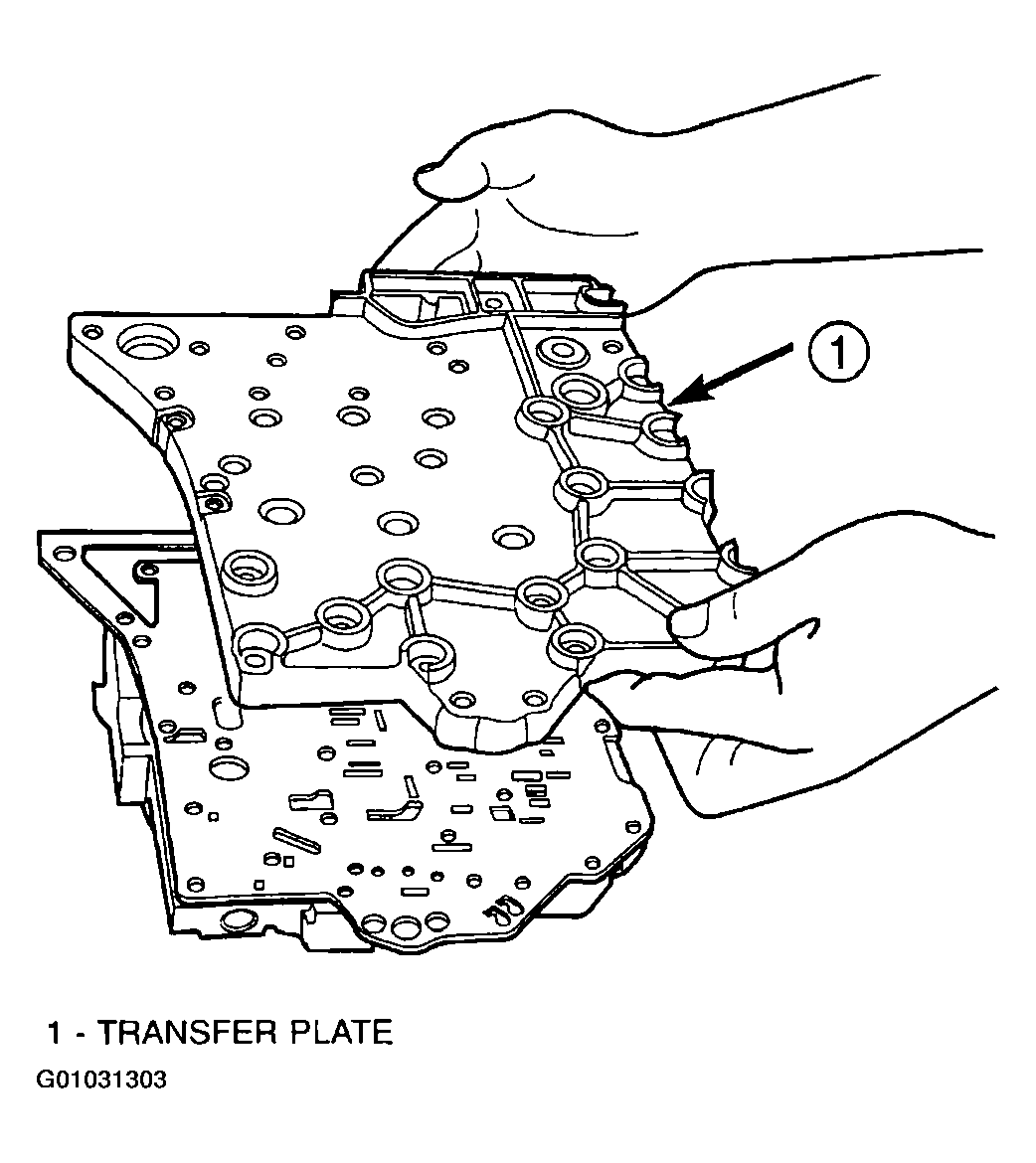

Fig 7: Removing Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove oil screen. (Fig 8).

Fig 8: Removing Oil Screen
Courtesy of DAIMLERCHRYSLER CORP.
Remove the overdrive clutch (#5) check valve. (Fig 9)

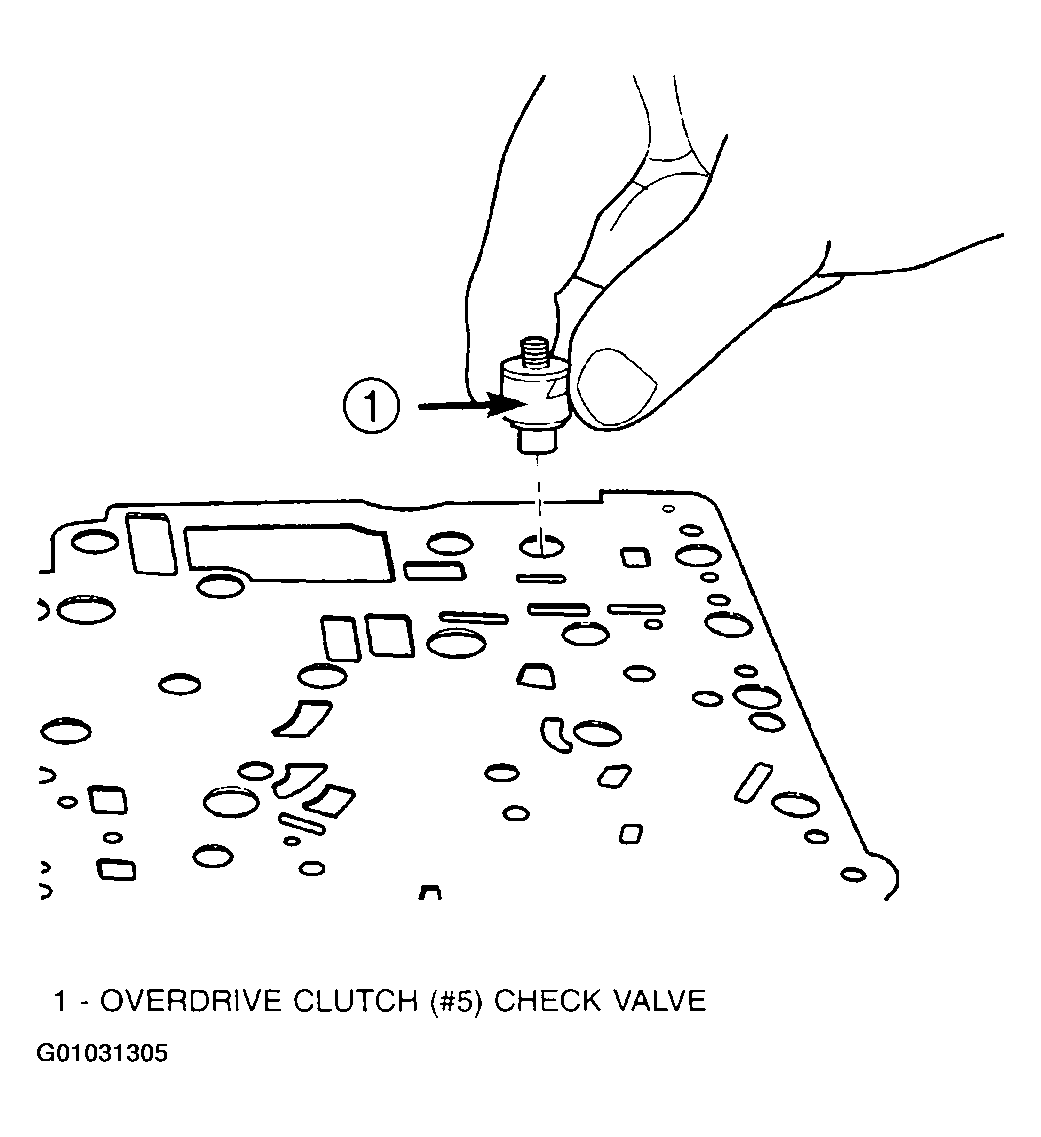

Fig 9: Removing Overdrive Clutch (#5) Check Valve
Courtesy of DAIMLERCHRYSLER CORP.

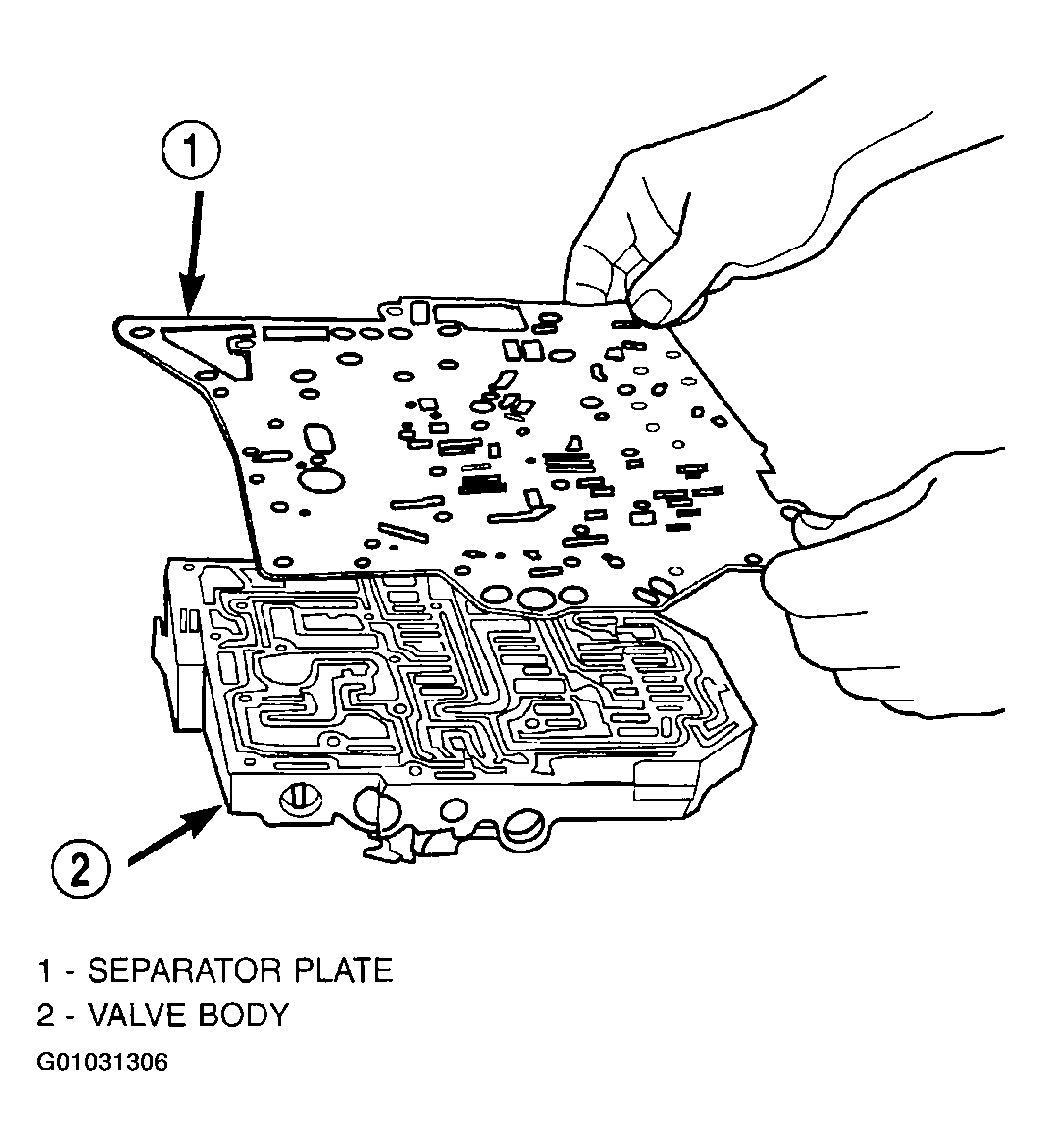

Remove separator plate. (Fig 10).

Fig 10: Removing Separator Plate
Courtesy of DAIMLERCHRYSLER CORP.

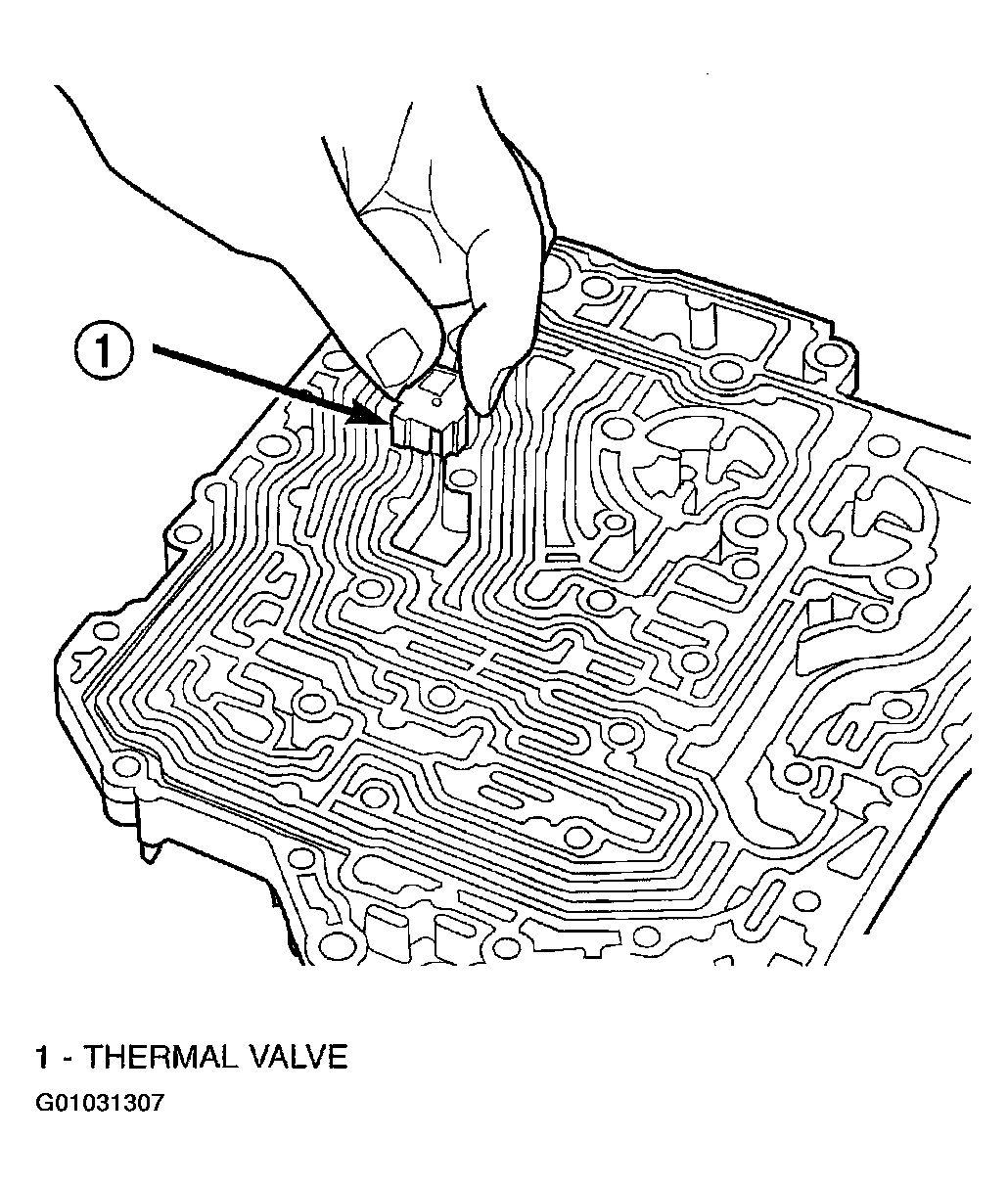

Remove thermal valve. (Fig 11).

Fig 11: Removing Thermal Valve
Courtesy of DAIMLERCHRYSLER CORP.
Remove check balls. (Fig 12).
NOTE: Tag all valve/spring assemblies for reassembly identification.

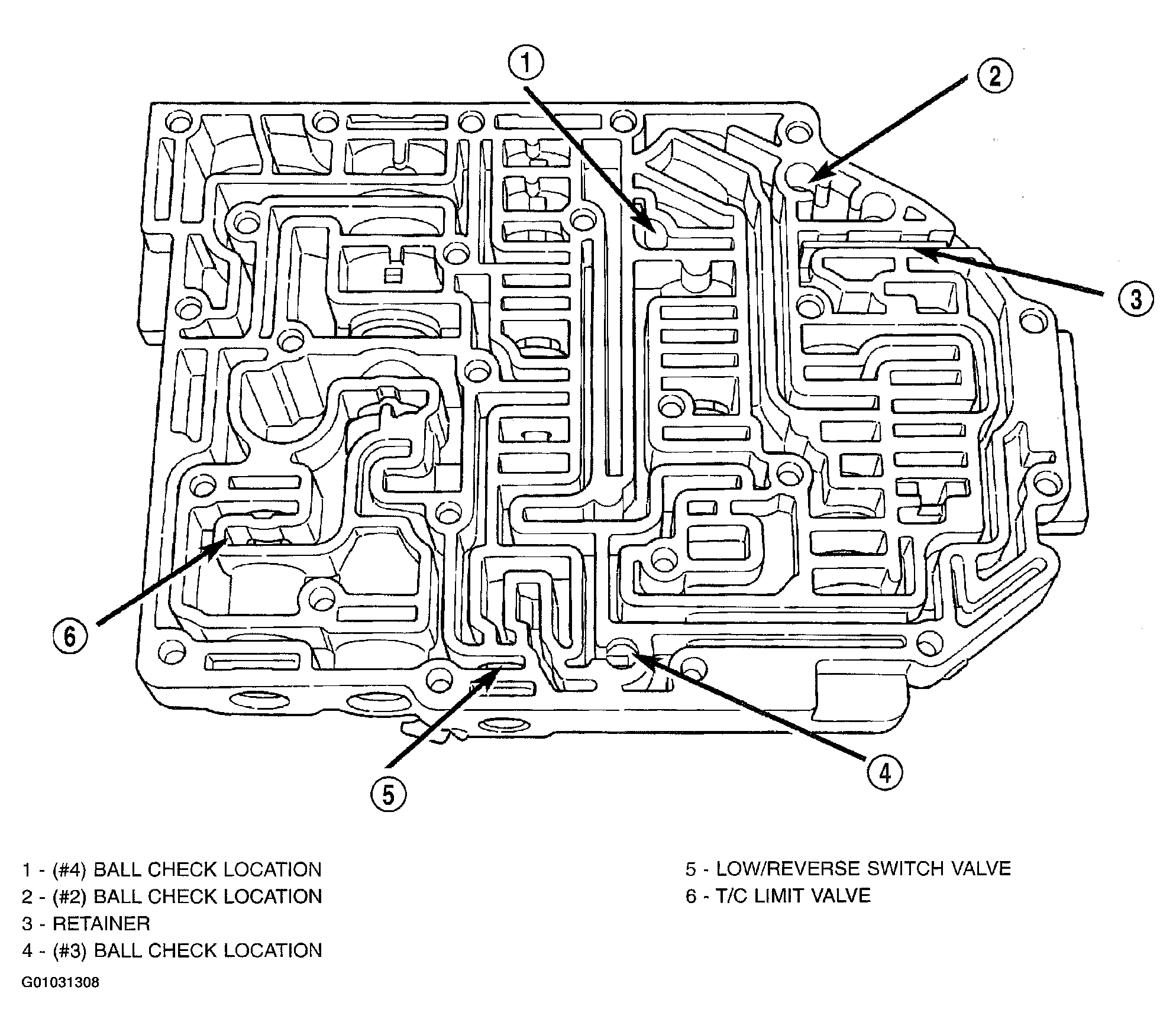

Fig 12: Identifying Check Ball Locations
Courtesy of DAIMLERCHRYSLER CORP.
Remove dual retainer plate using Tool 6301. (Fig 13).

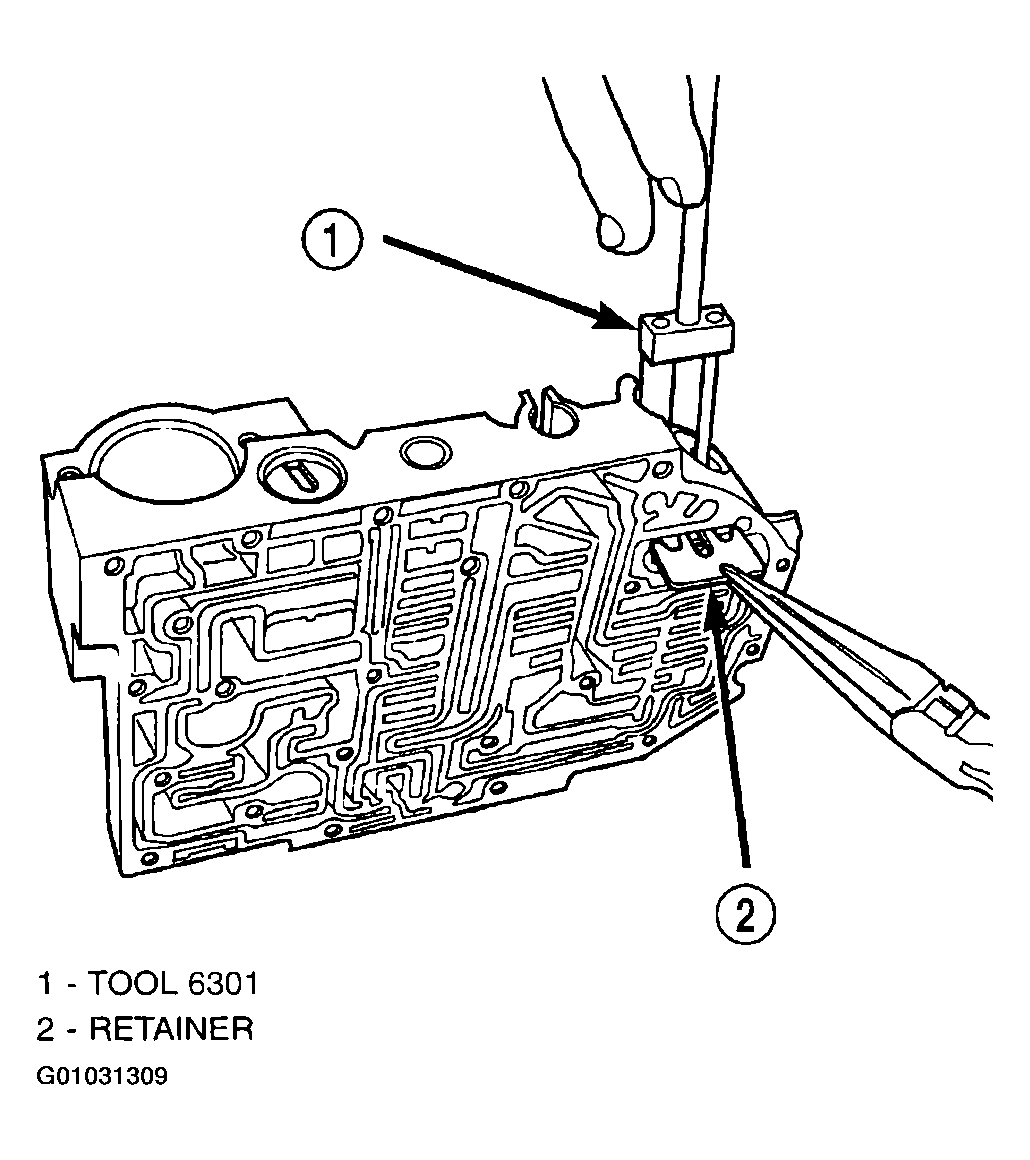

Fig 13: Removing Dual Retainer Plate Using Tool 6301
Courtesy of DAIMLERCHRYSLER CORP.

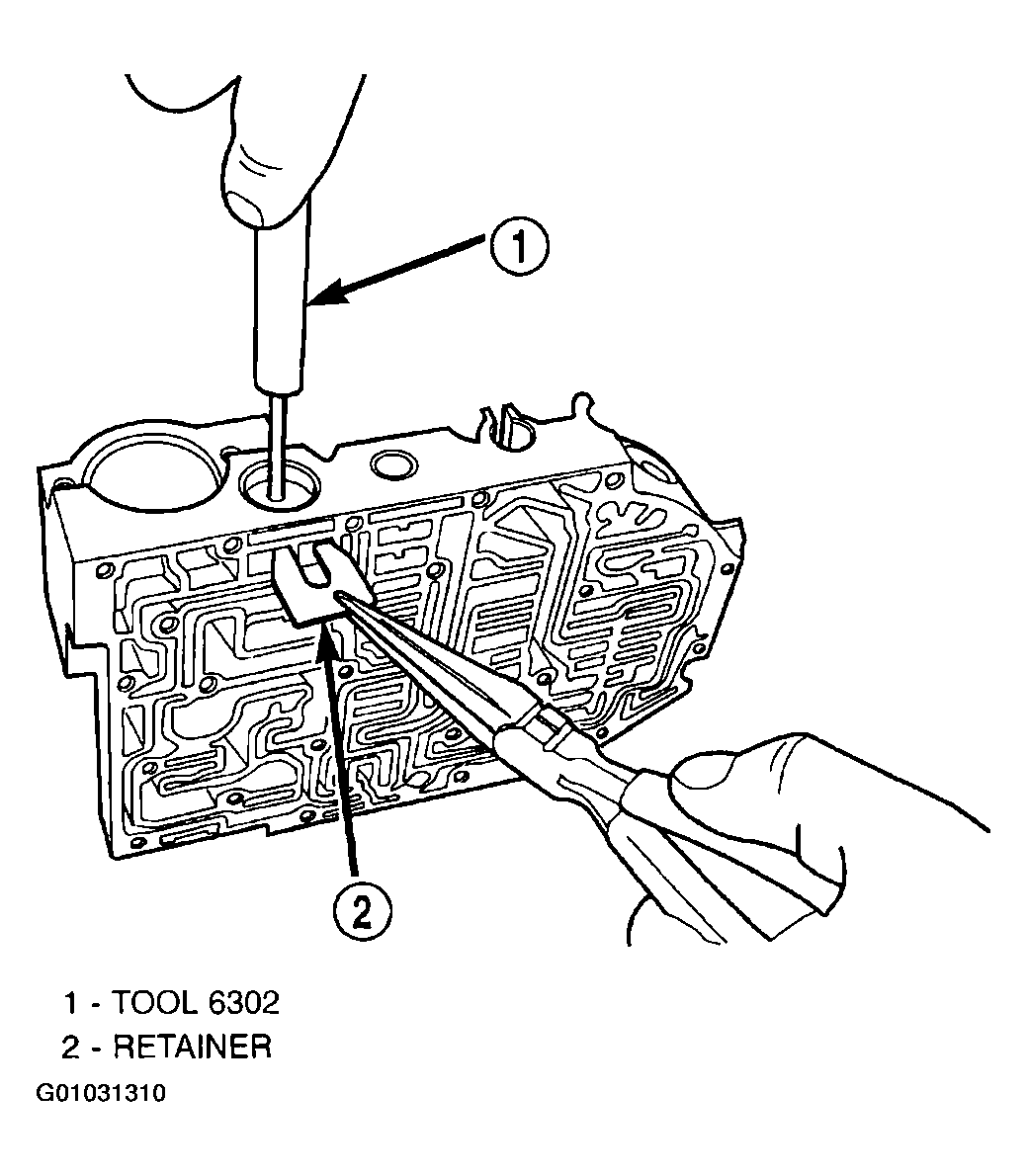

Remove regulator valve spring retainer. (Fig 14).

Fig 14: Removing Regulator Valve Spring Retainer Using Tool 6302
Courtesy of DAIMLERCHRYSLER CORP.

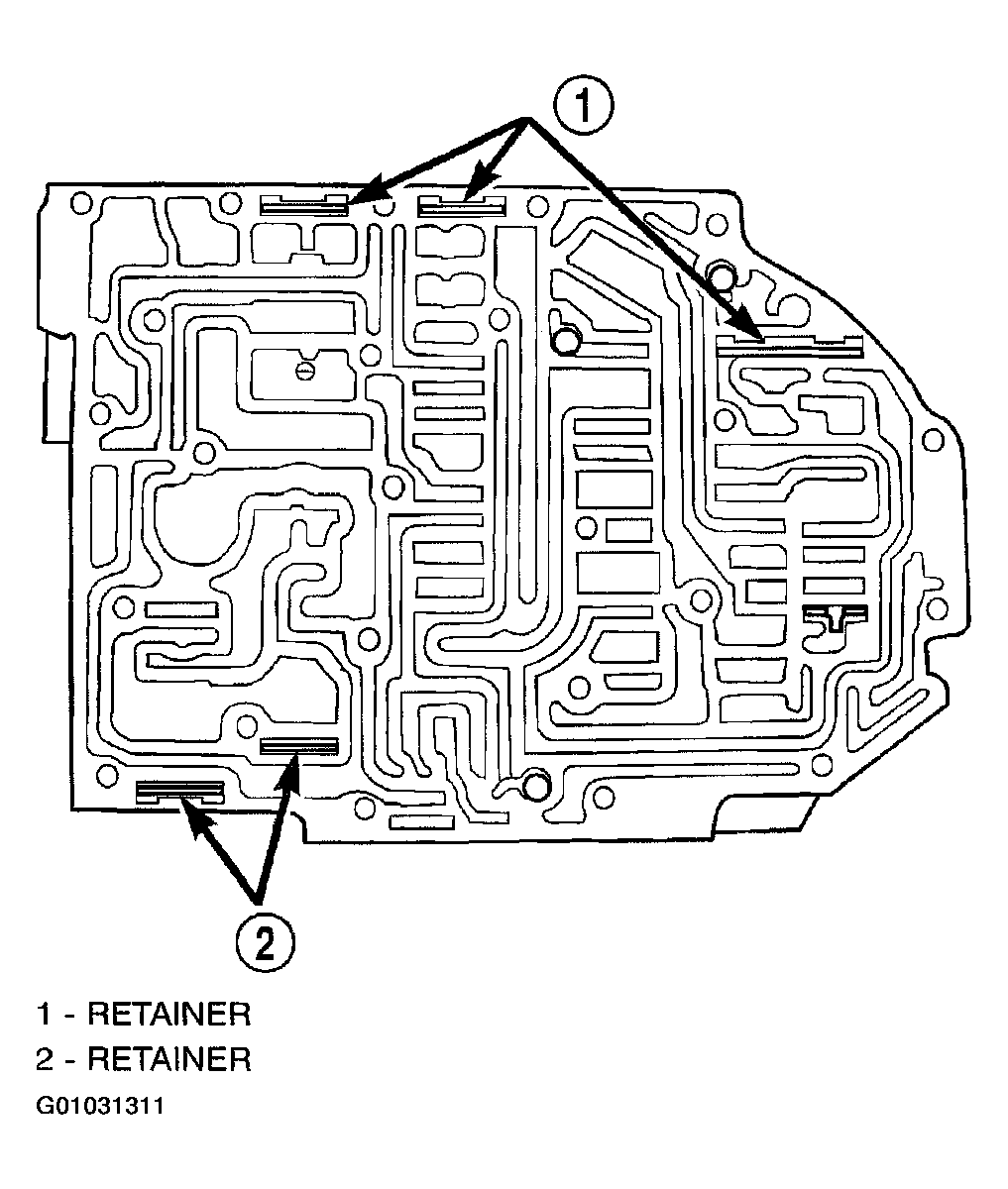

Remove remaining retainers as shown in (Fig 15).

Fig 15: Identifying Valve Retainer Locations
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Tag all valve/spring assemblies for reassembly identification.

Fig 16: Identifying Spring & Valve Locations

Courtesy of DAIMLERCHRYSLER CORP.

Remove valves and springs as shown in (Fig 16).
