Coolant Recovery Container: Installation

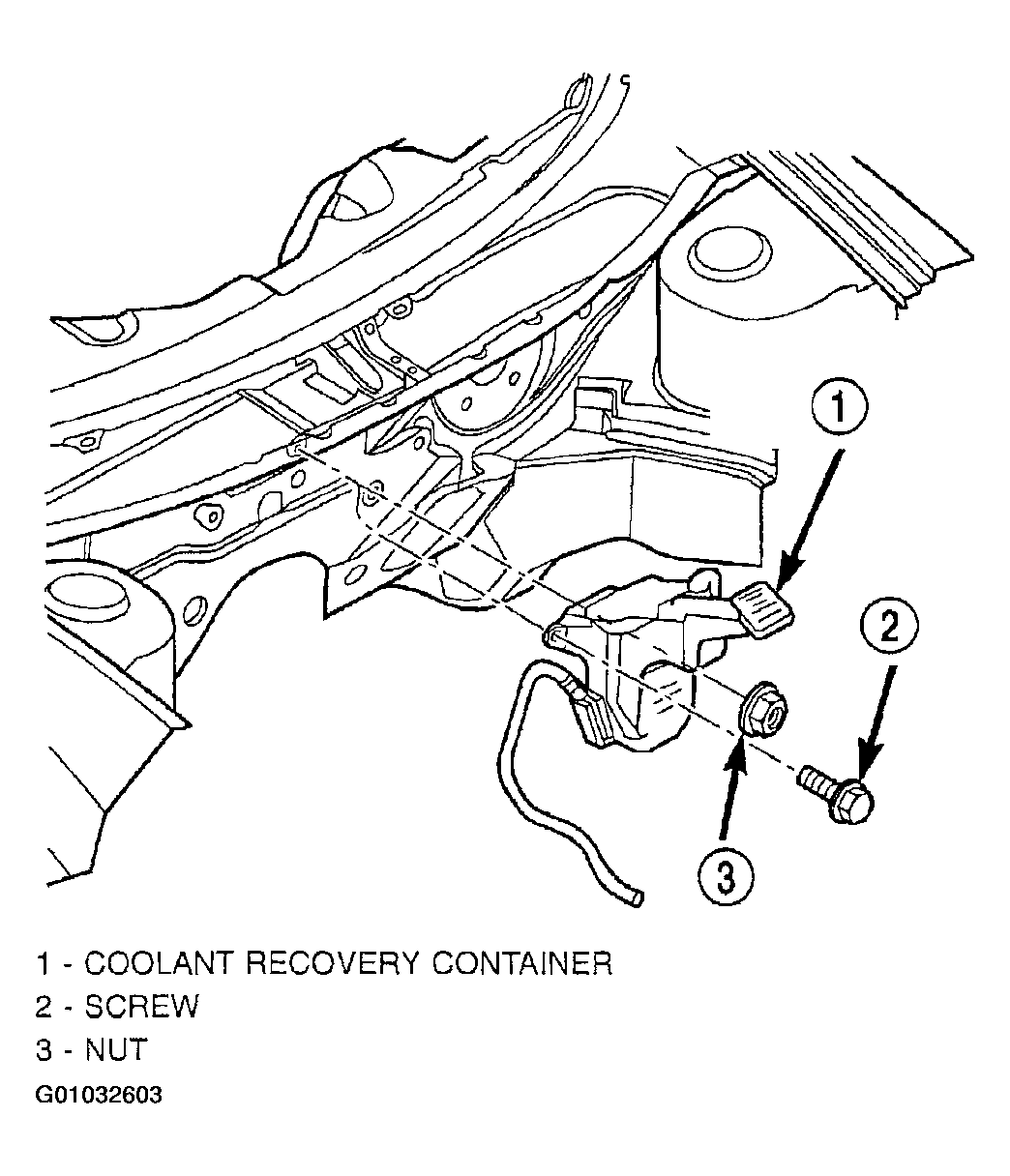

  1. Install coolant recovery container and tighten fasteners to 4 N.m (35 in. lbs.). (Figure).

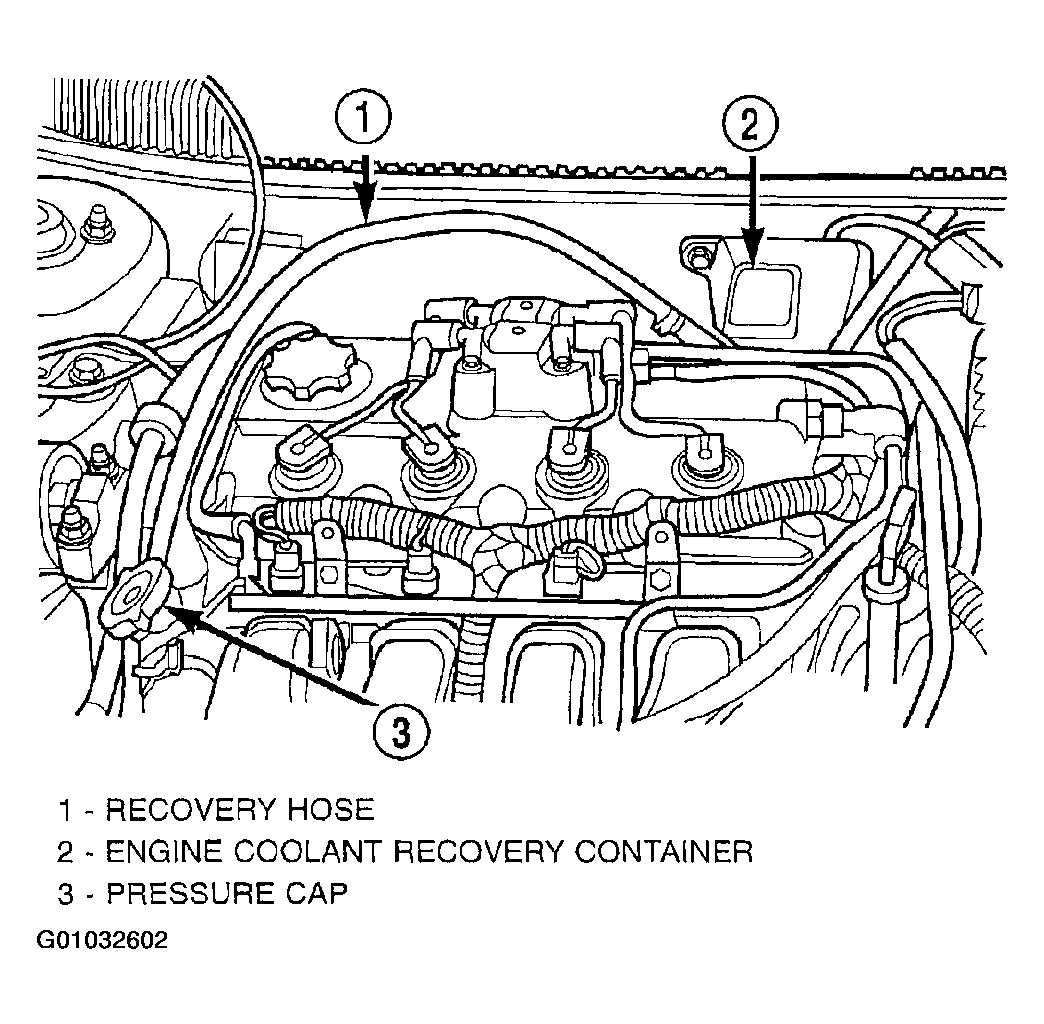

  2. Connect recovery hose to water outlet connector/thermostat housing. (Figure).
  3. Fill container to proper level. Refer to STANDARD PROCEDURE .
