Engine Coolant Temperature Sensor: Installation

  1. Install coolant sensor. Tighten sensor to 18 N.m (165 in. lbs.) torque.

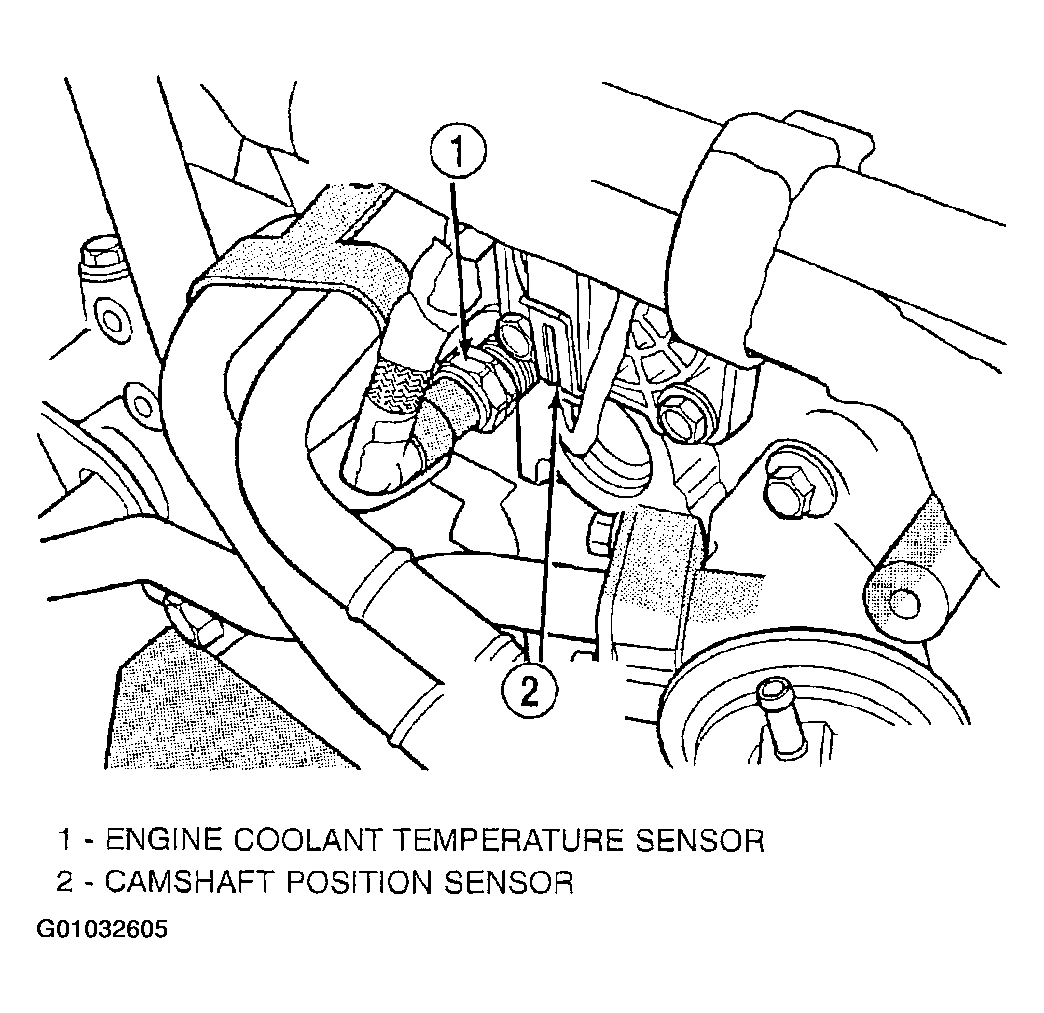

  2. Attach electrical connector to sensor. (Figure).
  3. Fill cooling system. (Refer to STANDARD PROCEDURE ).
