Fan Motor

  1. Remove radiator fan assembly. Refer to REMOVAL .
  2. Remove fan from motor shaft.
  3. Remove screw attaching the in-rush current suppressor. (Fig 1).

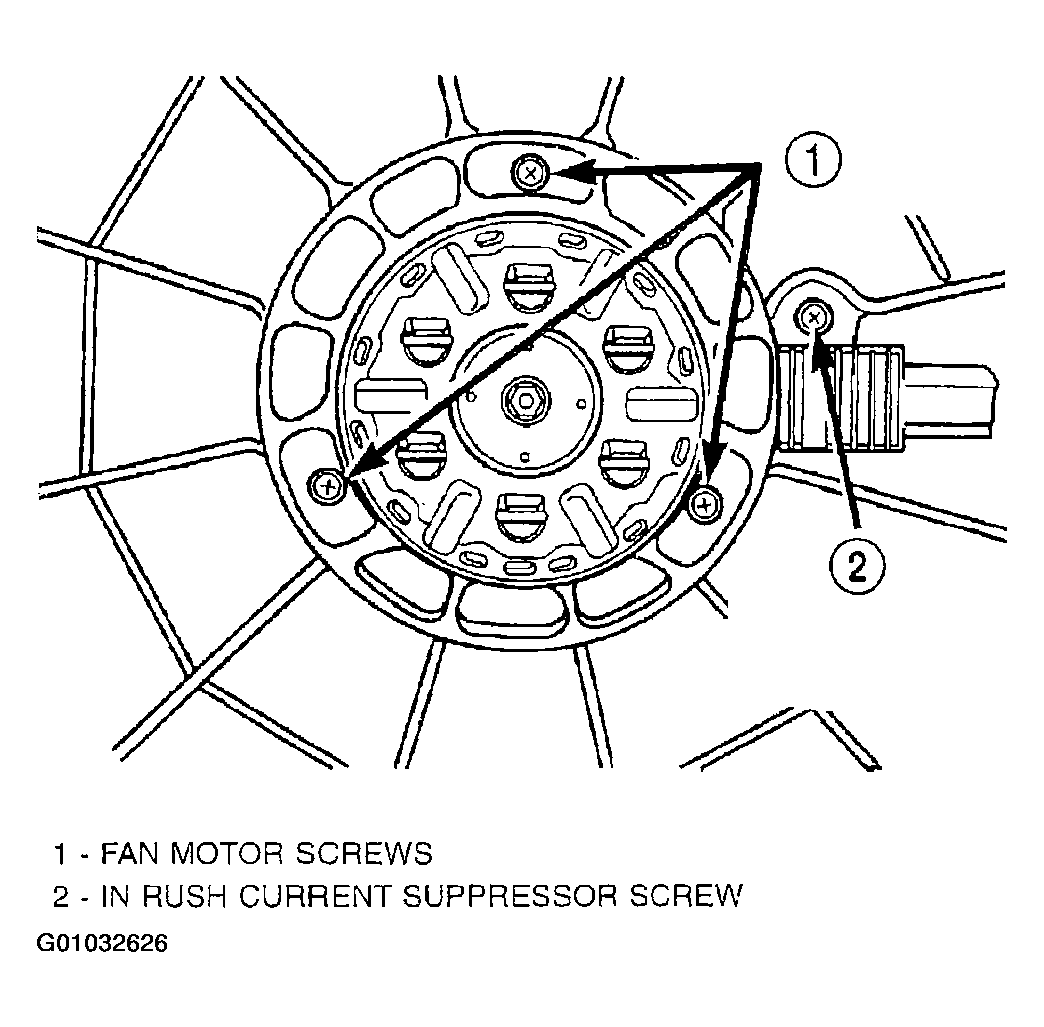

    Fig 1: Removing/Installing Fan Motor
    G01032626Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove screws attaching motor to shroud. (Fig 1).
  5. Remove the fan motor.
