Cooling Systems: Radiator: Installation
- Install radiator into position behind the radiator support (yoke).

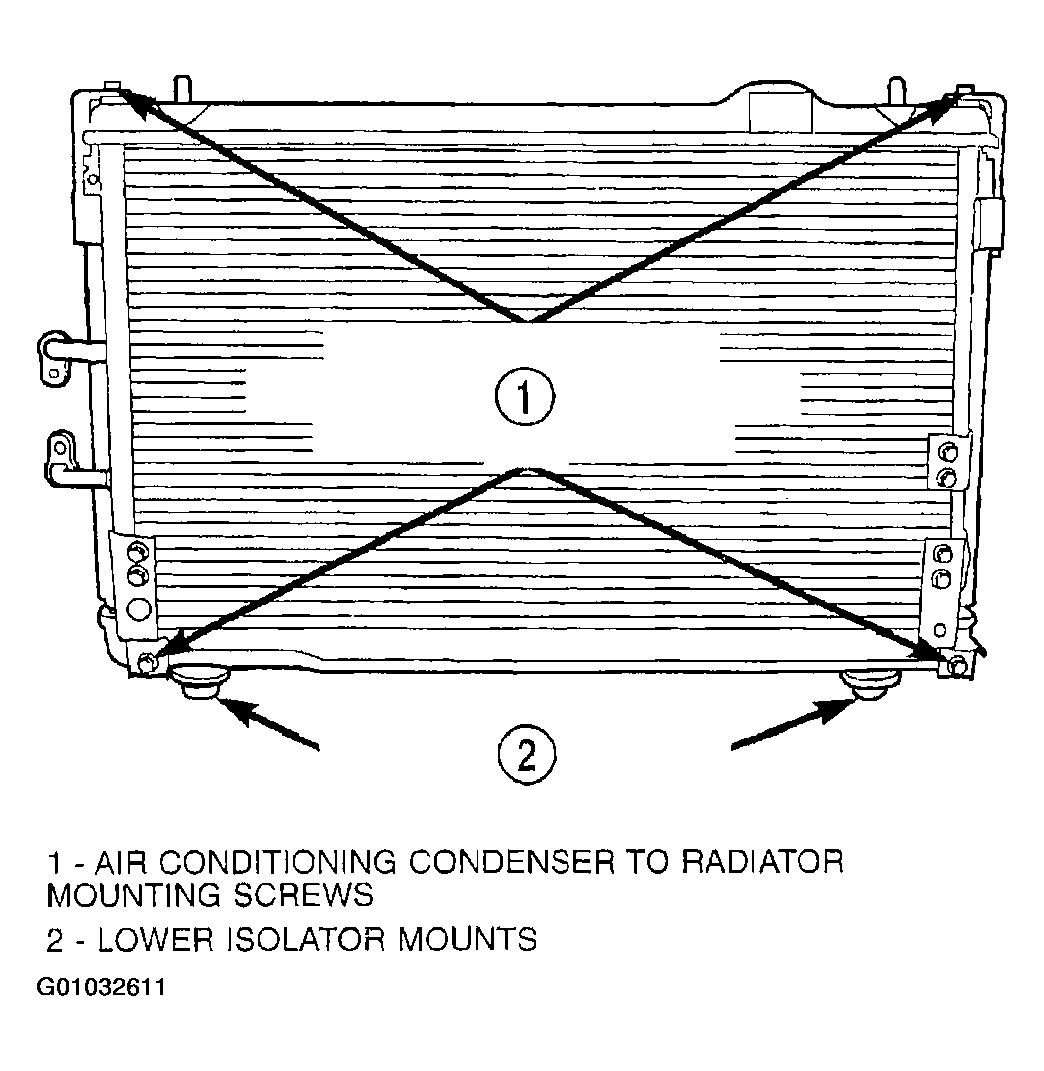

- Attach A/C condenser to radiator (if equipped), with four mounting screws. (Figure). Tighten screws to 7.2 N.m (65 in. lbs.). Then seat the radiator assembly lower rubber isolators into the mounting holes provided in the lower crossmember.
- Install and tighten radiator isolator mounting bracket screws to 10 N.m (90 in. lbs.). (Figure). The radiator should have clearance to move up, approximately 5-8 mm (0.20-0.31 in.) after assembled.
- Install the radiator lower hose. Align the hose and position the clamp to prevent interference with engine components.

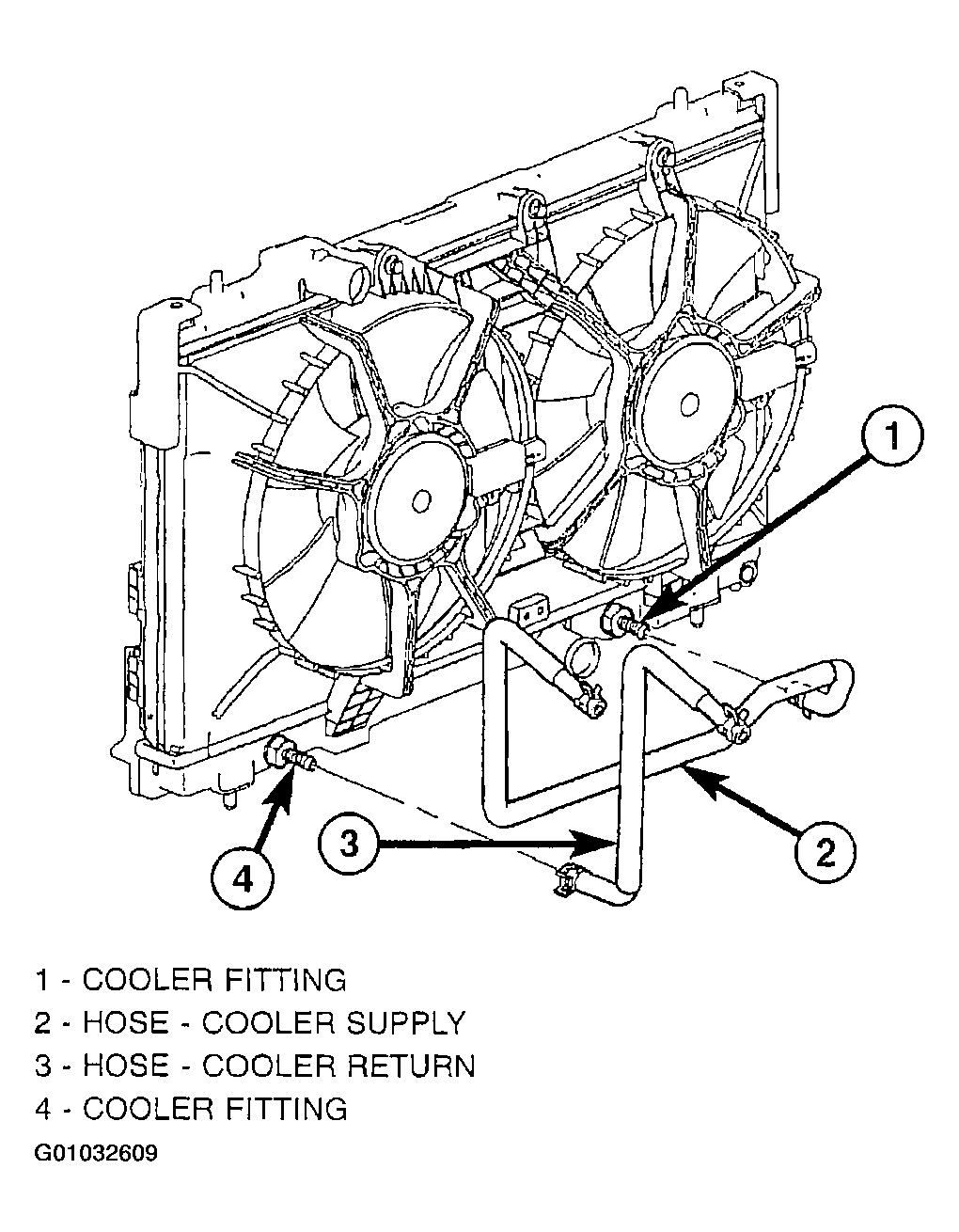

- Replace automatic transmission hoses and clamps (if equipped). (Figure).
- Install radiator fan assembly. (Refer to RADIATOR FAN ).
- Connect the radiator fan motor electrical connector.

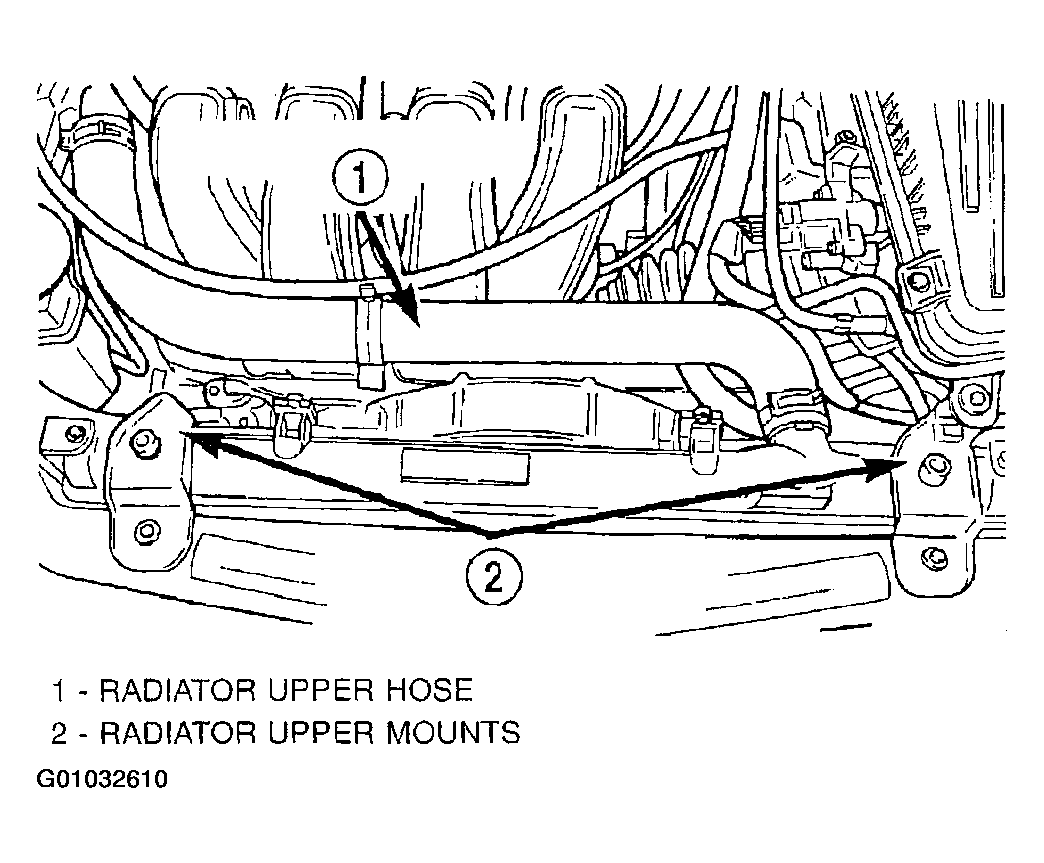

- Install the radiator upper hose. Align the hose and position the clamp to prevent interference with the engine or the hood.
- Connect negative cable to battery.
- Fill cooling system with coolant. Refer to STANDARD PROCEDURE .
- Operate engine until it reaches normal operating temperature. Check cooling system and automatic transmission for correct fluid levels.
NOTE:
When the transaxle cooler lines are removed from the rolled-groove type fittings at the cooler and transaxle, damage to the inner wall of hose will occur. To prevent potential leakage, the cooler hoses and clamps must be replaced.
