Starter Motor: Removal

  1. Disconnect and isolate the battery negative cable. (Fig 1 ).

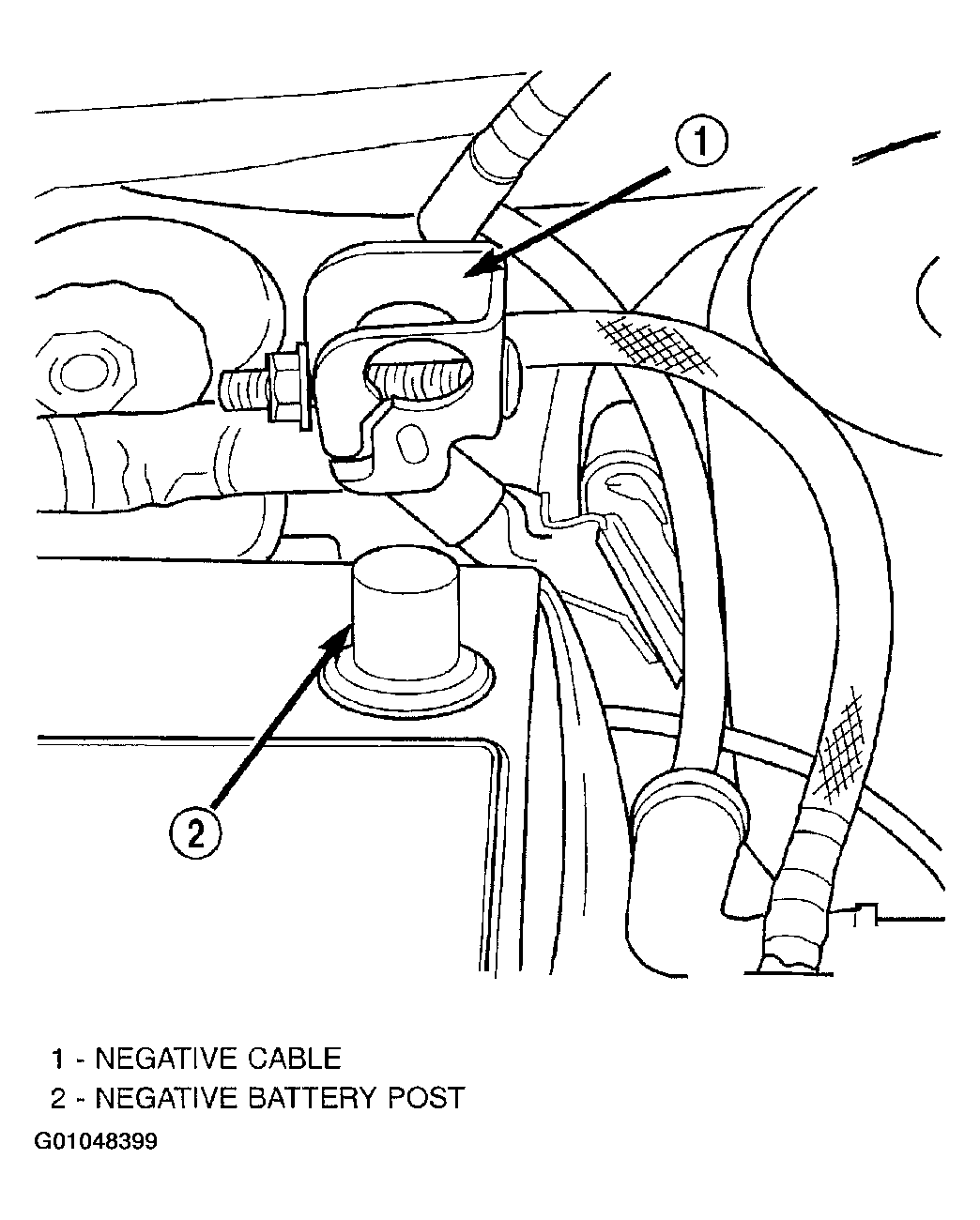

    Fig 1: Removing/Installing Battery Negative Cable
    G01048399Courtesy of DAIMLERCHRYSLER CORP.
  2. Raise vehicle on hoist.
  3. Remove starter bolts. (Fig 2 ).

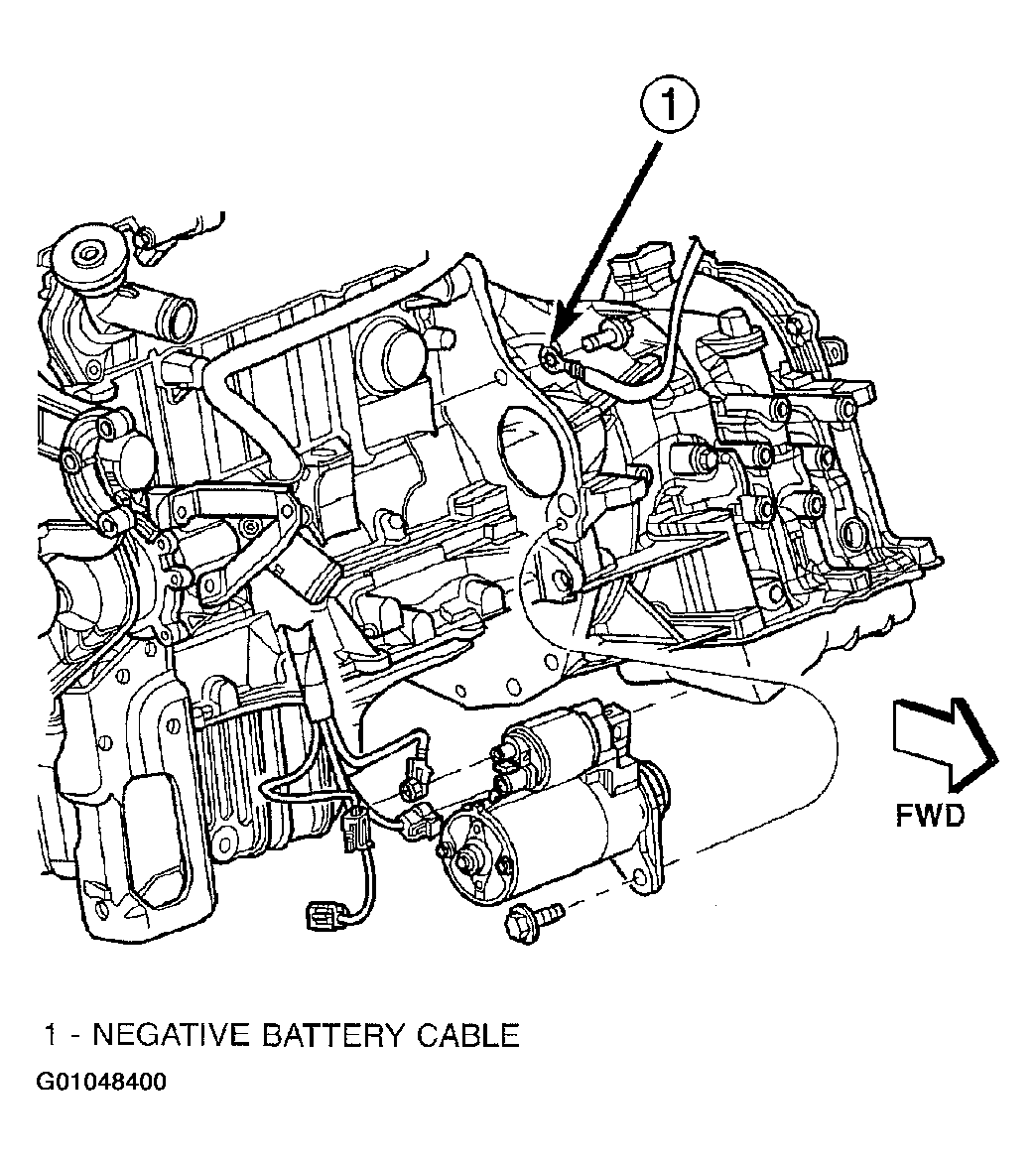

    Fig 2: Identifying Starter Mounting/Location
    G01048400Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove starter assembly.
  5. Disengage latch and remove solenoid connector from starter assembly.
  6. Remove battery positive connector from starter assembly. It is not necessary to remove the alternator output lead from the connector.
