Water Pump: Description
NOTE:
The water pump on all models can be replaced without discharging the air conditioning system.

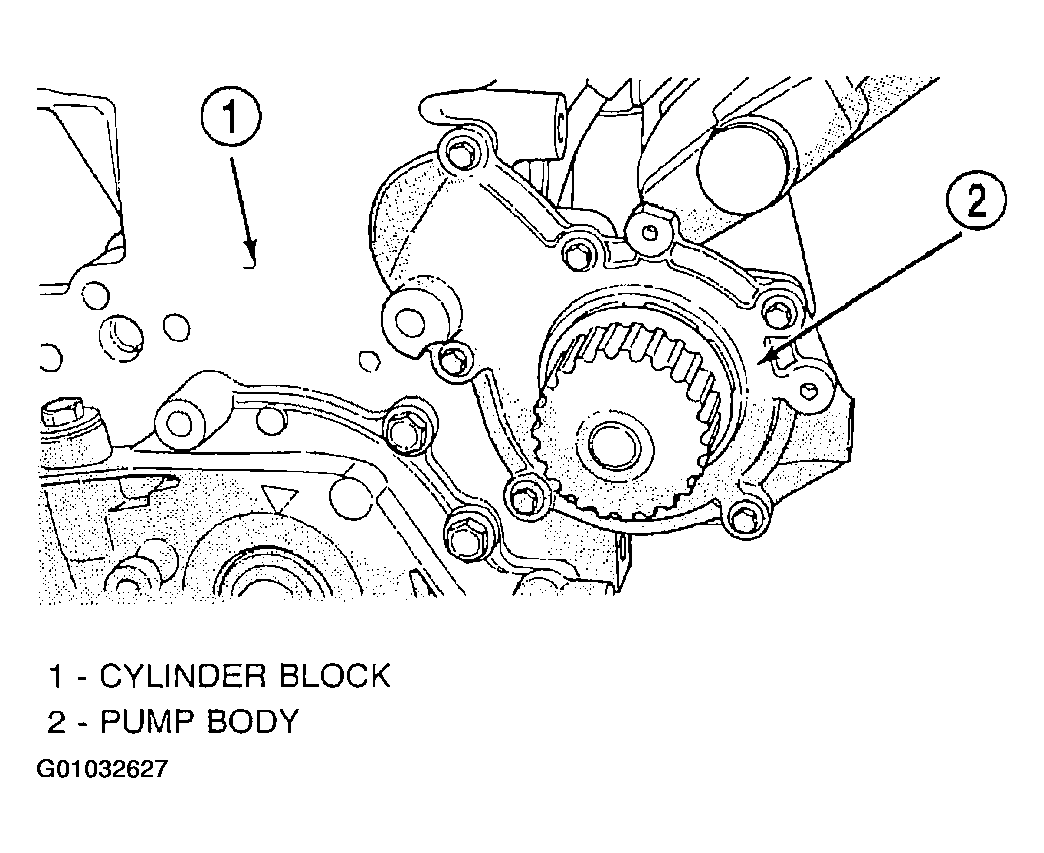

The water pump has a die-cast aluminum body and housing with a stamped steel impeller. The water pump bolts directly to the cylinder block and is driven by the timing belt. (Fig 1). Cylinder block to water pump sealing is provided by a rubber "O" ring.
