Component Locations

NOTE: For component locations, see Fig 1 - Fig 10 .
COMPONENT LOCATIONS

Component Location
Controller Anti-Lock Brake At Left Side Of Engine Compartment, On Bottom Of Hydraulic Control Unit. See Fig 2.
Data Link Connector (DLC) Under Left Side Of Dash, Near Kick Panel. See Fig 3.
Electro-Mechanical Instrument Cluster (EMIC) Integral Part Of Instrument Cluster. See Fig 3.
Fuse Block At Lower Left Front Of Dash. See Fig 1.
Left Side Impact Air Bag Control Module At Base Of Left "B" Pillar. See Fig 9.
Occupant Restraint Controller On Tunnel Floor Pan, Between Shifter & Parking Brake. See Fig 4.
Powertrain Control Module On Firewall, Behind Power Distribution Center. See Fig 5.
Power Distribution Center On Left Side Of Engine Compartment. See Fig 6.
Remote Keyless Entry Module Behind Upper Center Of Dash. See Fig 7.
Right Side Impact Air Bag Control Module At Base Of Right "B" Pillar. See Fig 9.
Sentry Key Immobilizer Module On Steering Column, Near Ignition Lock Cylinder. See Fig 8.
Transmission Control Module At Left Front Of Engine Compartment. See Fig 10.

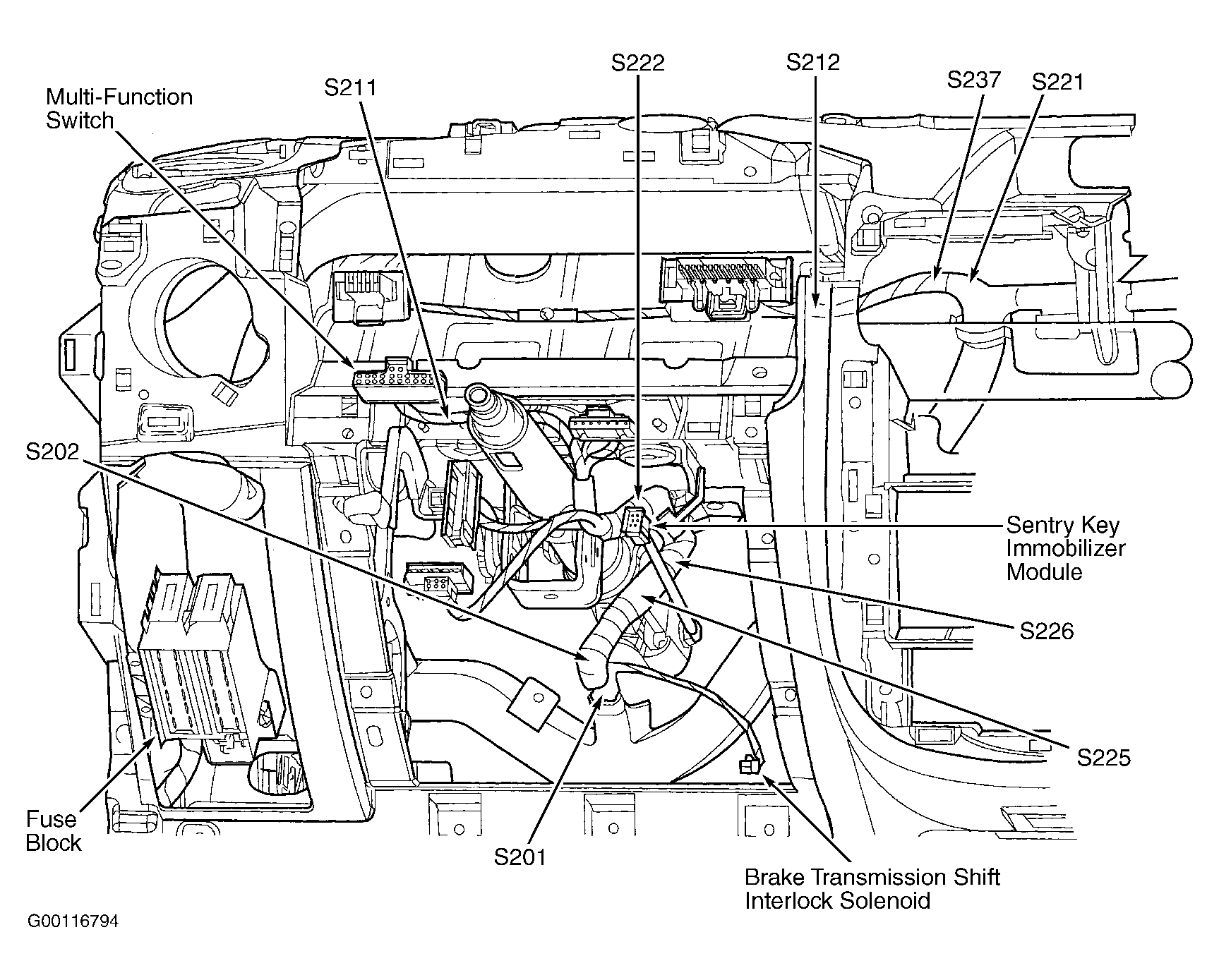

Fig 1: Locating Components At Left Side Of Dash
G00116794Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Locating Controller Anti-Lock Brake (CAB) Module
G00010943Courtesy of CHRYSLER CORP.
Fig 3: Locating DLC & EMIC
G00010944Courtesy of CHRYSLER CORP.
Fig 4: Locating Occupant Restraint Controller (ORC)
G00010945Courtesy of CHRYSLER CORP.

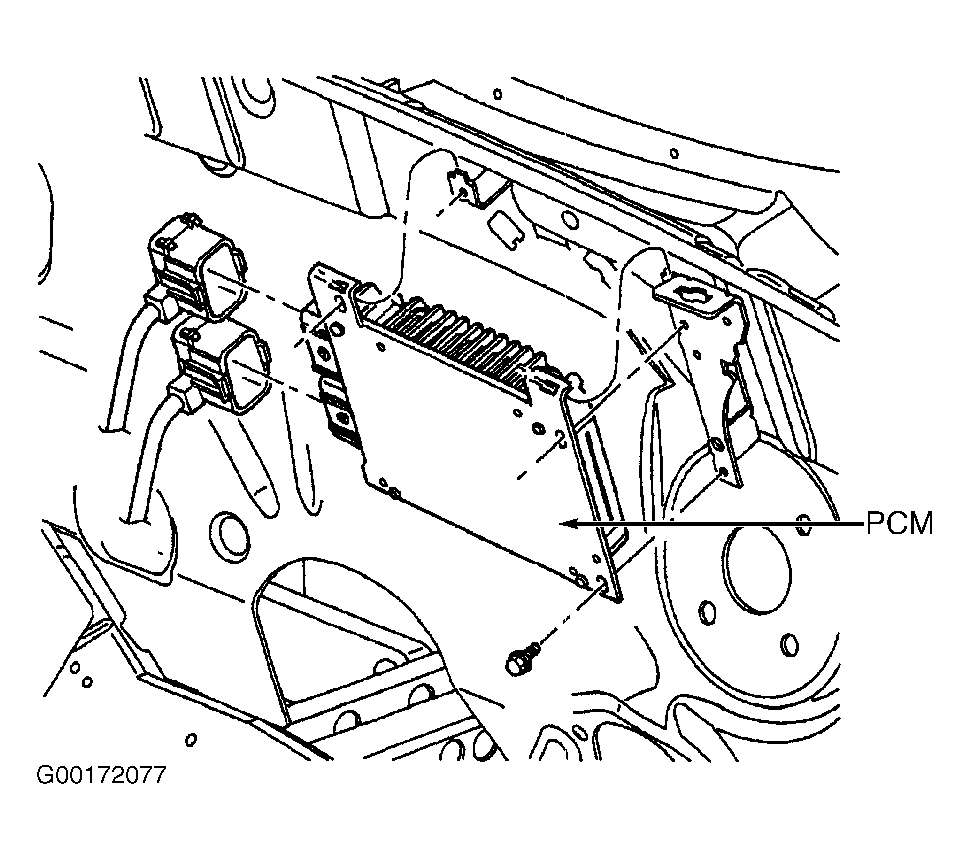

Fig 5: Locating Powertrain Control Module (PCM)
G00172077Courtesy of CHRYSLER CORP.
Fig 6: Locating Power Distribution Center (PDC)
G00010947Courtesy of CHRYSLER CORP.
Fig 7: Locating Remote Keyless Entry (RKE) Module
G00010948Courtesy of CHRYSLER CORP.
Fig 8: Locating Sentry Key Immobilizer Module (SKIM)
G00010949Courtesy of CHRYSLER CORP.
Fig 9: Locating Left Side Impact Air Bag Control Module (SIACM), Right Side Is Similar
G00010950Courtesy of CHRYSLER CORP.
Fig 10: Locating Transmission Control Module (TCM)
G00010951Courtesy of CHRYSLER CORP.
