Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

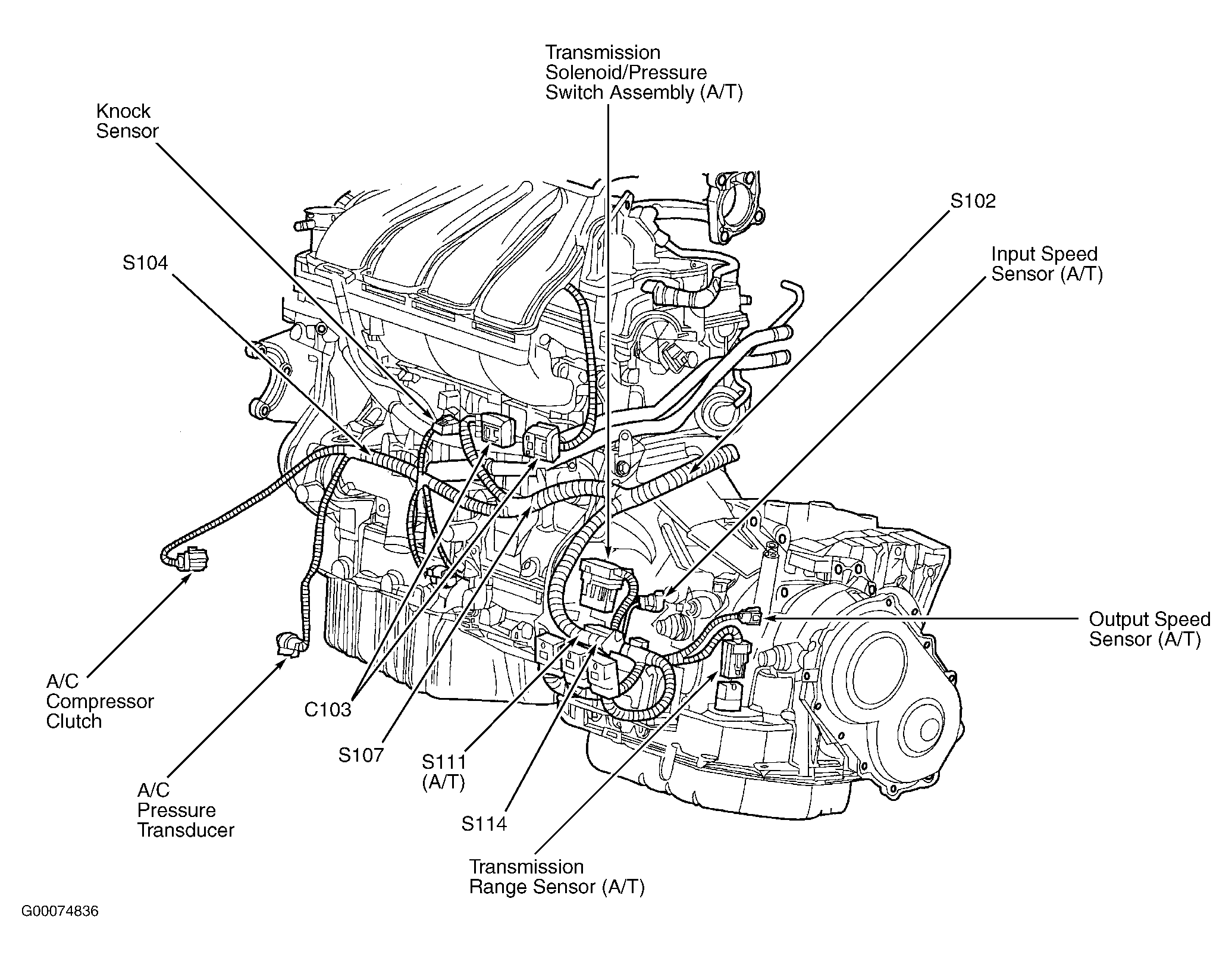

Fig 1: Right Side Of Engine/Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

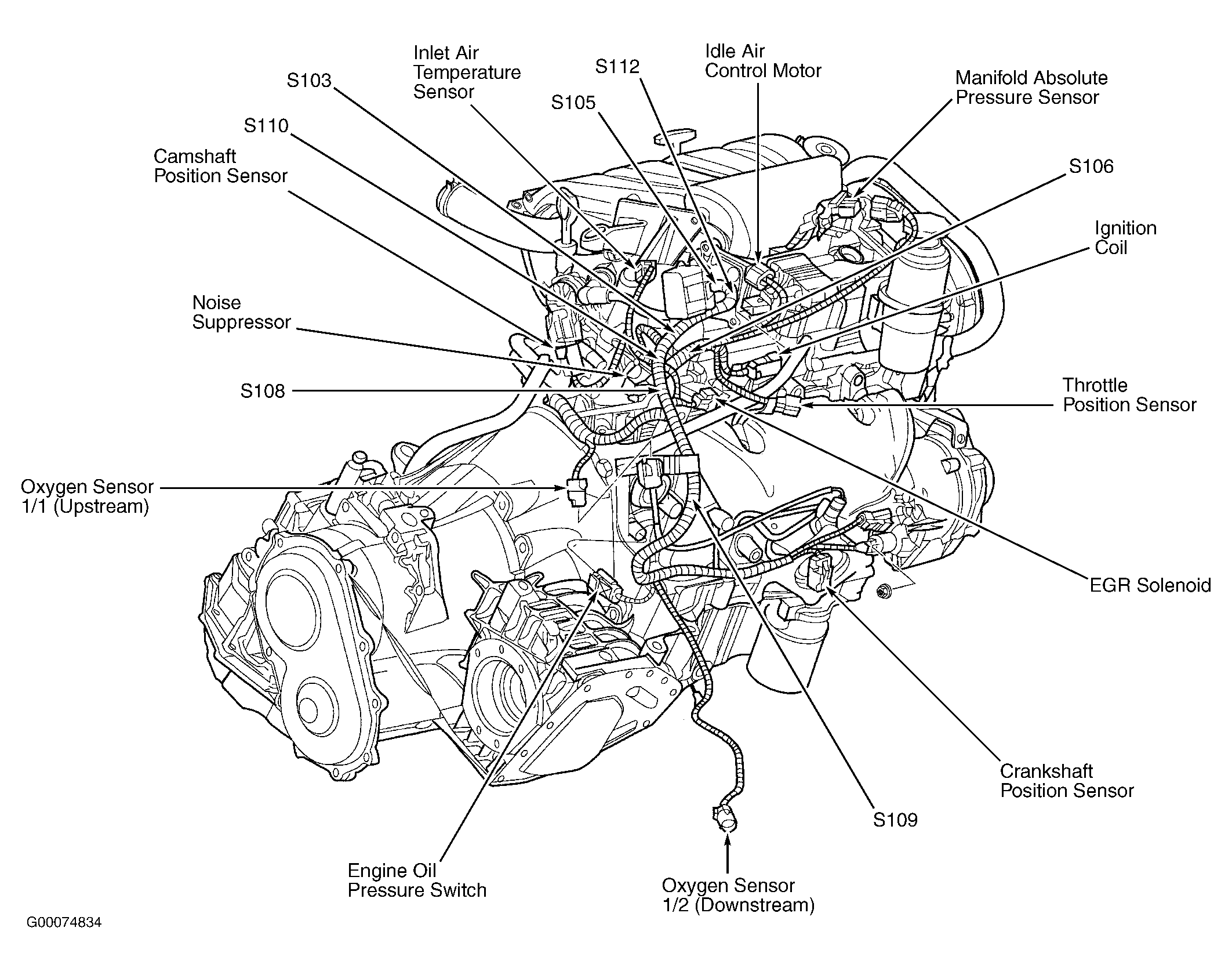

Fig 2: Left Side Of Engine/Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Left Side Of Dash

Courtesy of DAIMLERCHRYSLER CORP.

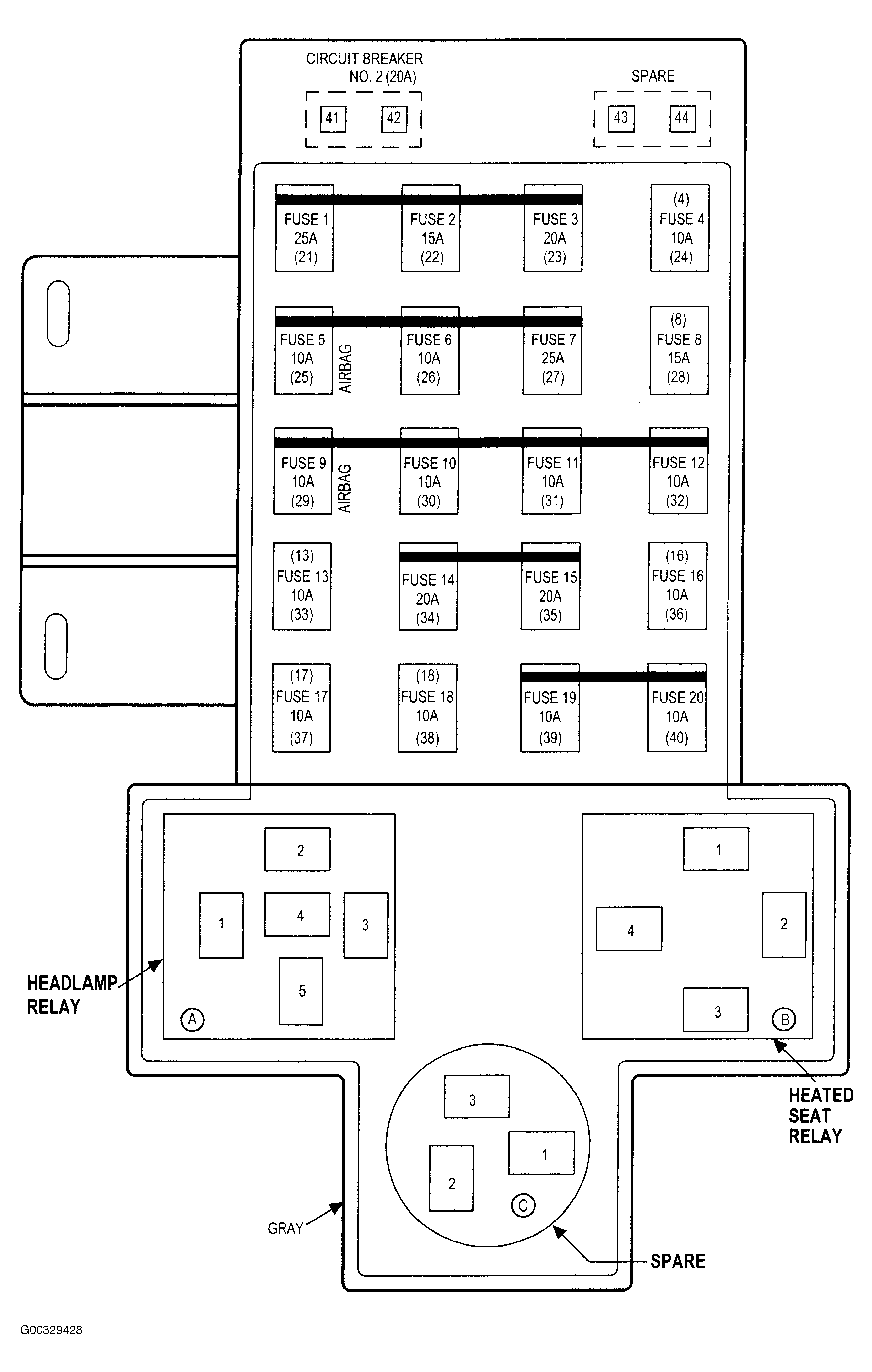

Fig 5: Fuse Block

Courtesy of DAIMLERCHRYSLER CORP.

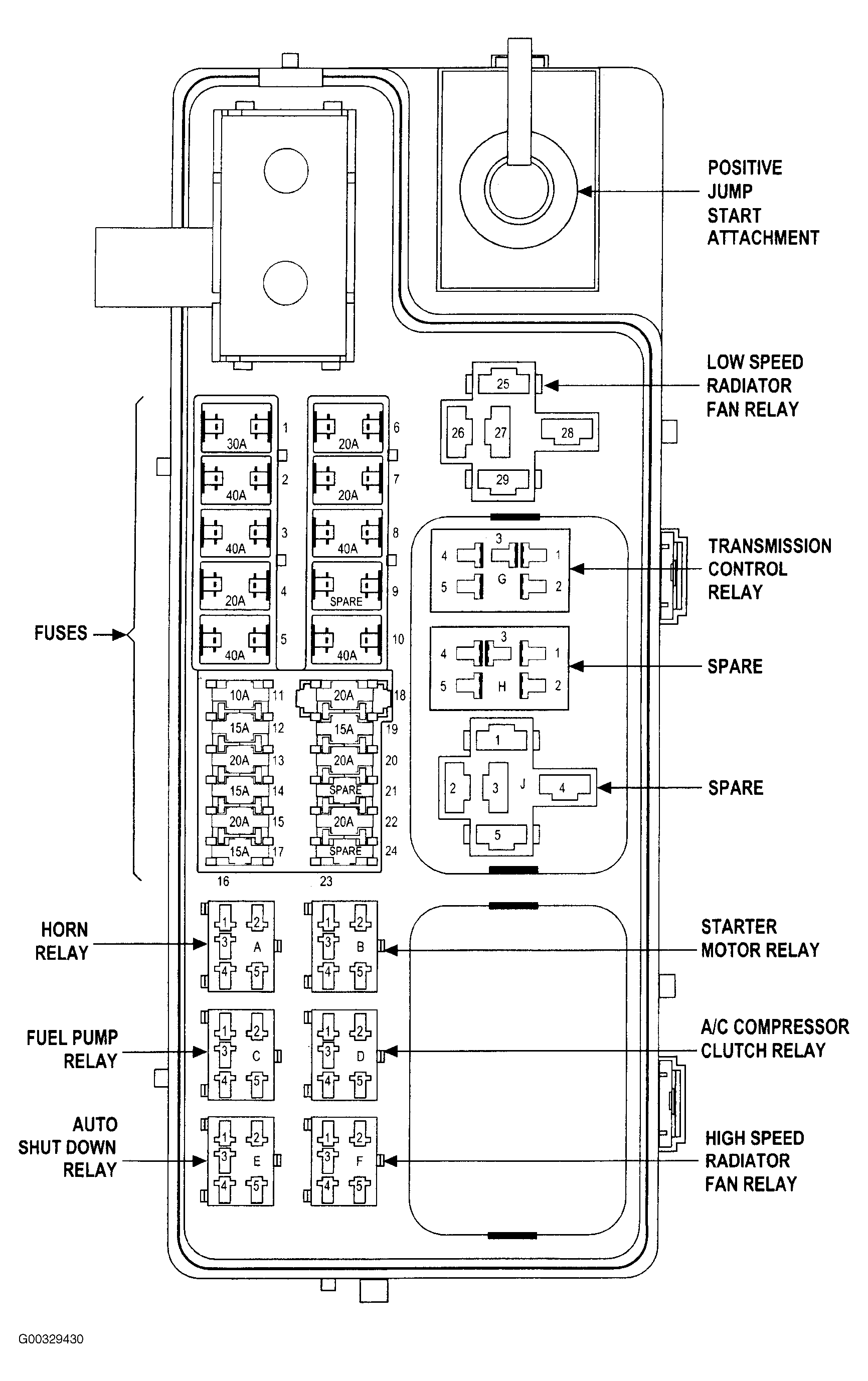

Fig 6: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
