Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
Fuel Injector Harness Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Injector Harness Connector End View

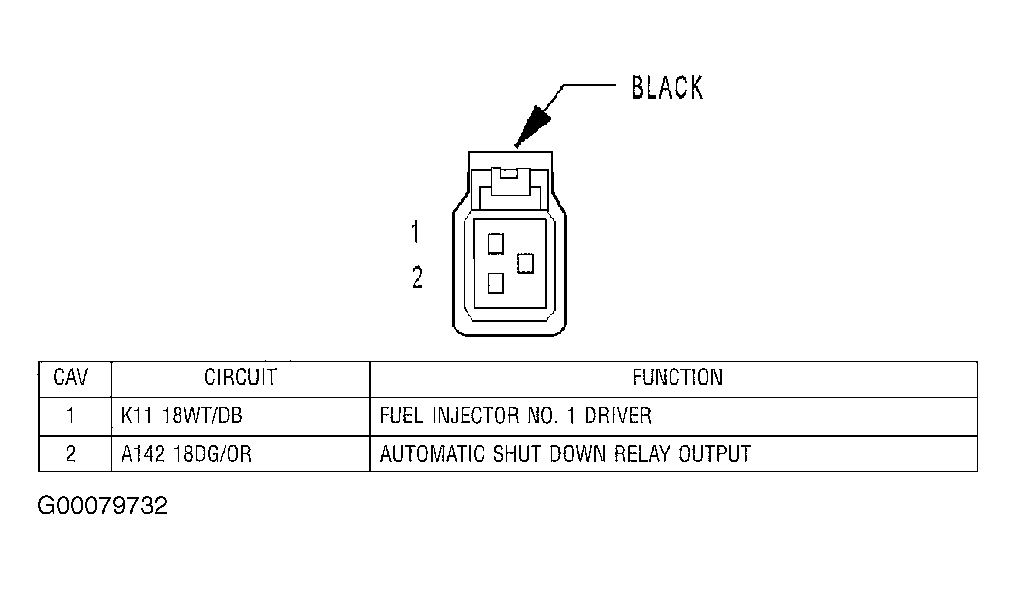

Fig 1: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION

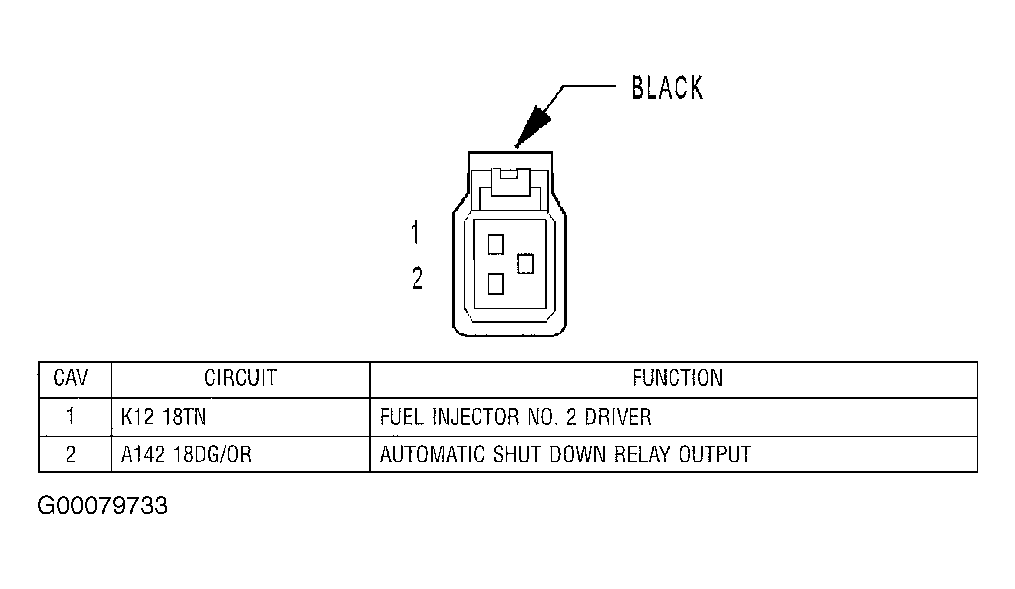

Fig 2: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION

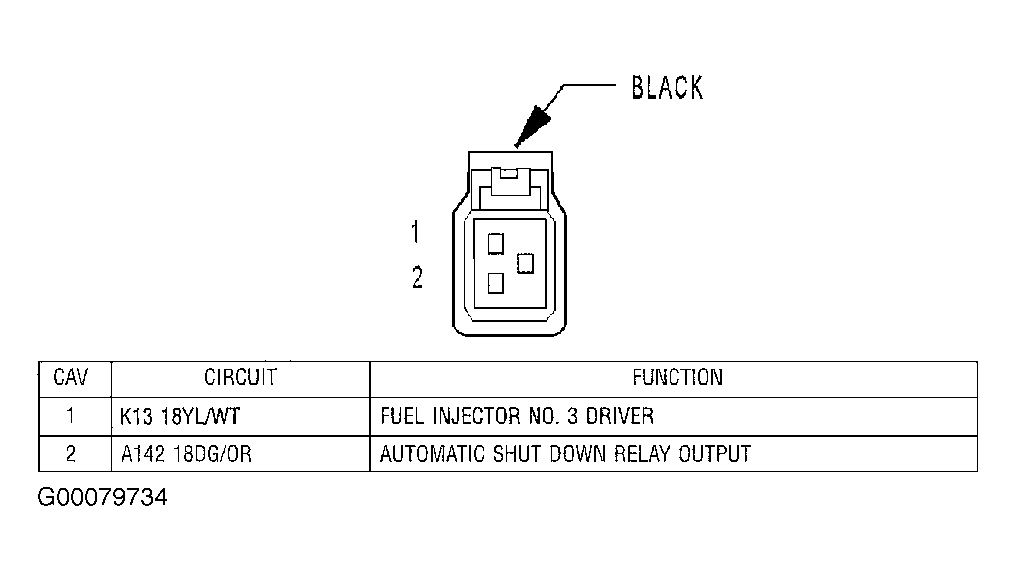

Fig 3: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION

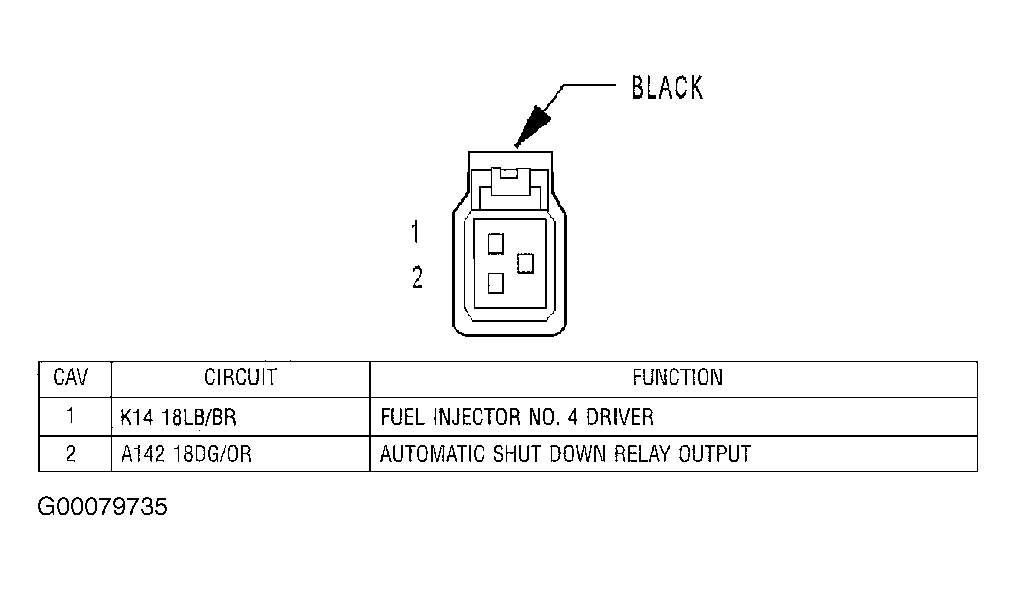

Fig 4: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
