TCM Harness Connector End View

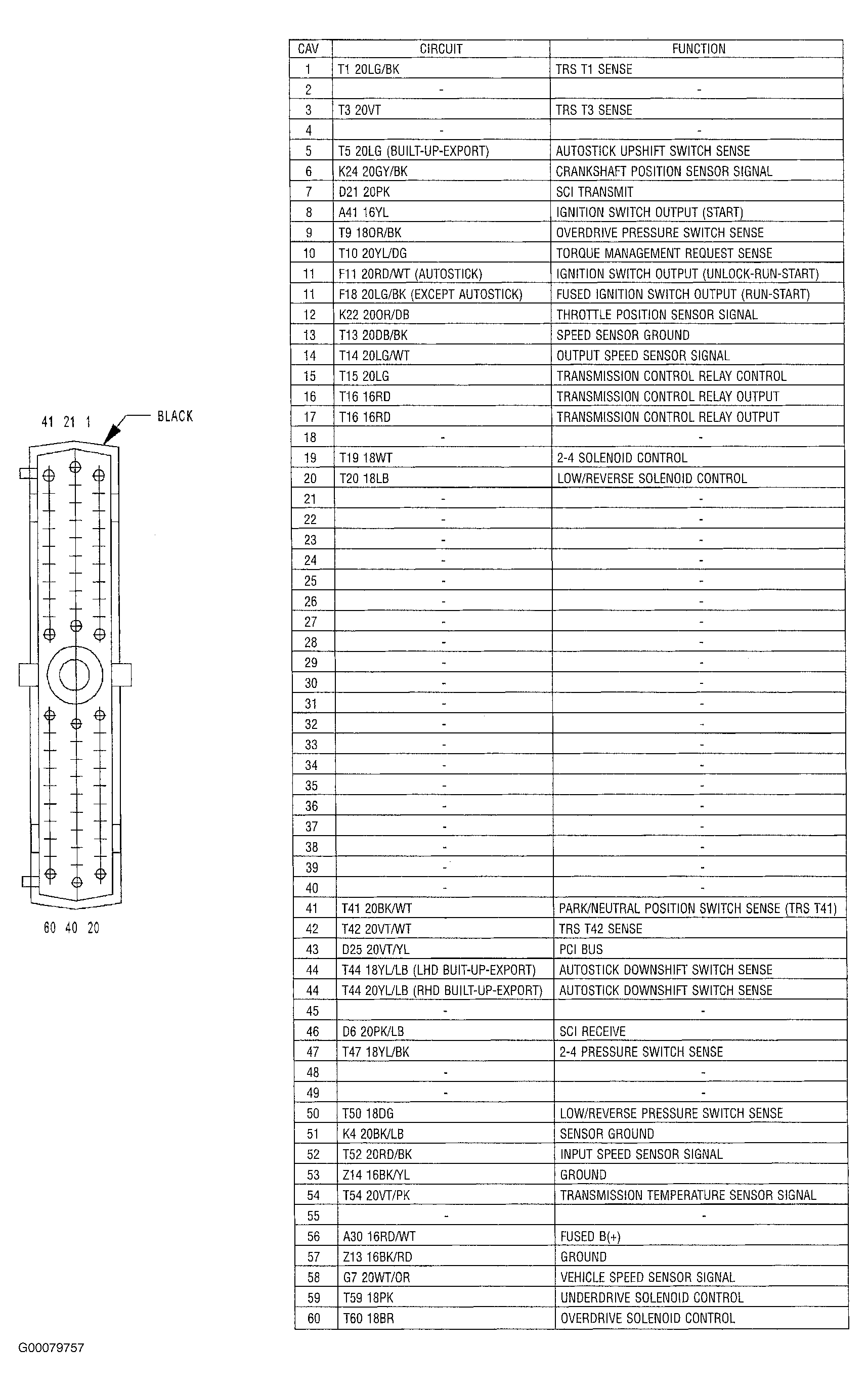

Fig 1: TCM Harness Connector Terminal Identification
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
