Vehicle Speed Sensor Connector End View (M/T)

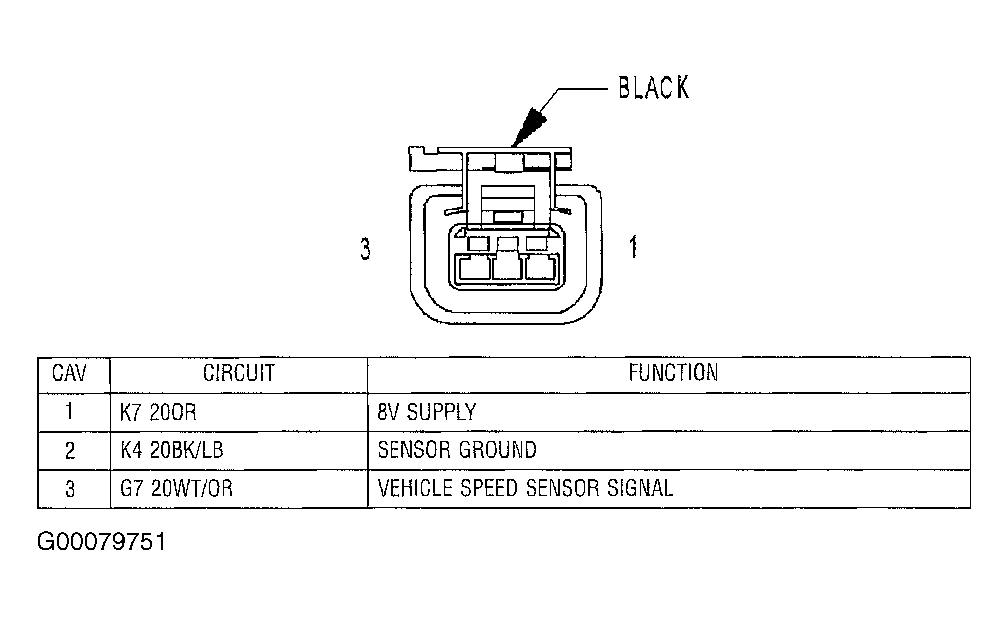

Fig 1: Identifying Vehicle Speed Sensor Terminals (M/T)
G00079751Courtesy of DAIMLERCHRYSLER CORPORATION
