Intrusion Sensor Cannot Be Disabled (Export Only)

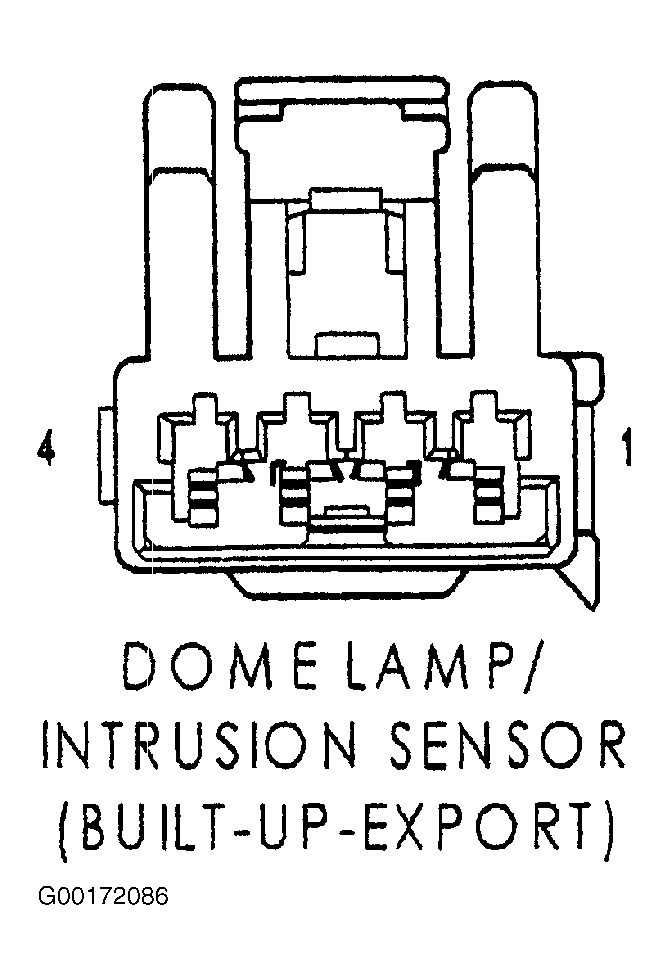

Disconnect the intrusion sensor connector. See Figure. Measure the voltage between the intrusion sensor signal circuit and ground. If the voltage is above 10 volts, replace the intrusion sensor, then see VTSS VERIFICATION TEST  under VERIFICATION TESTS. If the voltage is below 10 volts, replace the remote keyless entry module, then see BODY VERIFICATION TEST  under VERIFICATION TESTS.
