Window Switch: Removal

  1. Disconnect and isolate thee battery negative cable.
  2. Using a trim stick (special tool #C-4755), place it underneath the front lip of the switch bezel and depress the front clip (Fig 1 ). Pry the switch bezel up to release it from the trim panel.

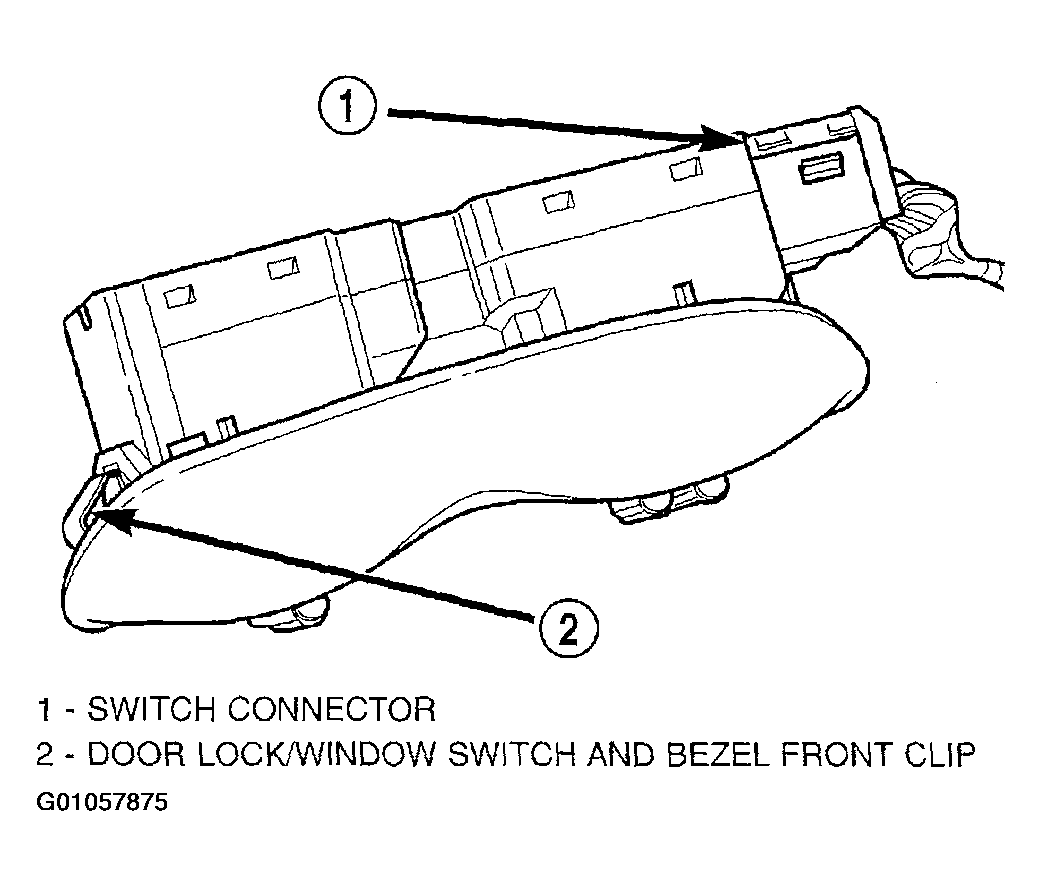

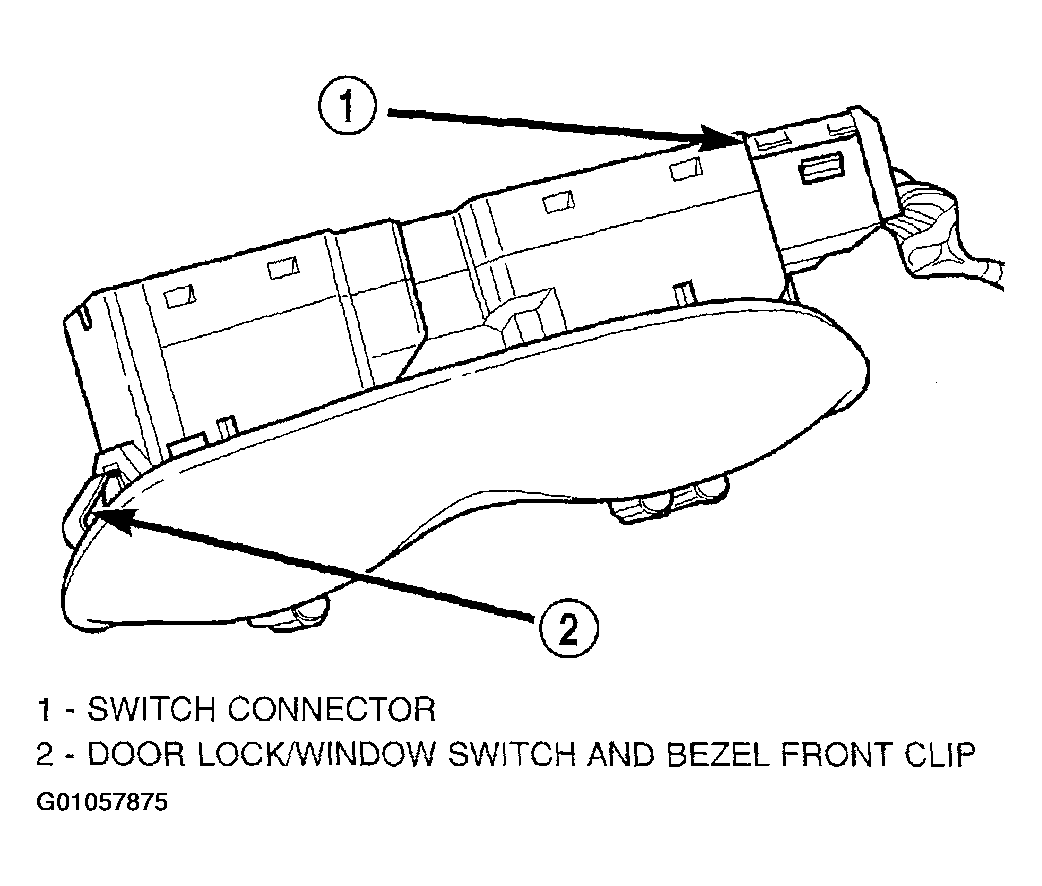

    Fig 1: Locating Door Lock/Window Switch And Bezel
    G01057875Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the switch connector.
